Keeping Reservation Capacity Correct Under Concurrent Requests

3D miniature workbench where reservation request queues and a Redis advisory gate flow into a PostgreSQL capacity counter — Redis reduces contention at the front. PostgreSQL decides who actually gets the last available slot.

2026-07-20 · bluetape4k-workshop · Reservation control plane

One reservation slot remains. Two users open the screen at almost the same time and both see available = 1. One request may time out before the response and retry the same command. A hold may expire while the waitlist worker starts offering the slot to the next user. Redis may be unavailable at exactly the wrong time.

The commerce/reservation-control-plane example in bluetape4k-workshop draws the boundary this way:

PostgreSQL is the final authority for capacity, state transitions, ownership, and idempotent responses.
A node-local bulkhead prevents one instance from consuming too many JDBC connections.
Redis semaphores and locks reduce contention and duplicate in-flight work before requests reach PostgreSQL.
Redis failure never bypasses the PostgreSQL checks.

First See the Whole Flow

The example is a control plane, not a Redis-only counter. Redis can reject some excess load early, but the mutation that changes capacity is still a PostgreSQL transaction. That keeps concurrency, retry, waitlist, and expiry rules under one durable authority.

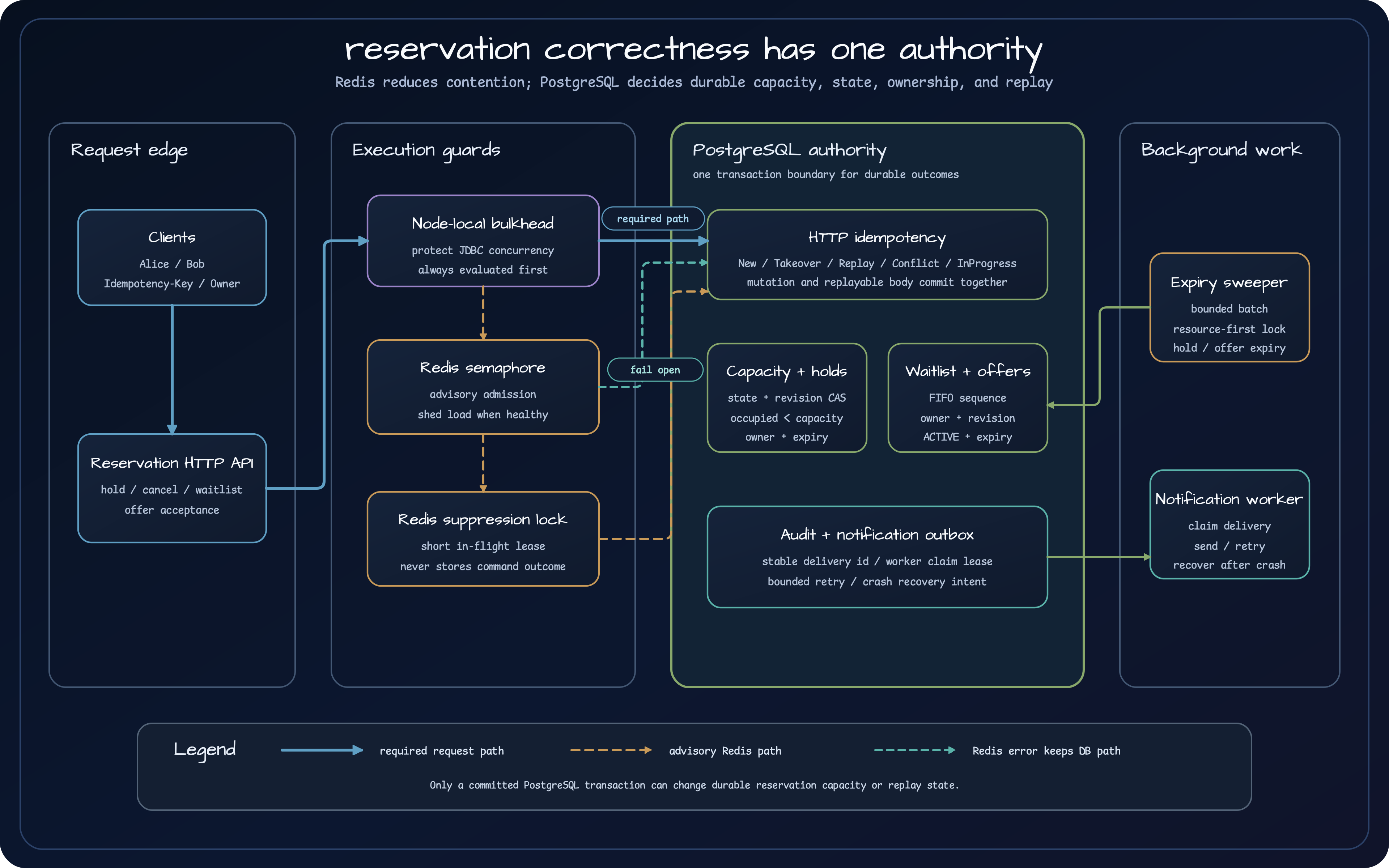

Dark architecture diagram showing the responsibility boundaries between clients, the Reservation HTTP API, node-local bulkheads, Redis advisory controls, PostgreSQL final authority, and background workers — Redis reduces contention at the advisory boundary; PostgreSQL makes the final decision for capacity, state, ownership, and replayable responses.

Protect the Last Slot with One Conditional Update

The final capacity decrement is a conditional database update. The command succeeds only if the resource is active, capacity remains, and the expected revision still matches.

val updated = CapacityResourceTable.update({
    (CapacityResourceTable.id eq resourceId) and
        (CapacityResourceTable.available greater 0) and
        (CapacityResourceTable.revision eq expectedRevision)
}) {
    it[available] = available - 1
    it[revision] = revision + 1
}

If the update count is zero, the command did not win the last slot. The application should not “repair” that with a Redis value. PostgreSQL already made the authoritative decision.

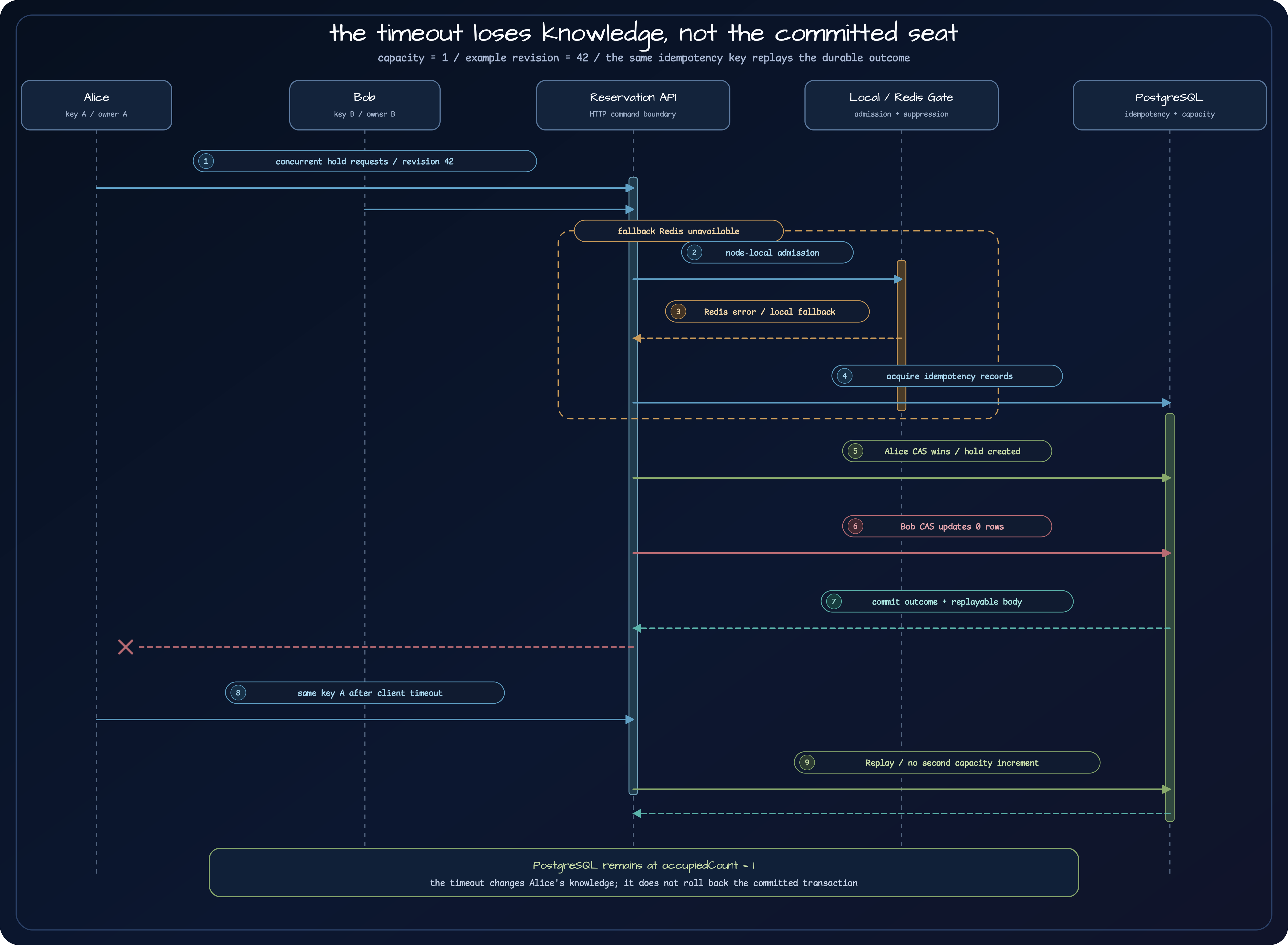

Dark sequence diagram showing Alice and Bob racing for the last slot, local fallback when Redis fails, a PostgreSQL conditional update, timeout, retry with the same idempotency key, and replay — A timeout changes when the client learns the result; it does not undo the committed database result. Retrying with the same key replays the stored response without increasing capacity again.

Cancellation Does Not Always Release Capacity Immediately

Cancellation is not a single boolean state. The control plane has several objects with different ownership checks.

Object	Role	Check on the next transition
hold	occupies capacity for a limited time	owner, state, revision, policy version, expiry
waitlist entry	waits FIFO for a slot	owner, `WAITING` state, sequence
offer	temporarily offers the slot to one waiter	owner, `ACTIVE` state, revision, expiry

WaitlistCommandService locks the resource row before reading waitlist and offer state. Knowing an offer URL is not enough to accept another user’s slot; the owner digest, state, expiry, and revision still have to match.

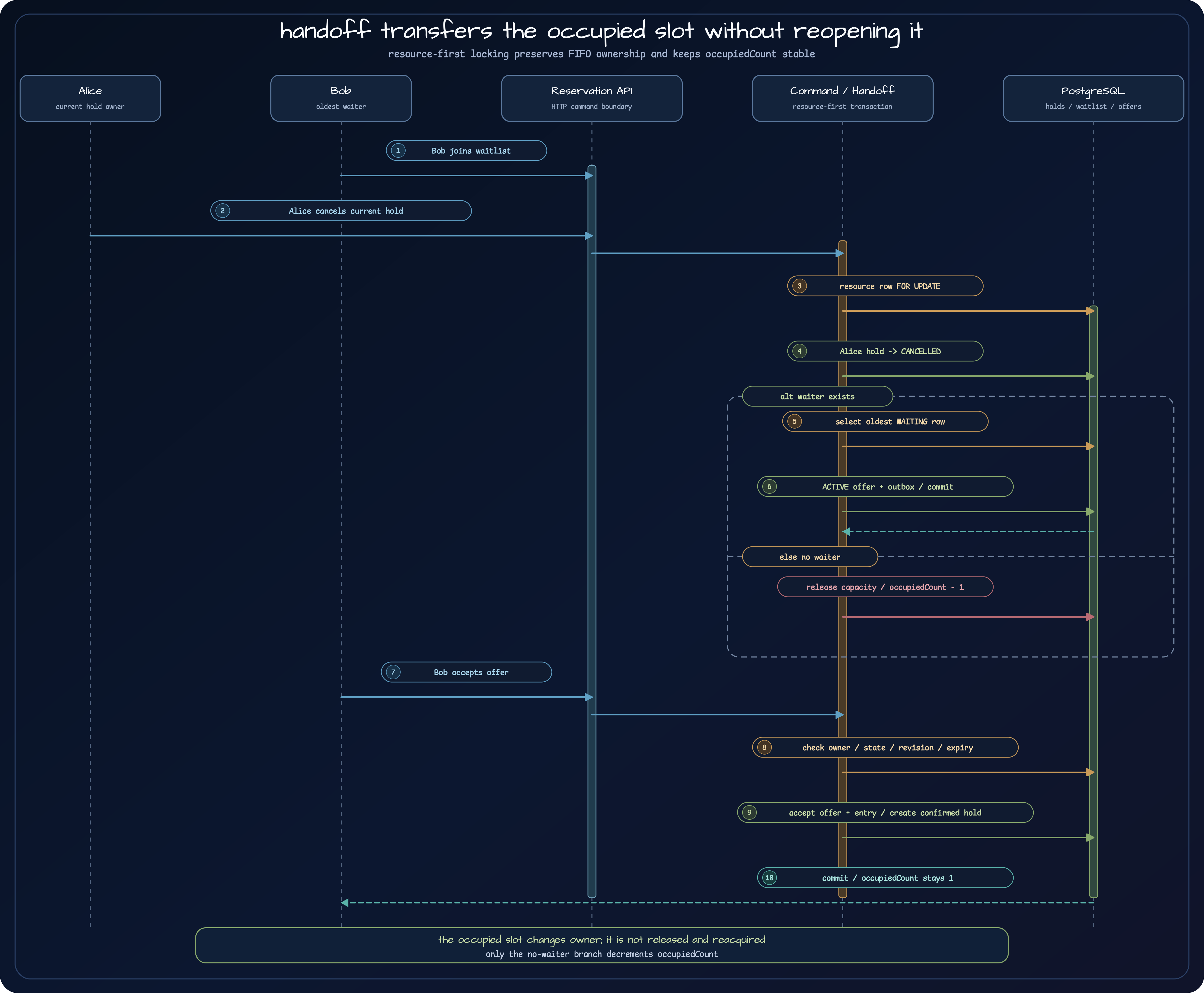

Dark sequence diagram showing Alice canceling a hold, resource row locking, FIFO offer creation for Bob, ownership validation, and conversion to a confirmed hold — The occupied slot is handed from Alice to Bob instead of being released and reacquired. `occupiedCount` decreases only when no waiter is available.

Replay and Conflict Are Different Idempotency Results

HttpIdempotencyRepository.acquire() separates retry outcomes.

Result	Meaning	HTTP boundary behavior
`New`	first command in this scope	execute the command and store the response
`Takeover`	previous processing lease expired	CAS owner token and deadline, then run again
`Replay`	response is already stored	replay the original status/body and return `Idempotency-Replayed: true`
`FingerprintConflict`	same key with a different request	return `409 Conflict`
`InProgress`	another owner is still processing	do not duplicate execution; return a retryable response

IdempotentReservationCommandService.execute() stores the mutation and the replayable HTTP body in the same PostgreSQL transaction. That narrows the gap where a reservation exists but the retry response does not.

Redis Failure Does Not Remove the PostgreSQL Rule

Redis is useful in front of PostgreSQL, but it is not the authority.

Boundary	Role	On failure
node-local bulkhead	limits concurrent JDBC work	reject when foreground permits are exhausted
Redis semaphore	advisory distributed admission	fallback locally on Redis errors; reject early when no permit is available
Redis lock	short duplicate in-flight suppression	fall back to PostgreSQL idempotency rows on Redis errors
PostgreSQL	final authority for capacity, state, ownership, and response	fail the command; never mutate only in Redis

ReservationAdmissionGate always passes through the local bulkhead first. If Redis throws, the result is LOCAL_FALLBACK and PostgreSQL work continues. That is different from a healthy Redis semaphore saying no permit is available.

InFlightCommandSuppressor blocks short duplicate execution when Redis locks are available. If Redis is broken, it does not drop the command; it lets the PostgreSQL idempotency row decide.

What Tests Prove

ReservationWebIntegrationTest starts a real PostgreSQL server and calls the running HTTP server with WebTestClient.

Only One Request Gets the Last Slot

The concurrent request test proves that one request wins the final capacity update and the other request is rejected or moved into the non-winning path. The proof needs PostgreSQL, not mocks, because the conditional update and transaction isolation are the contract.

Same Command Replays, Different Command Conflicts

The idempotency tests separate New, Replay, FingerprintConflict, InProgress, and Takeover. The important edge is that the same idempotency key cannot be reused for a different fingerprint.

Cancellation Can Promote the First Waiter

When a hold is cancelled or expires and a waitlist entry exists, the resource transaction can create an offer for the first waiting owner instead of immediately returning capacity to the public pool.

The API Boots Without Redis

RedisUnavailableBootIntegrationTest starts the application with an unreachable Redis URI. PostgreSQL APIs still boot because Redis is advisory.

Expiry and Notifications Are Still Bounded Work

ReservationResourceTransactionServiceTest, ReservationExpirySweeperTest, and NotificationOutboxTest cover expired holds/offers, leader-owned sweeper ranges, retryable notification delivery, and provider-level duplicate suppression. These tests keep background work from becoming an unbounded “try again somehow” loop.

What This Example Does Not Prove Yet

multi-region consistency under network partitions
long-duration throughput and tail latency
automatic detection and recovery of leaked Redis semaphore permits
backlog reduction after a leader sweeper has been stopped for a long time
takeover policy for IN_PROGRESS idempotent requests during PostgreSQL failover
SLOs, alert thresholds, and dashboards
binding X-Reservation-Owner to real user/service authentication
a dedicated worker for a real notification provider

Confirmation Happens Only After PostgreSQL Commit

The example’s rule is simple: Redis can help before the transaction, and workers can notify after it, but reservation confirmation is a PostgreSQL commit boundary. That is what keeps retries, waitlists, expiry, and Redis failure from turning capacity into an advisory guess.
