Separate Detection Facts from Processing Policy: The Boundary Between Facts, Actions, and Review

2026-08-10 · Image Intelligence API · Part 4

Suppose a visitor-pass image contains exactly one detected face. Is that enough to show the original image? Should the preview blur the face, should the original move to a quarantined area, or should a person review it first?

A face detection does not answer those questions. A detector reports what it observed in the image. Processing policy interprets those facts in the context of business risk and input state. If both responsibilities are mixed into one class or one result field, changing the model forces a policy rewrite, and changing the policy destabilizes the analysis contract.

This article follows the visitor-pass scenario in the bluetape4k-image Spring Boot Image Intelligence API. Instead of repeating the OCR Completed, Empty, Unavailable, and Failed states from Part 3, it focuses on the boundary required when that response’s detection result enters visitor-pass policy.

The rule is simple: the detector preserves facts, policy selects an action, and the application owns rendering, storage, rejection, and manual-review side effects.

A detector returns facts, not treatment commands

The integrated example’s detection boundary is ImageDetector. Given an image and DetectionOptions, it returns a list of DetectionResult values.

fun interface ImageDetector {
    fun detect(image: ImmutableImage, options: DetectionOptions): List<DetectionResult>
}

The adapter may be a deterministic fake, a native-runtime or remote service, or a model-backed implementation. The core image module does not bundle a particular ML runtime or model manifest.

A single detection can be represented like this:

DetectionResult(
    label = "face",
    category = DetectionCategory.FACE,
    confidence = 0.96,
    detector = DetectorIdentity(name = "fixture-detector"),
    region = faceRegion,
)

The fields communicate the following facts:

Field	Meaning
label	A stable label exposed to callers
category	A common category such as FACE, PERSON, OBJECT, TEXT, LOGO, LANDMARK, or SENSITIVE_REGION
confidence	The 0.0..1.0 probability value reported by the detector
detector	Adapter or model-family name, with optional version and backend metadata
region	Optional rectangle, polygon, polyline, or raster-mask geometry
rawBackendLabel	The label returned by the backend
metadata	Runtime-neutral string metadata

region can use original-pixel coordinates or normalized 0.0..1.0 coordinates. The mapping preserves the original backend label while exposing a stable category, so applications can apply policy without parsing provider-specific strings.

The important detail is what this model does not contain: a treatment command. DetectionResult says that a face was reported in a region with a confidence value. It does not choose among BLUR, MOSAIC, REJECT, QUARANTINE, and MANUAL_REVIEW. The comments in ImageDetection.kt keep detection facts and treatment actions as separate responsibilities.

Confidence is not a verdict

DetectionOptions is a deterministic filter for selecting detection results.

val options = DetectionOptions(
    minimumConfidence = 0.80,
    categories = setOf(DetectionCategory.FACE),
    labels = setOf("face"),
)

val faces = image.detectRegions(detector, options)

It removes results below minimumConfidence and can apply category and label conditions. This is a boundary that narrows the result set requested by the caller; it is not a guarantee of detector accuracy.

Two error modes still remain:

• False positive: a non-face region can be reported as a face.
• False negative: an actual face or sensitive region can be missed.

The same 0.80 threshold carries different risk for a visitor-pass preview, original-image storage, and an access approval path. Application policy must therefore decide the threshold, whether to request a new capture, when to require a second person, and which fallback is conservative. Returning confidence does not automatically grant approval.

The detection module verifies confidence, category, and label filters plus pixel/normalized geometry conversion in ImageDetectionTest.kt. Those tests prove the filter and coordinate-conversion contracts, not the real-world accuracy of a particular ML model or the risk level of a business route.

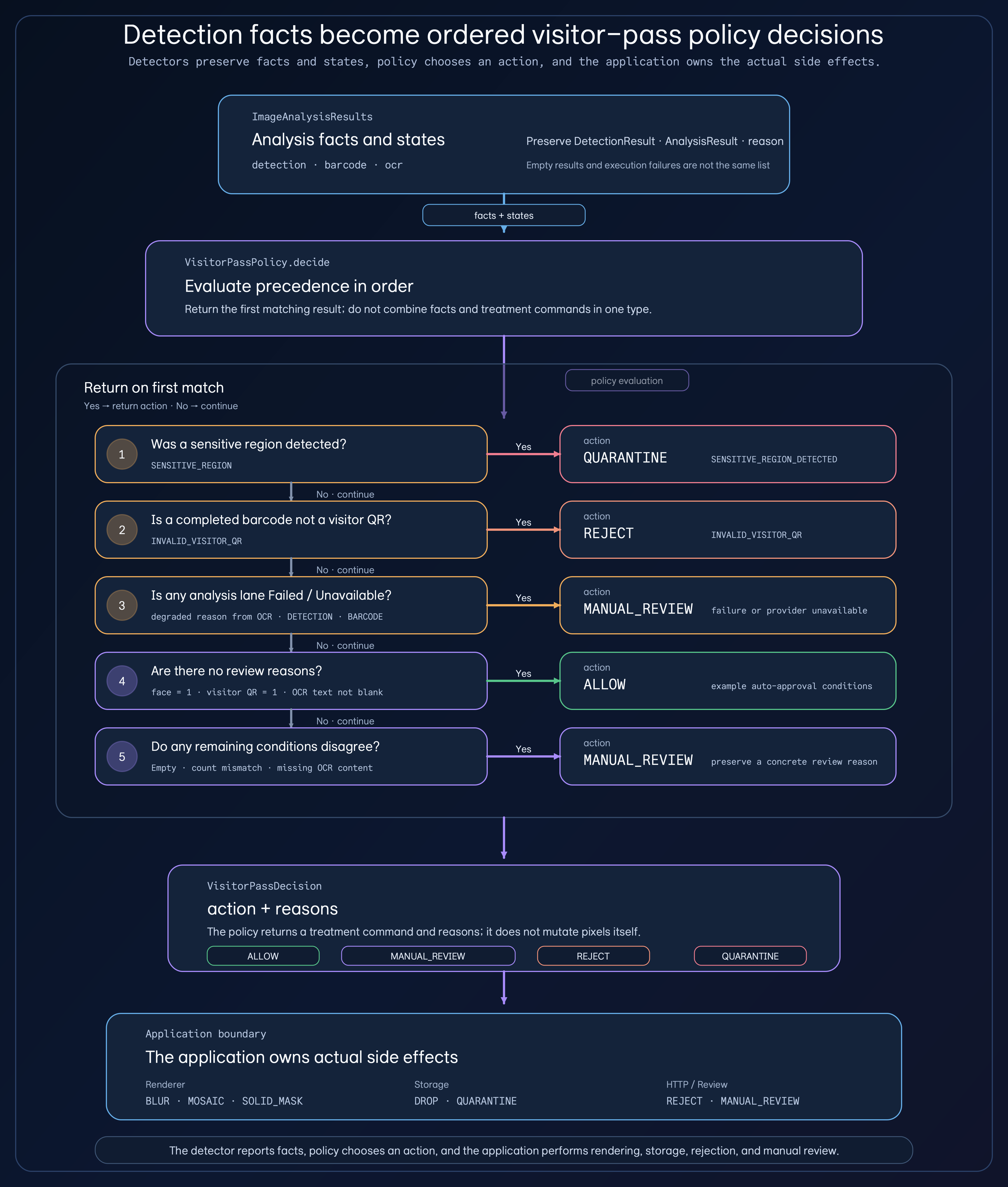

VisitorPassPolicy turns facts into a business decision

The visitor-pass example sends OCR, detection, and barcode results to VisitorPassPolicy after all analysis paths have reported their states. The policy is a separate stage in the integrated service, not part of an analysis adapter.

Its example decision order is:

Condition checked first	Example action	Reason
SENSITIVE_REGION detected	QUARANTINE	Classify input containing a sensitive region as requiring isolation.
A completed barcode is not a visitor QR	REJECT	Reject a value that violates the visitor-pass identifier contract.
OCR, detection, or barcode is Failed or Unavailable	MANUAL_REVIEW	Do not auto-approve when facts are missing or a provider is unavailable.
Exactly one face, exactly one visitor QR, and valid OCR	ALLOW	All example conditions for automatic approval are satisfied.
Any other empty result or count mismatch	MANUAL_REVIEW	Leave the case for review instead of declaring that the detector was wrong.

The precedence can be reduced to this core path:

val detections = results.detection.completedValue().orEmpty()
if (detections.any { it.category == DetectionCategory.SENSITIVE_REGION }) {
    return decision(VisitorPassAction.QUARANTINE, "SENSITIVE_REGION_DETECTED")
}

val barcodes = results.barcode.completedValue().orEmpty()
if (results.barcode is AnalysisResult.Completed && barcodes.any { !it.isVisitorQr() }) {
    return decision(VisitorPassAction.REJECT, "INVALID_VISITOR_QR")
}

val degradedReasons = buildList {
    addDegradedReason(results.ocr, "OCR")
    addDegradedReason(results.detection, "DETECTION")
    addDegradedReason(results.barcode, "BARCODE")
}
if (degradedReasons.isNotEmpty()) {
    return VisitorPassDecision(VisitorPassAction.MANUAL_REVIEW, degradedReasons)
}

If the face count, visitor-QR count, and OCR content all satisfy the final conditions, the policy returns ALLOW. Otherwise it returns MANUAL_REVIEW with specific reasons. This order is a rule for the visitor-pass example, not a universal policy to copy into address masking for shipping labels or mandatory-display checks for product labels.

See the complete implementation in VisitorPassPolicy.kt.

Do not collapse Empty and Failed into the same empty list

An empty detection result and a detector that could not produce a result are different facts.

Detection state	Actual meaning	Example visitor-pass reason
Completed + empty list	The detector ran but found no target	FACE_COUNT_REQUIRES_REVIEW
Failed	A timeout or provider exception prevented a result	DETECTION_FAILED
Unavailable	The detector provider is not configured or cannot be used	DETECTION_UNAVAILABLE

Policy returns an action and reasons on the first matching condition. Rendering, storage, HTTP rejection, and the manual-review queue belong to the application boundary that consumes the result.

If both states serialize as regions: [], policy cannot distinguish “no face was found” from “the face could not be checked.” The example tests pin that difference directly:

val empty = policy.decide(results(detection = empty("detector")))
val failed = policy.decide(results(detection = failed("detector")))

empty.reasons shouldBeEqualTo listOf("FACE_COUNT_REQUIRES_REVIEW")
failed.reasons shouldBeEqualTo listOf("DETECTION_FAILED")

If OCR or barcode fails, the detection results already obtained are not discarded. This connects to the integrated contract from Part 3 and the parallel-failure contract planned for Part 6. Policy is not recovering a partial result here; it is reading the preserved state as an input to a business decision.

Blur, mosaic, reject, quarantine, and manual review are action contracts

The moderation model in bluetape4k-images provides a separate contract between detector facts and treatment actions. Representative actions that policy can select include:

SensitiveTreatmentAction.ALLOW
SensitiveTreatmentAction.MOSAIC
SensitiveTreatmentAction.BLUR
SensitiveTreatmentAction.SOLID_MASK
SensitiveTreatmentAction.DROP
SensitiveTreatmentAction.REJECT
SensitiveTreatmentAction.QUARANTINE
SensitiveTreatmentAction.MANUAL_REVIEW

BLUR does not mean that pixels have already been blurred. It is a decision that the policy selected blur treatment. SensitiveTreatmentParameters can carry renderer-neutral values such as blurRadius, blurSigma, mosaicBlockSize, maskOpacity, reviewPriority, and rejectReason.

SensitiveTreatmentParameters(
    blurRadius = 12.0,
    blurSigma = 3.0,
    metadata = mapOf("renderer" to "local-blur"),
)

The policy module does not run detector inference or render pixels. After it selects BLUR, the application boundary must decide which renderer to call, where to store the original, which HTTP contract represents REJECT, and what metadata enters the manual-review queue.

SensitiveModerationPolicy selects the first matching rule for each detection. When several decisions exist, it records the result selected by action precedence, level, and confidence in the report. For an unknown category or a category with no matching rule, the failClosed factory can use a fallback rule that selects QUARANTINE.

That fail-closed fallback is not a global default every service must adopt. The application must make explicit, based on data classification and route risk, which inputs are isolated automatically, sent to manual review, or returned for a new capture.

Read the detailed model and policy contracts in SensitiveContentModels.kt and SensitiveContentPolicy.kt.

The provider and policy do not need to ship together

The integrated example’s demo profile uses fixture providers with fixed OCR and detection results, while the QR path runs the real ZXing provider. The purpose is not to imitate an ML model. It is to reproduce these boundaries:

• Passing the same ImmutableImage to each provider
• Preserving detector facts in the integrated response as detection.regions
• Giving VisitorPassPolicy facts and other analysis states from which to select an action
• Keeping provider absence or failure as policy input instead of hiding it

Therefore confidence = 0.99 in the demo is not a production-detector quality metric. A real application must own the ImageDetector adapter, model version, quality measurement, drift monitoring, provider timeout, and process isolation separately. Replacing a detector can preserve the policy input contract, and replacing visitor-pass policy with shipping- label policy does not require rewriting the detector runtime.

What this boundary guarantees—and what it does not

Boundary provided by the example	Decisions still owned by the application
Preserve label, category, confidence, geometry, and detector in DetectionResult	Model selection, training, accuracy targets, and drift response
Filter confidence, category, and label with DetectionOptions	Threshold tuning, false-positive/false-negative cost, and route risk
Convert facts to ALLOW, REJECT, QUARANTINE, or MANUAL_REVIEW in VisitorPassPolicy	Actual HTTP rejection, storage quarantine, review queue, and audit history
Return moderation actions and renderer-neutral parameters	Blur, mosaic, and mask renderers plus original-image access control
Provide reproducible tests with fake providers	Production ML runtime, GPU/native operations, and performance targets

This is why analysis results and business policy should not be combined into one type. A detector adapter owns the shape and quality of facts; policy owns how those facts become a business decision. Keeping the boundary lets model replacement, policy changes, and security review remain separate changes.

Continue the series

Part 4 explains the boundary that passes detection facts from the integrated response into business policy.

• Part 1: Extracting Multiple Signals from One Image
• Part 2: Qualify Before You Analyze
• Part 3: Connect OCR Results to the Combined Response
• Part 4: Separate Detection Facts from Processing Policy
• Part 5: A Barcode and QR Contract Unlike OCR
• Part 6: Turn Parallel Execution and Partial Failure into an API Contract
• Part 7: An Integrated Visitor-Pass Image Processing API

Part 5 will explain why QR and barcode paths have result and empty-result contracts that differ from OCR. Part 6 will narrow parallel execution, cancellation propagation, and partial-failure aggregation into one response contract.

Implementation and further reading

• Spring Boot Image Intelligence API README: the full execution path from shared input validation through three analysis paths, partial results, and visitor-pass policy
• ImageDetection.kt: ImageDetector, DetectionResult, geometry, and filtering contracts
• VisitorPassPolicy.kt: application policy that turns visitor-pass facts into actions and reasons
• VisitorPassPolicyTest.kt: sensitive-region precedence, invalid QR, degraded lane, empty versus failed detection, and allow conditions
• SensitiveContentPolicy.kt: action precedence and fail-closed fallback
• Operating an OCR service in production: native OCR and input/failure boundaries

This article is not a complete production ML detector or privacy-processing product. It is a starting point for extending the example’s facts, policy, and tests into explicit application contracts.
