[Operations 7] How Appointment Results Reach External Systems and Statistics

A 3D workbench showing an appointment outbox splitting into external consumers and a statistics projection — Record the fact owned by the appointment service once, then verify notification and statistics as separate results.

August 18, 2026 · Clinic appointment engineering journal · Delivering appointment results and operating statistics

An appointment being confirmed and the result reaching another system are not the same statement. The appointment service can commit CONFIRMED while the notification consumer is still waiting, or while the statistics projection has not applied the newest version. A delayed projection must not make the appointment service save or rewrite the appointment again.

The conclusion is simple:

Record the appointment change and its messaging intent in one transaction. Publish that committed intent through an outbox and relay. Let notification and statistics consumers use independent groups to rebuild the state they own. Absorb duplicates in a consumer inbox, and let the STAFF screen use the current appointment aggregate as its source of truth when the projection is not complete. Every failure must end at a visible Final State Decision as PROCESSED, RETRY, QUARANTINED, or REPLAY_PENDING.

The diagrams and operations screen below are synthetic mockups, not captures of real hospital metrics or patient information. The article keeps the current implementation, approved design, and production rollout evidence separate.

Record the appointment change and intent in one transaction

Calling an external system directly while changing an appointment puts network I/O inside the appointment’s atomicity boundary. An external timeout can then delay the appointment commit, and a retry can deliver the same result twice.

The current design records the appointment change and the delivery intent in the same database transaction:

The appointment service validates the state change, authorization, and clinic scope.
It changes the appointment aggregate and writes a minimal row to scheduling_outbox_events.
The row keeps an immutable eventId, an eventVersion, aggregate identifiers, and the metadata required for redelivery.
Only after commit does a separate relay call the message broker.

An application restart immediately after commit therefore leaves both the appointment fact and the delivery intent durable. A paused relay does not cancel the appointment or rewrite the aggregate. The relay owns delivery of an already-committed intent; the appointment service owns preservation of the appointment fact.

Turn a commit into a deliverable fact with the outbox

The outbox is not a log of things that might be published someday. It is a delivery intent committed with the appointment transaction. The relay conditionally claims expired work with a lease and fencing information, then publishes to Kafka. Kafka I/O stays outside the database transaction, so broker latency does not hold the appointment command open.

This boundary does not promise exactly-once delivery. If the relay stops after publishing but before receiving a response, the same immutable eventId can be published again. The contract is instead:

use lease and fencing to limit concurrent workers for one outbox row;
include eventId and eventVersion so a redelivery can be identified;
treat duplicates as normal input and apply them once inside the inbox and handler transaction; and
keep the broker, schema registry, and production SLO evidence in rollout-pending status until the real environment is verified.

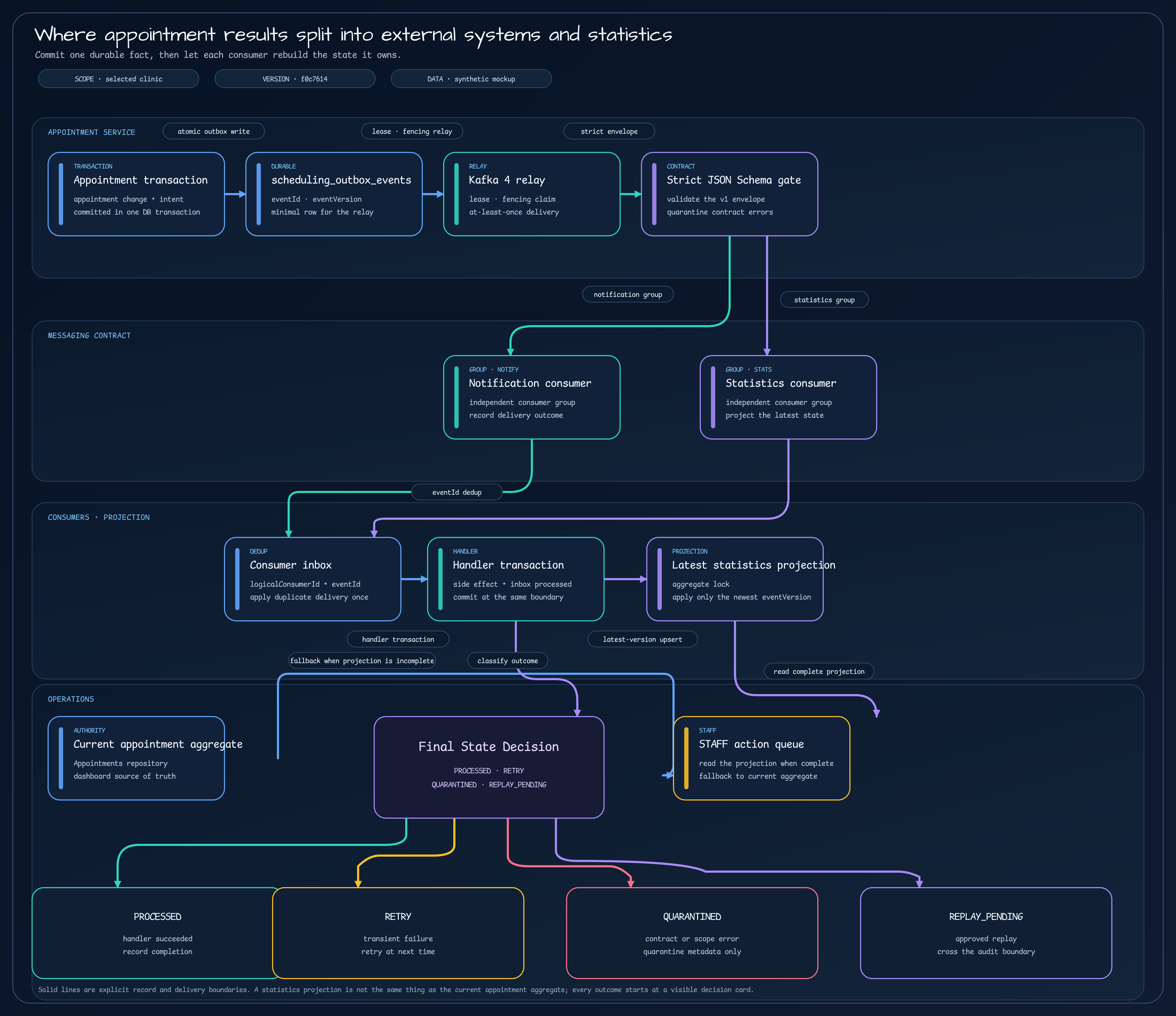

An architecture flow from an appointment transaction to scheduling_outbox_events, Kafka relay, strict JSON Schema gate, independent notification and statistics consumers, consumer inbox, handler transaction, latest statistics projection, current appointment aggregate, STAFF action queue, Final State Decision, and four outcomes — The notification and statistics consumers are not one result. The dashboard boundary distinguishes a complete projection from the current aggregate fallback, and every outcome connector begins at a visible **Final State Decision** card.

The scheduling_outbox_events card is part of the appointment transaction. Kafka 4 relay coordinates publishing with lease and fencing, and only an event that passes the strict JSON Schema gate reaches a consumer. Each connector begins and ends at a visible card boundary with a rounded orthogonal path. No two routes share a corridor, so the notification and statistics responsibilities do not collapse into one ambiguous line.

Notification and statistics consumers read one fact for different purposes

The notification and statistics consumers read the same appointment fact, but they own different results.

Consumer	Result it owns	What it never changes on failure	What STAFF checks
Notification consumer	Delivery request and provider outcome	Appointment state and product contract	Delivery status, reason code, next action
Statistics consumer	Date and status projection buckets	The appointment aggregate source of truth	Projection version and apply status

Putting both consumers in one group would let notification throughput or a temporary notification failure block statistics updates. The design keeps their groups independent and uses a logicalConsumerId in each inbox key. The same eventId can be processed independently by notification and statistics.

The statistics consumer does not overwrite the current state merely because an event arrived. It obtains an aggregate lock and moves the date and status buckets only when the stored eventVersion is older. A late, older event cannot roll the projection backward.

Absorb duplicates in the inbox and quarantine contract errors

The consumer runtime does not execute an external side effect as soon as a message arrives. It first checks the inbox key (logicalConsumerId, logicalStreamId, eventId), then records the side effect and the processed inbox state in one handler transaction.

The outcomes are explicit:

An event already processed is acknowledged as PROCESSED without repeating its side effect.
A transient database or broker failure becomes RETRY within a bounded count and time budget.
A schema version, scope, or required-metadata error stores only safe metadata as QUARANTINED; the raw payload is not copied.
An approved replay candidate becomes REPLAY_PENDING until STAFF confirms the scope and dry-run result.

Quarantine is not a feature that copies the failure into the operations screen. It stores safe metadata such as schemaVersion, an eventId fingerprint, consumer, reason code, and first/last timestamps. It does not expose a patient’s name, contact details, appointment notes, raw payload, or stack trace.

Keep the statistics projection on the newest state

When an appointment status or date changes, the projection must leave the old bucket and enter the new one. A naïve count + 1 per event inflates numbers when a relay redelivers or events arrive out of order.

The current projection flow is:

The statistics consumer validates the schema and clinic scope.
It checks the inbox and obtains the aggregate lock.
Only a newer eventVersion decrements the old date/status bucket and increments the new one.
The projection row and processed inbox state commit in one transaction.
A duplicate stops at the version comparison instead of adding the count again.

This projection is a read model for fast dashboard signals, not the authority for the appointment’s current state. When the projection is absent or its last-applied time is invalid, the STAFF screen reads the current appointment aggregate from the Appointments repository.

Make the dashboard verify the source of truth

The first question for an operator is not “How many statistics rows exist?” It is “Which source should I use to handle this appointment now?” The dashboard therefore does not present the projection and current aggregate as equivalent cards.

Use fast metrics and trends as secondary information when the projection is complete and current.
Show the current appointment aggregate as the source of truth when the projection is empty or delayed.
Mark “projection incomplete” in the action queue when the aggregate and projection versions differ.
Make replay and backfill show a dry-run impact before approval instead of changing appointment state automatically.

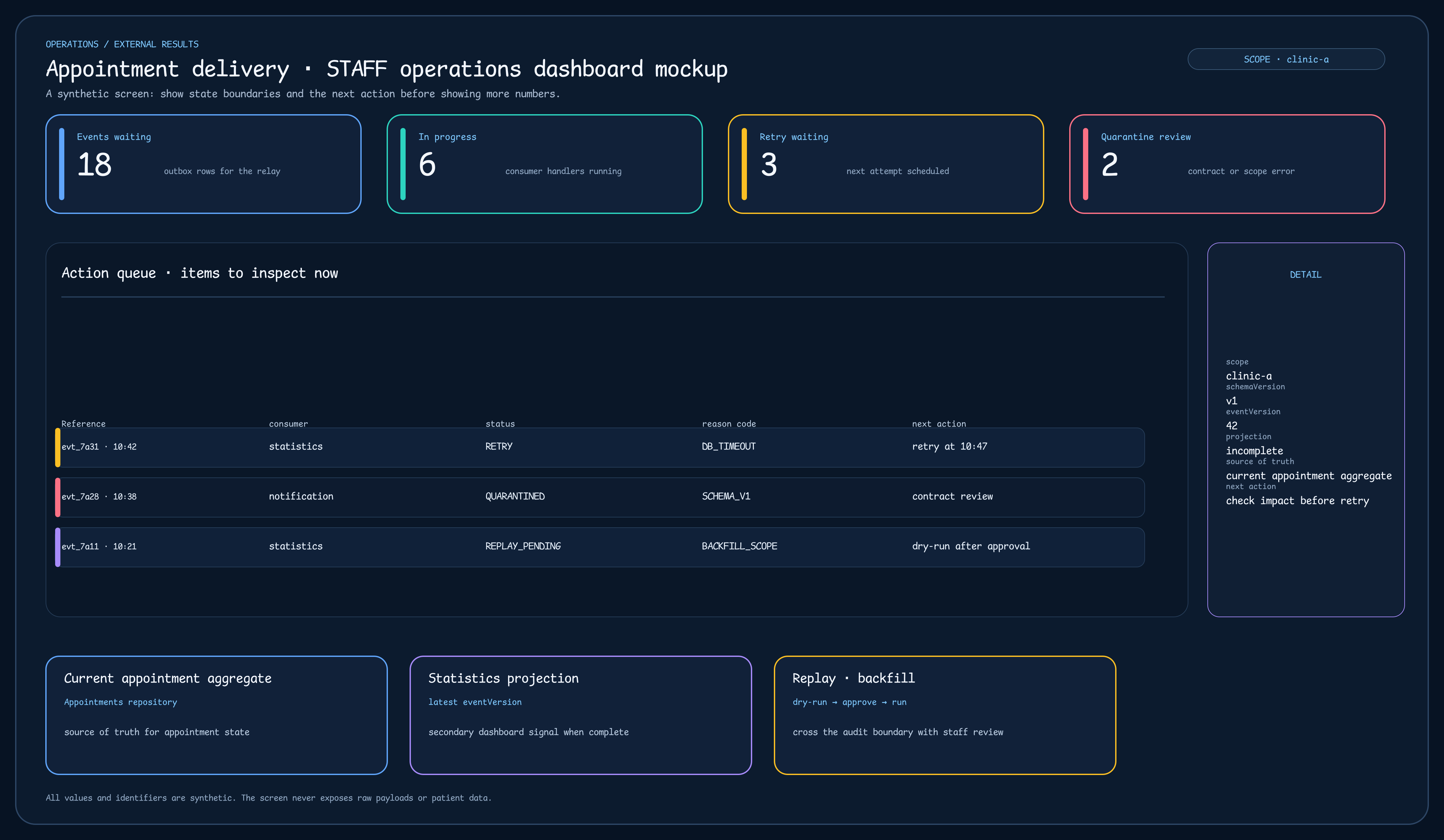

The screen below gives STAFF the top-level metrics, the action queue, evidence for the selected item, and the difference between a projection and the source-of-truth aggregate in one view.

A STAFF operations dashboard showing events waiting, in progress, retry waiting, quarantine review, an appointment result action queue, selected scope and schemaVersion details, projection status, current appointment aggregate, statistics projection, and replay-backfill boundaries

Synthetic design mockup. Values and event identifiers are illustrative, and the screen exposes no raw payload or patient data. Each action-queue row shows a state, a reason code, and the next action for STAFF.

The detail panel contains only scope, schemaVersion, eventVersion, projection status, the source of truth, and the next action. That is enough to decide whether to retry, review a contract error, or use the current appointment aggregate while the projection catches up. Showing the raw message would add sensitive data and operational secrets without making the decision clearer.

Keep retry, quarantine, replay, and backfill separate

All four outcomes can look like failures, but they require different work.

Outcome	Meaning	STAFF’s next action	What the system does not do automatically
`PROCESSED`	Handler and inbox are complete	Re-read the result if needed	Run the side effect again
`RETRY`	A transient failure is not terminal yet	Check the next time and impact	Retry immediately without a bound
`QUARANTINED`	Schema, scope, or required metadata is invalid	Review the contract and reason	Republish the raw payload
`REPLAY_PENDING`	A replay candidate awaits approval	Review dry-run impact, then approve	Change appointment state automatically

Replay is not a button that throws a failed event back into the broker. Before it runs, the immutable event identity, target consumer, scope, and expected side effect must be checked. An approved runId and an audit record then define the execution boundary. Backfill follows the same rule: rebuilding a projection for a date or clinic scope is a different command from changing the current appointment aggregate.

CRM, payment, product, and refund compensation are not owned by this appointment service. If an external system needs to issue a compensation or refund, that service owns its own event and action queue. A successful delivery result does not authorize the appointment service to change a product amount or refund state.

Separate current implementation from rollout-pending evidence

Boundary	What this article covers
Current implementation	Atomic appointment/outbox write, relay lease and fencing, strict schema gate, independent consumer groups, inbox deduplication, newest-version statistics projection, and current-aggregate fallback
Approved design	Metadata-only quarantine, approval-based replay and backfill, projection locks and bucket movement, and safe STAFF action fields
Operations mockup	Waiting, in-progress, retry, and quarantine metrics; consumer-specific action queue; selected-item evidence; and the projection versus aggregate boundary. Not real hospital metrics
Rollout pending	Evidence from a real Kafka broker, schema registry, MySQL deployment, external consumers, SLOs, and failure drills

Do not read the final row as production completion. The source and design establish a safe replay boundary, but a production switch still needs broker, registry, database, consumer observability, and recovery exercises in the target environment.

Five checks before STAFF closes an action-queue item

Were the appointment aggregate and outbox intent committed in the same transaction?
Is this a notification or statistics item, and has its consumer inbox already processed it?
Is eventVersion newer than the current projection, or could an old event be rolling the statistic backward?
Which is the source of truth for this decision: the current aggregate or the projection?
Is the next action clearly retry, quarantine review, approved replay, or a read-only check?

When these five checks are visible in one screen, STAFF can answer “The appointment is confirmed; how far have external systems and statistics caught up?” Operations expansion is not about exposing more data. It is about making the boundary between facts clear and giving STAFF a safe next action.
