[Operations 10] Apply Only the Latest Calculation to an Appointment

A blue 3D robot sending the version-matched schedule card through a gate while diverting a stale card to quarantine — An appointment changes only when the result still matches the current source facts.

2026-08-18 · Building a Clinic Appointment Service · Keeping calculated results fresh at apply time

A solver may take long enough for the clinic facts behind it to change. A doctor absence can be added, equipment availability can be revised, or a new scheduling-policy generation can become active while the solver is still running. Saving the result just because it finished later can let an older calculation overwrite a newer appointment state.

“Latest” is not a wall-clock claim here. It means that the source version used to calculate the result still equals the source version observed when the service is about to apply it. If the versions differ, the safe result is to discard the old calculation, schedule a new one, or leave the item for operational review.

The conclusion is simple:

The solver creates a scoped snapshot, a planningFactVersion, and appointment sourceVersions. The API’s freshness check is advisory only. applyOptimizedAssignments is the authority: it opens a SERIALIZABLE transaction, locks the source rows, and performs expected-version CAS updates. Policy activation uses a PENDING durable command and a lease for safe replay. Notification work keeps outbox dispatch, leader ticks, Micrometer, and health signals separate. Every path ends in an explicit Final State Decision: apply, stale rejection, retry, or operational review.

The diagram and operations screen are synthetic design visuals, not captures of patient or clinic data. They separate the concurrency boundaries implemented in the repository from SLOs, failure drills, and runbooks that still need production validation.

“Latest” means matching source versions, not a later finish time

Suppose the solver reads Monday’s doctor schedules and equipment facts, then starts searching. A maintenance interval is registered before the search finishes. The returned schedule may have an excellent score, but it is no longer a result for the current rules.

The implementation carries the distinction in three values:

Value	Meaning	When it is checked
`planningFactVersion`	A normalized digest of the clinic, doctor, equipment, closure, and time-slot facts read by the solver	When the result is created
`sourceVersions`	The versions of the appointment source rows included in the result	When the result is created and immediately before apply
Current snapshot	A fresh digest loaded inside the apply transaction	At the apply boundary

PlanningFactVersionHasher does not depend on database iteration order or toString(). It writes typed fields and collections in a canonical order before calculating SHA-256. The same facts produce the same version; an added, changed, or removed fact changes it. Null, empty, and valued fields are framed differently. This is evidence that the calculation inputs are the same, not a guessed sequence number for “newest.”

The advisory check is a signpost; the fence owns the write

SolverService.isSourceVersionCurrentAdvisory tells a caller whether the current snapshot and appointment versions match the result. That answer is useful for a dashboard, but it is not a write permission: another writer can consume a version after the check returns.

The write path is applyOptimizedAssignments:

transaction(transactionIsolation = Connection.TRANSACTION_SERIALIZABLE) {
    val current = loadSnapshotInCurrentTransaction(scope, dateRange)
    if (current.planningFactVersion != result.planningFactVersion) {
        throw StaleSolverResultException
    }

    appointmentRepository.lockLegacySourceVersions(scope, result.sourceVersions)

    result.appointments.forEach { appointment ->
        val applied = appointmentRepository.updateLegacyAssignment(
            scope = scope,
            appointmentId = appointment.id!!,
            expectedVersion = result.sourceVersions[appointment.id]!!,
            doctorId = appointment.doctorId,
            appointmentDate = appointment.appointmentDate,
            startTime = appointment.startTime,
            endTime = appointment.endTime,
        )
        if (!applied) throw StaleSolverResultException
    }
}

The order matters:

Reload the scoped snapshot inside the transaction.
Reject the result if its planningFactVersion differs.
Lock the source rows and reload the snapshot again. A competing writer may have won while the lock was being acquired.
Apply every appointment with an expected version. One failed CAS rolls the whole transaction back and returns false.

So true from the advisory check means only “the values matched at that instant.” Apply authority exists only after lock, recheck, and CAS succeed together. Without that separation, two solver results that finish close together can overwrite each other in the wrong order.

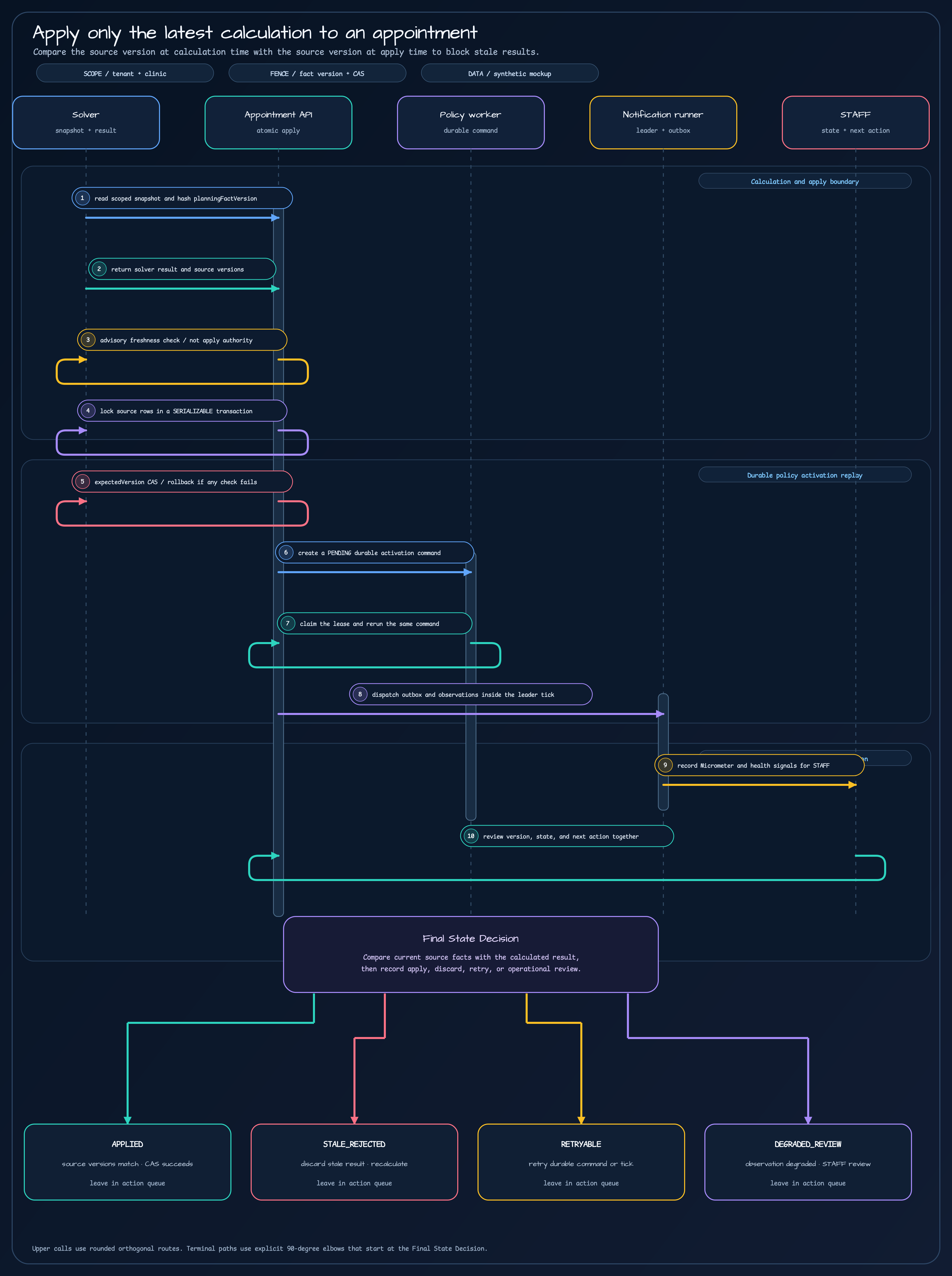

A sequence diagram showing the Solver creating a snapshot and planningFactVersion, the appointment API performing an advisory check, source-row lock, and expectedVersion CAS, then connecting policy activation and notification observation to APPLIED, STALE_REJECTED, RETRYABLE, and DEGRADED_REVIEW terminal outcomes — Upper calls use rounded orthogonal routes for the timeline. Terminal paths start at the Final State Decision card and use explicit 90-degree elbows rather than assigning meaning to a shared bus or horizontal dotted line.

A stale result is a reason to recalculate, not a generic failure

When a version fence rejects a result, the system has safely refused to write an old calculation. Calling that a generic outage can lead STAFF to retry the same result, which is exactly the unsafe action the fence prevented.

The operations view should show at least:

the result’s planningFactVersion beside the current snapshot version;
how many source appointment versions were checked and whether any CAS failed;
tenant, clinic, and date range;
calculation time, apply time, solve duration, and feasibility;
why “discard and recalculate” is allowed and what the last attempt returned.

A good score is not enough. It describes the quality of the calculated plan, not whether the plan still describes the current clinic facts. STAFF should see the version comparison before the score.

Policy activation is a durable command, not an in-memory task

Policy activation has the same race. A person may schedule a policy while another draft or generation changes before the effective time. Running an in-memory task could activate an old draft or preview.

SchedulingPolicyCommandService.schedule validates approvals and preview evidence, then persists a PENDING durable activation command. The command records scope, definition revision, expected active revision, tenant and clinic generations, preview evidence, and the next attempt time. A worker restores execution from this row instead of trusting an HTTP payload or process memory.

executeClaimedScheduled claims a due command with a lease and rechecks the following values:

Value	If it is stale
Command state and `nextAttemptAt`	Skip it until it is due
Definition revision and lifecycle	Return an idempotent completion or a stale result
Tenant and clinic generation	Do not activate over a newer policy change
Preview evidence token	Fail closed when it is incomplete or points to another revision
Lease owner and expiry	Never overwrite another worker’s claim

Successful activation updates the scope head and generation, completes the command, and publishes its outbox event in one transaction. Re-reading the same command returns its completed result instead of incrementing the generation twice. STALE, FAILED, CANCELLED, and MISSED remain different operational states; “retryable” and “someone must investigate” are not one button.

Notification work needs boundaries before it needs more retries

The notification module does not hide every responsibility inside one scheduler. Each runner has a separate boundary:

Work	Current boundary	What STAFF reads
Outbox dispatch	Bounded `dispatchOnce()` every second and an immediate application-ready tick	pending count, oldest active age, delivery attempts
Observation refresh	A separate snapshot refresh every ten seconds	provider/member circuit and backlog age
Reminder recovery	The full `triggerOnce()` wrapped in a leader action; tick failures are absorbed	leader acquisition and recovery outcome
Retention	Bounded hourly cleanup with success/failure health signals	old rows and retention failures

Leader election reduces duplicate work but is not the only authority. The leader wraps the action; database leases and fencing still decide which worker may claim and complete an outbox row. A Redis lock must not replace the database lease.

NotificationOutboxMetrics records pending, oldest active age, delivery attempts and latency, retries, suppressions, exhausted work, recovered leases, and reminder recovery with Micrometer. NotificationOutboxHealthIndicator distinguishes schema, claim, and key-ring problems that affect readiness from provider circuits, backlog age, and retention failures that should be read as degraded operation. That separation prevents a delayed notification observation from being misread as an appointment-application failure.

One action-queue row needs version evidence and a next action

“Three stale results” is not enough information for STAFF. Each action-queue row needs the calculation or policy version, current version, state, and next action. Patient names and raw payloads are not required for that decision and should remain hidden.

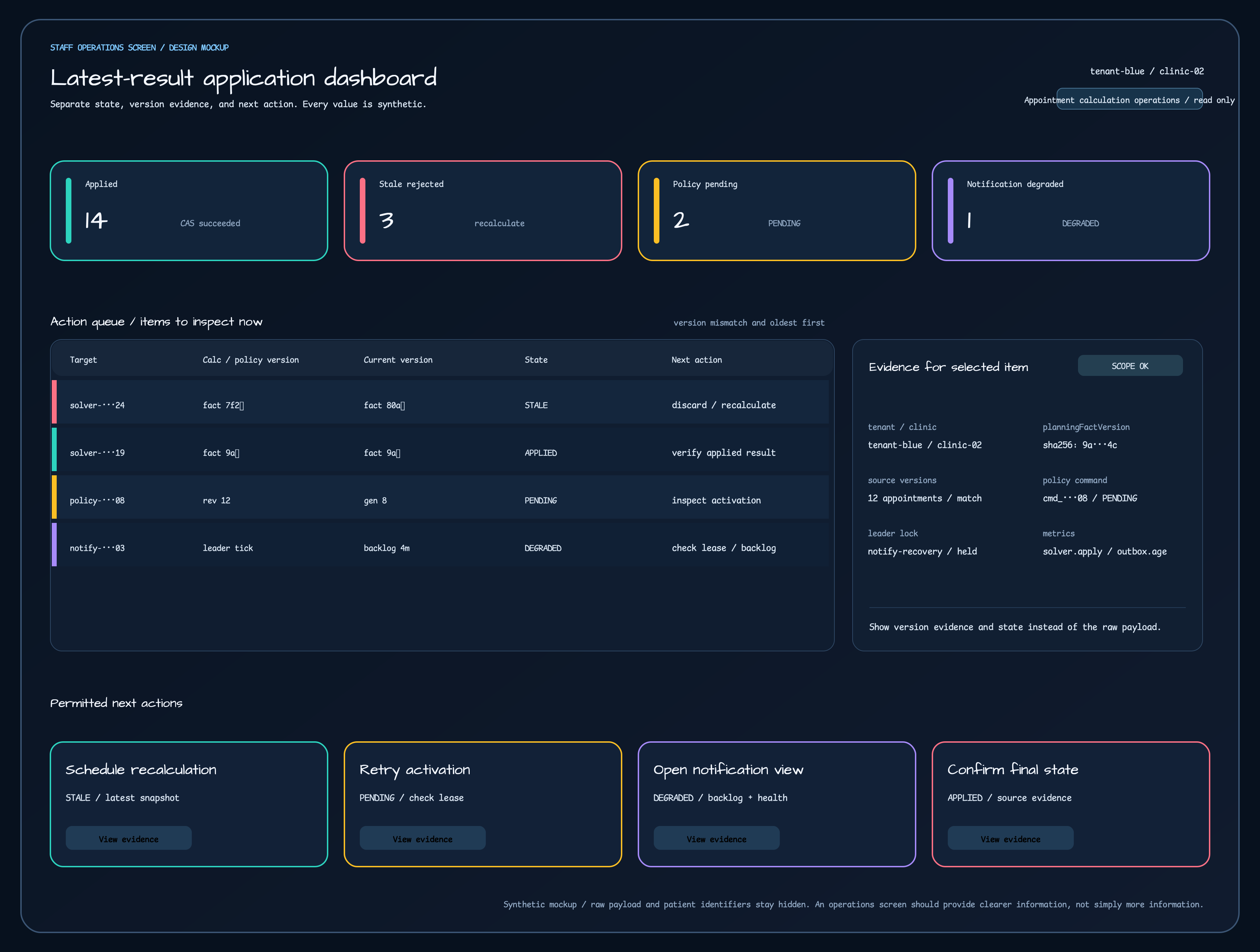

A STAFF operations screen showing applied, stale-rejected, policy-pending, and notification-degraded metrics; an action queue with calculated or policy version, current version, state, and next action; and an evidence panel for the selected item

Synthetic data only. The queue separates an applied row, a stale result to recalculate, a durable command to inspect, and a notification observation to investigate. An operations screen should provide clearer information, not simply more information.

Read the states this way:

State	What the system has done	STAFF’s next action
`APPLIED`	Source snapshot matched and every CAS succeeded	Verify the applied result and audit record
`STALE_REJECTED`	Rolled back and stored no old result	Schedule a calculation from the latest snapshot
`RETRYABLE`	Kept evidence for a durable command or notification tick retry	Inspect lease, next time, and failure code
`DEGRADED_REVIEW`	Provider circuit, backlog, or retention observation is degraded	Open notification evidence and health details

These states cannot substitute for one another. Turning STALE_REJECTED into RETRYABLE can retry the same old result, while treating DEGRADED_REVIEW as an appointment failure can roll back a valid appointment because notification observation was delayed. The screen must explain both why the state exists and which action is allowed now.

Read implementation and operational readiness separately

The current evidence divides into these boundaries:

Category	What is verified here
Implemented now	The solver canonicalizes planning facts, creates a version, and returns source versions with the result
Implemented now	Advisory freshness is separate from serializable transaction, source locking, and expected-version CAS application
Implemented now	Policy activation uses PENDING durable commands, leases, revision/generation/preview checks, and idempotent completion
Implemented now	Outbox dispatch, reminder leader action, observation refresh, retention, Micrometer, and health signals are separate
Requires production proof	Recovery time, SLOs, alert thresholds, and rollback behavior during real PostgreSQL, Redis, broker, and provider failures
Still needs an operations runbook	STAFF drills for stale-result recalculation, policy activation replay, and degraded notification observation

Passing local tests does not automatically prove production readiness. An external provider also means the appointment service cannot promise exactly-once delivery by itself. The screen and runbook should keep “implemented” and “awaiting production proof” as different states.

Five questions before the Final State Decision

Before STAFF presses an action button, the screen should answer:

Does the tenant, clinic, and date range match the selected operations scope?
Are the calculation-time planningFactVersion and current snapshot version visible side by side?
Did another writer consume any appointment source version, and if so, was the whole apply rolled back after a CAS failure?
For a policy command, do the definition revision, generation, preview evidence, and lease owner describe the same execution?
For a notification issue, did STAFF inspect provider circuit, backlog age, retention failure, and leader-tick evidence separately from appointment application?

If any answer is missing, leave the item in DEGRADED_REVIEW instead of pressing apply, activate, or retry immediately. Reliability comes from explaining which result was not applied and what must be checked next.
