Bluetape4k Cache Part 4: Getting a Feel for Cache Strategies with Workshop Examples

Spring Boot cache workshop workbench with robot workers, service blocks, Redis, local cache, and benchmark gauges — Docs explain cache strategies, examples test them, and production keeps them honest.

2026-05-29 · Bluetape4k Cache series · Part 4

This is Part 4 of the Bluetape4k Cache series. The full series includes Part 1: cache module overview, Part 2: Near Cache, Part 3: Near Cache + Exposed strategies, and Part 4: workshop examples.

This post is about working examples. bluetape4k-workshop has several Spring Boot cache examples.

The goal is not to repeat “cache is good.” The goal is to see what shape each strategy gives the code, what cost it hides, and what operational contract it asks you to accept.

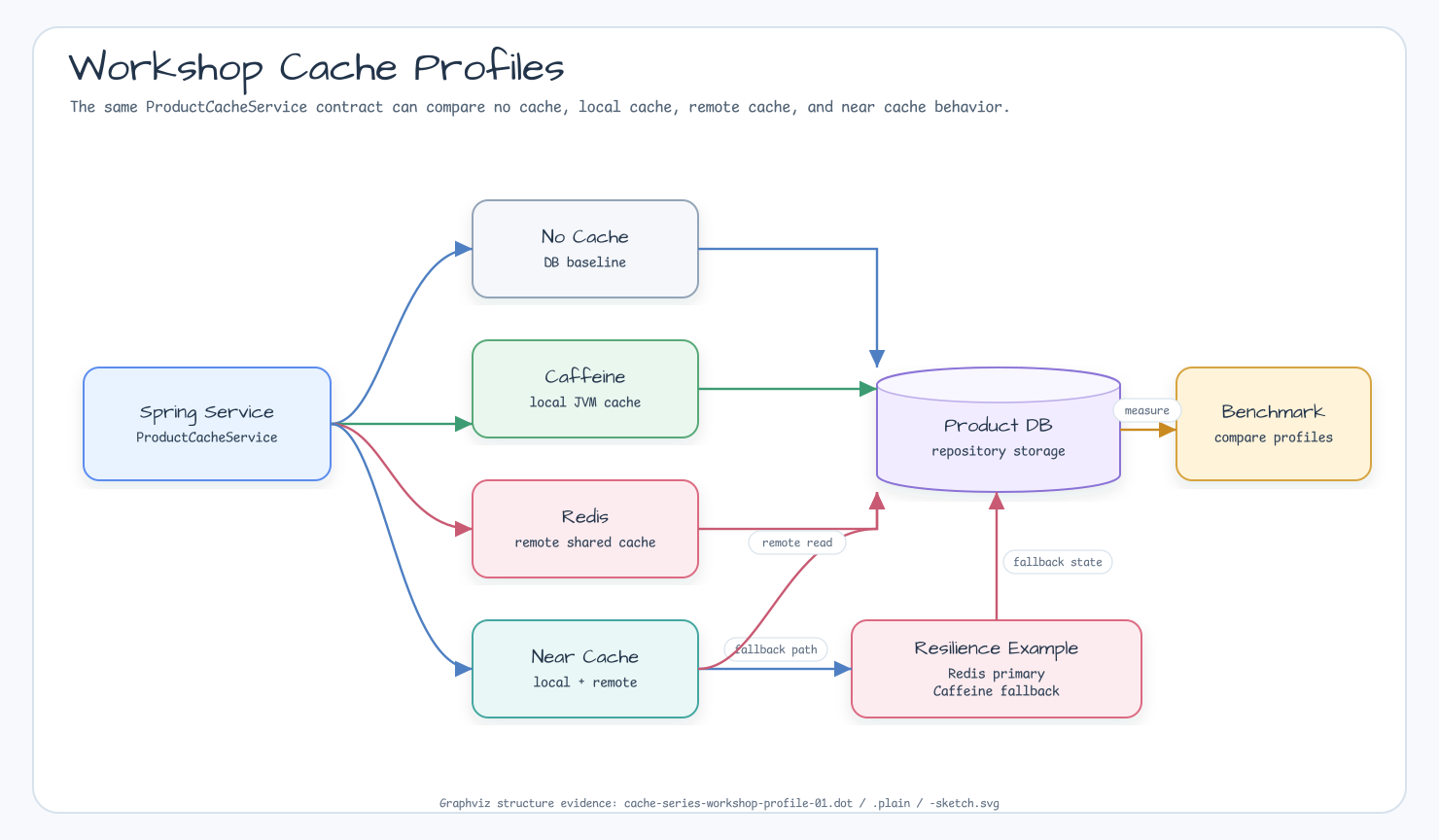

The same Product service gets different performance and consistency contracts depending on the cache profile.

Example Locations

The relevant examples are below.

Example	Role
cache-caffeine	Spring Cache + Caffeine local cache
cache-redis	Spring Data Redis + Lettuce
cache-benchmark	Compare no cache, Caffeine, Redis, and Near Cache profiles
cache-resilience	Caffeine fallback when Redis is unavailable

Caffeine: The Closest Cache

The cache-caffeine example connects Caffeine to Spring Cache abstraction.

@Configuration
class CaffeineConfig {
    @Bean
    fun cacheManager(caffeine: Caffeine<Any, Any>): CacheManager {
        return CaffeineCacheManager("cache:countries", "cache:cities").apply {
            setCaffeine(caffeine)
        }
    }

    @Bean
    fun caffeineBean(): Caffeine<Any, Any> = caffeine {
        maximumSize(10_000)
        expireAfterWrite(30.minutes)
    }
}

Full source: CaffeineConfig.kt

This works well for single-instance read-heavy caching. It is fast and simple. The drawback is also simple: if there are two instances, there are two caches. They do not talk to each other. An alarming number of problems begin with “they do not talk to each other.”

Redis: The Shared Cache

The cache-redis example connects Redis to Spring Cache and RedisTemplate.

@Bean
fun redisCacheManager(connectionFactory: RedisConnectionFactory): CacheManager =
    RedisCacheManager.builder(connectionFactory)
        .cacheDefaults(
            RedisCacheConfiguration.defaultCacheConfig()
                .entryTtl(Duration.ofDays(1))
        )
        .build()

Full source: LettuceRedisCacheConfiguration.kt

Redis lets multiple instances see the same values. The cost is that every read has a remote hop. As Part 2 showed, if hot reads dominate, Near Cache becomes a candidate.

cache-benchmark: Same Interface, Different Strategies

cache-benchmark places several strategies behind the same ProductCacheService interface.

interface ProductCacheService {
    fun findById(id: Long): Product?
    fun save(product: Product): Product
    fun evict(id: Long)
    fun clearAll()
}

Full source: ProductCacheService.kt

The implementations separate the strategies.

Implementation	Meaning
`NoCacheService`	DB baseline
`CaffeineService`	Local in-JVM cache
`RedisCacheService`	Remote distributed cache
`NearCacheService`	Local + Redis near cache
`WriteThroughService`	true write-through: save writes DB and Redis cache synchronously
`ReadThroughService`	DB load on cache miss
`WriteBehindService`	cache-first writes, DB flush asynchronously on updates

This structure is useful because benchmark code and production code share the same questions. Changing the strategy behind one interface lets you compare throughput and code complexity side by side.

What is the baseline without cache?
Is local cache enough?
Do we need Redis sharing?
Does Near Cache reduce the read path enough?
Can we accept the write-through cost?

One caveat: in cache-benchmark, WriteThroughService is true synchronous write-through, so save() updates DB and Redis in the same request flow.

ReadThroughService keeps writes in an app-managed cache-aside pattern (DB save + explicit cache update), while WriteBehindService updates cache first and flushes DB asynchronously for updates.

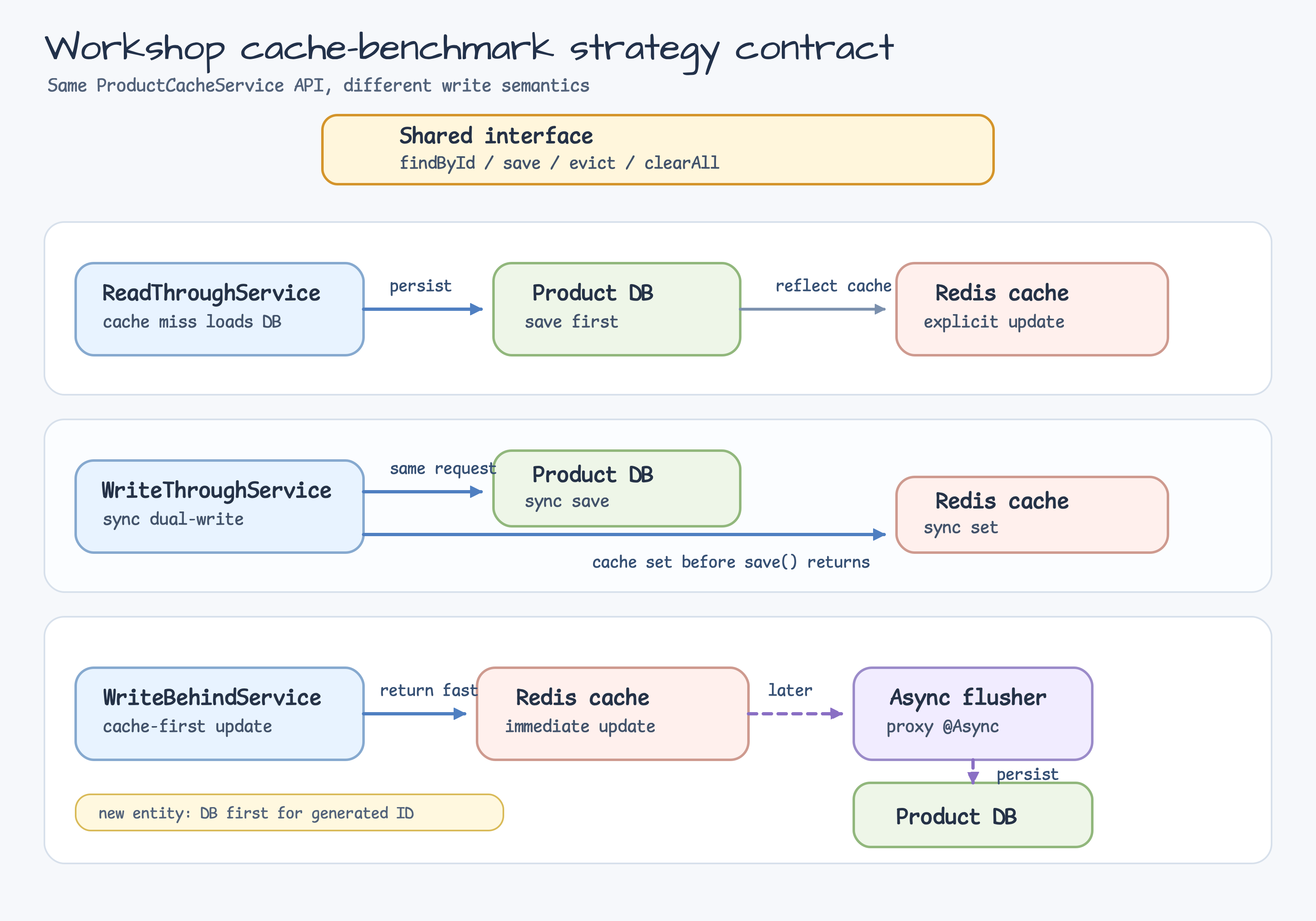

Workshop cache-benchmark strategies and their read/write contracts — All profiles share one API. Only the write path differs in how soon and where the DB and Redis are synchronized.

Benchmark Results

cache-benchmark compares seven profiles under the same ProductCacheService contract. Throughput is measured in ops/s; higher is better.

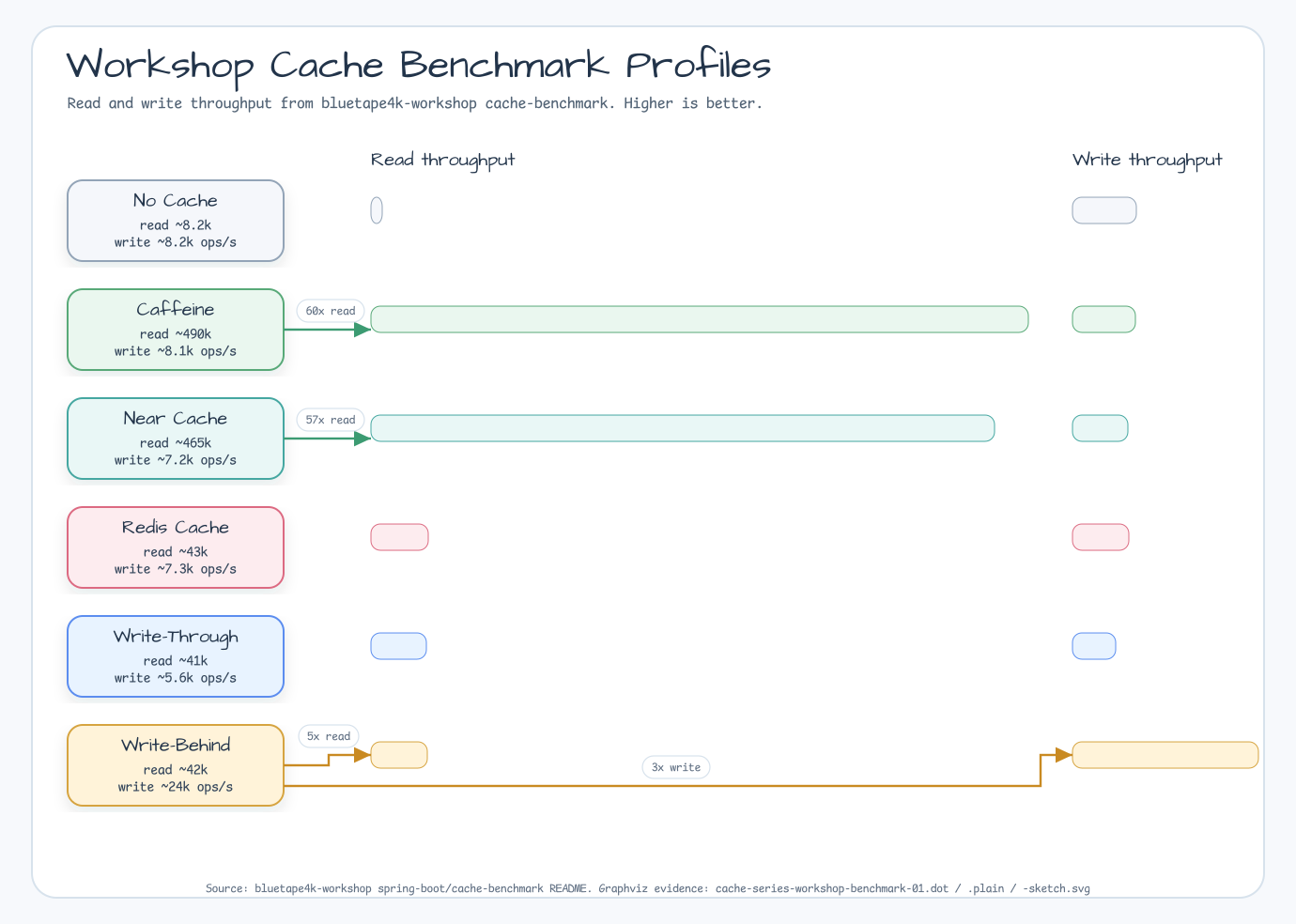

Workshop cache benchmark profiles comparing read and write throughput — Caffeine and Near Cache dominate reads. Write-Behind wins writes, but its semantics require more care.

Read Throughput

Profile	Read ops/s	vs No Cache
No Cache	~8,200	1x
Caffeine	~490,000	60x
Redis Cache	~43,000	5x
Near Cache	~465,000	57x
Read-Through	~42,000	5x
Write-Through	~41,000	5x
Write-Behind	~42,000	5x

Write Throughput

Profile	Write ops/s	Note
No Cache	~8,200	DB only
Caffeine	~8,100	DB write + local cache
Redis Cache	~7,300	DB write + Redis SET
Near Cache	~7,200	DB write + `RLocalCachedMap` PUT
Write-Through	~5,600	Synchronous DB + Redis
Write-Behind	~24,000	Cache first, DB flushes asynchronously

From the table alone, Write-Behind looks like royalty. The crown comes with terms and conditions. It is a good option only when eventual consistency is acceptable and the team can define flush failure, retry, shutdown drain, and observability behavior.

NearCacheService: Between Local and Remote

The Near Cache example uses Redisson local cached map.

class NearCacheService(
    private val productRepository: ProductRepository,
    redissonClient: RedissonClient,
) : ProductCacheService {
    companion object : KLoggingChannel() {
        const val CACHE_NAME = "products-near-cache"
    }
}

Full source: NearCacheService.kt

The code looks short, but the meaning is large. Hot reads finish locally; the remote cache handles sharing and invalidation. The key question is not “did we use Near Cache?” but “is the L1 hit ratio high enough?” If it is not, you bought a desk drawer and still keep running to the warehouse.

resilience: Do Not Let Cache Failure Become Service Failure

cache-resilience uses Redis as the primary cache and Caffeine as fallback.

suspend fun getProduct(id: String): String? {
    val redisKey = "$REDIS_KEY_PREFIX$id"

    return SuspendDecorators.ofSupplier {
        redisTemplate.opsForValue().get(redisKey)
    }
        .withCircuitBreaker(circuitBreaker)
        .withFallback { localCache.getIfPresent(id) }
        .invoke()
}

Full source: ResilientProductService.kt

This example matters operationally. Cache was added for performance. If Redis is briefly unstable and the whole service is affected, something is off. Cache is support infrastructure. When support infrastructure becomes the main outage path, the design needs another look.

Practical Checklist

Before adding cache to a service, answer at least these questions.

Question	Why It Matters
What is baseline latency?	You need to know whether cache improves anything
What hit ratio do we need?	Low hit ratio can add cost without benefit
How much staleness is acceptable?	Core contract for Near Cache and write-behind
What is the write failure policy?	Choose throw, retry, queue, or best effort
What is the invalidation scope?	Single key, bulk, prefix, and clear-all differ
What is the fallback on failure?	Redis failure should not become service failure
What do we observe?	hit/miss, latency, queue depth, circuit state

Wrap-up

The conclusion of this series is not “always use Near Cache.”

It is more precise than that.

For single-JVM hot reads, Caffeine is the simplest answer.
When multiple instances must share state, a remote cache such as Redis is needed.
When remote reads become the bottleneck, consider Near Cache.
When connecting cache to an Exposed repository, separate read and write strategy.
A cache without failure behavior is not fully designed.

Cache is both a performance optimization and an operational contract. Operational contracts have a way of returning very clearly when written casually. Usually at night.
