Bluetape4k Exposed Part 5: Production Examples with Cache and Multi-Tenancy

The production examples keep Exposed SQL control while making cache, tenant routing, and outbox patterns usable as application features.

2026-05-31 · bluetape4k-exposed series · Part 5

The final post in this series looks at production examples. The part I cared about most in bluetape4k-exposed was keeping Exposed’s SQL DSL and explicit transaction control while making repeated operational features easier to attach from service code. Cache strategies, multi-tenancy, outbox, and idempotency can all be built by hand. The problem is that once they are built by hand, repository, service, interceptor, scheduler, and metric code spread quickly.

I organized these features as extensions that fit naturally into applications already using Exposed. Spring Boot reduces configuration, the cache modules turn read/write strategies into repository API choices, and the multi-tenant examples collect schema or database switching at transaction entry points. Outbox and idempotency follow the same direction. The goal is not to build a large framework around operational behavior, but to layer it thinly on Exposed transactions so it can be tested and benchmarked immediately.

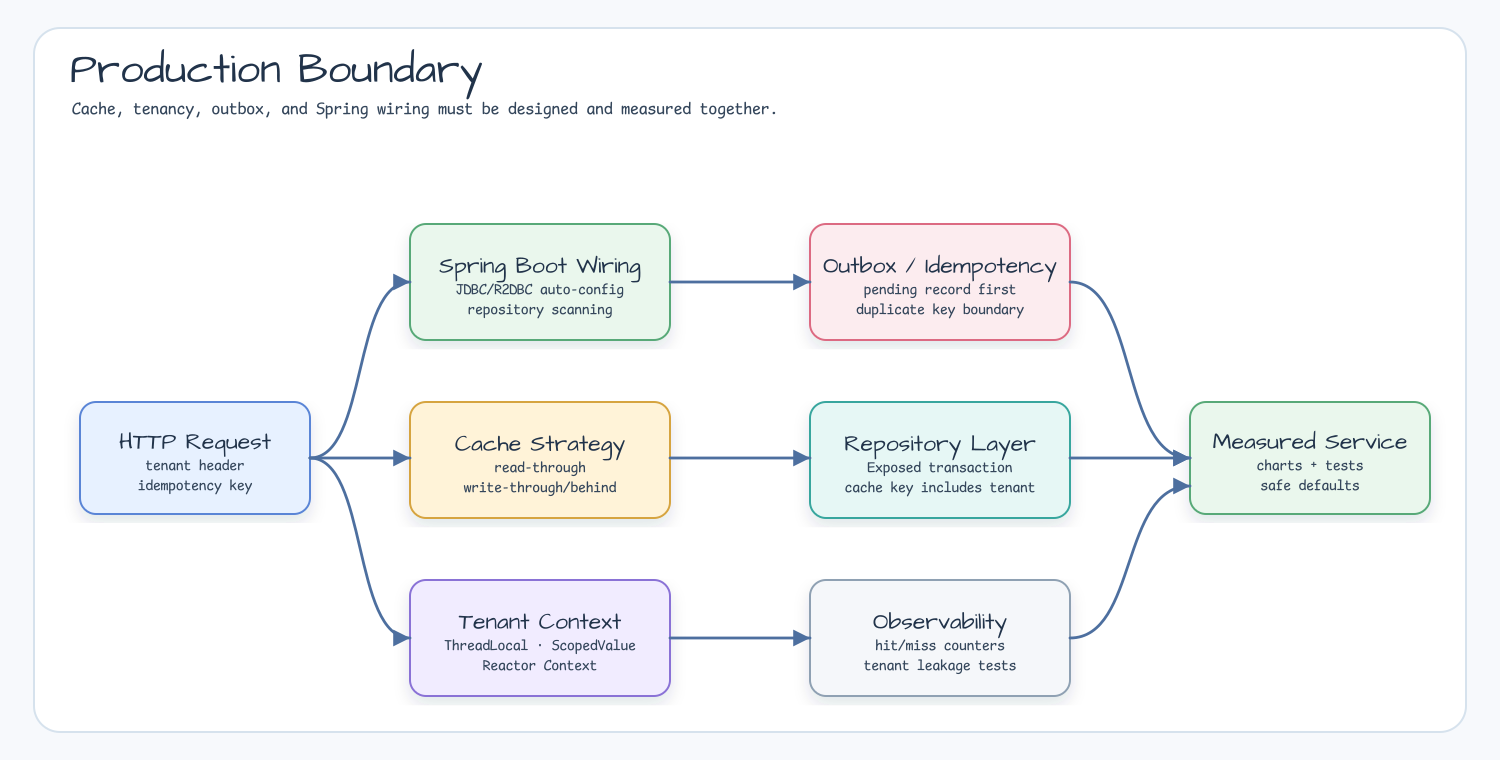

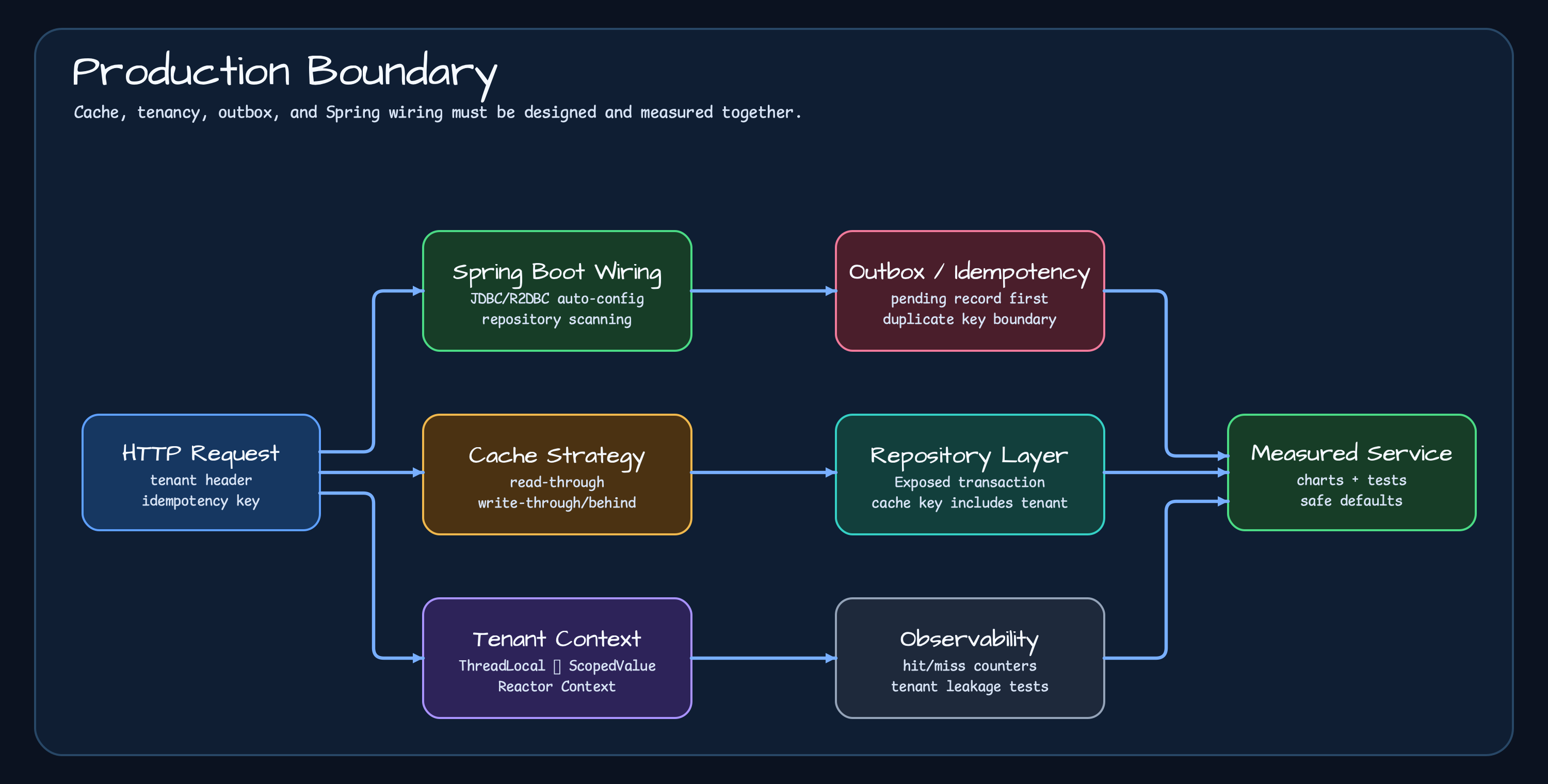

Spring wiring, cache, tenant context, outbox, and observability are assembled around Exposed repository and transaction boundaries.

Spring Boot Auto-Configuration

The first piece is Spring Boot auto-configuration. In a real application, Exposed Database, transaction manager, repository scanning, and entity wiring are easy to hand-wire once. After the service count grows, that setup code starts being copied. I added Spring Boot auto-configuration to reduce that repetition.

Extension	Role
exposed-spring-boot-jdbc	Spring Data JDBC-style repositories based on Exposed DAO entities
exposed-spring-boot-r2dbc	Coroutine repositories based on Exposed R2DBC DSL
batch-exposed	Spring Batch integration with Exposed
exposed-spring-modulith	Spring Modulith JDBC event publication based on Exposed

The JDBC side supports Spring Data-style repositories and PartTree queries.

interface UserRepository : ExposedJdbcRepository<User, Long> {
    fun findByName(name: String): List<User>
    fun findByAgeGreaterThan(age: Int): List<User>
    fun findByEmailContaining(keyword: String): List<User>
}

The R2DBC side puts coroutine repositories and Flow streaming at the front.

interface UserRepository : ExposedR2dbcRepository<User, Long> {
    suspend fun findByName(name: String): List<User>
    suspend fun countByAge(age: Int): Long
}

The point is to provide familiar Spring Data-like ergonomics without losing Exposed DSL and transaction control. The repository interface stays thin, while query shape and transaction choice still belong to Exposed. Service code can stay simple like a Spring Boot application, and performance-sensitive paths can still drop directly to SQL DSL.

Cache Strategy: Separate Cache Aside from CacheWriteMode

Cache behavior becomes especially visible when it is placed on top of an Exposed repository. Service code calls the same repository API, while the layer underneath can switch among local cache, Redis, near cache, read-through, write-through, and write-behind strategies. exposed-cache gives Caffeine, Lettuce, and Redisson cache repositories common interfaces and configuration.

The benefit is simple. A service does not need to copy cache-aside code everywhere just to improve performance. Read-heavy services can use near cache to reduce DB and Redis round trips. Services with write bursts can use write-behind to shorten request time, as long as the workload can accept eventual persistence.

CacheMode	Meaning
LOCAL	In-process cache such as Caffeine. Fast, but not shared across JVMs
REMOTE	Remote cache such as Redis. Shared across instances
NEAR_CACHE	L1 local + L2 Redis. Reduces network round trips for hot reads

The easy part to mix up is Cache Aside versus CacheWriteMode. Cache Aside usually means service code handles both DB and cache directly: after saving to DB it invalidates or puts the cache, or on cache miss it reads from DB and fills the cache. The CacheWriteMode in JdbcCacheRepository and R2dbcCacheRepository is different. The repository API owns the DB write as well. Callers may call put() or save() on the cache repository, but the selected mode decides how the backing DB operation is handled.

Read the write modes this way.

CacheWriteMode	Read	Write
READ_ONLY	Reads from DB on miss and caches the result	Updates cache only. Do not expect DB persistence
WRITE_THROUGH	Read-through	Writes to cache and DB synchronously
WRITE_BEHIND	Read-through	Accepts the write into a queue, updates cache, and flushes DB asynchronously

The implementation follows that model. Simplified, WRITE_THROUGH handles cache and DB in the same call, while WRITE_BEHIND queues the DB write and updates cache immediately.

when (config.writeMode) {
    CacheWriteMode.WRITE_THROUGH -> {
        cache.put(key, entity)
        writeToDb(id, entity)
    }
    CacheWriteMode.WRITE_BEHIND -> {
        writeBehindQueue.trySend(id to entity).getOrThrow()
        cache.put(key, entity)
    }
    else -> cache.put(key, entity) // READ_ONLY
}

So WRITE_THROUGH does not mean “the cache knows, but the DB does not.” The cache repository is the API shape, but the repository also owns persistence. Mixing this up with Cache Aside easily creates the wrong question: “Do I still need to save to DB separately from the service?”

The benchmark follows the same distinction. bluetape4k-workshop/spring-boot/cache-benchmark compares seven cache profiles with H2 and Redis Testcontainers.

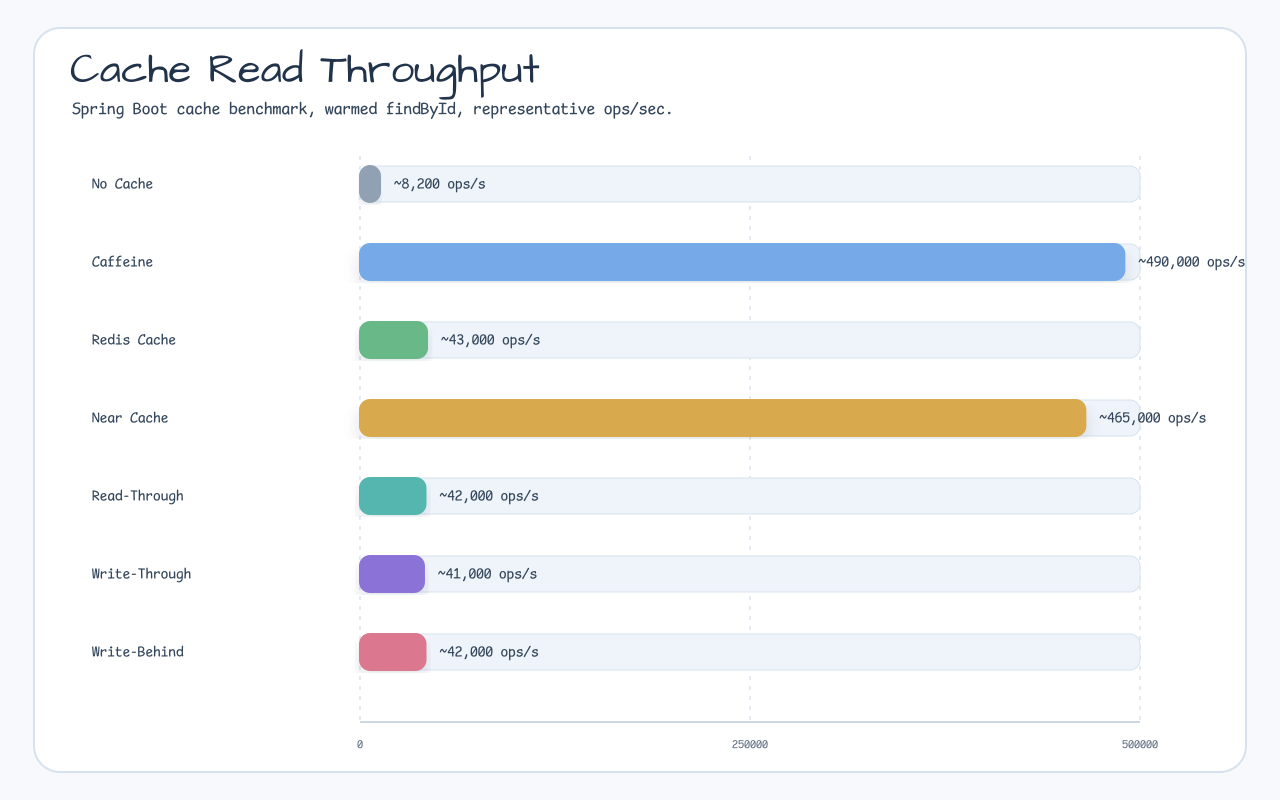

With warmed cache reads, Caffeine and Near Cache were roughly 57-60x higher than No Cache.

Profile	Read ops/s	vs baseline
No Cache	~8,200	1x
Caffeine	~490,000	60x
Redis Cache	~43,000	5x
Near Cache	~465,000	57x
Read-Through	~42,000	5x
Write-Through	~41,000	5x
Write-Behind	~42,000	5x

Writes need a separate view. The strategy that wins on reads is not automatically the right write strategy.

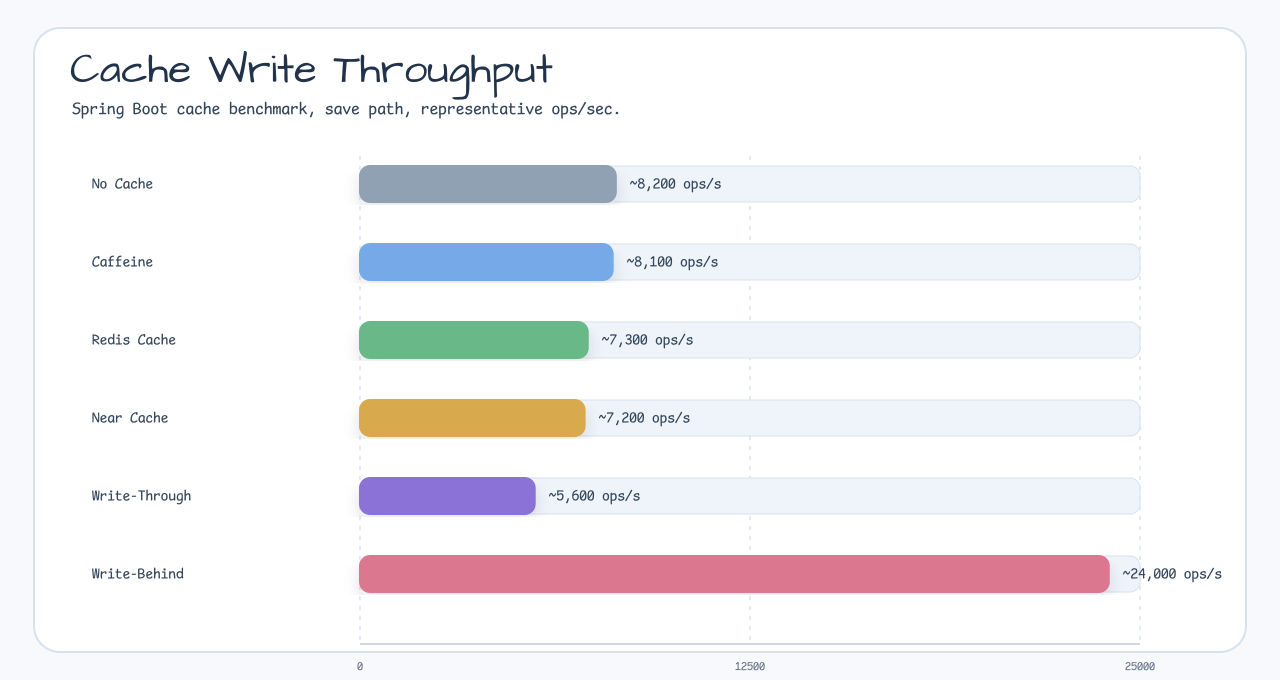

For writes, Write-Behind reached roughly 24,000 ops/s, but it only fits flows that can accept eventual consistency.

Profile	Write ops/s	Interpretation
No Cache	~8,200	DB only
Caffeine	~8,100	DB write + local cache
Redis Cache	~7,300	DB write + Redis SET
Near Cache	~7,200	DB write + near cache update
Write-Through	~5,600	DB + Redis synchronous write
Write-Behind	~24,000	Writes to cache immediately, then flushes DB asynchronously

Write-Behind is fast because it separates DB write time from the request path. The selection rule still has to be clear. It is a better fit for cache warm-up or delayed persistence flows than for order confirmation or other paths that require immediate durable persistence. With a flush queue, shutdown drain, and idempotency, it becomes a workload-specific write optimization instead of a fast but shaky cache shortcut.

Multi-Tenancy: From Header to Schema

Multi-tenancy can be implemented with other ORMs or plain JDBC as well. In practice, tenant identification, context propagation, schema or database selection, cache keys, and tests tend to spread across different layers. I prefer pulling that boundary as close as possible to the Exposed transaction entry point. exposed-workshop/10-multi-tenant shows schema-based tenants, database-per-tenant, Spring MVC, Virtual Threads, WebFlux, and Ktor side by side.

The basic flow is the same. The implementation can vary, but the goal is to keep this flow with as little scattered code as possible.

1. Identify the tenant from the X-TENANT-ID header.
2. Propagate the tenant into request context.
3. Select the schema or datasource when entering a transaction.
4. Test that a tenant A request cannot read tenant B data.

Context propagation differs by runtime.

Runtime	Context	Schema switch
Spring MVC	ThreadLocal	AOP @Before
Virtual Threads	ScopedValue	AOP @Before
WebFlux + Coroutines	Reactor Context + CoroutineContext.Element	newSuspendedTransactionWithTenant
Ktor	Coroutine context/plugin	Request plugin + transaction helper

Once cache is added, there is one more rule:

cache keys must include tenant information.

user:42 can be acceptable in a single-tenant service. In a multi-tenant service, the key needs to include the tenant, for example tenant:korean:user:42. If this rule is kept inside repository or cache helpers, service code does not need to manually assemble tenant-specific cache keys every time. Exposed transaction helpers own schema or database selection, while cache helpers own tenant-key rules. Separating the responsibilities this way keeps multi-tenancy from spreading through the whole application.

Production Integration: Outbox and Idempotency

12-production-integration contains examples closer to application behavior than cache strategy. The main ones are HTTP client outbox and idempotency. Payment, notification, and external API integrations often need to handle “change DB state” and “call an external system” together. If those two actions are scattered through service code, retries, duplicate requests, and state transitions become complicated quickly.

The Spring and Ktor examples organize that flow around Exposed transactions. First, a pending outbox record is stored and a unique constraint is placed on idempotencyKey. If a duplicate request arrives, the application returns the existing record instead of creating a new task. Then it calls the gateway and transitions the record to SUCCEEDED, RETRYABLE_FAILED, or PERMANENT_FAILED.

Step	What to inspect in code
Request validation	orderId, amountCents, idempotencyKey normalization and validation
Intent storage	Insert PENDING row into spring_payment_outbox
Duplicate prevention	idempotency_key unique index, returning existing row on duplicate
External call	Fake gateway paths for success, retryable failure, and permanent failure
State transition	SUCCEEDED for success, RETRYABLE_FAILED for retryable failure

An outbox table alone is not the useful part. The useful part is that intent storage, duplicate prevention, and state transition can be modeled as one application pattern inside an Exposed transaction. It can be added from the point that needs it, without starting with JPA event listeners or a separate messaging framework.

The realtime outbox examples use the same idea. A notification request stores the domain row and outbox row in the same Exposed transaction. A separate publish step delivers pending events to the SSE or WebSocket hub. Success becomes PUBLISHED; failure becomes FAILED. It looks small in the example, but production code can add retry workers, claim leases, and attempt limits at that boundary. It does not need to begin as a large event platform.

What to Inspect in the Production Examples

When reading the code, look less at “how many features are included” and more at “how easily can production behavior be layered on top of Exposed.” exposed-workshop/11-high-performance and 12-production-integration move one step beyond simple CRUD examples.

Example	Question to ask while reading
01-cache-strategies	Can read/write strategy change at the repository API boundary?
02-cache-strategies-coroutines	Does the same cache strategy survive in suspend flows?
04-benchmark	Are cache hit/miss and write-mode throughput compared by workload?
05/06-cache-strategies-ktor	Can Ktor use cache strategies without bloated controller/service code?
12-production-integration/03-04	Are HTTP outbox and idempotency tied to an Exposed transaction?
12-production-integration/07-08	Are realtime outbox rows stored with domain rows, then handed to a publish step?
12-production-integration/09-10	Are observability, readiness, and structured errors shown inside application examples?

The smoke results in 11-high-performance/04-benchmark show why workload matters. On READ_HEAVY workloads, WRITE_THROUGH is about 9.9x faster than NoCache and READ_THROUGH is about 5.5x faster. On WRITE_HEAVY workloads, the gain falls to about 1.1x. That is why I describe cache strategy by read/write ratio before strategy name.

Adoption Checklist

• For read-heavy workloads, compare Caffeine, Near Cache, and Read-Through using the real request ratio.
• For write bursts, decide first whether Write-Behind’s consistency model is acceptable.
• Make sure tenant id enters schema/database selection, cache keys, logs, and metric tags with the same rule.
• Choose the runtime model first: Spring MVC, Virtual Threads, WebFlux/Coroutines, or Ktor.
• Before growing outbox/idempotency into a separate framework, check whether an Exposed transaction is enough.
• Track cache miss, hit, invalidation, and DB fallback metrics in both benchmark results and production metrics.
• Copy only the combinations that match the service’s read/write ratio and tenant-isolation shape.

Closing

The production path for bluetape4k-exposed does not stop at “attach Exposed to Spring Boot.” I split these examples for that reason.

• Spring Boot auto-configuration gives familiar repository ergonomics while preserving Exposed DSL control.
• The cache module lets read/write strategies change inside the repository API and improve performance by workload.
• Multi-tenant examples collect tenant-specific schema or database switching at transaction entry points.
• Production integration examples add outbox, idempotency, and readiness as small application patterns.
• Benchmarks force strategy selection to follow workload, not strategy names.

The conclusion of the series is simple. Exposed is a good starting point for handling SQL in a Kotlin-friendly way. bluetape4k-exposed adds thin extensions for performance tuning and production behavior on top of that starting point.

“Thin” does not mean “few features.” It means service code should not repeat cache-aside logic, attach tenant routing in every controller, or rebuild outbox workers from scratch every time. Keep the necessary behavior around repository and transaction boundaries, then confirm the selection with benchmarks and examples.

That fits Exposed well. Exposed does not hide SQL, and it treats transactions explicitly. If cache, multi-tenancy, outbox, and idempotency are attached without losing those strengths, application code becomes simpler and the tuning points become clearer. The core message of Part 5 is that production behavior can start small.

Source Links

• Spring Boot JDBC README: spring-boot/exposed-jdbc/README.md
• Spring Boot R2DBC README: spring-boot/exposed-r2dbc/README.md
• Exposed cache README: exposed-cache/README.md
• Cache benchmark: spring-boot/cache-benchmark/README.md
• Multi-tenant workshop: exposed-workshop/10-multi-tenant
• High performance workshop: exposed-workshop/11-high-performance
• Production integration: exposed-workshop/12-production-integration/README.md
• Spring HTTP outbox/idempotency: 12-production-integration/03-spring-http-outbox-idempotency/README.md
• Ktor HTTP outbox/idempotency: 12-production-integration/04-ktor-http-outbox-idempotency/README.md

Series Links

• Part 1: Why Exposed?
• Part 2: JDBC repositories and SQL DSL
• Part 3: R2DBC, Coroutines, and Virtual Threads
• Part 4: JSON, Encryption, and Dialects
• Part 5: Production Examples with Cache and Multi-Tenancy
• Part 6: BigQuery, Trino, CockroachDB, and DuckDB Integrations
