When Should a Backend Service Adopt a Graph Database?

Graph databases are interesting only when the relationships become the workload.

2026-05-28 · bluetape4k engineering note

Graph databases are attractive because they make relationship-heavy queries easy to express. MATCH (a)-[*1..N]->(b) is much easier to read than a stack of self-joins or a recursive SQL query. But syntax alone is a weak reason to adopt one. A graph database adds a new datastore to operate, a new query planner, new loading behavior, new indexes, new monitoring rules, and often a second storage model beside the relational source of truth.

The practical question is not “is graph syntax convenient?” It is:

Does the workload need variable-depth path traversal often enough, and at enough scale, to justify graph-specific storage and operations?

The recent bluetape4k graph benchmark work tried to answer that question with measurements instead of guesses.

GraphDB adoption only showed a positive signal for long, selective, path-shaped traversal. PostgreSQL remained very strong for several bounded relational traversal shapes.

What We Compared

The benchmark started from an abuser and fraud detection idea: compare AGE + Exposed, Exposed, and JPA for detection latency and success rate. That is a useful domain, but fraud detection can become a misleading benchmark if the query asks the database to enumerate every possible path. A graph database does not make unbounded path explosion disappear.

The stronger scenario became authorization inheritance:

user -> group -> group... -> role -> resource

This workload has the properties that make graph storage worth evaluating:

• Relationship depth varies by user and organization structure.
• The path itself matters because deny edges override allow edges.
• Cycles must be handled safely.
• Traversal is bounded, selective, and semantically meaningful.
• The same fixture can be implemented by a native graph engine and by PostgreSQL relational baselines.

The benchmark compared:

Candidate	Role
Neo4j Cypher	Native persistent GraphDB candidate
Memgraph Cypher	Native persistent GraphDB candidate, tracked separately when the large fixture load failed locally
PostgreSQL AGE/Cypher	PostgreSQL extension with graph syntax
PostgreSQL recursive CTE	Relational variable-depth traversal baseline
PostgreSQL iterative traversal	Relational batched traversal baseline
TinkerGraph	Excluded from this adoption decision because it is in-memory; still useful for API and contract benchmarks

Splitting PostgreSQL into recursive CTE and iterative traversal mattered. Many “GraphDB vs SQL” comparisons are unfair because SQL is represented by a weak query shape. For adoption decisions, PostgreSQL needs a realistic baseline.

What GraphDB Code Looks Like

In bluetape4k, application code can stay close to the domain while the backend implementation maps the operation to TinkerGraph, Neo4j, Memgraph, or another graph engine. The social-network workshop uses GraphOperations to create vertices, connect them with typed edges, and then run bounded traversal operations.

class SocialNetworkService(
    private val graphName: String,
    private val ops: GraphOperations,
) {
    fun initialize() {
        if (!ops.graphExists(graphName)) {
            ops.createGraph(graphName)
        }
    }

    fun addPerson(personId: String, name: String): GraphVertex =
        ops.findVerticesByLabel("Person", mapOf("personId" to personId)).firstOrNull()
            ?: ops.createVertex("Person", mapOf("personId" to personId, "name" to name))

    fun recommendConnections(personVertexId: GraphElementId): List<GraphVertex> {
        val direct = ops.neighbors(
            personVertexId,
            NeighborOptions(edgeLabel = "KNOWS", direction = Direction.OUTGOING, maxDepth = 1),
        ).map { it.id }.toSet()

        return ops.neighbors(
            personVertexId,
            NeighborOptions(edgeLabel = "KNOWS", direction = Direction.OUTGOING, maxDepth = 2),
        )
            .filter { it.id != personVertexId && it.id !in direct }
            .distinctBy { it.id }
    }

    fun findConnectionPath(from: GraphElementId, to: GraphElementId): GraphPath? =
        ops.shortestPath(
            from,
            to,
            PathOptions(edgeLabel = "KNOWS", direction = Direction.OUTGOING),
        )
}

The point is not that every query should be written this way. Graph APIs become useful when the domain question is naturally path-shaped: “who is two hops away?”, “which path connects these users?”, “which candidate has many mutual connections?”, or “which accounts share device, IP, or account signals?”

The bluetape4k workshop has working GraphDB examples:

• Social network: friend-of-a-friend recommendations, shortest path, all paths, colleagues, and mutual connections over TinkerGraph, Neo4j, and Memgraph.
• Abuser detection: shared device/IP/account signals and bounded suspicious relationship traversal.
• Recommendation: collaborative filtering and relationship-based recommendations.
• Knowledge graph: entity and relation modeling for queryable knowledge structures.

Three Ways To Express The Same Traversal

The benchmark decision was not based on GraphDB syntax alone. The same authorization inheritance question was expressed in three shapes: native graph traversal, JDBC recursive CTE, and JDBC iterative traversal.

GraphDB/Cypher keeps the path shape explicit:

MATCH p = (u:User {id: $userId})-[:MEMBER_OF|INHERITS*1..10]->(r:Role)
MATCH (r)-[g:GRANTS]->(res:Resource)
WHERE all(rel IN relationships(p) WHERE rel.active = true)
  AND g.active = true
  AND res.public = true
WITH res, collect(g.effect) AS effects
WHERE NOT 'DENY' IN effects
RETURN DISTINCT res.id

JDBC recursive CTE keeps the source of truth in PostgreSQL and lets SQL expand the membership path:

val sql = """
    WITH RECURSIVE reachable(subject_id, depth, path) AS (
        SELECT ?, 0, ARRAY[?]
        UNION ALL
        SELECT e.to_id, reachable.depth + 1, path || e.to_id
          FROM authz_edges e
          JOIN reachable ON e.from_id = reachable.subject_id
         WHERE e.active = true
           AND reachable.depth < ?
           AND NOT e.to_id = ANY(path)
    )
    SELECT DISTINCT g.resource_id
      FROM reachable r
      JOIN grants g ON g.role_id = r.subject_id
     WHERE g.active = true
       AND g.effect = 'ALLOW'
       AND NOT EXISTS (
           SELECT 1 FROM grants deny
            WHERE deny.resource_id = g.resource_id
              AND deny.role_id IN (SELECT subject_id FROM reachable)
              AND deny.effect = 'DENY'
       )
""".trimIndent()

connection.prepareStatement(sql).use { statement ->
    statement.setString(1, userId)
    statement.setString(2, userId)
    statement.setInt(3, maxDepth)
    statement.executeQuery().use { rs ->
        generateSequence { if (rs.next()) rs.getString("resource_id") else null }.toSet()
    }
}

JDBC iterative traversal avoids recursive SQL and expands one frontier at a time. It can be surprisingly fast when each step is selective and indexed:

var frontier = setOf(userId)
val visited = mutableSetOf(userId)
val roles = mutableSetOf<String>()

repeat(maxDepth) {
    if (frontier.isEmpty()) return@repeat

    val next = selectActiveTargets(frontier)
        .filterTo(mutableSetOf()) { it !in visited }

    roles += next.filter { isRole(it) }
    visited += next
    frontier = next
}

val grants = selectGrantsForRoles(roles)
val denied = grants.filter { it.effect == "DENY" }.mapTo(mutableSetOf()) { it.resourceId }
val allowed = grants.filter { it.effect == "ALLOW" }.mapTo(mutableSetOf()) { it.resourceId }

return allowed - denied

This is why the benchmark kept CTE and iterative traversal separate. Recursive SQL is compact and set-based. Iterative traversal can use simpler indexed queries and application-side pruning. Native GraphDB only starts to make sense when the path workload is long and selective enough to offset its operational cost.

Small And Medium Data Did Not Justify GraphDB

On the small and medium authorization inheritance matrix, AGE did not win any latency row. PostgreSQL recursive CTE and iterative traversal were consistently stronger.

Representative resolveResources latency, ms/op, lower is better:

Scenario	Size	AGE/Cypher	PostgreSQL CTE	PostgreSQL iterative	Winner
shallow	small	6.337	0.572	0.576	PostgreSQL CTE
shallow	medium	57.382	12.085	1.056	PostgreSQL iterative
deep-inheritance	small	93.848	0.726	1.449	PostgreSQL CTE
deep-inheritance	medium	604.833	9.385	2.102	PostgreSQL iterative
wide-groups	medium	250.083	1.521	3.658	PostgreSQL CTE

That result matters because it blocks the easy story. A graph-shaped domain does not automatically require a graph database. If the data is small, the path depth is short, or the query can be reduced to bounded joins and indexed relational traversal, PostgreSQL may be simpler and faster.

AGE was especially instructive. It gives Cypher syntax inside PostgreSQL, but in this benchmark it did not provide the execution behavior needed for a speed-based adoption claim. Convenience is not the same as performance.

Longer Paths Finally Produced A GraphDB Signal

The next step increased the data size and traversal length. The adoption probe used a large fixture with:

• long-chain: forced 10-hop target chain.
• deep-wide: 12-hop traversal with wider fan-out and cycles.

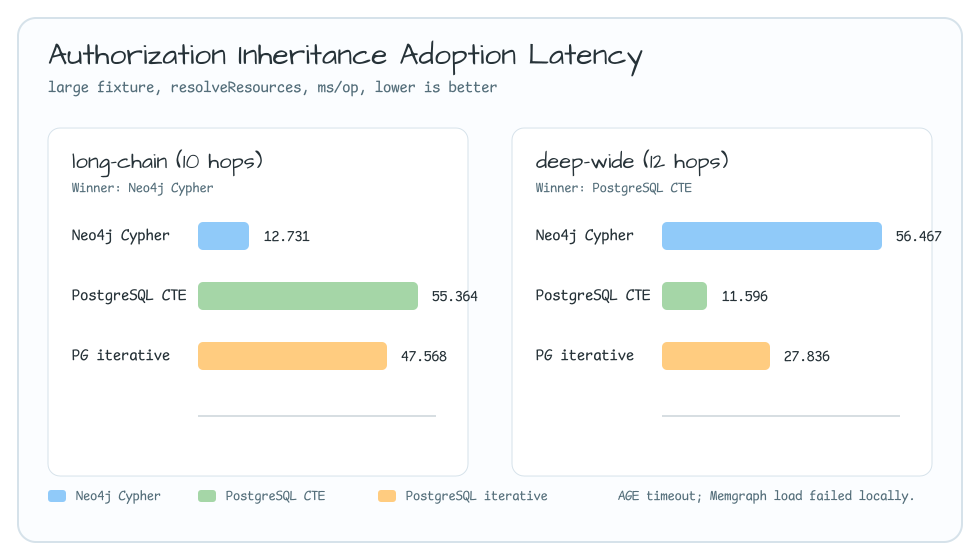

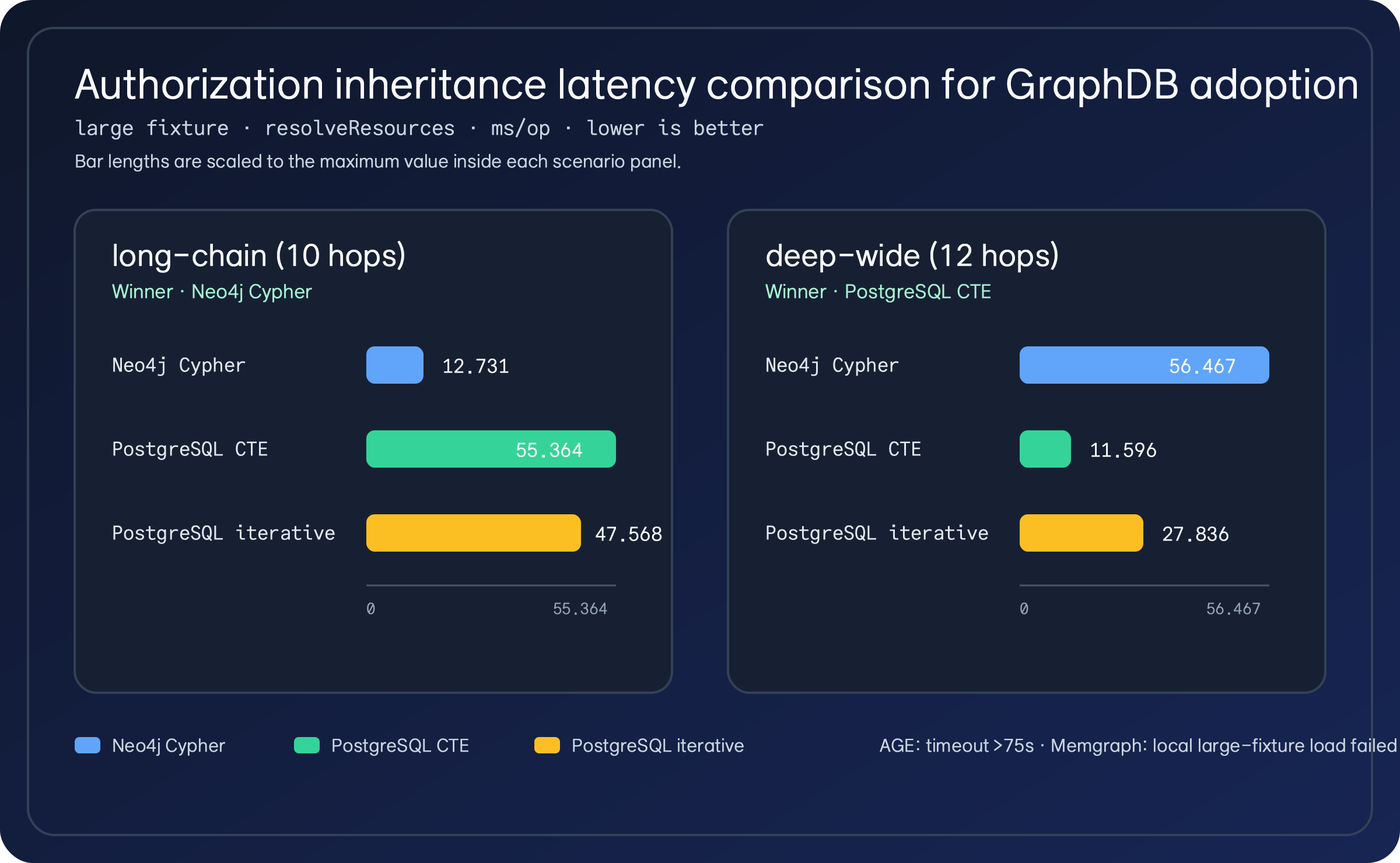

resolveResources, large fixture, ms/op, lower is better:

Scenario	Neo4j Cypher	Memgraph Cypher	AGE/Cypher	PostgreSQL CTE	PostgreSQL iterative	Winner
long-chain	12.731	load failure	timeout >75s	55.364	47.568	Neo4j Cypher
deep-wide	56.467	load failure	timeout >75s	11.596	27.836	PostgreSQL CTE

This was the first useful signal. Neo4j won the long-chain row by 3.74x over PostgreSQL iterative traversal and 4.35x over PostgreSQL recursive CTE. That is the kind of result that can justify deeper GraphDB evaluation.

But the same benchmark also warns against overgeneralizing. deep-wide still favored PostgreSQL CTE. AGE timed out in both large adoption scenarios. Memgraph passed smoke parity but failed during local large fixture loading, so it is not a reportable latency row yet.

The conclusion is narrow and useful:

GraphDB adoption is credible for long, selective, path-shaped traversal. It is not justified for generic authorization, fraud detection, CRUD, fixed joins, or shallow relationship queries.

Where GraphDB Fits Best

GraphDB is worth evaluating when several conditions are true at the same time:

• Traversal depth is variable and often beyond fixed two- or three-table joins.
• The path itself is part of the answer or part of the filter.
• The traversal is bounded and selective.
• Edge type, edge property, time window, risk flag, or deny/allow semantics affect the path.
• The workload cannot be reduced cleanly to aggregate tables, materialized projections, or indexed relational joins.
• Operating a graph database is acceptable for the team.

Good candidates include permission inheritance, organization hierarchy exceptions, dependency and impact analysis, network reachability, path-shaped recommendations, and fraud ring exploration over shared identifiers.

Poor candidates include simple ID lookup, one-hop joins, fixed two- or three-table joins, CRUD-heavy OLTP, star-schema aggregation, and unbounded “find all paths” queries.

For fraud detection specifically, graph storage is most useful when the query asks for bounded, time-windowed, risk-filtered patterns such as shared device clusters or short money-flow convergence. It is a poor fit for unrestricted path enumeration.

How To Decide In A Real Service

The safest adoption process is staged:

1. Start with PostgreSQL CTE and iterative traversal baselines.
2. Keep correctness metrics separate from latency ranking.
3. Add a native persistent GraphDB candidate such as Neo4j.
4. Exclude in-memory engines from production adoption decisions, even if they are useful for API tests.
5. Use large enough data and long enough path depth to expose the real tradeoff.
6. Measure failure modes as well as successful latency rows.

That last point matters. The adoption table should show AGE timeouts and Memgraph load failures. Hiding failed candidates makes the decision look cleaner than it is. Production adoption needs to account for data loading, query completion, operational stability, and performance.

TODO: Hybrid Performance Work

The next question is broader than “GraphDB or relational database?” Real systems often need a hybrid design.

Future benchmark work should test:

• Cache-assisted traversal: cache hot account, hot group, permission closure, and frequent path-existence results.
• Materialized views: maintain suspicious aggregates, reachable-resource sets, or impact-radius summaries in PostgreSQL.
• Incremental graph projections: update graph-specific projections at ingest time instead of rebuilding at query time.
• Candidate pruning: use relational indexes first, then run graph traversal only on a narrowed candidate set.
• Online/offline split: use shallow bounded traversal online and deeper graph analysis in batch jobs.
• Hybrid correctness: prove cached or materialized answers match the canonical relational or graph oracle.
• Operational cost: include load time, index build time, memory footprint, query timeout behavior, and recovery behavior.

This is where graph databases may become more compelling. The strongest design is rarely “replace PostgreSQL with GraphDB.” It is more often:

Keep relational storage for transactional truth, use cache and projections for hot decisions, and use a native graph engine only where long path traversal is the core workload.

That is the benchmark direction worth continuing.
