Transactional Outbox Part 2: Kafka-First Fallback to Keep the Hot Transaction Small

The success path skips event rows; the failure path pays the outbox cost.

2026-06-30 · transactional outbox series · Part 2

Part 1 stayed close to the classic transactional outbox model: write the domain row and the outbox row in the same database transaction, then let a relay publish the outbox row to Kafka. It is robust and easy to explain, but every hot write also pays for an extra event row.

Part 2 starts from a different question.

Do we always need to write the outbox table first when Kafka is healthy?

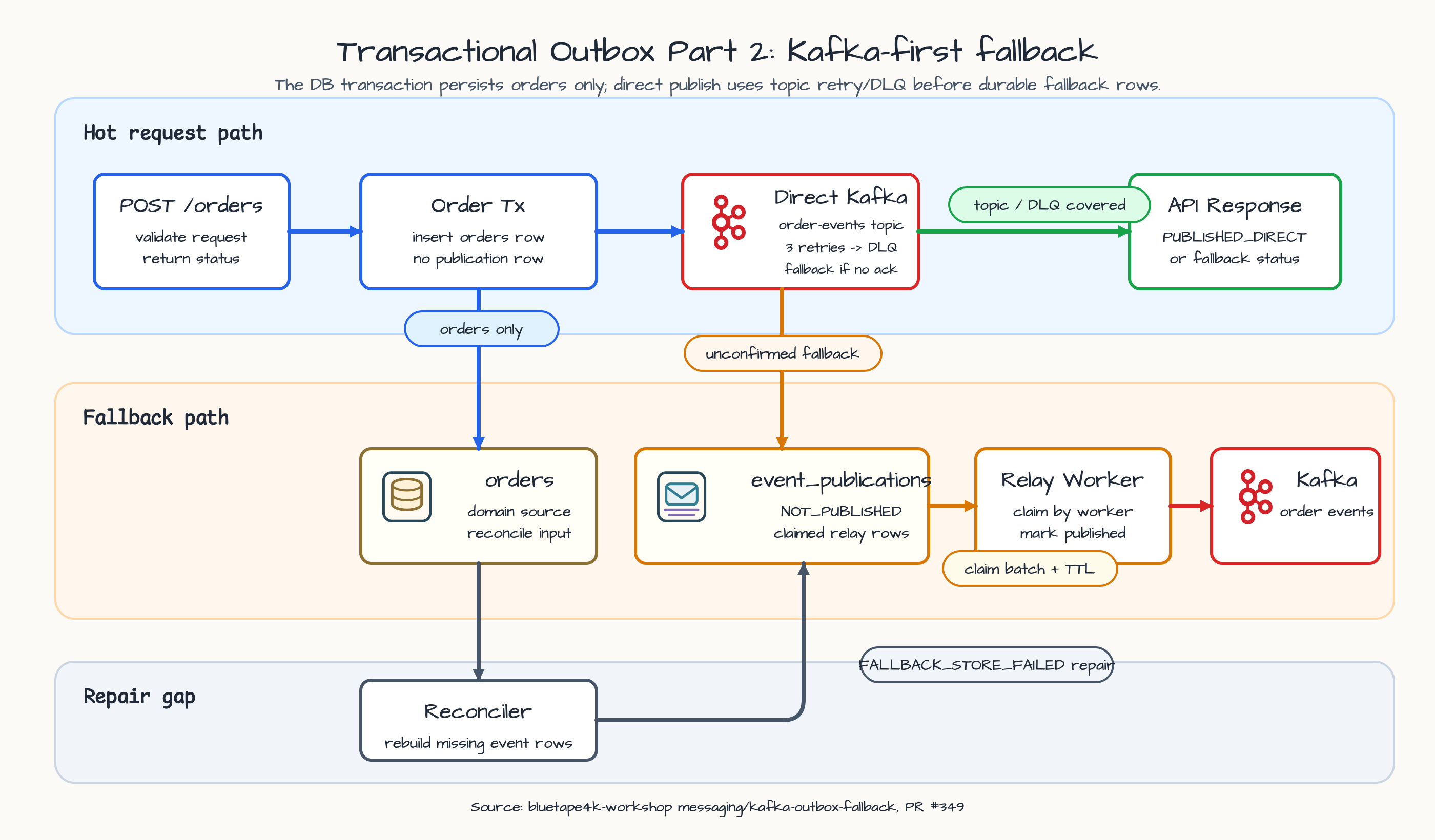

The workshop example answers “not always.” The order transaction owns only orders. After that transaction commits, the application publishes the event directly to Kafka. If Kafka publish fails or times out, it stores a NOT_PUBLISHED row in event_publications. During a Kafka outage or long broker timeout, the system degrades back to the familiar outbox relay path.

The success path writes only the orders row. The fallback path introduces event_publications and relay work.

What changes from classic outbox

A classic outbox is usually described like this.

Step	Classic transactional outbox
1	Insert orders and outbox in the same DB transaction
2	Relay claims an outbox row
3	Mark the row as PUBLISHED after Kafka publish succeeds

The Kafka-first fallback path changes the success case.

Step	Kafka-first fallback
1	Insert only orders inside the DB transaction
2	Publish directly to Kafka after the transaction
3	Do not create an event_publications row when direct publish succeeds
4	Store NOT_PUBLISHED only when direct publish fails or times out
5	Let the existing outbox relay publish the fallback row

The trade-off is explicit: we reduce transaction write amplification, but we must acknowledge the small gap between direct publish failure and fallback persistence. The example exposes that gap through FALLBACK_STORE_FAILED and a reconciler instead of pretending it cannot happen.

The hot transaction writes orders only

TransactionalOrderWriter is the transaction boundary. It intentionally does not write an outbox row.

@Transactional
fun saveOrder(customerId: String, product: String, quantity: Int): OrderRecord {
    validate(customerId, product, quantity)

    val orderId = OrderTable.insertAndGetId {
        it[OrderTable.customerId] = customerId
        it[OrderTable.product] = product
        it[OrderTable.quantity] = quantity
        it[OrderTable.status] = OrderStatus.PENDING
    }

    return getOrder(orderId.value)
}

The first test locks this down: after saving one order, orders = 1 and event_publications = 0. Without that test, someone could quietly move the outbox insert back into the transaction while trying to make the flow “safer.”

The public use case then builds an event and hands it to the publisher.

fun placeOrder(request: OrderRequest): OrderResponse {
    val order = transactionalOrderWriter.saveOrder(
        customerId = request.customerId,
        product = request.product,
        quantity = request.quantity,
    )
    val event = OrderPlacedEvent.from(order)
    val publicationStatus = orderEventPublisher.publishDirectOrFallback(event)
    return OrderResponse.from(order, publicationStatus)
}

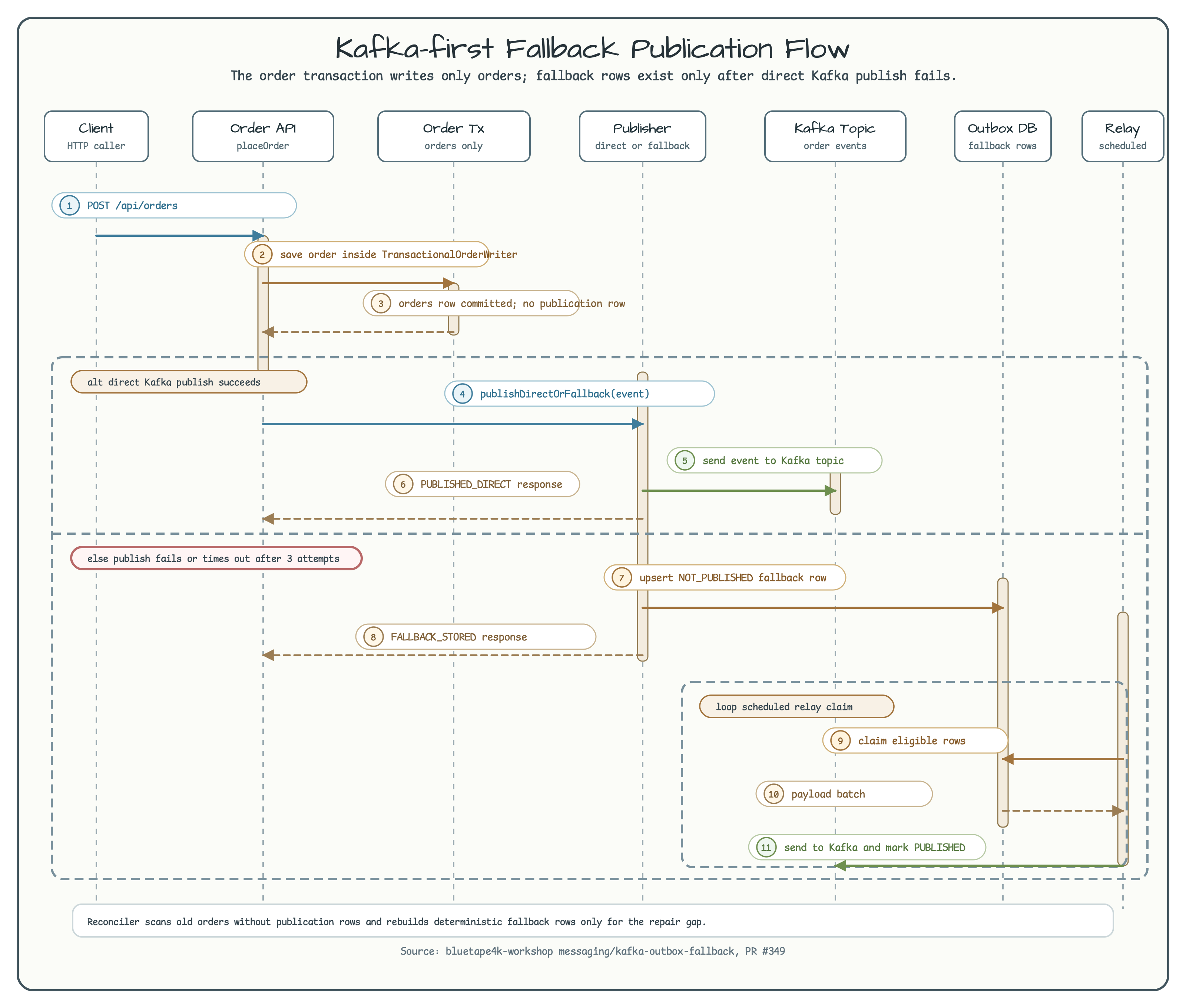

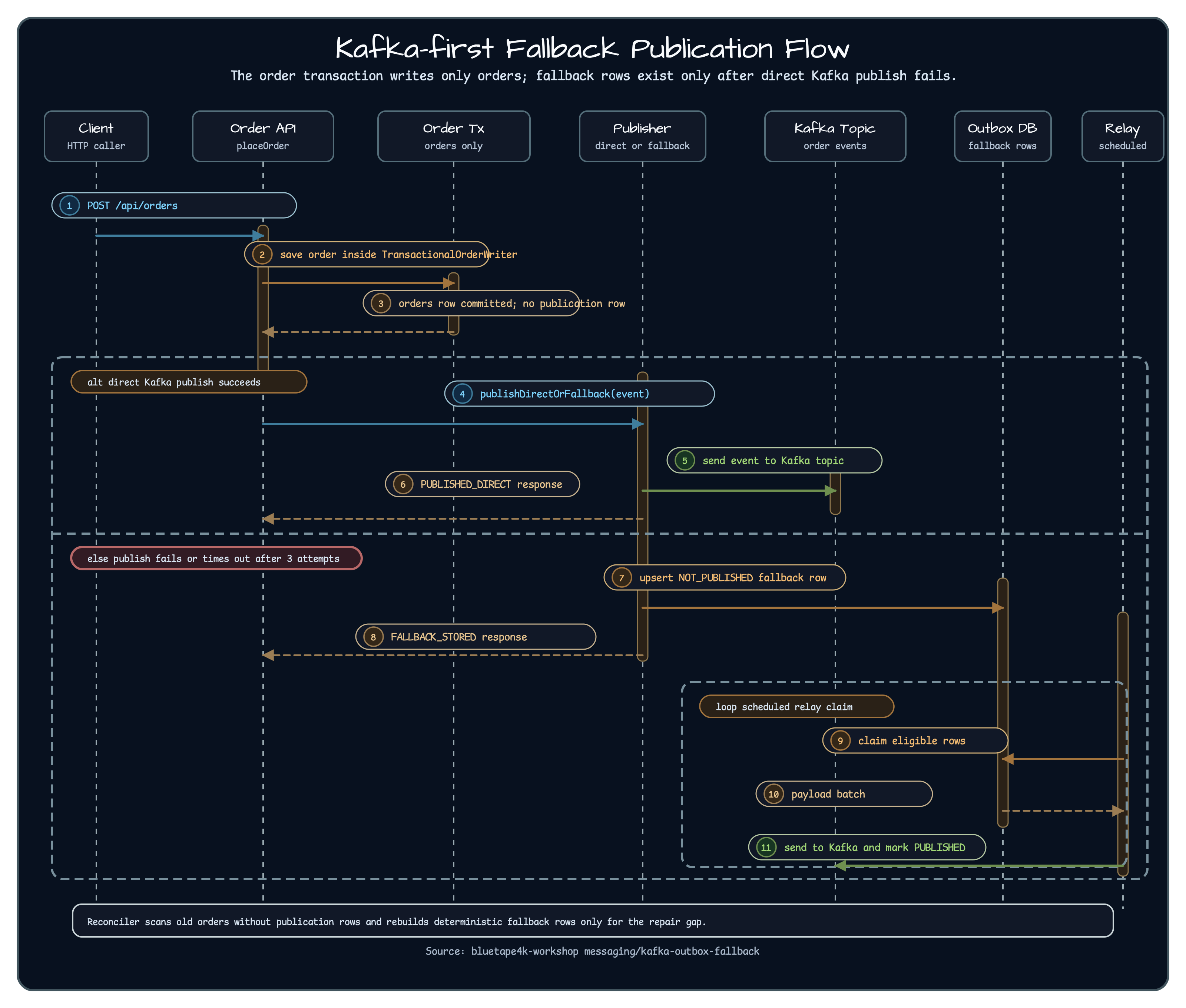

At this point, the order transaction is already over. That is why the API response carries a publication status such as PUBLISHED_DIRECT, FALLBACK_STORED, or FALLBACK_STORE_FAILED.

Direct publish success leaves the fallback table empty. Direct publish failure creates a NOT_PUBLISHED row.

Direct Kafka publish must fail small

Kafka publish should not wait forever. The example bounds both direct attempts and total timeout.

for (attempt in 1..properties.directPublishAttempts) {
    val remainingMillis = TimeUnit.NANOSECONDS.toMillis(deadline - System.nanoTime())
    if (remainingMillis <= 0) break

    val timeoutMillis = minOf(properties.directPublishTimeout.toMillis(), remainingMillis)
    var future: CompletableFuture<*>? = null
    try {
        future = kafkaTemplate.send(properties.topic, event.eventId, payload)
        future.get(timeoutMillis, TimeUnit.MILLISECONDS)
        outboxMetrics.recordDirectPublish("success")
        return OrderPublicationStatus.PUBLISHED_DIRECT
    } catch (e: TimeoutException) {
        future?.cancel(true)
        lastFailure = e
        outboxMetrics.recordDirectPublish("timeout")
    } catch (e: Exception) {
        lastFailure = e
        outboxMetrics.recordDirectPublish("failure")
    }
}

The tests verify the three-attempt failure path and assert that error summaries do not leak words such as secret/token/password. Operators often inspect outbox tables directly, so failure context must not become credential exposure.

Fallback persistence runs in a separate transaction.

@Transactional(propagation = Propagation.REQUIRES_NEW)
fun upsertNotPublished(
    event: OrderPlacedEvent,
    payload: String,
    directAttemptCount: Int,
    errorCode: String,
    errorSummary: String,
) {
    EventPublicationTable.insert {
        it[eventId] = event.eventId
        it[aggregateType] = "Order"
        it[aggregateId] = event.orderId.toString()
        it[eventType] = "OrderPlaced"
        it[EventPublicationTable.payload] = payload
        it[status] = EventPublicationStatus.NOT_PUBLISHED
        it[EventPublicationTable.directAttemptCount] = directAttemptCount
        it[relayRetryCount] = 0
        it[lastErrorCode] = errorCode
        it[lastErrorSummary] = sanitize(errorSummary)
        it[nextAttemptAt] = now
    }
}

Once the row exists, the problem is back in familiar outbox territory.

Relay checks the claim owner

The relay claims NOT_PUBLISHED or FAILED rows. The important part is that claiming is a conditional update, not just a select.

val updated = EventPublicationTable.update({
    (EventPublicationTable.id eq rowId) and eligibleForClaim(now)
}) {
    it[EventPublicationTable.claimedBy] = claimedBy
    it[EventPublicationTable.claimedUntil] = claimUntil
    it[updatedAt] = now
}

After publish succeeds, the relay marks the row as PUBLISHED only when the claim owner still matches. This is the minimum guard against two relays processing the same row or a stale worker overwriting a newer claim. The tests cover concurrent claim attempts and stale-claim TTL recovery.

Repeated failures move the row to FAILED, then to DEAD_LETTER after the retry cap. This part looks close to a classic outbox relay. The difference is table semantics: this table contains failed or reconstructed events, not every event.

The dangerous gap is fallback persistence failure

The weak point is precise.

1. orders committed.
2. Direct Kafka publish failed.
3. Fallback row persistence also failed.

At that point, an event can be lost. The example does not hide that risk. It returns and records FALLBACK_STORE_FAILED, then relies on a reconciler that scans older orders rows without publication rows and reconstructs deterministic events.

fun reconcileOnce(): ReconcileResult {
    val cutoff = LocalDateTime.now(clock).minus(properties.reconcilerGrace)
    val candidates = eventPublicationRepository.findOrdersWithoutPublications()
        .filter { event -> !event.createdAt.isAfter(cutoff) }

    val reconstructed = candidates.count { event ->
        val payload = objectMapper.writeValueAsString(event)
        eventPublicationRepository.upsertReconstructed(event, payload)
    }

    return ReconcileResult(
        scanned = candidates.size,
        reconstructed = reconstructed,
        duplicateRiskDocumented = true,
    )
}

duplicateRiskDocumented = true matters. Reconciliation reduces the chance of losing an event, but it does not create free exactly-once delivery. Consumers still need idempotency by eventId. That is where the Part 1 idempotency topic comes back.

When this variant is worth considering

This is not “always better than classic outbox.” It fits only under the right constraints.

Good fit	Avoid when
Kafka is usually healthy and you want to reduce success-path write amplification	You cannot tolerate any event-loss gap
Consumers already enforce idempotency by event id	The event row must share the exact atomic boundary with the domain row
You can operate fallback, reconciler, and metrics	The event payload cannot be reconstructed from domain state
You need graceful degradation into an outbox relay during Kafka trouble	The outbox row itself is the audit/source-of-truth record

A real system might also use Redis as a buffer between direct publish failure and DB fallback persistence. That can work, but it moves the design burden to buffer durability, eviction policy, consumer group recovery, and duplicate handling. Do not trade one extra DB row for an unobservable recovery path.

Signals to watch in production

The example keeps metrics intentionally small.

Metric	Meaning
workshop.outbox.direct.publish.attempts	Direct Kafka publish success/failure/timeout
workshop.outbox.fallback.stored	Fallback row persistence success/failure
workshop.outbox.relay.events	Relay published/failed/dead-lettered/claim-lost outcomes
workshop.outbox.reconciler.events	Reconstructed gaps

I would alert aggressively on fallback.stored{result=failure} and reconciler.events{result=reconstructed}. Those are not just Kafka outage signals; they mean the system was near an event-loss gap.

Admin endpoints are disabled by default. Manual relay/reconcile endpoints are useful during incidents, but if exposed carelessly they can repeat processing or leak payloads. The tests verify the disabled default and that publication lookup does not expose raw payloads or raw exception details.

Summary

Kafka-first fallback does not discard transactional outbox. It skips the outbox cost on the success path and falls back to outbox relay on the failure path. The price is the publish/fallback gap, reconciler duplicate risk, and a hard requirement for consumer idempotency.

The main point is not “this is faster.” The point is making the cost boundary explicit: pay for an outbox row on every hot write, or pay fallback/reconcile cost only when Kafka publish fails. The workshop example keeps that choice visible in code, tests, metrics, and diagrams.
