Bluetape4k JaVers Part 3: DDD and Workshop Audit Example

Audit history belongs next to the command flow, not in someone’s memory.

2026-06-04 · bluetape4k-javers series · Part 3

Part 1 introduced the JaVers audit model. Part 2 split the persistence roles. Part 3 maps that model onto two examples: the workshop javers-audit module and the javers-exposed-ddd command side example.

Example	What to inspect
bluetape4k-workshop/exposed/javers-audit	Product row persistence with JaVers history and diff queries
examples/javers-exposed-ddd	Order aggregate, Exposed source of truth, JaVers audit, domain events, Redis read model

This post is an application map rather than an exhaustive API guide. It starts with the small workshop example, then reads the DDD example as command side plus read side. Neither example claims to provide distributed transactions or production recovery by itself.

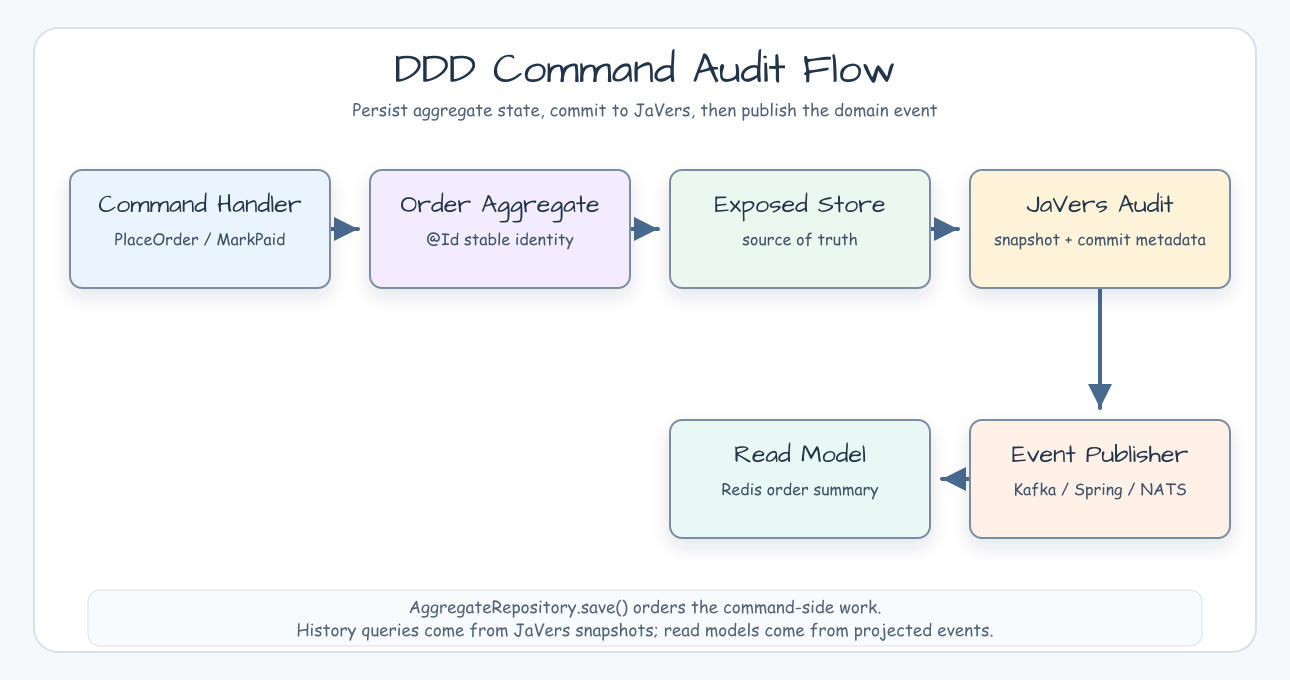

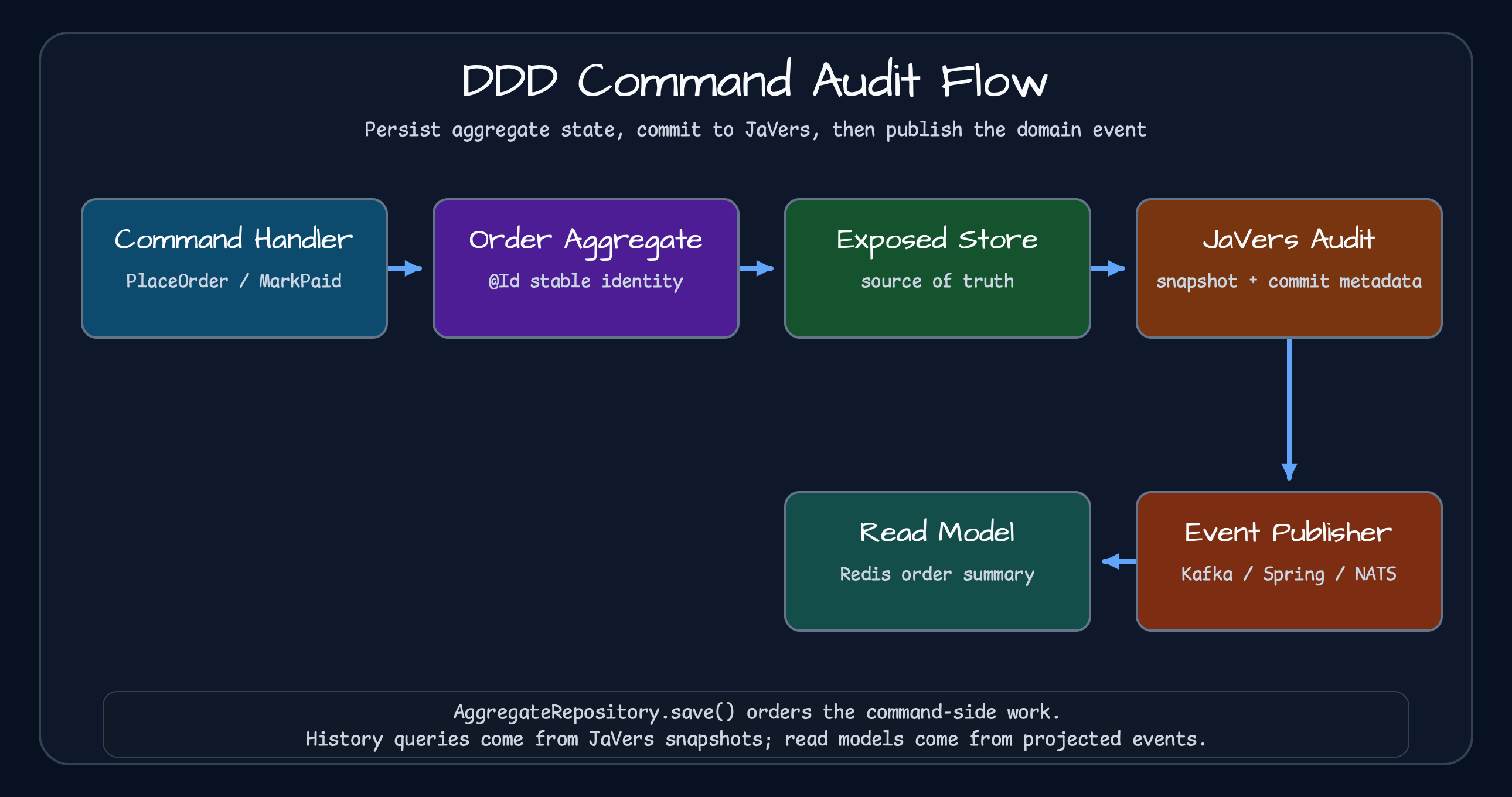

The command side persists aggregate state, commits to JaVers, then publishes the domain event. Each step has a separate failure boundary.

From Manual Audit to JaVers

Manual audit tables are fine until every entity needs its own copy logic. The workshop example keeps the current product row in Exposed and lets JaVers own history and diffs.

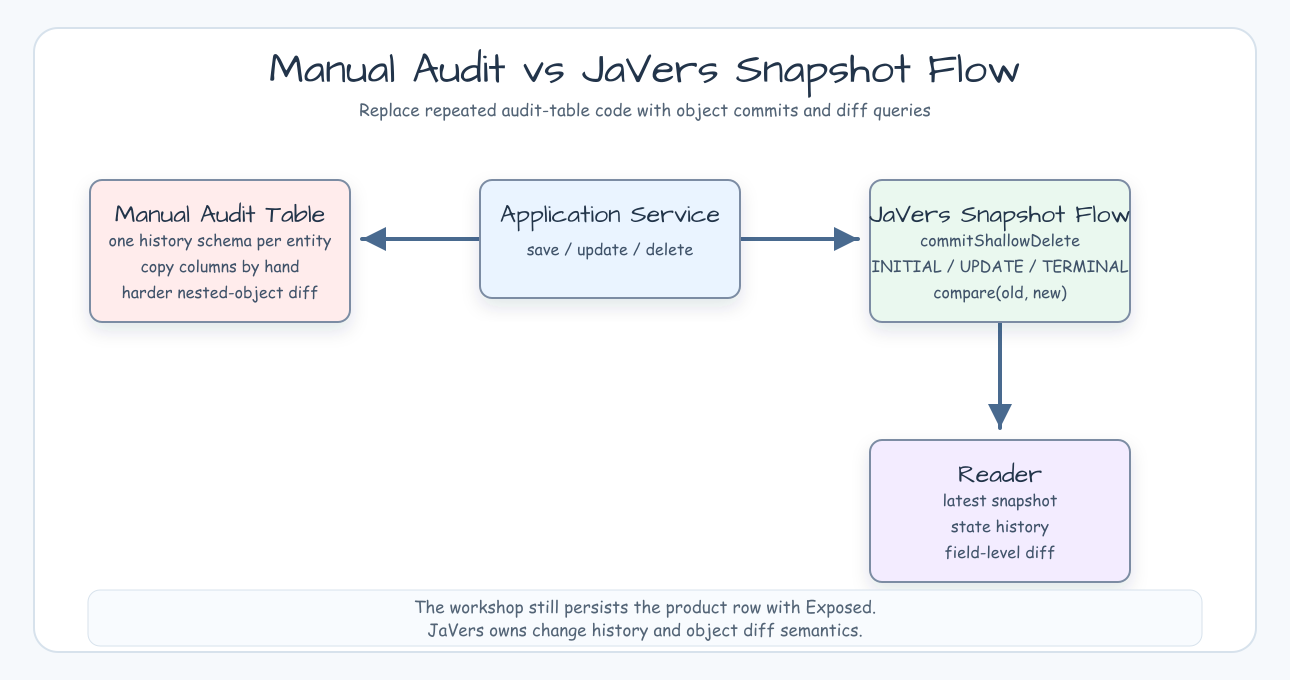

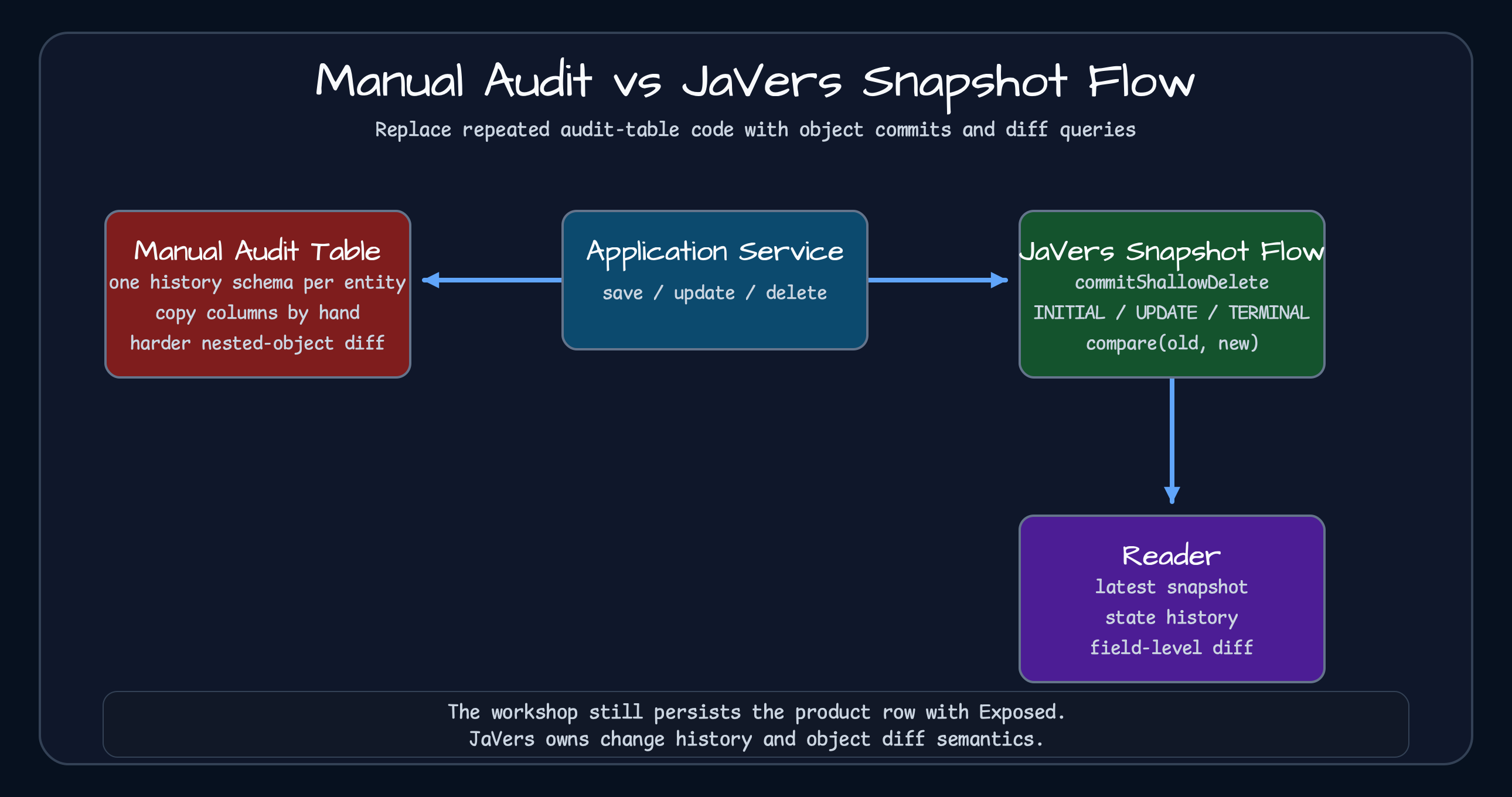

Exposed keeps the current row. JaVers owns change history and object diff semantics.

fun save(author: String, product: Product) {
    author.requireNotBlank("author")
    javers.commit(author, product)
    transaction {
        ProductTable.upsert {
            it[id] = product.id
            it[name] = product.name
            it[price] = product.price
            it[category] = product.category
        }
    }
}

History reads come from JaVers snapshots:

fun getHistory(productId: Long): List<CdoSnapshot> {
    val query = QueryBuilder.byInstanceId(productId, Product::class.java).build()
    return javers.findSnapshots(query)
        .sortedBy { it.commitMetadata.commitDate }
}

The tests verify initial, update, terminal snapshots, latest snapshot lookup, and value changes.

The small example does not make the two writes atomic. save commits to JaVers before a separate Exposed transaction upserts the row. delete likewise records the terminal snapshot before deleting the row. The module proves responsibility separation and happy-path ordering, not recovery when only one write succeeds.

DDD Command Flow

The DDD example starts with an OrderCommandHandler. It loads or creates the aggregate, applies one state transition, and saves through the repository.

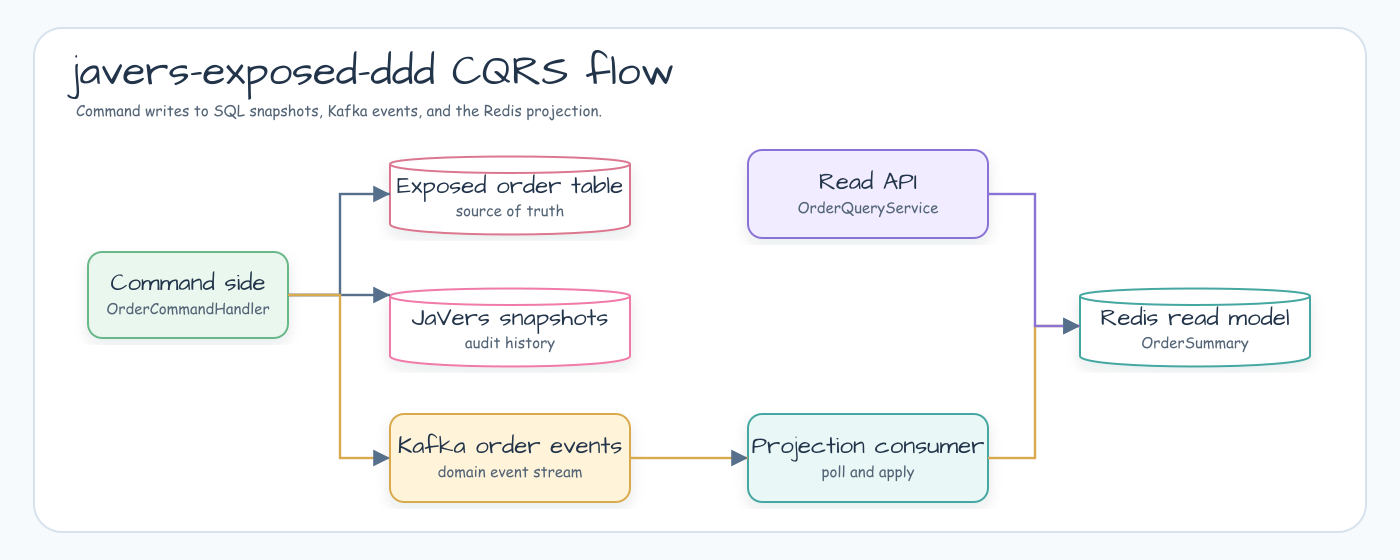

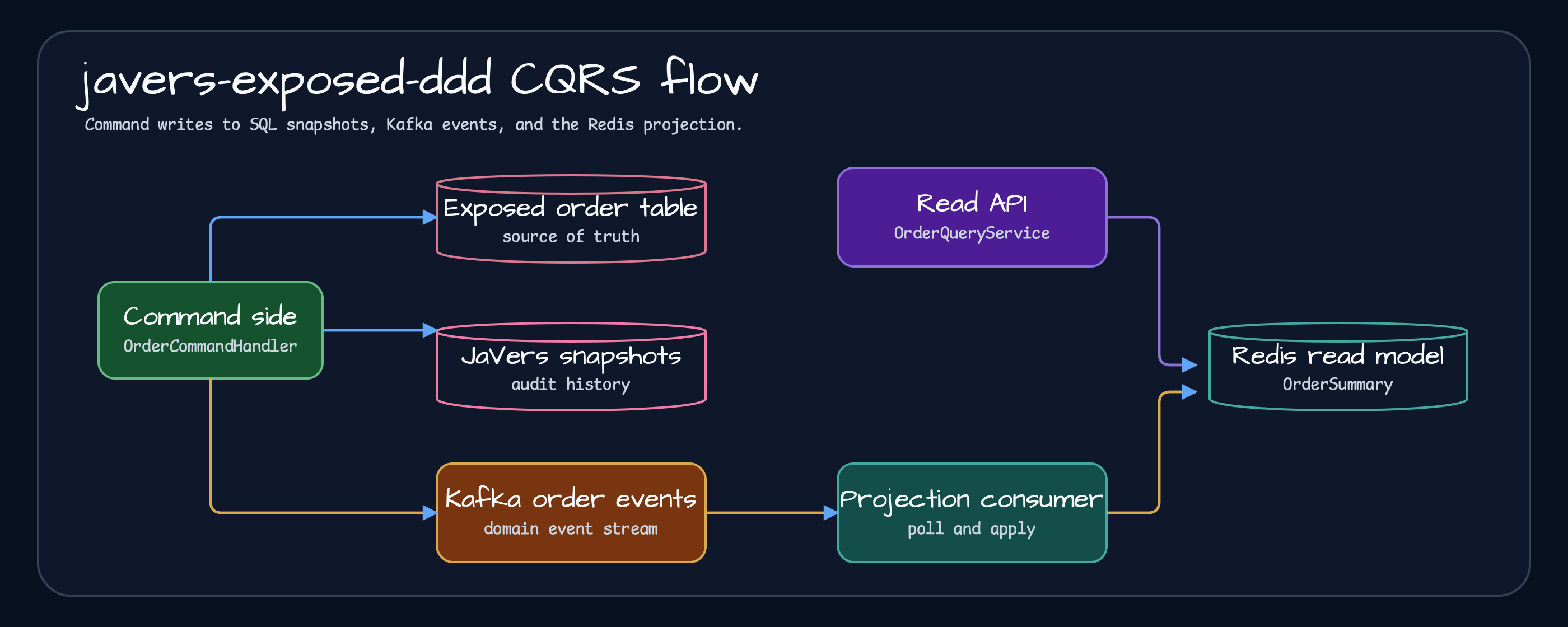

The scenario is intentionally small. A user places an order, and later payment marks it as paid. The command side stores the current order in an Exposed table, records the same change as a JaVers snapshot, and publishes an OrderPlaced or OrderMarkedPaid event. The query side consumes the event and updates a Redis OrderSummary. Redis is not the audit log; it is the read model for queries and screens.

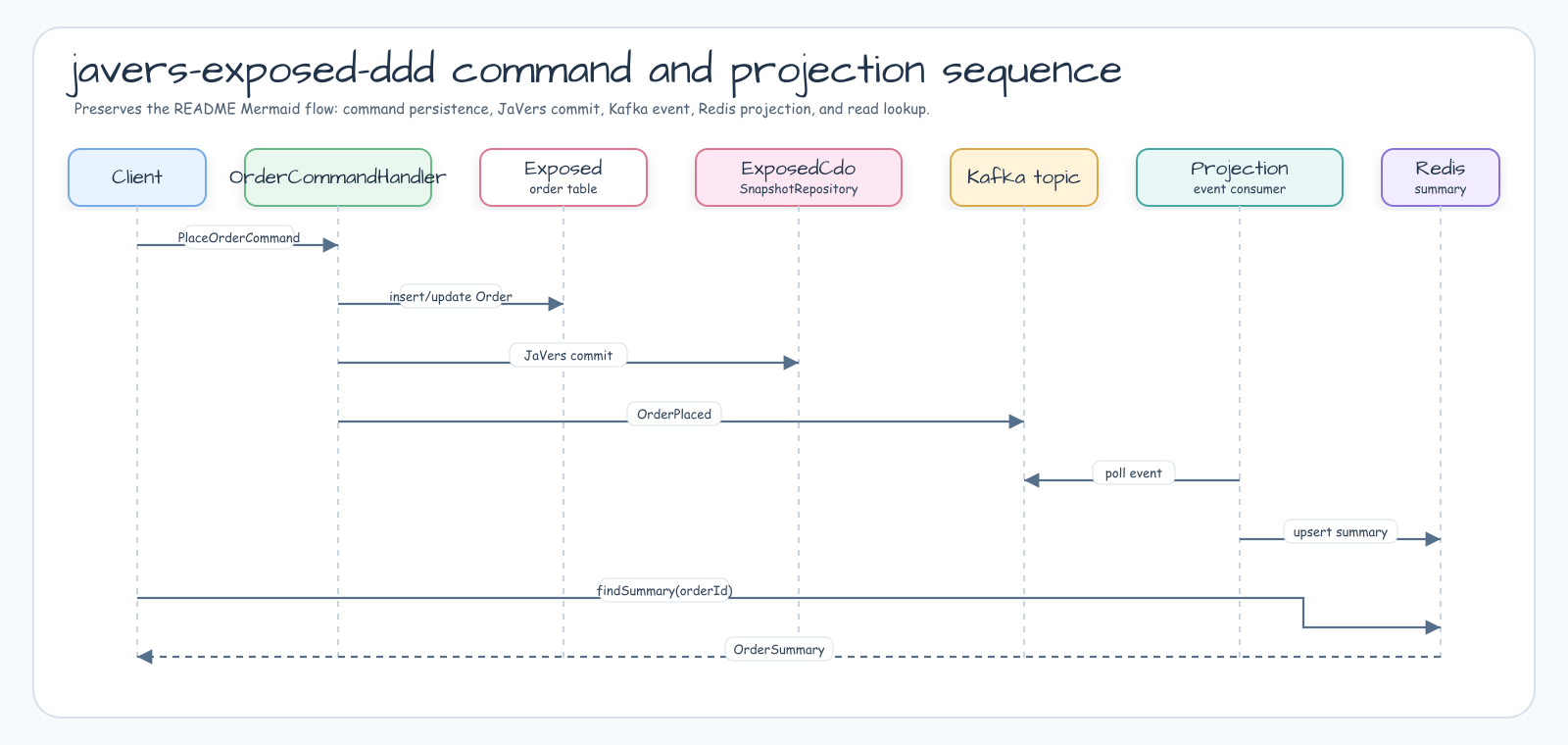

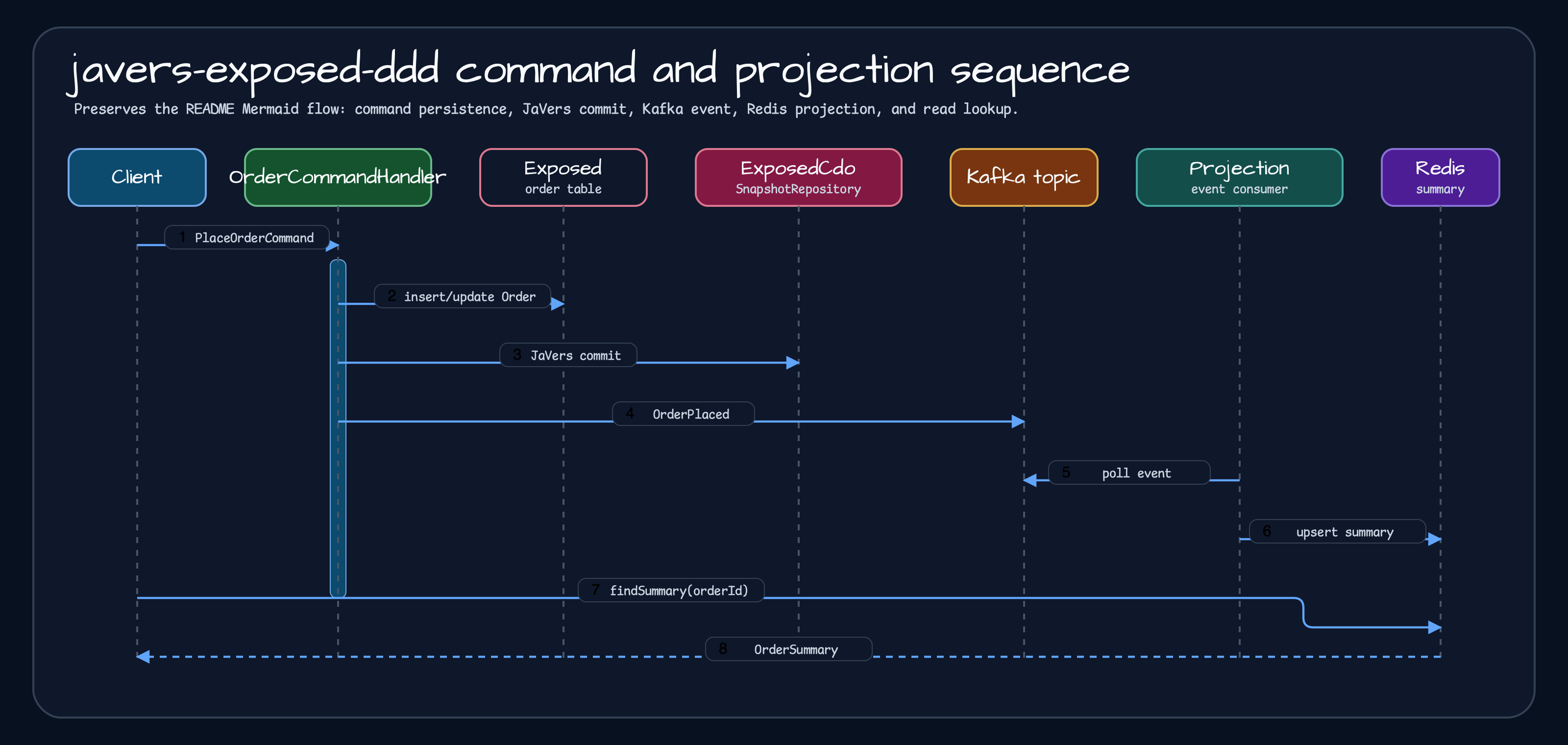

Command handling, audit commit, event publishing, and Redis projection run in order, but not as one atomic operation.

fun handle(command: MarkOrderPaidCommand): Order {
    val current = requireNotNull(repository.load(command.orderId)) {
        "Order not found: ${command.orderId.value}"
    }
    val now = clock.instant()
    val paid = current.markPaid(now)
    return repository.save(
        aggregate = paid,
        author = command.author,
        event = OrderMarkedPaid(
            aggregateId = paid.id,
            occurredOn = now,
        ),
    )
}

OrderRepository extends AggregateRepository. The source of truth is still OrdersTable. OrderRepository.saveAuditBoundary runs source persistence and the Exposed-backed JaVers commit inside the database transaction, while event publication happens after that boundary.

fun save(aggregate: T, author: String, events: Collection<DomainEvent>): T {
    val saved = saveAuditBoundary {
        val persisted = persist(aggregate)
        javers.commit(author, persisted, events.toJaversProperties())
        persisted
    }
    eventPublisher.publishAll(events)
    return saved
}

The ordering matters: persist the aggregate first, commit the saved state to JaVers, then publish the domain event. It is not an outbox. If Kafka publication fails, the current order and audit history may remain without a projection event.

Read Model Is Not Audit History

The example also has a Redis-backed OrderSummary projection. That is a query-side read model, not the audit log itself. When that line gets blurry, teams are likely to try using JaVers snapshots as a replacement for every read model. JaVers answers “how did this object change?” The read model answers “what does the screen need now?” They can work together, but they should not be confused.

The source-of-truth store, JaVers audit store, Kafka event stream, and Redis read model have separate responsibilities.

The current projection assumes that OrderPlaced has already created the summary. OrderMarkedPaid fails when the summary is missing. The example also does not implement duplicate handling, out-of-order repair, production offset management, or restart recovery.

CDC, Envers, and JaVers

CDC, Hibernate Envers, and JaVers all sit near audit history, but they start from different places.

Option	Starts from	Best fit
CDC	Database log	Stream database changes to external systems
Hibernate Envers	JPA entity revision	Fast entity-level revision tables in a JPA application
JaVers	Domain object commit	Object diffs, commit metadata, and DDD command/event audit flow

An early documentation benchmark reported a large JaVers + Exposed audit-query outlier. A later run did not reproduce it, so the old number should not be treated as a stable comparison. Part 4 documents the current benchmark paths, completion boundaries, environments, and audit-scope choices.

What the Example Proves

Verified by the example	Still required for production
Happy-path command state and JaVers snapshots	Schema, locking, and isolation checks on the actual PostgreSQL deployment
Kafka publication keyed by order ID and Redis projection	Transactional outbox or equivalent durable recovery record
Normal OrderPlaced then OrderMarkedPaid ordering	Event IDs, idempotency, retries, quarantine, and offset policy
Latest OrderSummary reads from Redis	Projection rebuild and consistency-check procedures

The tests use H2 in PostgreSQL compatibility mode plus Kafka and Redis Testcontainers. They do not prove actual PostgreSQL behavior, process restart recovery, broker failure handling, concurrent commands, duplicate or reordered events, or projection rebuilds.

Adoption Checklist

Step	Check
Identity	Stable aggregate id and clear JaVers @Id
Source of truth	Which table or repository owns current state
Commit point	Where the command flow commits the saved aggregate
Metadata	Author, event type, aggregate id, and event attributes
Persistence	Exposed, Redis, and Kafka roles split by history/query/stream
Failure contract	Recovery when database save, audit commit, or event publication fails
Tests	INITIAL/UPDATE/TERMINAL, diff, latest snapshot, projection flow, and failure boundaries

Source Links

• Workshop audit example: exposed/javers-audit
• Product audit service: ProductAuditService.kt
• DDD example: examples/javers-exposed-ddd
• Command handler: OrderCommandHandler.kt
• Aggregate repository: AggregateRepository.kt
• Exposed audit boundary: Audit history with JaVers

Closing

The point is not to delete every audit table. The point is to separate responsibilities. Exposed stores current aggregate state, JaVers stores object history and diffs, and event publishers plus read models serve query-side consumers.

That separation explains the happy path. Production use must also verify transaction participation for the database and audit store, durable recovery for event publication, and idempotent, rebuildable projections.

Series Links

• Part 1: Audit and diff overview
• Part 2: Exposed, Redis, and Kafka persistence
• Part 3: DDD and workshop audit example
• Part 4: Audit logs are not free
