Transactional Outbox and Idempotency in Spring and Ktor Examples

The outbox is not decoration around messaging. It records what was committed so delivery can fail and recover without guessing.

2026-06-29 · bluetape4k-workshop / exposed-workshop · issue #184

Suppose a service writes domain state and then calls another service, publishes an event, or returns a response that a client may retry. The code path looks simple: persist, call, respond.

The failure path is less polite. The process can die after the database write and before the HTTP call. The external API can succeed before the local status update. The client can see a timeout and send the same request again. Without an explicit boundary, duplicate requests, partial writes, and delivery gaps start to look the same.

This post is not a pattern encyclopedia. It uses the bluetape4k-workshop and exposed-workshop examples to show one practical question: what belongs in the database transaction, and what should become retryable work after commit?

Start with the Failure Boundary

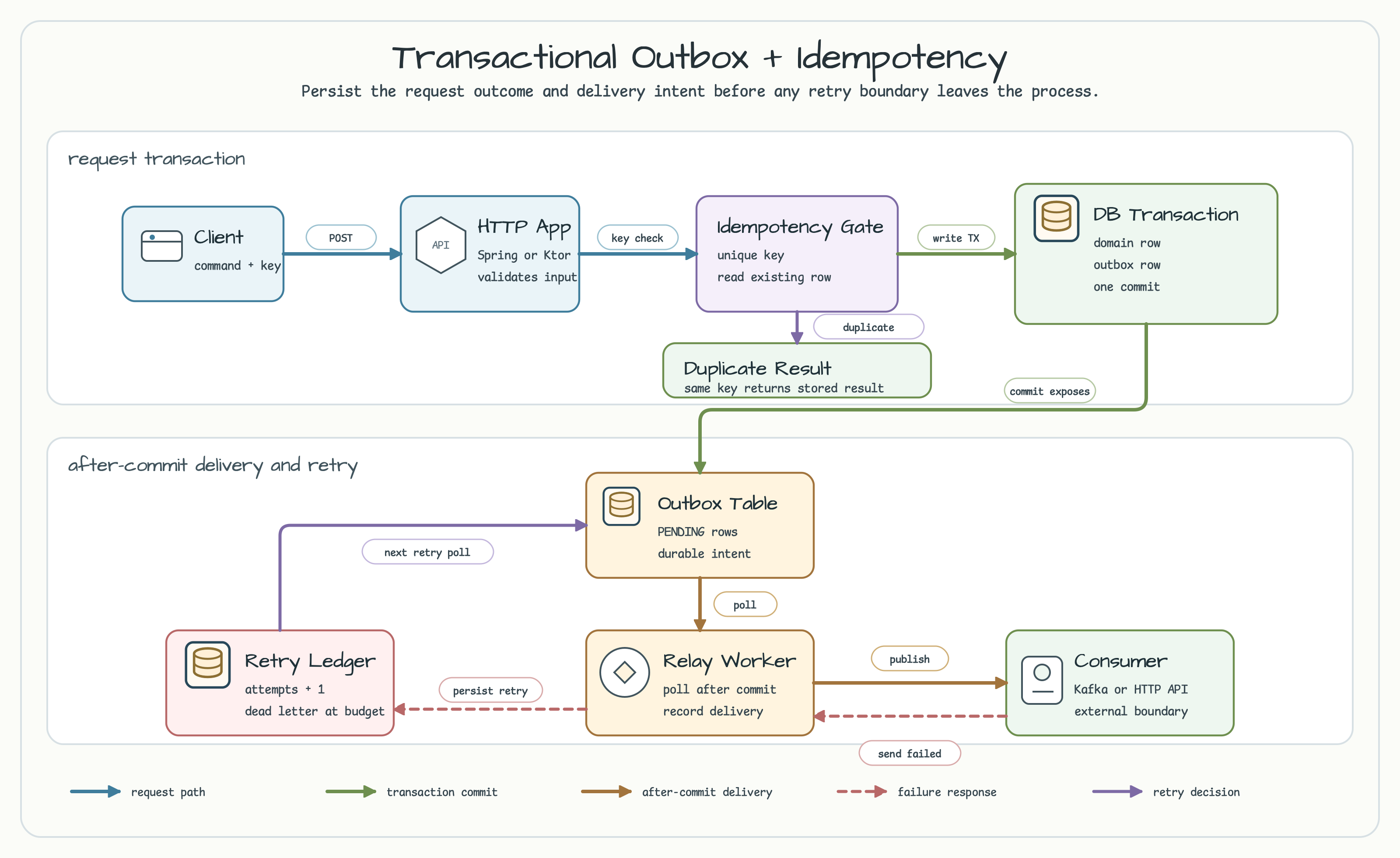

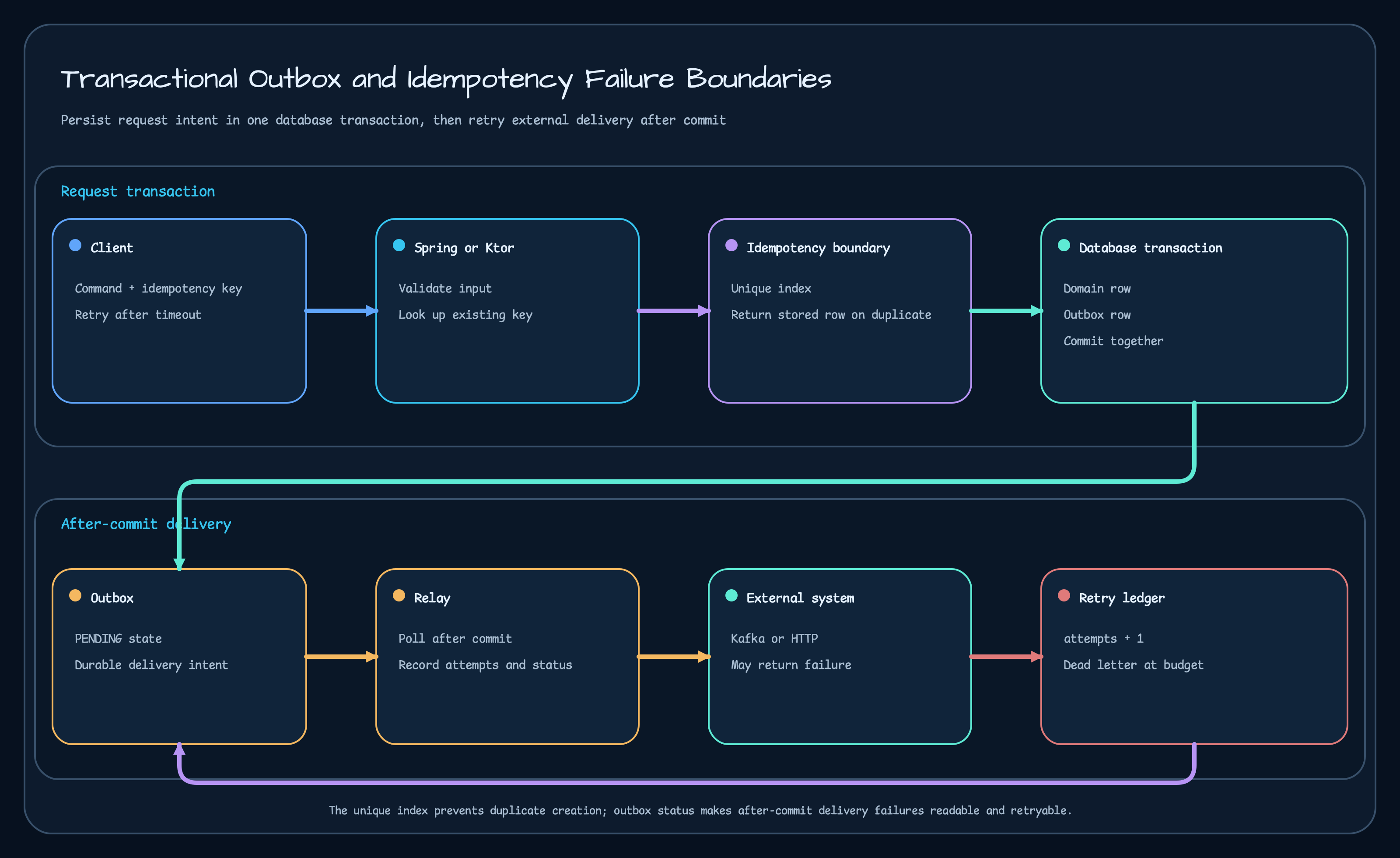

Outbox and idempotency work together because they separate durable user intent from best-effort delivery. The request records the intent first. Delivery happens after commit and can be retried from stored state.

The key move is writing the domain row and outbox row together. After commit, delivery can fail and still be retried.

In messaging/transactional-outbox, OrderService writes the order row and outbox row inside the same Spring transaction.

val orderId = OrderTable.insertAndGetId {
    it[OrderTable.customerId] = customerId
    it[OrderTable.product] = product
    it[OrderTable.quantity] = quantity
    it[OrderTable.status] = OrderStatus.PENDING
}

OutboxEventTable.insert {
    it[OutboxEventTable.aggregateType] = "Order"
    it[OutboxEventTable.aggregateId] = orderId.value.toString()
    it[OutboxEventTable.eventType] = "OrderPlaced"
    it[OutboxEventTable.payload] = payload
    it[OutboxEventTable.status] = OutboxStatus.PENDING
}

That prevents a state where the order exists but no publishable intent exists. If the transaction rolls back, both rows are gone. The starting point is explicit.

The Idempotency Key Makes Retries Ordinary

From the HTTP client side, retry after timeout is normal. The server still must avoid doing the external work twice. The Spring and Ktor HTTP outbox examples put a unique index on idempotencyKey and return the existing record when the key is already present.

fun submit(request: CreatePaymentRequest): PaymentResponse {
    val command = request.toCommand()
    val created = repository.createPending(command)
    if (!created.inserted) {
        return created.record.toResponse(duplicate = true)
    }
    return dispatch(created.record.id, command)
}

The repository repeats that rule at the database boundary.

transaction(database) {
    findByIdempotencyKey(command.idempotencyKey)?.let {
        CreatePaymentResult(it, inserted = false)
    } ?: insertPending(command)
}

The HTTP contract follows the same shape in Spring and Ktor: new records return 201 Created; duplicate keys return the stored row with 200 OK. A duplicate request is not treated as an exceptional mystery. It is expected retry traffic with a stable identity.

Spring and Ktor Differ in How the Boundary Is Expressed

Both examples teach the same business rule.

Comparison point	Spring Boot example	Ktor example
HTTP entry	@RestController + ResponseEntity	explicit Route.paymentRoutes
repository call	blocking Exposed JDBC transaction	Exposed JDBC transaction inside withContext(Dispatchers.IO)
duplicate key	unique index + existing row reread	same unique index + existing row reread
gateway failure	retryable/permanent exception becomes status	suspend gateway uses the same status rule
validation/error mapping	MVC ErrorAdvice	Ktor StatusPages

The Ktor version is worth reading because it keeps blocking JDBC work out of the main coroutine path.

private suspend fun <T> transactionIO(block: () -> T): T =
    withContext(Dispatchers.IO) {
        transaction(database) {
            block()
        }
    }

The important comparison is not which framework wins. It is whether both frameworks express the same failure contract without hiding blocking work or duplicate-request behavior.

First Call, Same-Key Retry, Relay Retry

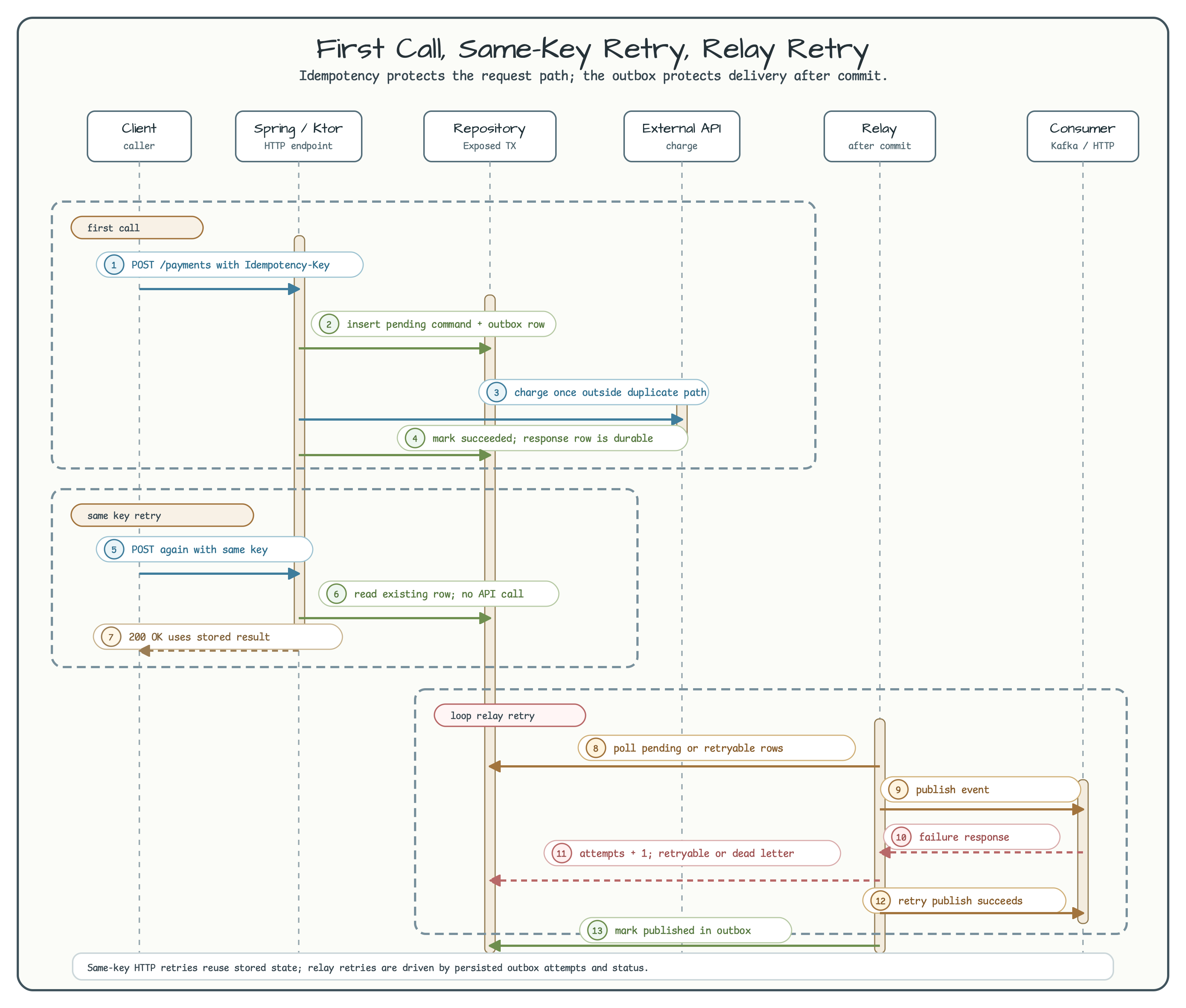

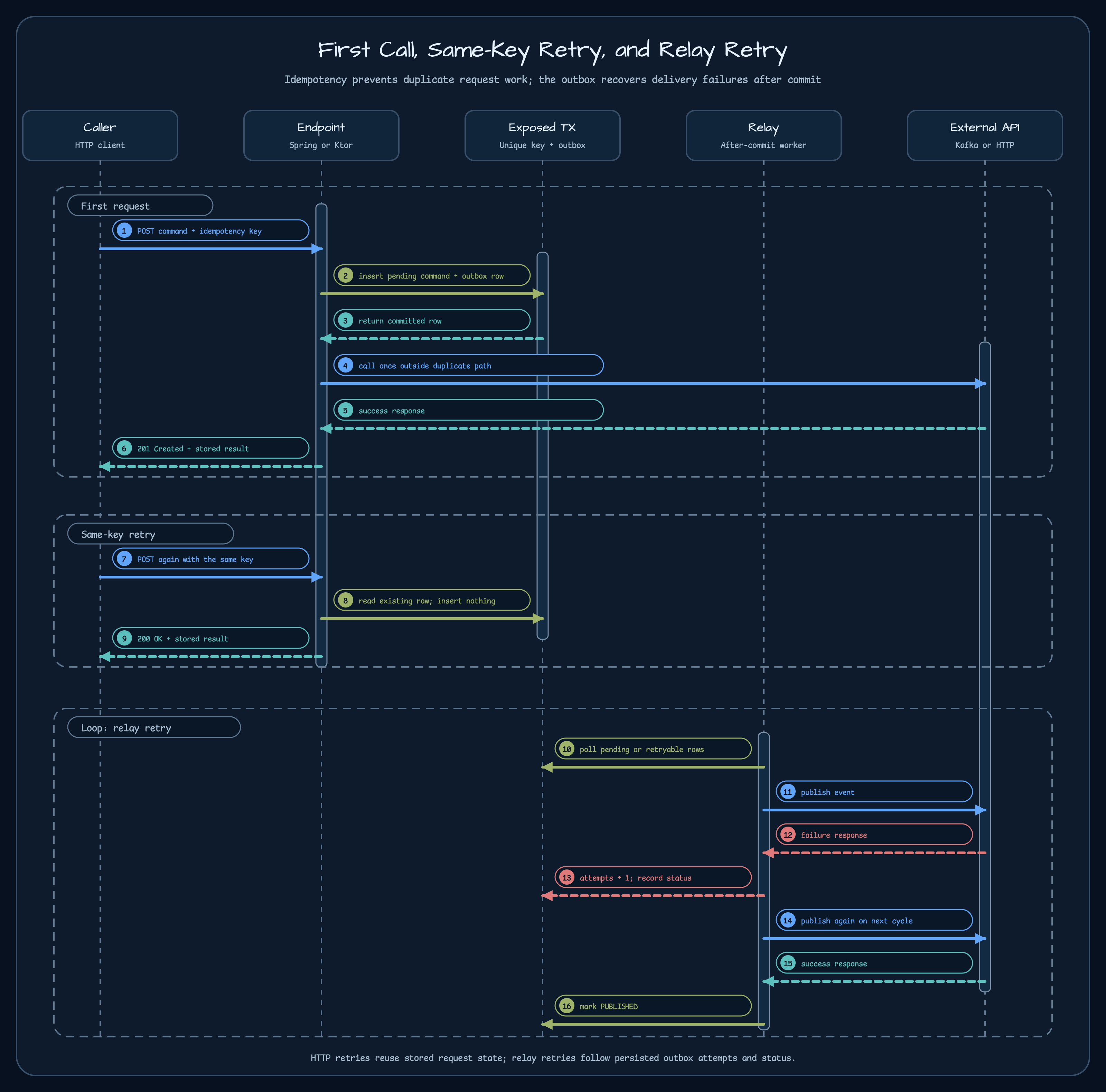

The sequence below collects the three common cases: first submit, same-key retry, and retryable delivery failure.

A duplicate key does not call the external API again. Relay failure is retried from the row that survived commit.

The tests lock that behavior down. The Spring and Ktor service tests submit the same key twice and verify that the second response points to the first row while the gateway was called only once.

val first = service.submit(CreatePaymentRequest("order-2", 2_500, "key-2"))
val duplicate = service.submit(CreatePaymentRequest("order-2", 2_500, "key-2"))

duplicate.id shouldBeEqualTo first.id
duplicate.duplicate shouldBeEqualTo true
gateway.commands.size shouldBeEqualTo 1

Retryable failure follows the stored row as well. The first call records RETRYABLE_FAILED; the retry endpoint dispatches from the same record.

val failed = service.submit(CreatePaymentRequest("order-retry", 1_000, "retry-key"))
failed.status shouldBeEqualTo PaymentStatus.RETRYABLE_FAILED

val retried = service.retry(failed.id)
retried.status shouldBeEqualTo PaymentStatus.SUCCEEDED
retried.attempts shouldBeEqualTo 2

Commit Does Not End All Failure

Transactional outbox does not remove failure. It moves failure to a place that can be inspected and retried.

Failure point	Expected behavior	Source example
Before the database transaction	no durable record; retry behaves like a new request	payment createPending
After domain row but before outbox row	same transaction rolls back both rows	OrderService.placeOrder
After commit but before relay	outbox row remains available for polling	OutboxPublisher.publishPendingEvents
Retryable external failure	RETRYABLE_FAILED, eligible for /retry	Spring/Ktor PaymentService.retry
Permanent external failure	PERMANENT_FAILED, retry rejected	Spring/Ktor service tests
Kafka publish failure	retry count increases; budget exhaustion moves to DEAD_LETTER	OutboxTransactionTest
Same idempotency key retry	stored row returned; no second external call	Spring/Ktor service tests

OutboxPublisher records Kafka send failure by incrementing retry state and eventually moving the row to DEAD_LETTER.

catch (e: Exception) {
    val newRetry = currentRetry + 1
    incrementRetry(eventId, newRetry)
    false
}

The claim is not “nothing fails after commit.” Things still fail after commit. The difference is that the failure leaves a row behind. Operators can read status and retry count instead of reconstructing intent from scattered logs.

Realtime Outbox Uses the Same Rule for UI Delivery

07-spring-outbox-realtime and 08-ktor-outbox-realtime move from HTTP payment to notification delivery. The repository creates a notification row and realtime outbox row in the same transaction. The service then reads pending rows and tries delivery.

val notificationId = Notifications.insertAndGetId {
    it[recipientId] = command.recipientId
    it[message] = command.message
}.value

val eventId = RealtimeOutbox.insertAndGetId {
    it[aggregateId] = notificationId
    it[eventType] = "notification.created"
    it[status] = OutboxStatus.PENDING.name
    it[attempts] = 0
}.value

Successful delivery marks PUBLISHED; failed delivery marks FAILED. replayAfter(eventId) reads published rows after a cursor. For WebSocket or SSE style delivery, that means recovery can be based on database state instead of whatever was still in memory.

Rules to Take from the Examples

The examples leave a compact set of rules.

• Put user intent and outbox intent in the same transaction.
• Assume external delivery can fail after commit and record status.
• Keep retryable and permanent failures distinct.
• Treat the idempotency key as a database unique boundary, not controller decoration.
• Spring and Ktor code shapes can differ; the failure contract should not.

Outbox and idempotency make the happy path longer. That extra length matters in production. A short path without stored state is pleasant until a timeout hides what happened. With an outbox row and idempotency key, the system can read where the failure landed and retry from there.

Source notes

• Transactional outbox workshop: messaging/transactional-outbox
• Atomic order write: OrderService.kt
• Kafka relay and retry status: OutboxPublisher.kt
• Spring HTTP outbox/idempotency: 03-spring-http-outbox-idempotency
• Ktor HTTP outbox/idempotency: 04-ktor-http-outbox-idempotency
• Spring realtime outbox: 07-spring-outbox-realtime
• Ktor realtime outbox: 08-ktor-outbox-realtime
