Operating an OCR Service in Practice: Large Image Preprocessing and Failure Response Contracts

An OCR service must return a client-readable response even when recognition cannot run.

2026-06-30 · bluetape4k-workshop · bluetape4k-image OCR service

An OCR demo often ends with a file upload and extracted text. A real service does not. A compressed upload may decode into a much larger image, the declared content type may be false, Tesseract may be missing from the host, or the native OCR call may time out.

That is why the bluetape4k-workshop/image-processing/ocr-api example models input boundaries and failure responses before it celebrates the happy path. Invalid requests stop at BAD_REQUEST. A fallback response is reserved for a valid image that cannot be recognized because the current host cannot run OCR or because OCR failed at runtime. Mixing those two cases makes clients, operators, and alerts harder to reason about.

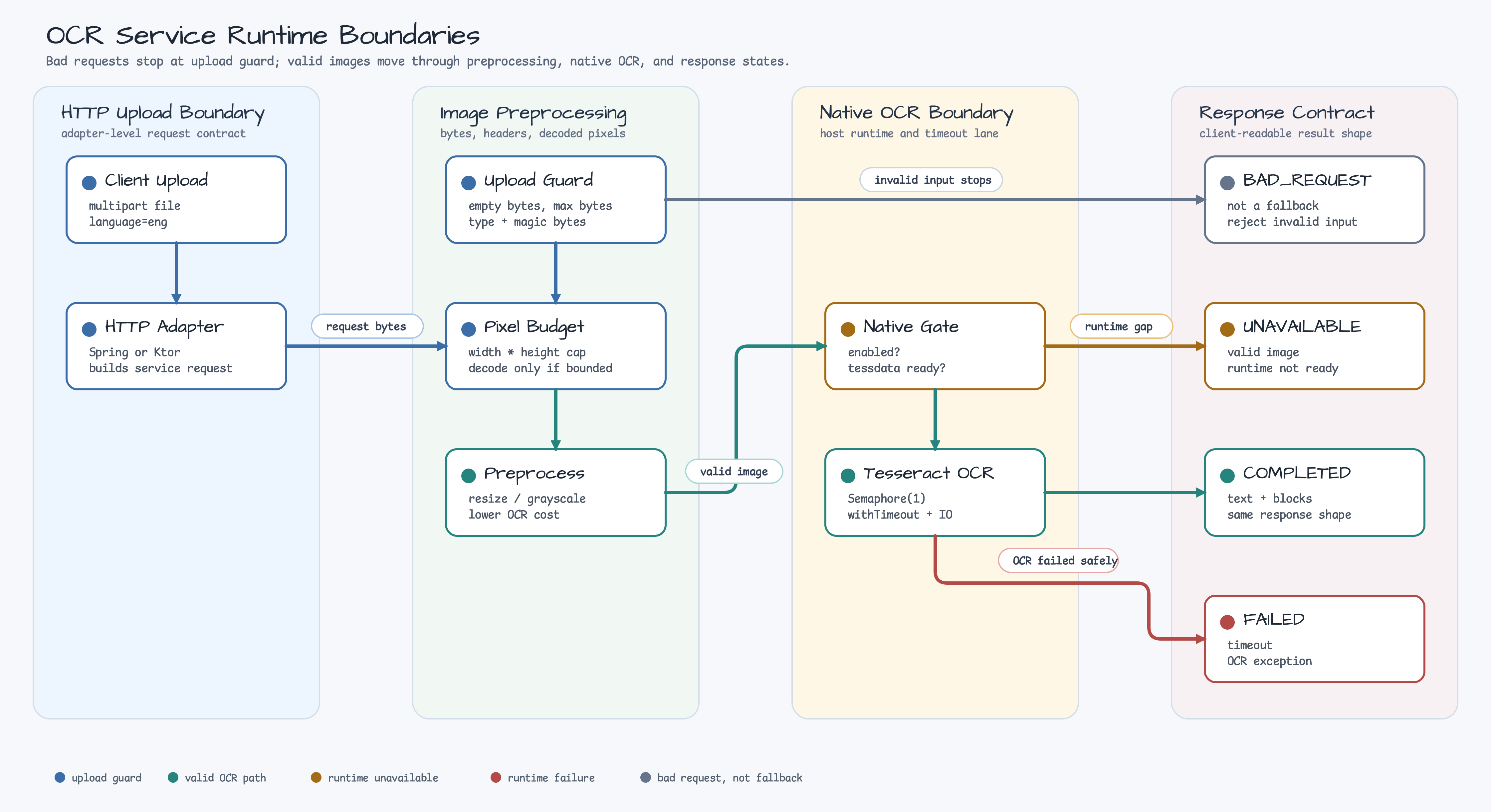

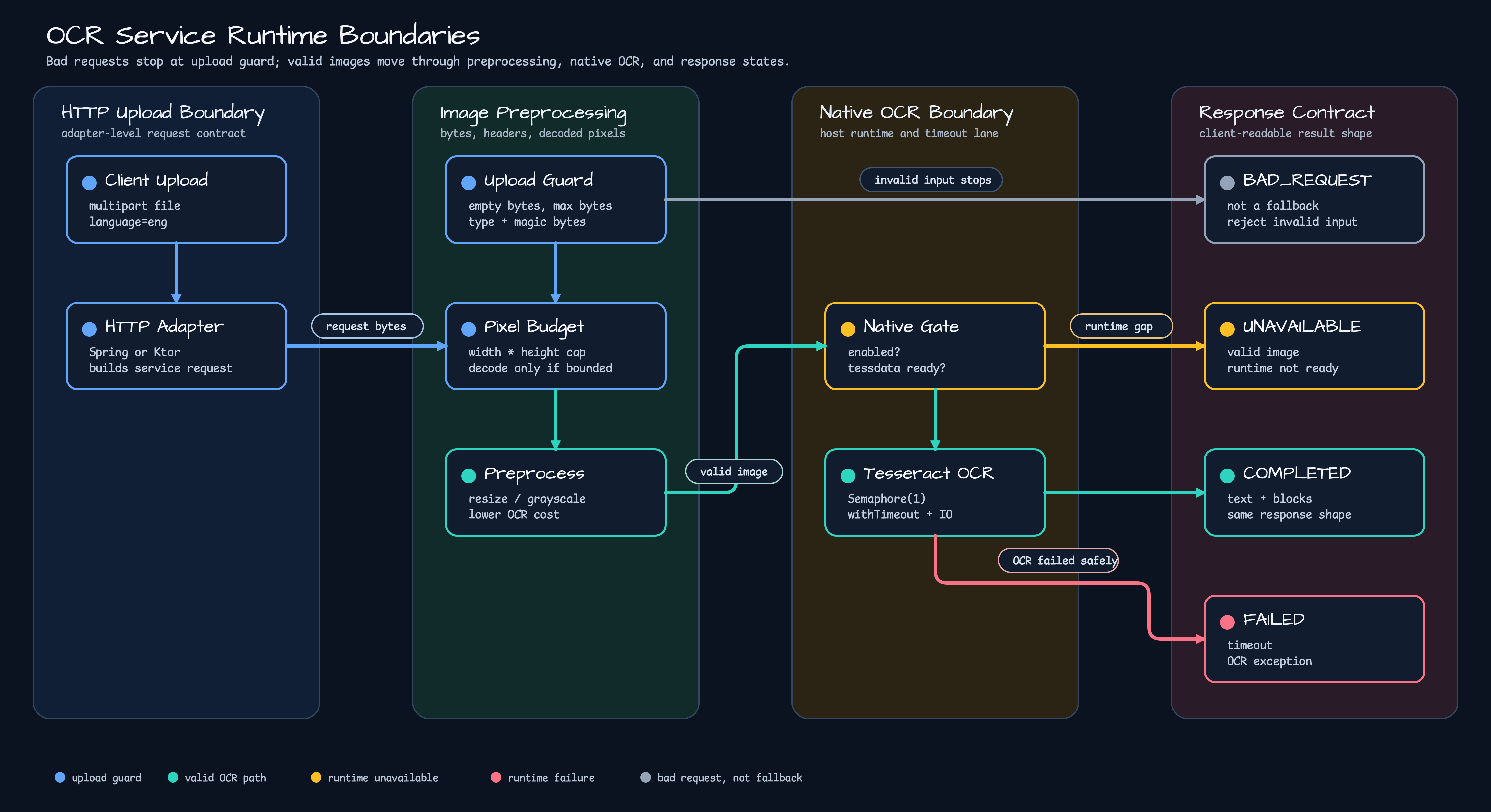

A practical OCR service splits upload guard, image preprocessing, native OCR, and response contract. BAD_REQUEST is not a fallback; it is an input-boundary rejection.

Example API Shape

The sample input in this post is a clean document-like image.

Actual OCR output depends on font, resolution, traineddata, and preprocessing. The JSON below is a source-backed illustration of the workshop contract.

The workshop API accepts a multipart upload.

curl -F "file=@sample.png;type=image/png" \
  -F "language=eng" \
  http://localhost:8080/api/images/ocr

The controller turns the file part and optional language query parameter into a service request. Full source: ImageOcrController.kt

The response model does not return text alone.

data class ImageOcrResponse(
    // Correlation id used to connect logs, traces, and client support cases.
    val requestId: String,

    // The first field clients should branch on.
    // COMPLETED, UNAVAILABLE, and FAILED share the same response shape.
    val status: OcrStatus,

    // OCR engine used for this response. Disabled native OCR is reported explicitly.
    val engine: String,

    // OCR language list requested by the client or normalized by the service.
    val languages: List<String>,

    // Nullable when the OCR engine cannot report confidence.
    val confidence: Double?,

    // Final recognized text. It can be empty for UNAVAILABLE or FAILED responses.
    val text: String,

    // Structured line-level OCR result for highlighting or post-processing.
    val blocks: List<OcrTextBlock>,

    // Client/operator-readable notes that replace exception-message parsing.
    val warnings: List<String>,
)

Full source: ImageOcrModels.kt

Because status is explicit, clients do not need to infer meaning from an empty text field.

Input Boundary: Upload Bytes Are Not Enough

A fallback response does not mean the API accepts any image. ImageOcrServiceImpl validates the request before it attempts OCR.

Guard	Why it exists
Reject empty bytes	Do not treat an empty multipart field as a valid OCR request
maxUploadBytes	Keep one request from pressuring heap and native runtime resources
JPEG/PNG/WebP content type	Keep the client/server contract narrow
Magic-byte check against declared type	Reject spoofed uploads such as JPEG bytes declared as PNG
Decoded pixel budget	Bound decode-time cost by width * height

The actual control is the decoded pixel budget. A 4096x3860 image may look small as compressed bytes, but it decodes to about 15.8M pixels. In practice, the API worker and preprocessing pipeline care about width * height, not the uploaded byte count alone. The workshop example enforces that contract with maxImagePixels.

Full source: ImageOcrServiceImpl.kt, ImageOcrProperties.kt

The important rule is that BAD_REQUEST is not a fallback status. Empty files, unsupported content types, magic-byte mismatches, corrupt images, and pixel-budget violations fail at the input boundary. A fallback response is not a device for normalizing bad requests. It is used only when a valid image cannot be processed because the OCR runtime is unavailable or failed.

One Response Shape, Different States

When native OCR succeeds, the COMPLETED response returns text and line-based blocks.

{
  "requestId": "ocr-20260630-0001",
  "status": "COMPLETED",
  "engine": "tesseract",
  "languages": ["eng"],
  "confidence": null,
  "text": "BLUETAPE OCR\nLine 1: Upload image\nLine 2: Validate native OCR\nLine 3: Return fallback safely",
  "blocks": [
    { "index": 0, "text": "BLUETAPE OCR", "confidence": null },
    { "index": 1, "text": "Line 1: Upload image", "confidence": null },
    { "index": 2, "text": "Line 2: Validate native OCR", "confidence": null },
    { "index": 3, "text": "Line 3: Return fallback safely", "confidence": null }
  ],
  "warnings": ["Confidence is not available from the current OCR engine."]
}

When native OCR is disabled, the API still validates the image but does not run OCR. The response is UNAVAILABLE.

{
  "requestId": "ocr-20260630-0002",
  "status": "UNAVAILABLE",
  "engine": "disabled",
  "languages": ["eng"],
  "confidence": null,
  "text": "",
  "blocks": [],
  "warnings": [
    "Native OCR is disabled. Enable workshop.ocr.native-enabled=true or -Docr.enabled=true."
  ]
}

Missing Tesseract configuration or language data is also expressed as UNAVAILABLE. A timeout or runtime OCR exception becomes FAILED.

Status	text/blocks	Common cause	Client interpretation
COMPLETED	Filled	OCR completed	Use text and blocks
UNAVAILABLE	Empty	Native disabled, Tesseract/tessdata/language pack not ready	Retry later or continue with an OCR-less UX
FAILED	Empty	Timeout or OCR runtime exception	Treat it as input quality or processing failure and apply a separate retry policy

All three states share the same response shape. Clients read status, warnings, text, and blocks instead of parsing exception messages.

Native OCR Is a Host Contract

bluetape4k-image/images-ocr provides a Tess4J/Tesseract-backed engine, but it does not bundle the Tesseract binary or traineddata. The host or container must provide the native runtime.

brew install tesseract
ls /opt/homebrew/share/tessdata/eng.traineddata

sudo apt-get install -y tesseract-ocr tesseract-ocr-eng

The workshop exposes this through configuration.

Property	Role
workshop.ocr.native-enabled	Enables the native OCR path
workshop.ocr.tessdata-path	Points to host-specific traineddata
workshop.ocr.timeout	Keeps a native call from holding an API worker too long
workshop.ocr.max-upload-bytes	Limits upload byte budget
workshop.ocr.max-image-pixels	Limits decoded image pixel budget

ImageOcrServiceImpl wraps the native OCR section with Semaphore(permits = 1), withTimeout, and runInterruptible(Dispatchers.IO). That is the right signal: a coroutine API does not make a native OCR call cheap. Native OCR consumes CPU and native memory, so concurrency and timeout must be explicit.

Full source: TesseractOcrEngine.kt, images-ocr README

Large Images Cost Money Before OCR Starts

Memory pressure in an OCR API does not start only inside Tesseract. A small compressed upload can expand into a large decoded image and pressure heap or native pipelines before recognition begins.

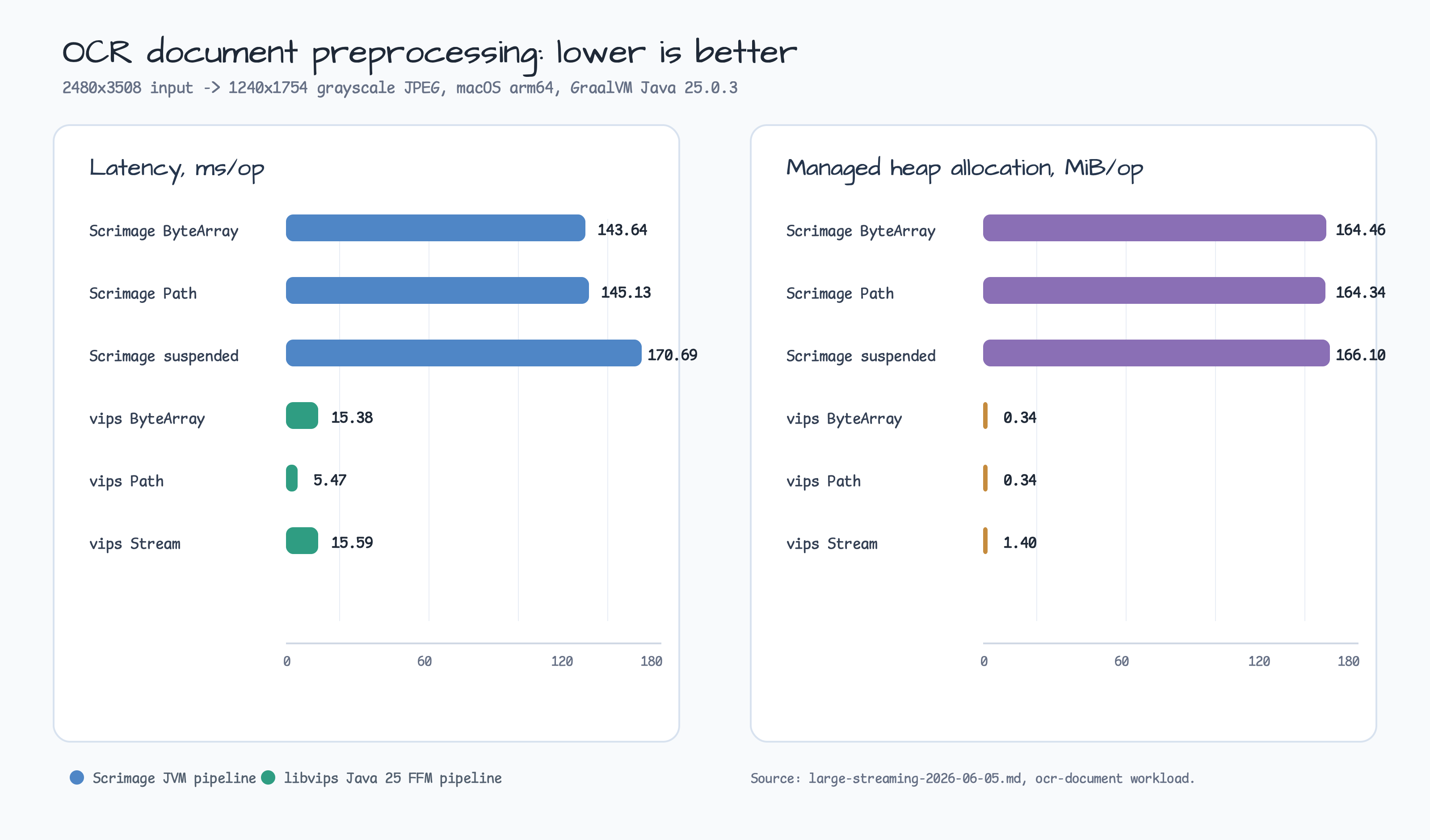

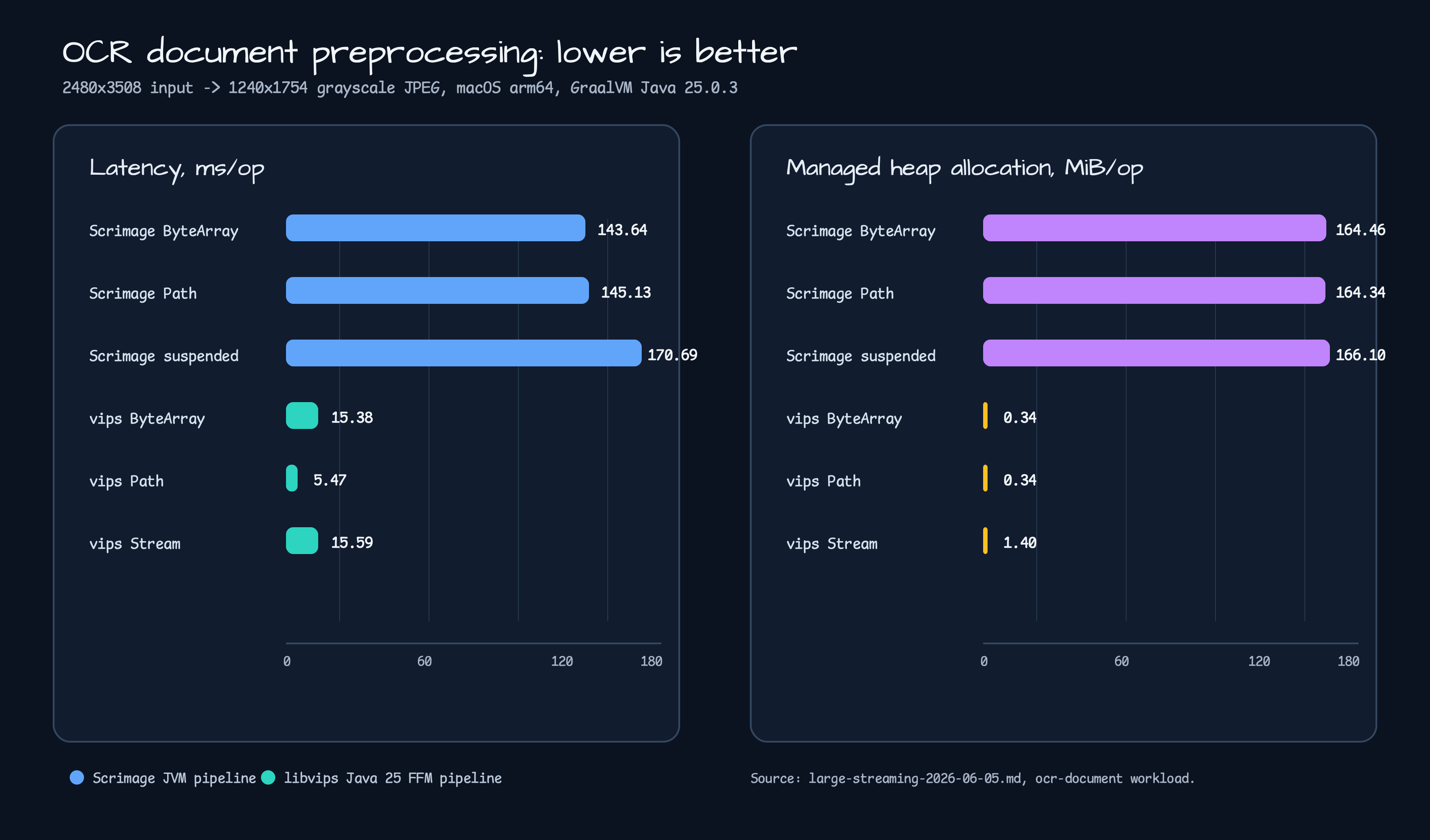

The images-benchmark large-streaming report includes a document/OCR-like workload. It processes a 2480x3508 document input, resizes it to 1240x1754, applies grayscale, and encodes JPEG output. This is not an OCR recognition benchmark. It is evidence for the image preprocessing cost that happens before OCR.

In the document-like preprocessing workload, the libvips Java 25 FFM path used much less latency and managed heap allocation than the pure-JVM Scrimage path. These numbers measure decode/resize/grayscale/encode, not recognition time.

Boundary	Latency	Managed heap allocation	Interpretation
Scrimage ByteArray	143.64 ms/op	164.46 MiB/op	Convenient, but stages compressed input bytes
Scrimage Path	145.13 ms/op	164.34 MiB/op	Similar to other blocking Scrimage boundaries
Scrimage InputStream / OutputStream	148.39 ms/op	165.33 MiB/op	Stream boundary does not remove decoded heap cost
Scrimage Okio Source / Sink	145.59 ms/op	165.34 MiB/op	Useful for lifecycle/integration, not a latency win
Scrimage suspended source/sink	170.69 ms/op	166.10 MiB/op	Shows blocking stream bridge overhead
vips ByteArray	15.38 ms/op	0.34 MiB/op	Fast, but still stages compressed input bytes
vips Path	5.47 ms/op	0.34 MiB/op	Strongest row in this snapshot
vips InputStream / OutputStream	15.59 ms/op	1.40 MiB/op	Low managed allocation with stream boundary cost

Source: large-streaming-2026-06-05.md

The API-design consequence is straightforward. maxUploadBytes is not enough for an OCR API. Large images can arrive as small compressed payloads, so a decoded pixel budget must sit beside the upload byte budget. Also, if preprocessing cost matters, do not describe pure-JVM and libvips paths as interchangeable. vips is not an OCR engine; it is a way to reduce image preprocessing cost. The recognition step still belongs to an OCR runtime such as Tesseract.

Ktor and Spring Boot Differ Only at the Adapter

bluetape4k-image includes two OCR quickstarts.

Example	Route	Upload handling	Error shape
Ktor OCR API	/api/ocr	Reads streamed multipart parts up to maxInputBytes + 1	error, message, status, path
Spring Boot OCR API	/api/ocr	Reads MultipartFile.bytes on Dispatchers.IO	error, message

Both eventually call immutableImageOf(uploadBytes).suspendExtractText(...). The difference is how the HTTP stack reads multipart data and shapes errors. The OCR engine contract remains in images-ocr.

Full source: KtorOcrApiApplication.kt, SpringBootOcrApiApplication.kt

Closing

An OCR service gets stuck quickly if it starts as an endpoint returning only detected text. In practice, upload byte limits, decoded pixel budgets, preprocessing cost, native runtime readiness, timeouts, failure responses, and client retry policy move together.

Whether the adapter is coroutines, Ktor, or Spring Boot does not change the core contract very much. The HTTP layer receives a file and builds a service request. The careful part is not to treat a native OCR call as cheap just because it is wrapped by a suspend function. Bound blocking/native work with concurrency and timeout controls, then return COMPLETED, UNAVAILABLE, and FAILED inside the same response shape.

Image detection will need a similar failure response contract, but the result shape is different: object bounding boxes, labels, and scores instead of line-based text. A separate example will cover that path.
