Bluetape4k Leader Part 4: Spring Boot and Ktor Integration

2026-06-02 · bluetape4k-leader series · Part 4

Part 2 covered the call models: LeaderElector, SuspendLeaderElector, AsyncLeaderElector, and VirtualThreadLeaderElector. Part 3 moved beyond one leader into group slots and strategic election.

Part 4 asks a different question: do callers need to wrap every job with runIfLeader manually? In Spring Boot services, scheduled or service methods often want annotations. In Ktor services, background jobs belong inside the application lifecycle. bluetape4k-leader provides both integration surfaces.

Part 4 moves from core API calls to framework boundaries. Spring uses annotations and AOP; Ktor uses a plugin and application-level jobs.

Spring Boot: fixing the execution boundary with annotations

leader-spring-boot provides @LeaderElection and @LeaderGroupElection. The method body becomes the election action. Only the elected node runs the body; a contending node skips according to the return shape.

@Service
class ReportJob {
    @Scheduled(cron = "0 0 * * * *")
    @LeaderElection(name = "hourly-report", leaseTime = "PT10M")
    fun generateHourlyReport(): Report? {
        return reportService.generate()
    }
}

The direct API version looks like this:

val result = leaderElector.runIfLeader("hourly-report") {
    reportService.generate()
}

The annotation moves that boilerplate into the framework boundary. That also means the method return shape, proxy/AOP boundary, and lock-name expression become operational contracts. The code is shorter, but the execution boundary matters more.

Sources:

• • LeaderElection.kt
• • LeaderElectionAspect.kt
• • LeaderElectionAutoConfiguration.kt

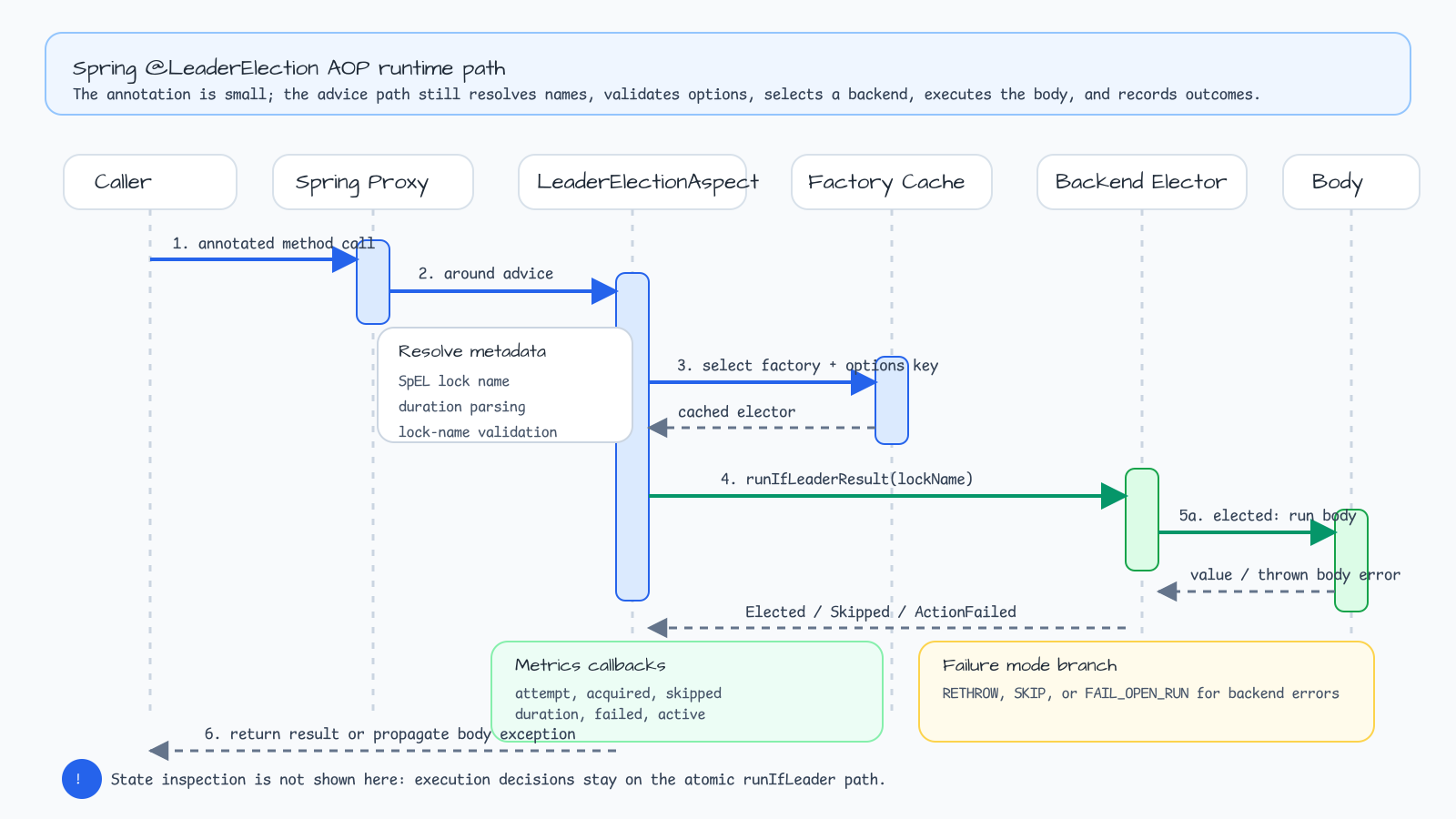

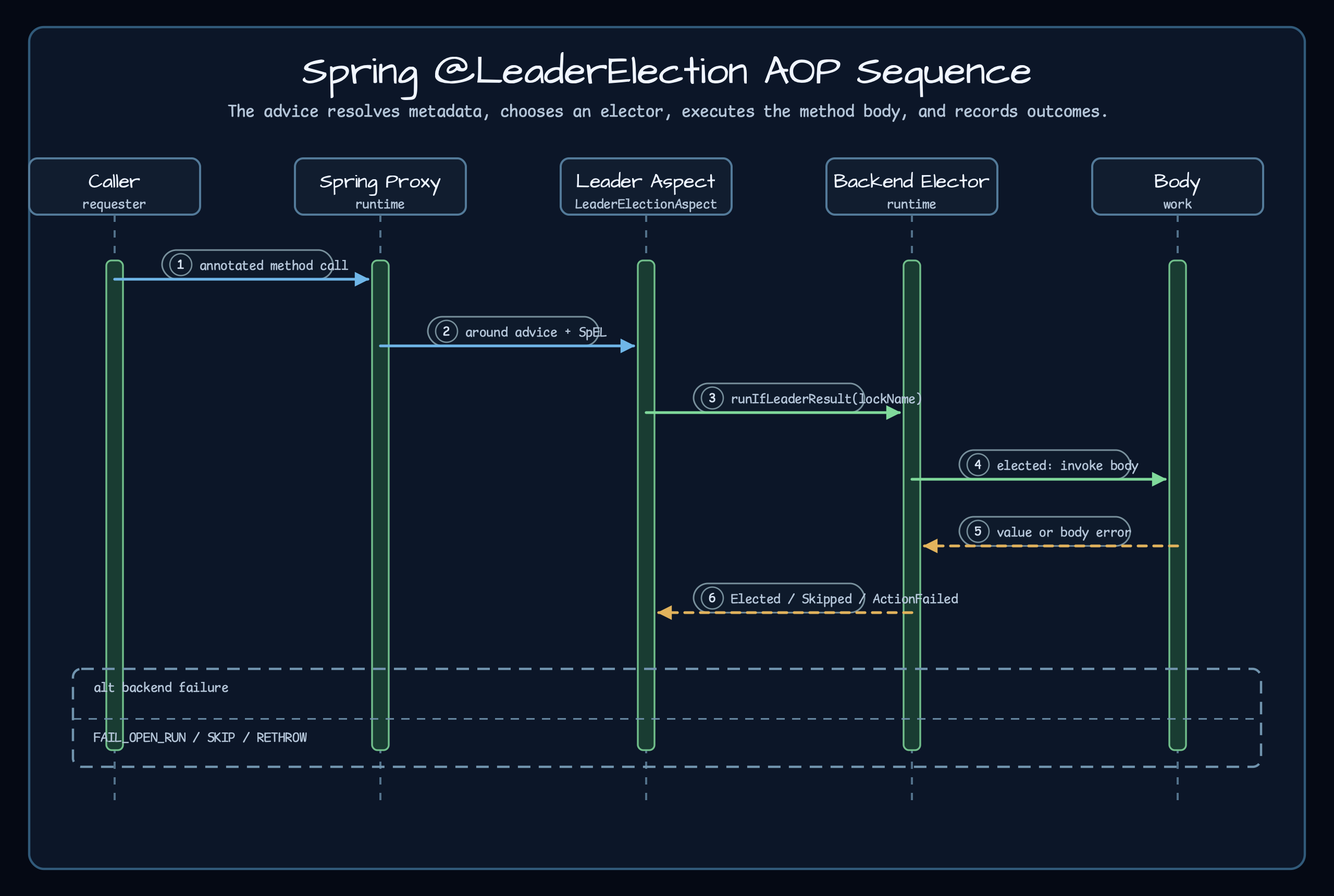

@LeaderElection is small, but its runtime path is not. The advice resolves the lock name, selects an elector by factory/options, separates backend results from body exceptions, and sends outcomes through metrics and failure-mode branches.

That flow is why the annotation should not be treated as decoration. The operational boundary lives inside the aspect, where contention skips, backend errors, and body exceptions follow different paths. The LeaderRunResult distinction from Part 2 remains important at the AOP layer.

@LeaderGroupElection: N slots through an annotation

Group election from Part 3 is available at the annotation boundary as well. Use @LeaderGroupElection when one method may run on up to maxLeaders nodes at the same time.

@LeaderGroupElection(
    name = "tenant-rollup",
    maxLeaders = 3,
    leaseTime = "PT5M",
)
fun rollupNextTenant(): RollupResult? {
    return tenantRollupService.rollupNext()
}

maxLeaders <= 1 is rejected by startup validation because it is not meaningful group election. Flux<T> and Flow<T> stream returns are not supported for group annotations yet. Each slot needs its own lease extension and completion boundary. Running a long stream inside a group slot postpones an expensive operational question.

Sources:

• LeaderGroupElection.kt

• LeaderGroupElectionAspect.kt

• LeaderAnnotationValidatorBeanPostProcessor.kt

Lock names use SpEL, but syntax is strict

Static names are straightforward.

@LeaderElection(name = "daily-settlement")
fun settle()

Dynamic names use plain SpEL.

@LeaderElection(name = "'process-' + #region")
fun process(region: String)

The important detail is "'process-' + #region", not "process-#region". Without quotes, process- is parsed as an identifier, not a string prefix. Spring property placeholders are also supported.

@LeaderElection(name = "\${spring.application.name}-warmup")
fun warmup()

AOP properties live under bluetape4k.leader.aop.*. They control default wait and lease time, strict validation, failure mode, lock-name prefix, and whether SpEL method invocation is allowed. The default lock-name prefix is ${spring.application.name:}:, which reduces collisions when multiple applications share the same backend.

bluetape4k:
  leader:
    aop:
      enabled: true
      strict: false
      failure-mode: RETHROW
      default-wait-time: PT5S
      default-lease-time: PT1M
      lock-name-prefix: "${spring.application.name:}:"
      spel:
        allow-method-invocation: false

Sources:

• LeaderAopProperties.kt

• SpelExpressionEvaluator.kt

• LockNameValidator.kt

failureMode: lock contention is not backend failure

Lock contention is a normal skip. Backend failure is different. failureMode controls what happens when Redis, SQL, MongoDB, Kubernetes API, or another backend fails.

Mode	Meaning
RETHROW	Wrap and propagate the backend error as a leader-election exception
SKIP	Treat backend failure like a skipped execution
FAIL_OPEN_RUN	Run the method body even though the lock path failed

FAIL_OPEN_RUN deserves caution. Leader election exists to prevent duplicate execution, and fail-open deliberately lowers that protection during backend failure. It can be practical for cache warmup or dashboard snapshots. It is usually wrong for settlement, payment, or schema migration jobs.

@LeaderElection(
    name = "dashboard-job",
    failureMode = LeaderAspectFailureMode.FAIL_OPEN_RUN,
)
fun refreshDashboardSnapshot()

Sources:

• LeaderAspectFailureMode.kt

• PrometheusDashboardApp.kt

Metrics make the annotation boundary observable

When annotations hide the direct runIfLeader call, operations need smaller events than “method ran”. Useful events include attempts, acquisitions, contention skips, backend-error skips, execution duration, failures, and active executions.

leader-micrometer provides MicrometerLeaderAopMetricsRecorder. When a MeterRegistry is available, AOP callbacks become meters. Prometheus exposes them as leader_aop_*.

Meter	Meaning
leader.aop.attempts	Lock acquisition attempts
leader.aop.acquired	Successful elections
leader.aop.lock.not.acquired	Skips, with a reason tag such as CONTENTION or BACKEND_ERROR
leader.aop.execution.duration	Method-body execution duration
leader.aop.task.failed	Method-body failures
leader.aop.active	Currently active leader actions

The prometheus-dashboard example registers an @LeaderElection job named dashboard-job and verifies leader_aop_* metrics through /actuator/prometheus. In production, watch lock-name cardinality. Putting tenant ids or request ids directly into lock-name tags can make the time-series backend hurt before the dashboard helps.

Sources:

• MicrometerLeaderAopMetricsRecorder.kt

• MicrometerNames.kt

• examples/prometheus-dashboard

Ktor: plugin plus application lifecycle

Ktor integration uses an explicit application boundary instead of Spring AOP. Install LeaderElectionPlugin with a SuspendLeaderElector, then register periodic work with leaderScheduled.

fun Application.module() {
    val elector = createLettuceSuspendLeaderElector()

    install(LeaderElectionPlugin) {
        leaderElection = elector
        enableManagementRoute = true
    }

    leaderScheduled("hourly-stats-aggregation", period = 1.hours) {
        statsAggregator.aggregate()
    }
}

leaderScheduled runs a loop in an application coroutine. Each cycle calls SuspendLeaderElector.runIfLeader(lockName) { ... }. The job is cancelled when ApplicationStopped fires. CancellationException is rethrown; ordinary exceptions are logged and the next cycle continues. That behavior is a good fit for batch-style background jobs. A failed cycle does not tear down the whole application, but shutdown cancellation is not swallowed.

Sources:

• LeaderElectionPlugin.kt

• LeaderElectionPluginConfig.kt

• ApplicationExt.kt

• examples/ktor-app

Ktor management routes are for observation

leader-ktor also provides a management route. The default path is /management/leaderElection. The route walks registered lock names, calls state(lockName), and returns a JSON snapshot.

install(LeaderElectionPlugin) {
    leaderElection = elector
    enableManagementRoute = true
    managementPath = "/management/leaderElection"
}

The key word is snapshot. The management route shows who appears to hold a lock now. It is not an execution-decision API. Execution decisions must stay on the atomic runIfLeader path. Checking state and then running the body manually writes a TOCTOU race by hand. Those races are especially annoying because they often pass the first local test.

Source:

• LeaderElectionManagementRoute.kt

Selection guide

Situation	Spring Boot	Ktor
Protect an existing @Scheduled method	@LeaderElection	Move the job to leaderScheduled
Allow N cluster-wide workers	@LeaderGroupElection(maxLeaders = N)	Configure the core group elector directly
Coroutine application job	Suspend method annotation or direct SuspendLeaderElector	LeaderElectionPlugin + leaderScheduled
Prometheus metrics	leader-micrometer + AOP recorder	Core/micrometer wrapper or route-level metrics
State inspection route	Mostly Actuator/health/metrics	/management/leaderElection

Spring annotations fit services where method boundaries are already clear. Ktor helpers fit background jobs launched inside the application lifecycle. The shared rule is the same: contention is a normal skip, state lookup is observation, and execution decisions must happen through an API that combines lock acquisition with body execution.

Closing

Part 4 is not about hiding leader election inside a framework. It is about moving the execution-authority boundary to the framework lifecycle where it is easier to review and operate. In Spring Boot, that boundary is annotation/AOP. In Ktor, it is the plugin plus application job.

Part 5 moves down into backends and operations: how Redis, SQL/R2DBC, MongoDB, Hazelcast, Kubernetes, etcd, and Consul differ in lease behavior, TTL, failure handling, and metrics.

• Part 1: Repository overview and mental model
• Part 2: Core APIs and execution models
• Part 3: Multi-leader and strategic election
• Part 4: Spring Boot and Ktor integration
• Part 5: Backends, operations, and benchmarks
