Bluetape4k Graph Part 4: Workshop Scenarios and Service Integration

Examples are not decoration. They are small laboratories for design choices.

2026-06-04 · bluetape4k-graph series · Part 4

This part maps the working bluetape4k-workshop graph examples. The goal is to help you recognize whether your service has the same relationship shape, not to present production-ready algorithms. Each example explains its relationship model, query path, and the boundary that still requires production validation.

Example	Graph pattern	Takeaway
Abuser detection	User-to-identifier identity graph	Shared device/IP/phone/payment/referral traversal
Recommendation	Purchase graph and follow graph	Co-buyer and friends-of-friends candidates
Knowledge graph	Document, entity, concept relationships	Semantic relationships and hop traversal
Social network	Person/company and multi-hop relationships	FOAF, mutual connections, shortest paths

Abuser detection

Abuser detection is one of the most natural fits for a graph. Start from one user, follow identifiers such as device, IP address, phone hash, payment token, or referral, then find other users sharing those identifiers. You can build this with relational joins, but the query grows awkward as identifier types multiply.

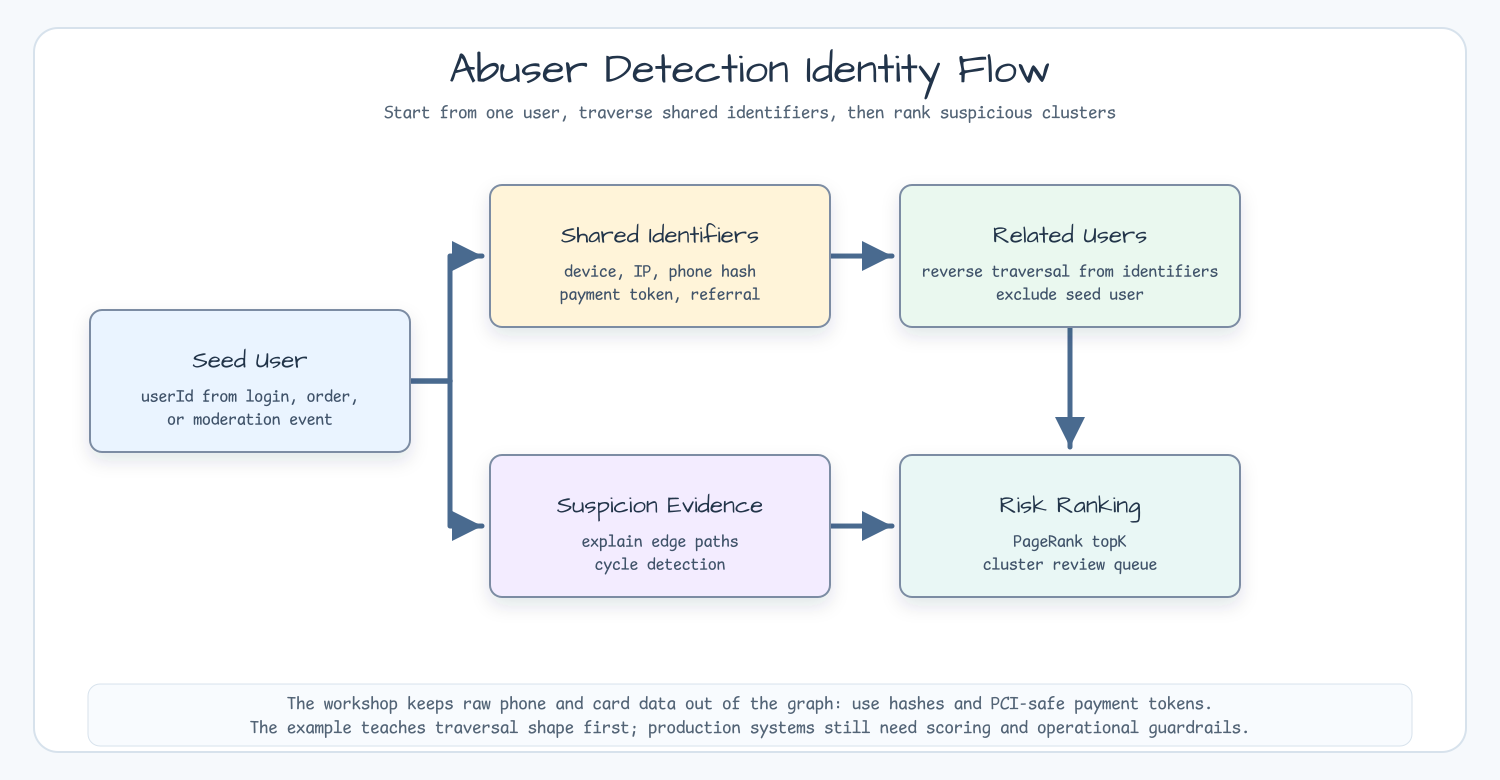

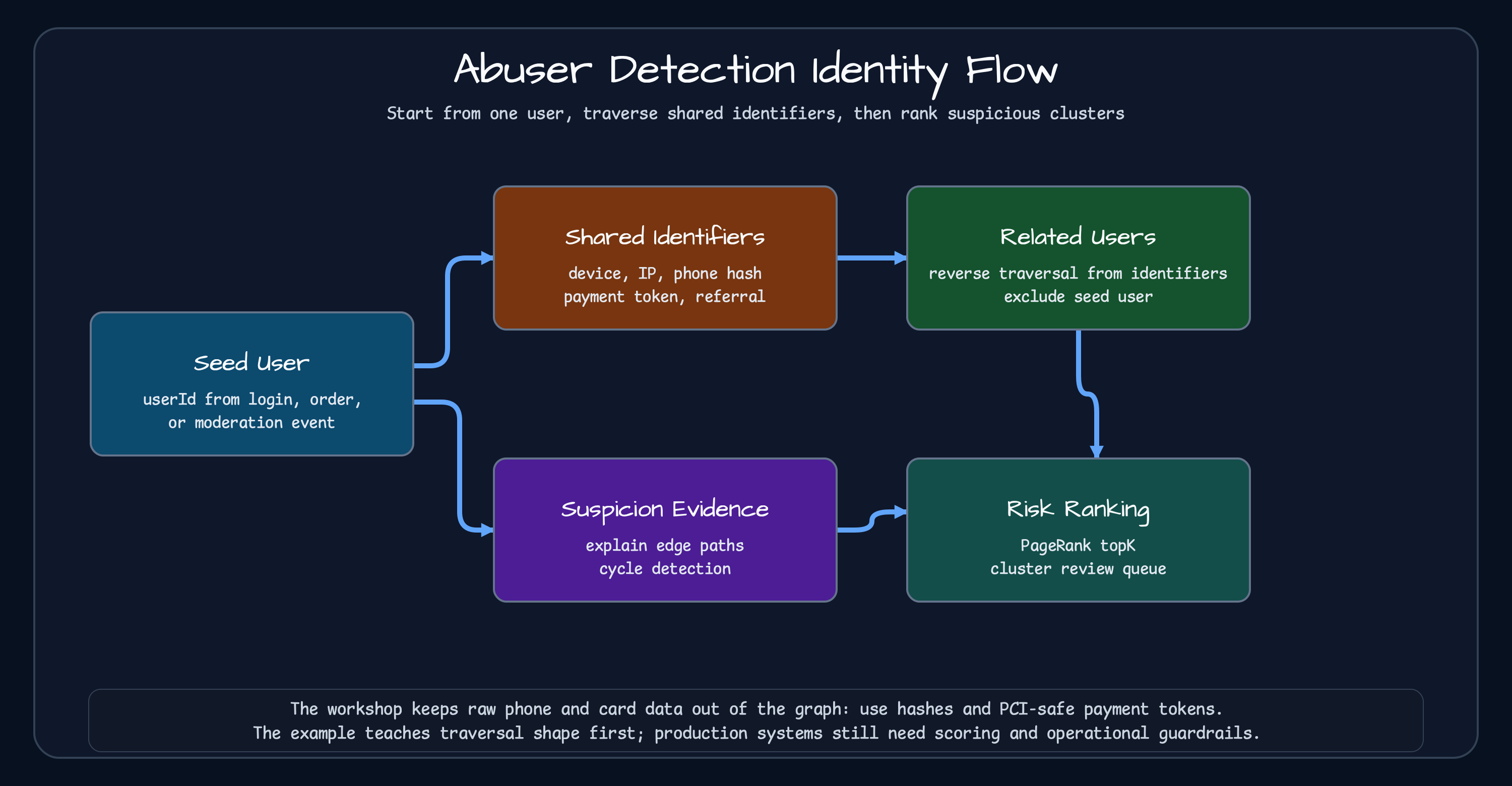

Shared identifiers turn abuse investigation into a readable graph traversal.

AbuserDetectionService.findAbuseCluster() returns an empty cluster when the seed user is missing. Otherwise, it follows outgoing identifier edges, traverses back from those identifiers to related users, and excludes the seed user. explainSuspicion() collects edge paths for evidence, detectReferralLoops() uses cycle detection, and rankSuspiciousUsers() uses PageRank for the review queue. Phone values must be SHA-256 hashes of E.164 values, and payment identifiers must be PCI-safe processor tokens.

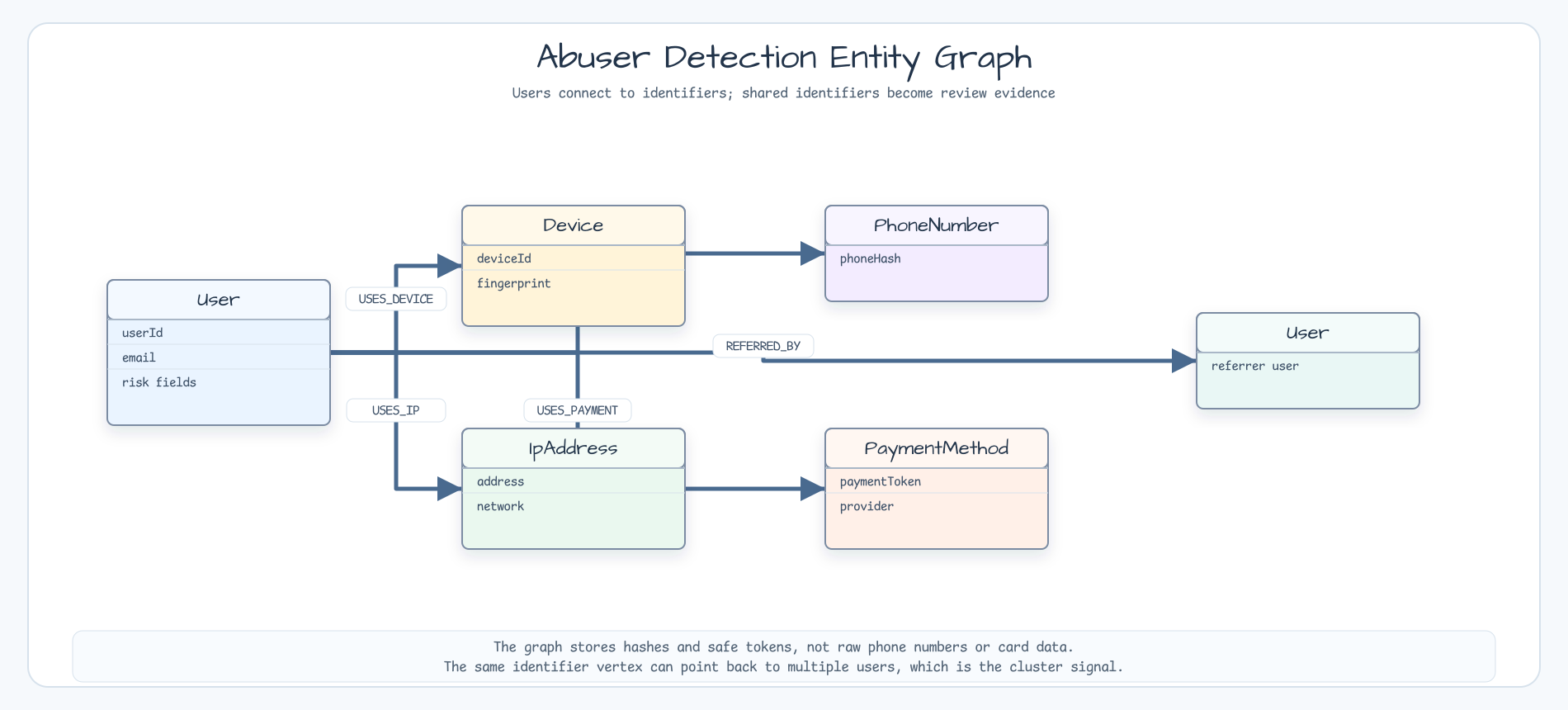

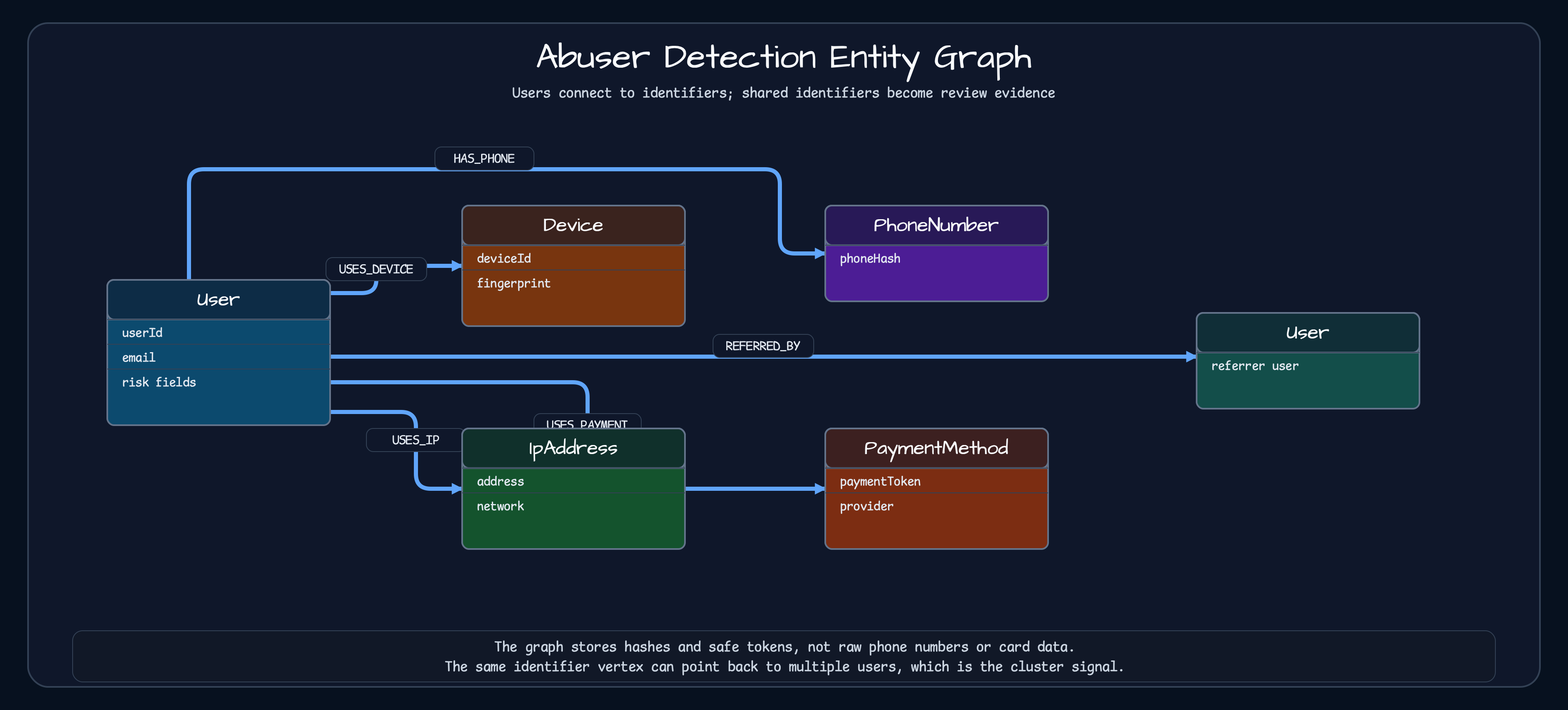

The important modeling choice is to keep identifiers as vertices. Shared identifiers become the cluster signal.

Recommendation

The recommendation example covers both product recommendations and follow recommendations.

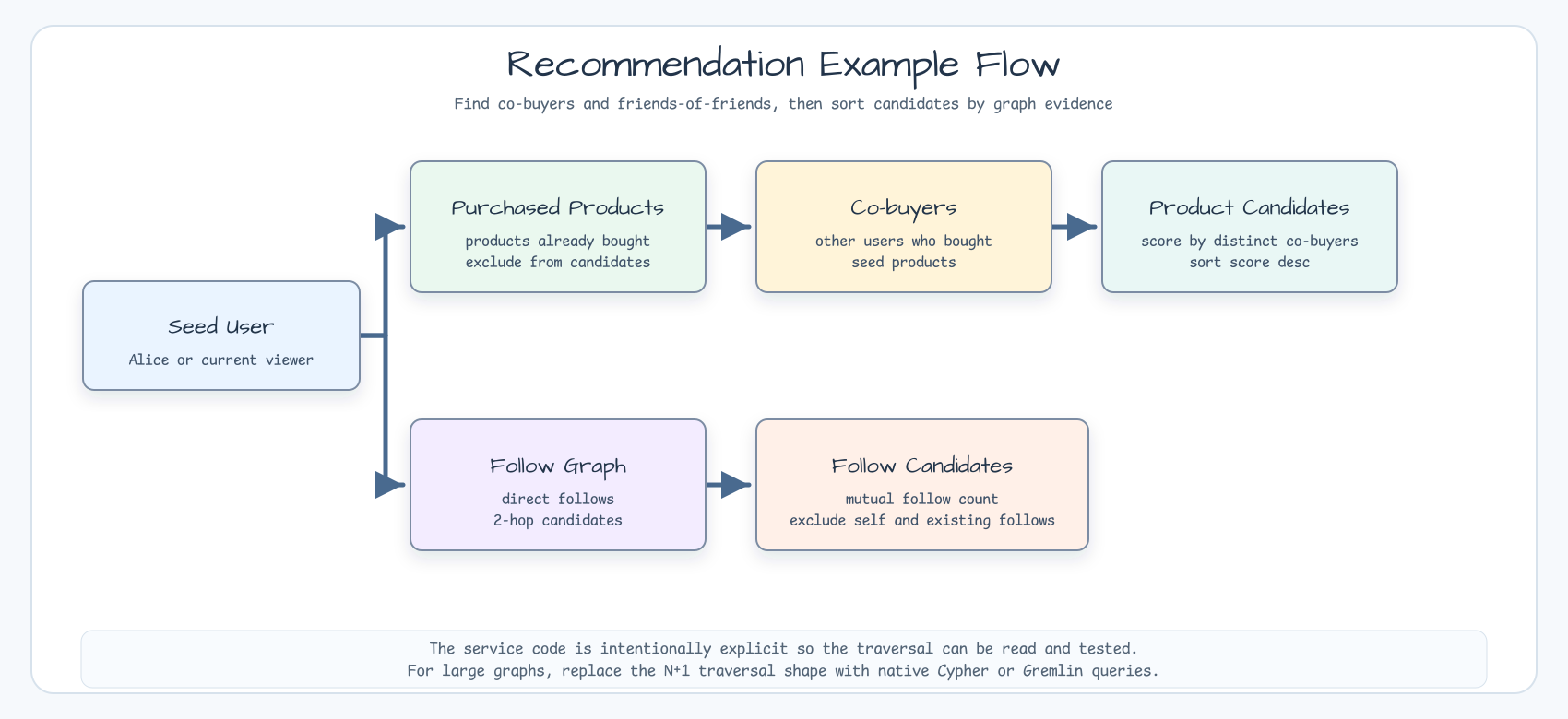

Separate candidate generation from scoring so the traversal is easy to read and test.

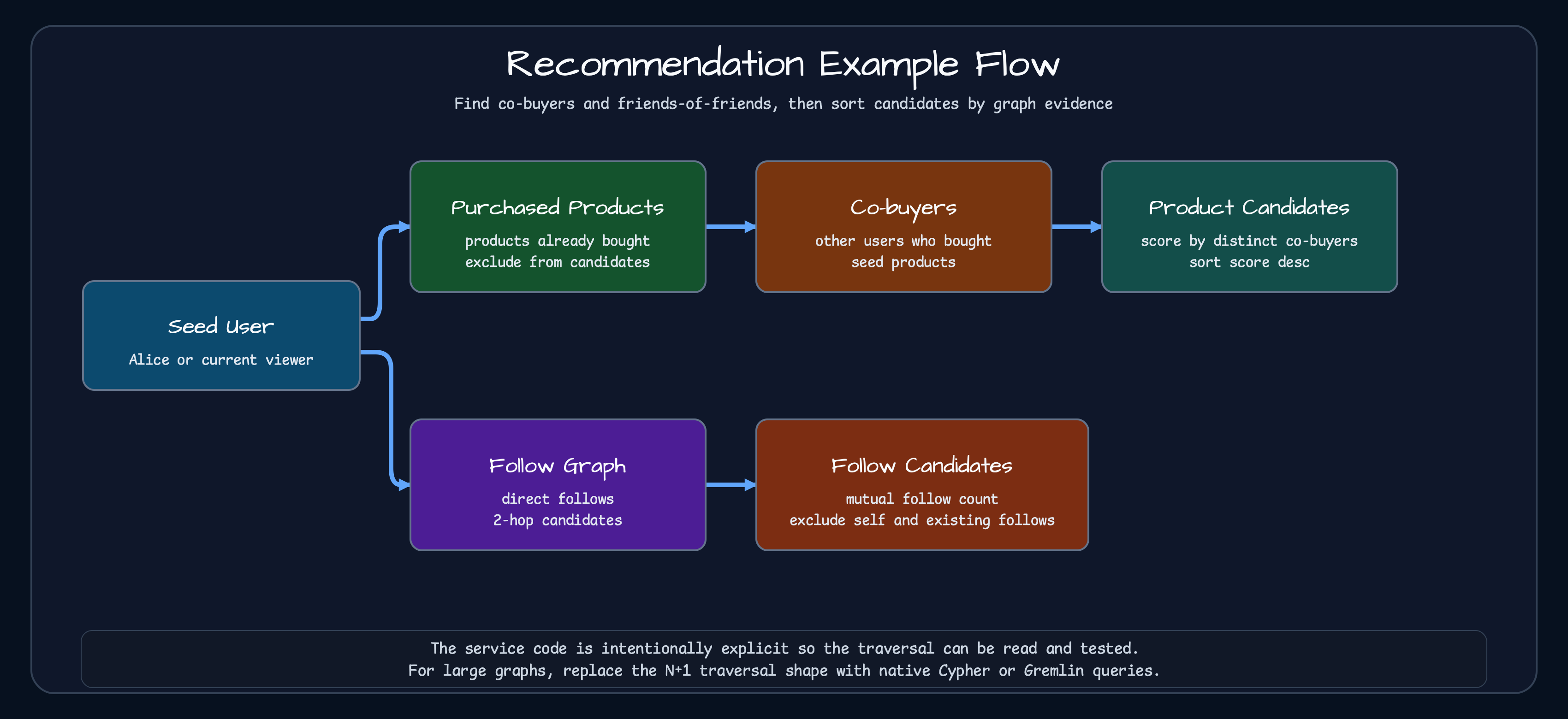

RecommendationService.recommendProducts() finds products bought by the seed user, finds co-buyers for those products, then recommends other products bought by those co-buyers. Already purchased products are excluded, and candidates are scored by distinct co-buyer count. recommendFollows() creates 2-hop follow candidates, excludes the seed user and existing follows, then sorts by mutual follow count. This is not a complete recommendation engine. It is a small skeleton for separating candidate generation from scoring. The implementation performs repeated neighbor lookups, so a large graph can expose an N+1 traversal problem. Its limit bounds the returned candidates, not the number of graph calls. Replace this explicit traversal with a native Cypher or Gremlin query for production-scale workloads. The common API remains useful for contract tests and small traversals; it does not make the repeated calls efficient.

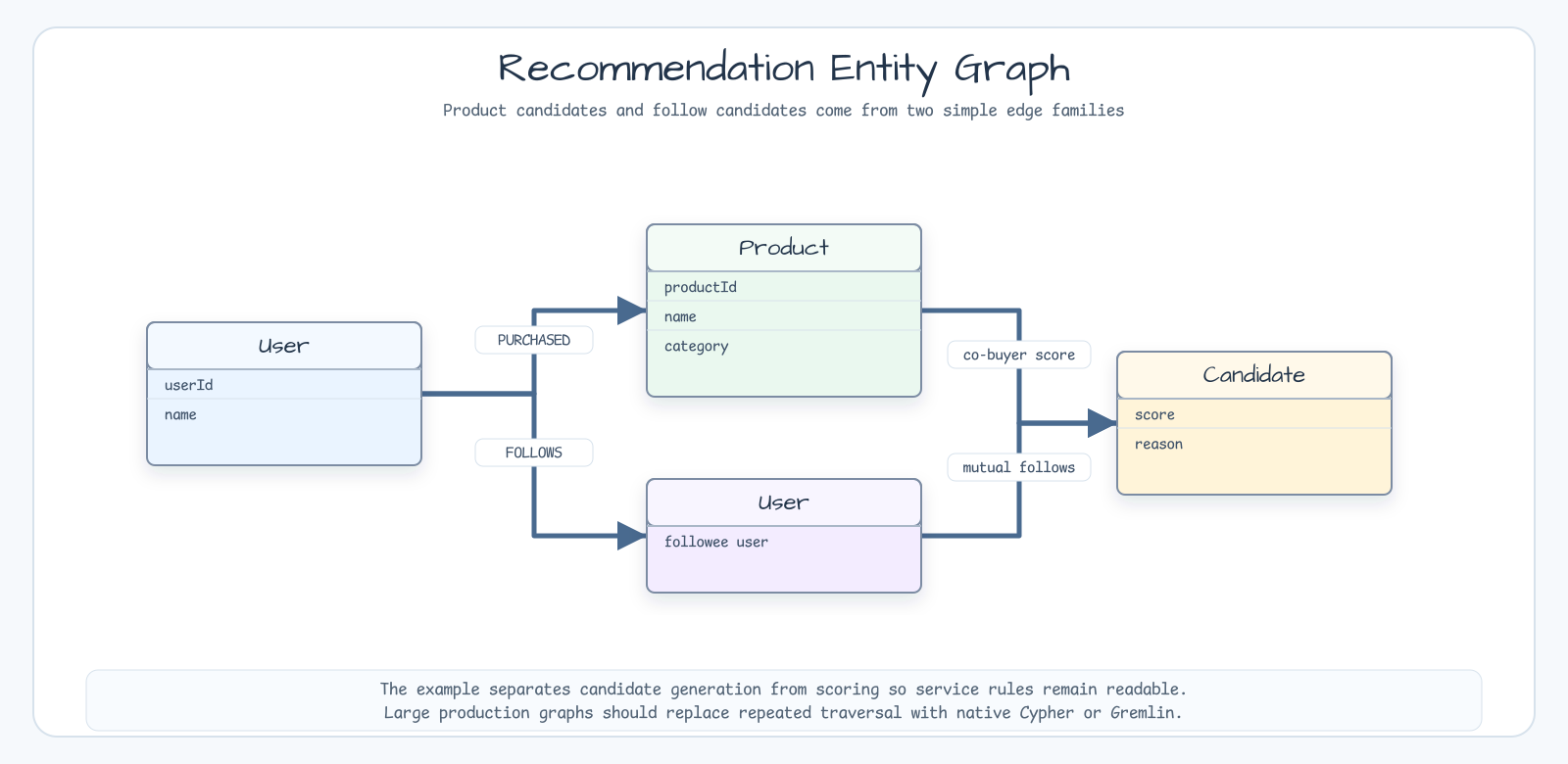

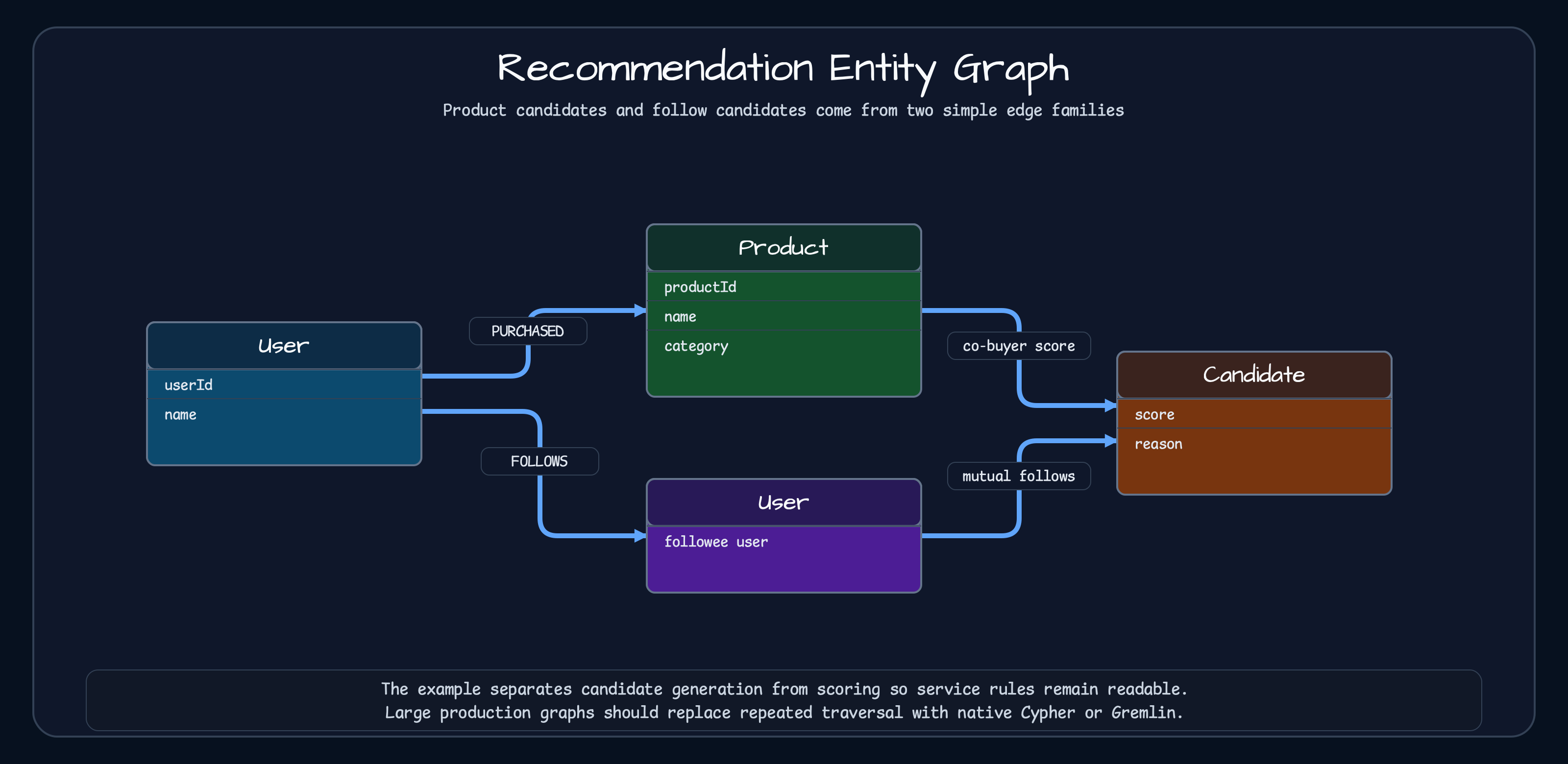

PURCHASED builds product candidates; FOLLOWS builds follow candidates. Candidate generation and scoring stay separate.

Knowledge graph

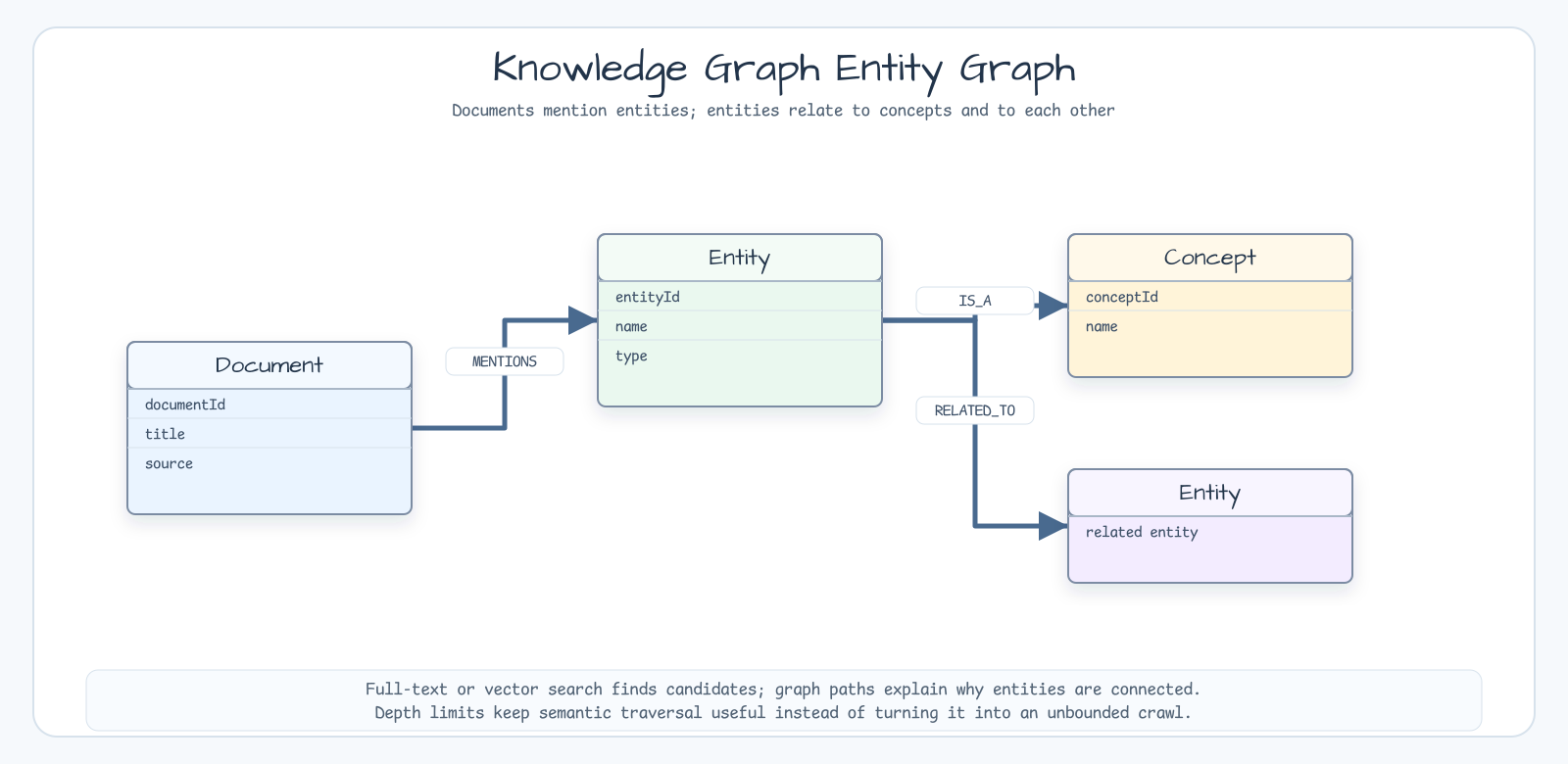

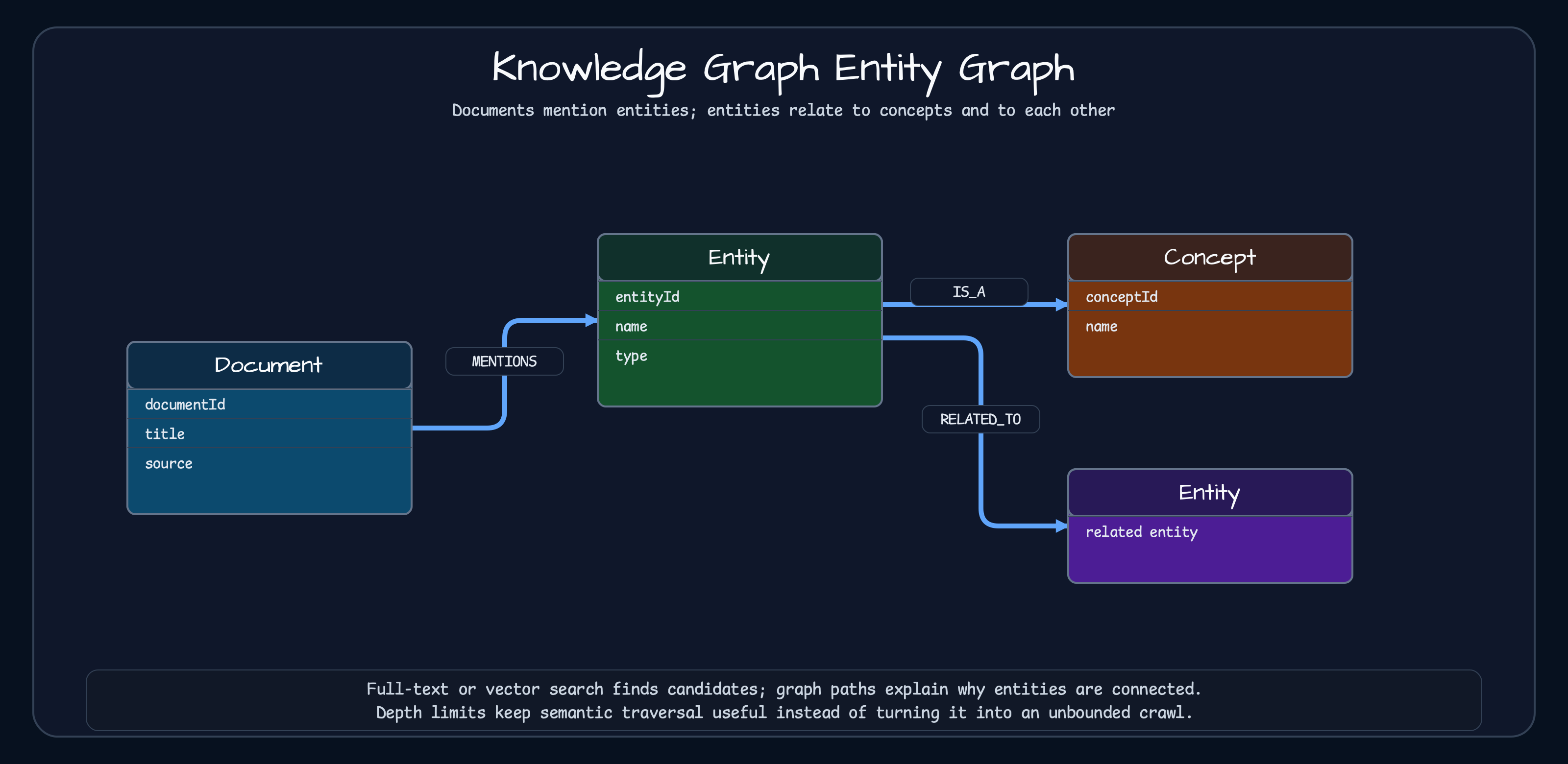

The knowledge graph example models Document, Entity, and Concept vertices. MENTIONS connects documents to entities, RELATED_TO connects entities to other entities, and IS_A connects entities to concepts. The useful service operations go beyond “search”: findMentionedEntities(documentId), findRelatedEntities(entityId, depth), findConceptsForEntity(entityId), and inferRelationshipPaths(from, to) explain why two things are connected.

Search finds candidate documents; graph paths explain why entities are connected.

This fits search and RAG systems where full-text or vector search finds candidate documents, while graph paths explain semantic relationships. It does not mean every search problem should become a graph problem. Full-text search and vector indexes are still the right tools for document retrieval; graph paths help when relationships and explanations matter.

Social network

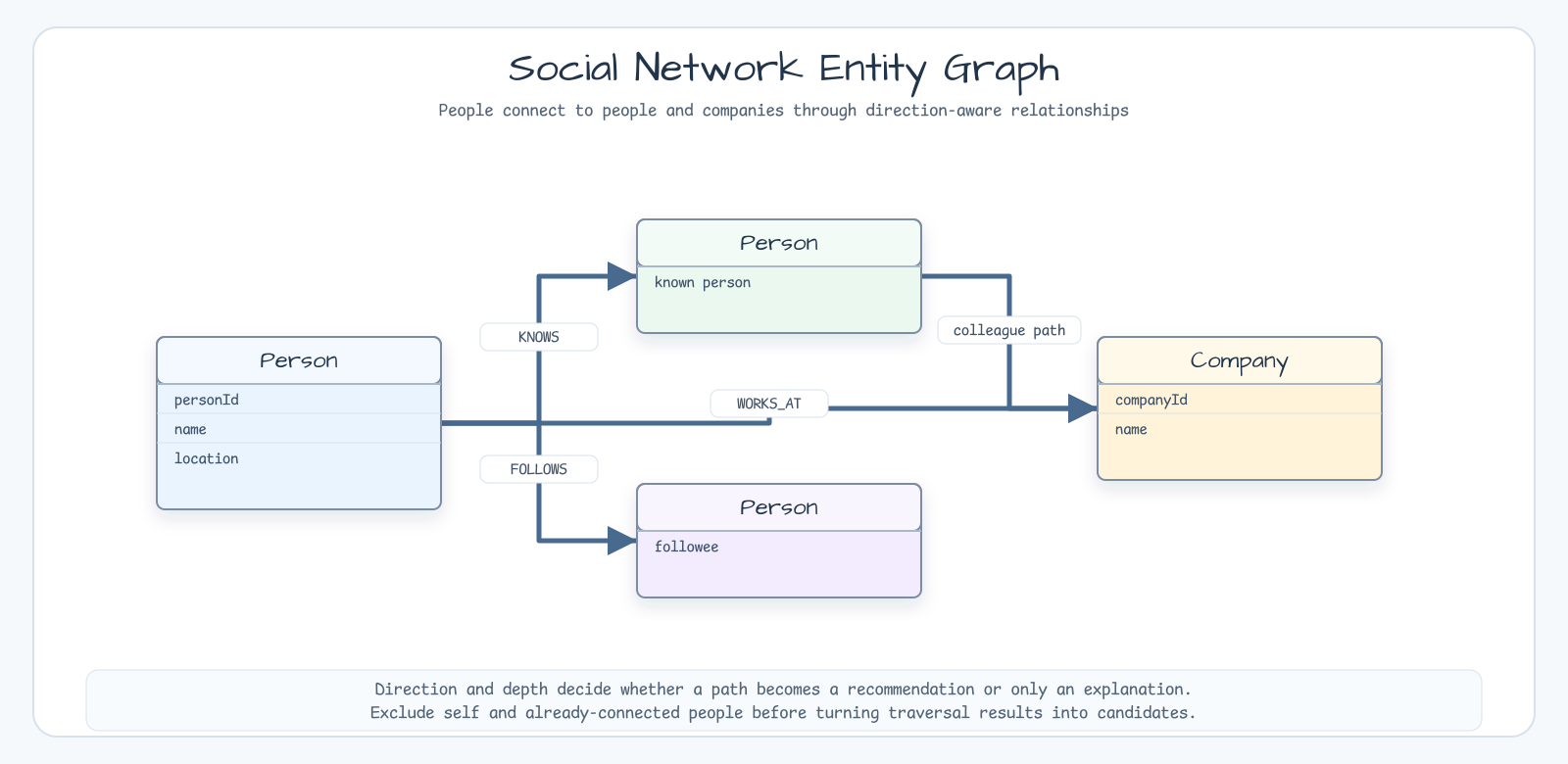

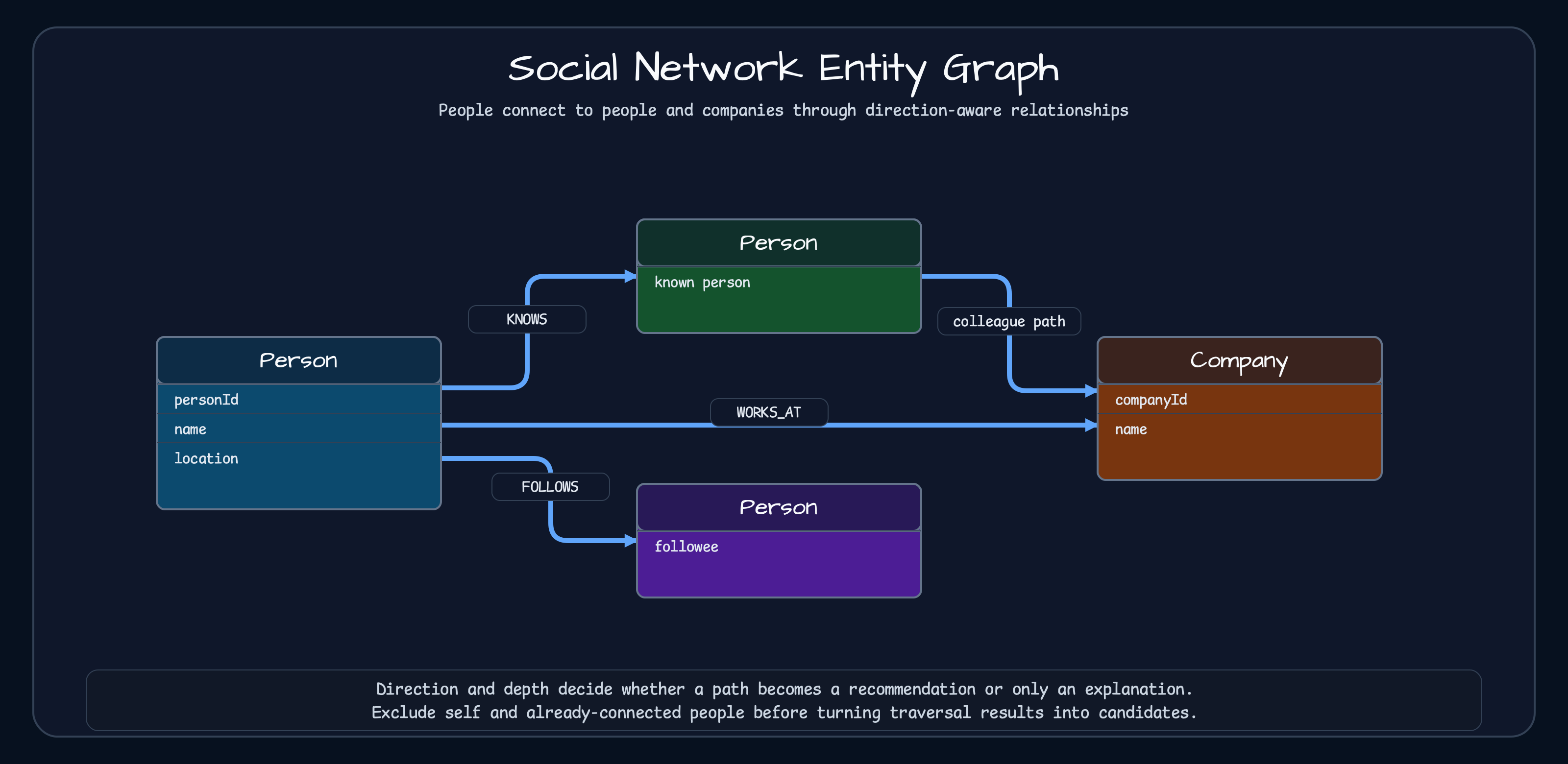

The social network example keeps the classic graph problems concrete: Person and Company vertices, with KNOWS, FOLLOWS, and WORKS_AT edges. It demonstrates direct connections, N-degree traversal, friends-of-friends candidates, colleagues, shortest paths, all paths, and mutual connections. The example looks simple, but production code quickly adds the unglamorous rules: exclude the seed user, exclude existing connections, cap depth, and decide whether a relationship is directional.

Direction and depth limits decide whether a path is a recommendation or an explanation.

The important details are direction, depth, and exclusion rules. FOLLOWS is directional. The current SocialNetworkService.connect() stores KNOWS as two directed edges, so callers must not add the same pair again with reversed arguments. Recommendation queries should exclude the seed user plus existing connections.

Spring Boot and Ktor integration

Spring Boot 4 users get a GraphOperations bean from graph-spring-boot. The suspend and virtual-thread beans are also registered when their register-* properties are enabled. TinkerGraph is the default when bluetape4k.graph.backend is missing, which keeps local tests and small examples self-contained.

bluetape4k:
  graph:
    backend: tinkergraph

Service code injects the operations and a graph name. Call initialize() once during application startup because the workshop service contract requires the named graph to exist before other operations.

@Service
class AbuseReviewService(
    private val graph: GraphOperations,
    @Value("\${app.graph-name:abuse-review}") private val graphName: String,
) {
    private val service = AbuserDetectionService(graph, graphName)

    @PostConstruct
    fun initialize() = service.initialize()

    fun cluster(seedUserId: GraphElementId): AbuseCluster =
        service.findAbuseCluster(seedUserId)
}

For Neo4j, keep the common service contract and change the storage properties. This does not make query planning, transactions, failure behavior, or performance equivalent. Verify the selected backend with integration tests and the real workload.

bluetape4k:
  graph:
    backend: neo4j
    neo4j:
      uri: bolt://localhost:7687
      username: neo4j
      password: secret
      register-suspend: true
      register-virtual-thread: true

Ktor 3 users install GraphPlugin in the application module. tinkerGraph() creates synchronous and coroutine operations over one delegate and closes that delegate once on application stop. Route handlers should prefer GraphSuspendOperations over blocking operations.

fun Application.module() {
    install(GraphPlugin) {
        tinkerGraph()
    }

    routing {
        get("/users/{id}/cluster") {
            val graph = call.graphSuspendOperations()
            val service = AbuserDetectionSuspendService(graph, "abuse-review")
            service.initialize()
            val cluster = service.findAbuseCluster(GraphElementId.of(call.parameters["id"]!!))
            call.respond(cluster)
        }
    }
}

The compact example initializes the named graph inside the request so every required step is visible. Production code should initialize it during application startup and reuse the service. The current graphExists → createGraph sequence is not atomic, so multi-instance startup requires a backend upsert or an external lock.

If DI or bootstrap code already created the operations pair, pass it directly. Keep the default caller-owned lifecycle, or set closeOnStop = true only when the plugin should close both objects. When they share a delegate, the caller must also ensure that closing is idempotent.

install(GraphPlugin) {
    operations(syncOps, suspendOps, closeOnStop = true)
}

Spring Boot integration is property-plus-bean injection. Ktor integration is plugin-plus-application lifecycle. Pick the one that matches the service runtime. In either case, make the repository creator, initialization point, and shutdown owner explicit.

Starting from a relational-database-centered service

If you are starting from a relational-only service, do not move everything into a graph at once. Find the feature where variable-depth traversal, shortest path, shared identity, or recommendation candidate generation is making relational queries hard to read. Move that feature first, keep the relational database as source of truth when it already owns the business data, start contract tests with TinkerGraph, and verify Neo4j, Memgraph, AGE, or FalkorDB with backend-specific integration tests and the actual workload.

Choose a graph when relationships themselves are central to the work. bluetape4k-graph makes graph selection and service integration repeatable on Kotlin/JVM, but it does not erase backend-specific operational behavior.
