Bluetape4k Graph Part 2: Core API and Execution Models

The point of a common API is to reduce repetition, not to hide reality.

2026-06-04 · bluetape4k-graph series · Part 2

Part 1 covered graph storage selection. This part looks at graph-core, the common layer I wanted before the adapters grew too much service-specific code. The goal is simple: service code should speak in vertices, edges, traversal, and algorithms while graph storage adapters handle driver and query details. Without that boundary, every service slowly grows its own tiny graph framework. Most of those frameworks are loved only on the day they are born.

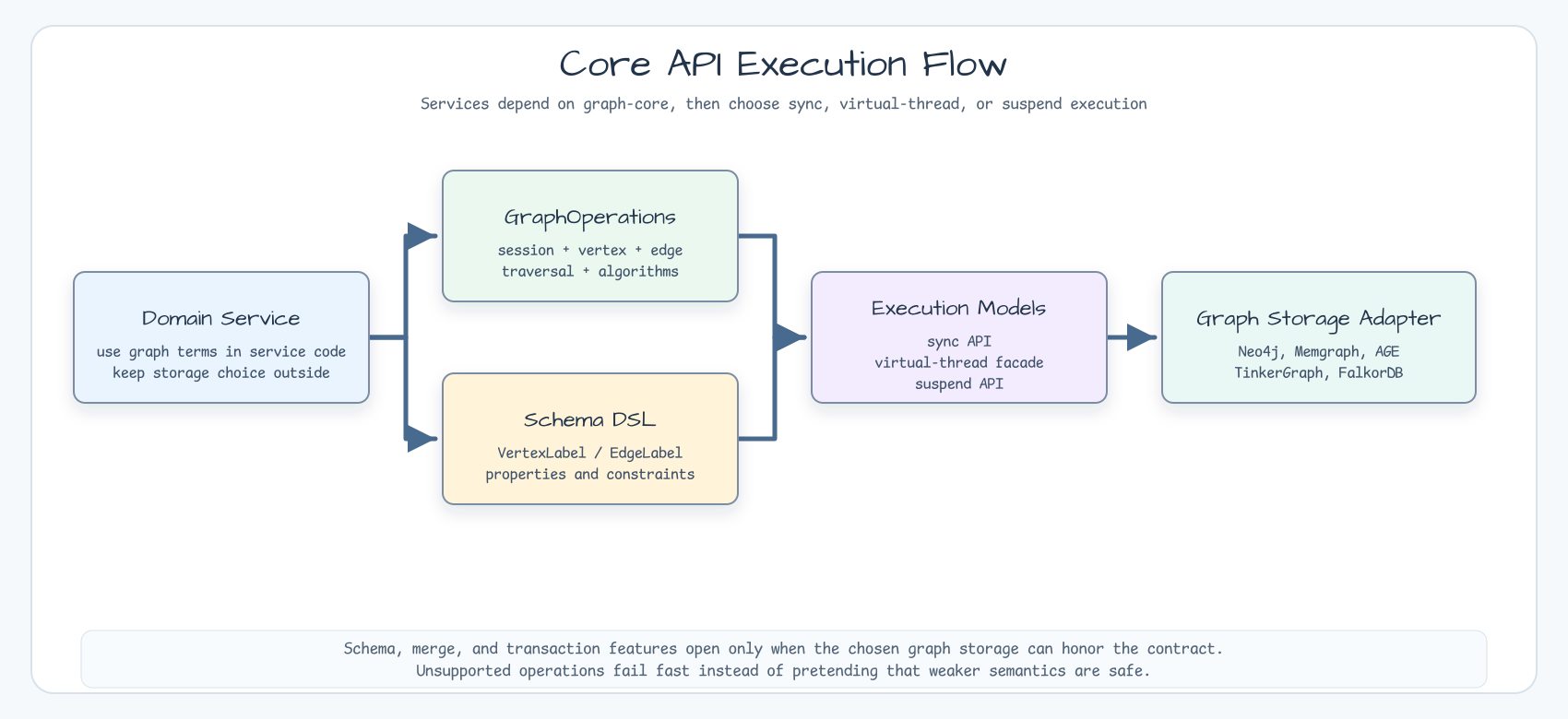

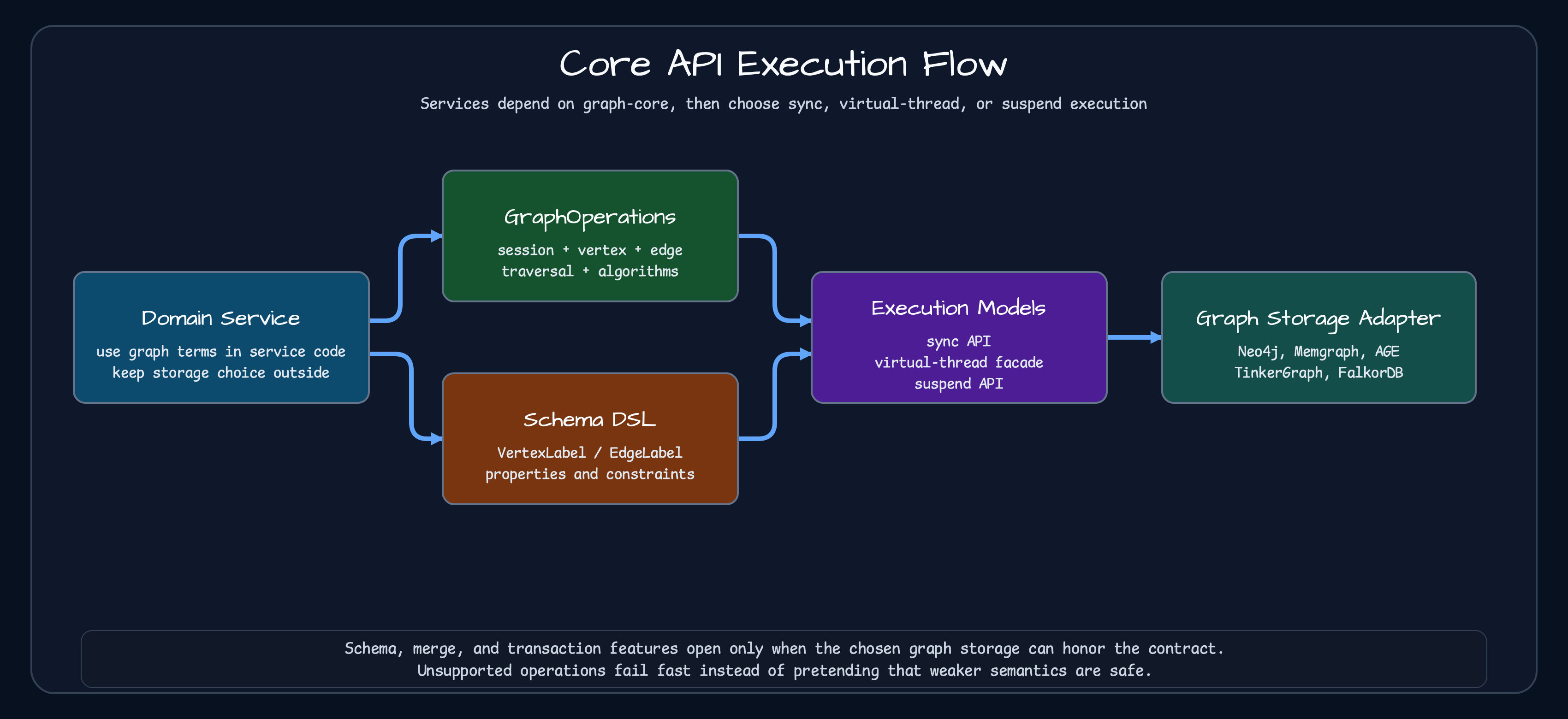

Service code depends on graph concepts; execution and storage selection stay outside the domain flow.

What GraphOperations Combines

GraphOperations combines GraphSession, GraphVertexRepository, GraphEdgeRepository, and GraphGenericRepository. GraphGenericRepository is the narrower composite for traversal and algorithm operations.

Area	Representative methods	What service code gets
Session	createGraph, dropGraph, graphExists	graph lifecycle for fixtures or tenant graphs
Vertex	createVertex, createVertices, findVertexById, findVerticesByLabel, updateVertex, deleteVertex, countVertices	node CRUD without direct driver code
Edge	createEdge, createEdges, findEdgesByLabel, findEdgesByStartId, findEdgesByEndId, deleteEdge	relationship CRUD and evidence lookup
Traversal	neighbors, shortestPath, allPaths, aStarPath	shared identity, recommendations, and path queries
Algorithm	pageRank, degreeCentrality, connectedComponents, bfs, dfs, detectCycles	ranking, components, traversal visits, and cycle checks

val people = ops.createVertices(
    "Person",
    listOf(
        mapOf("email" to "alice@example.com", "name" to "Alice"),
        mapOf("email" to "bob@example.com", "name" to "Bob"),
    )
)

ops.createEdges(
    "KNOWS",
    listOf(BatchEdge(people[0].id, people[1].id, mapOf("since" to 2026)))
)

The default batch methods call the single-row APIs sequentially. If a call fails halfway through, previously created vertices or edges can remain. This is a compatibility baseline, not an atomicity guarantee. Production adapters can override it with native batch writes, but callers still need to verify the transaction boundary of the selected implementation.

Schema DSL

Schema is declared with VertexLabel and EdgeLabel, similar to Exposed table objects.

object PersonLabel : VertexLabel("Person") {
    val email = string("email")
    val name = string("name")
}

object KnowsLabel : EdgeLabel("KNOWS", PersonLabel, PersonLabel) {
    val since = integer("since")
}

Schema management is not equally portable across graph storage engines. schemaManager() returns a manager only when the selected adapter implements GraphSchemaManagementOperations. An adapter without that capability throws UnsupportedOperationException instead of reporting a no-op as success. UnsupportedGraphSchemaManager returns empty metadata lists for reads but also rejects schema mutations explicitly.

Transactions and merge

The transaction DSL exposes vertex and edge CRUD only. Graph lifecycle commands stay outside the block because DDL and auto-commit semantics differ by backend. An implementation that does not provide GraphTransactionalOperations fails instead of silently falling back to auto-commit.

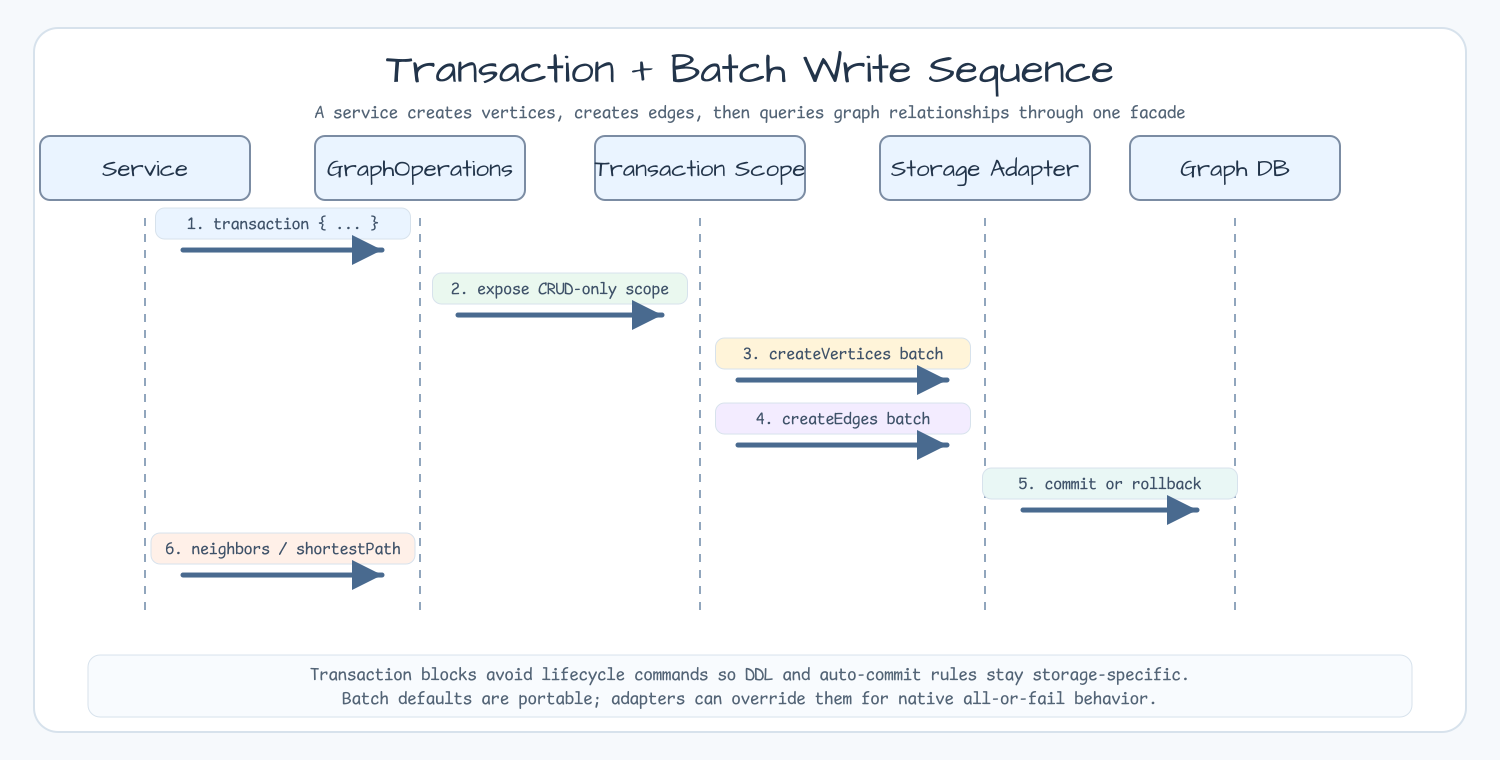

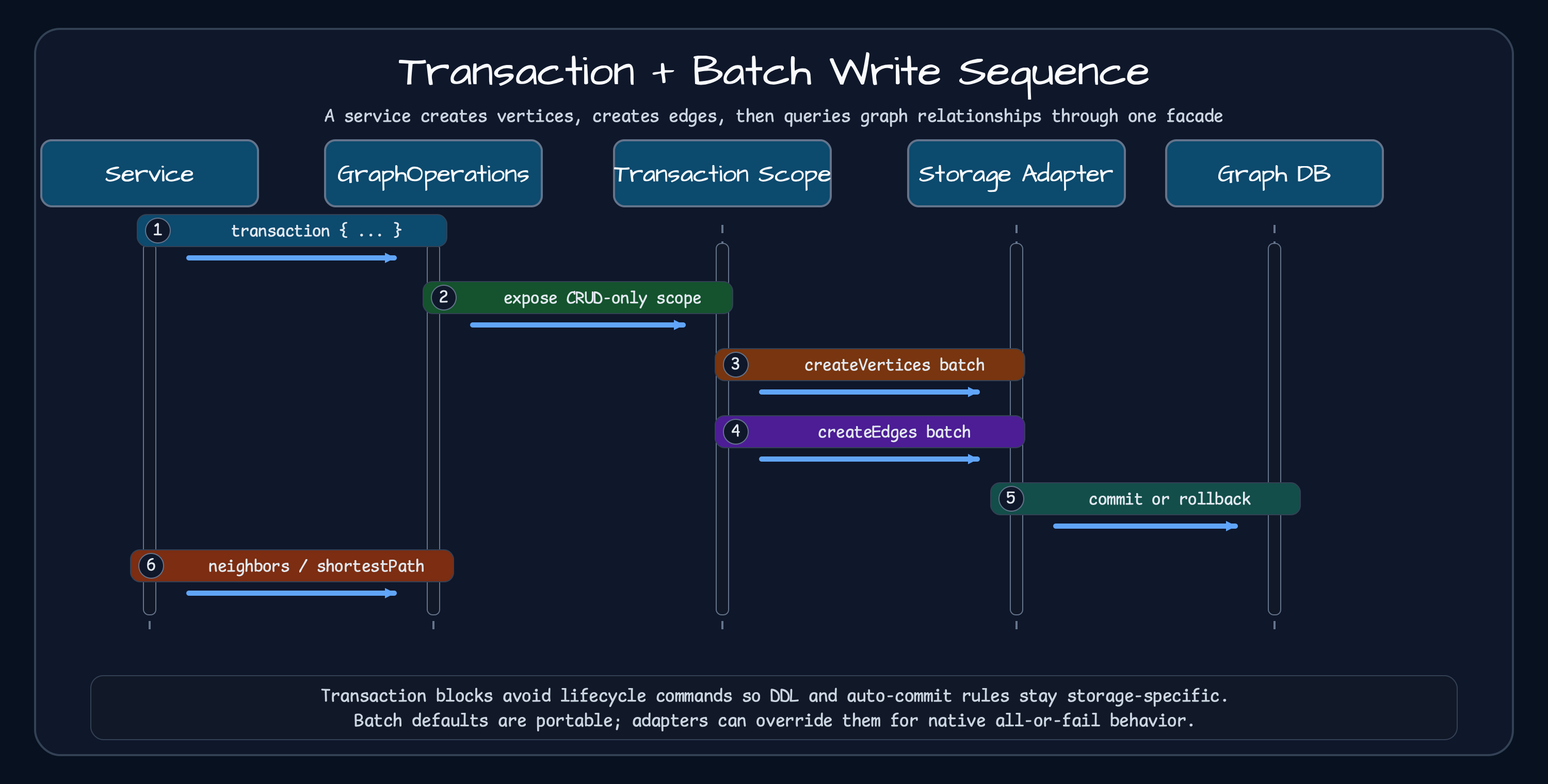

Transaction blocks group vertex and edge writes, and supported adapters commit or roll back the block.

Merge follows the same rule. Implementations call GraphMergeValidation; mergeVertex requires non-empty match properties, and set properties cannot overwrite identity keys. If the selected storage does not implement GraphMergeOperations, the extension fails rather than pretending a read-then-write fallback is safe under concurrency.

val alice = ops.mergeVertex(
    label = "Person",
    matchProperties = mapOf("email" to "alice@example.com"),
    setProperties = mapOf("name" to "Alice"),
)

Execution models and benchmark shape

Model	Good fit
Sync	Single operations, tests, ordinary blocking drivers
Virtual Threads	Blocking drivers under higher concurrency
Coroutine	Ktor or coroutine-native service composition

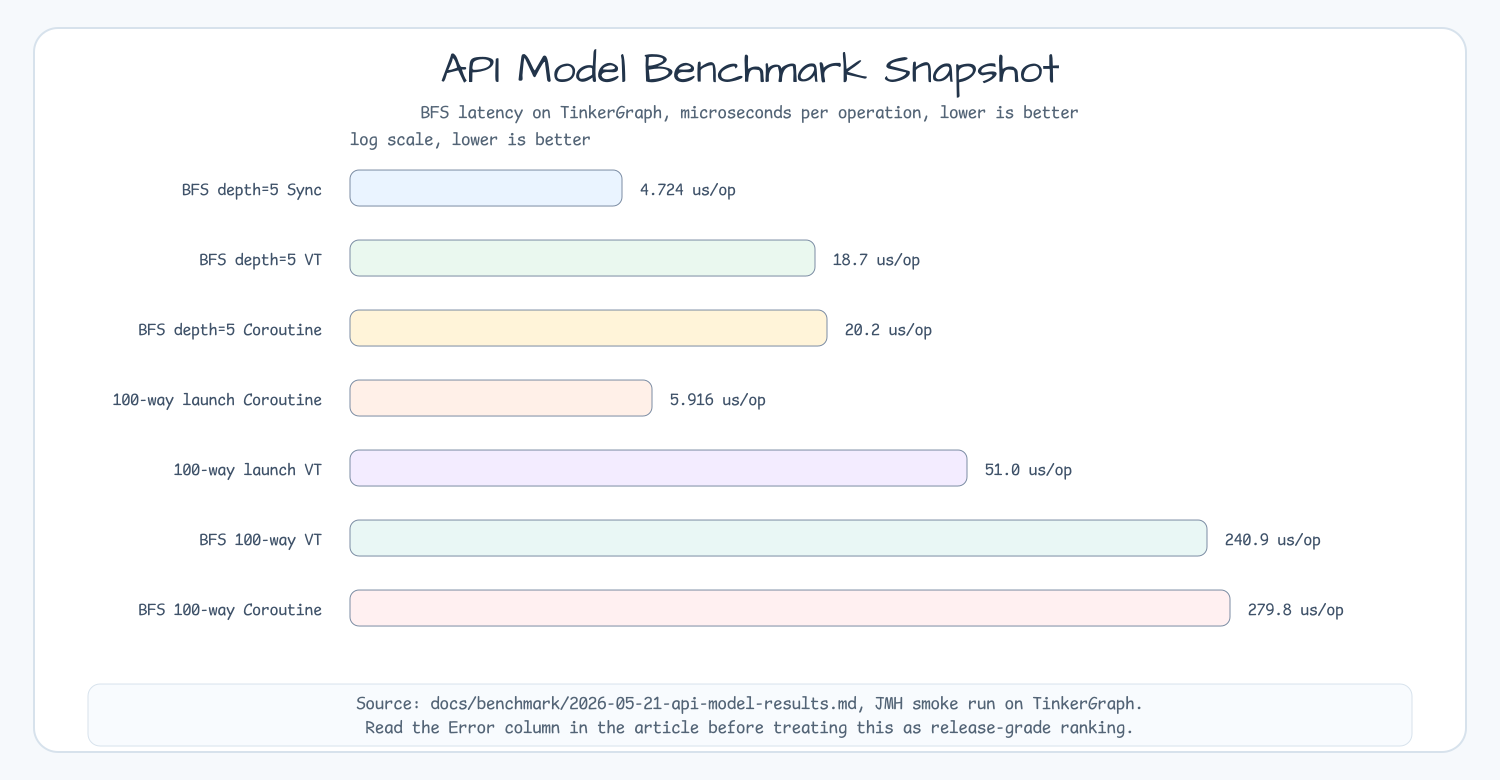

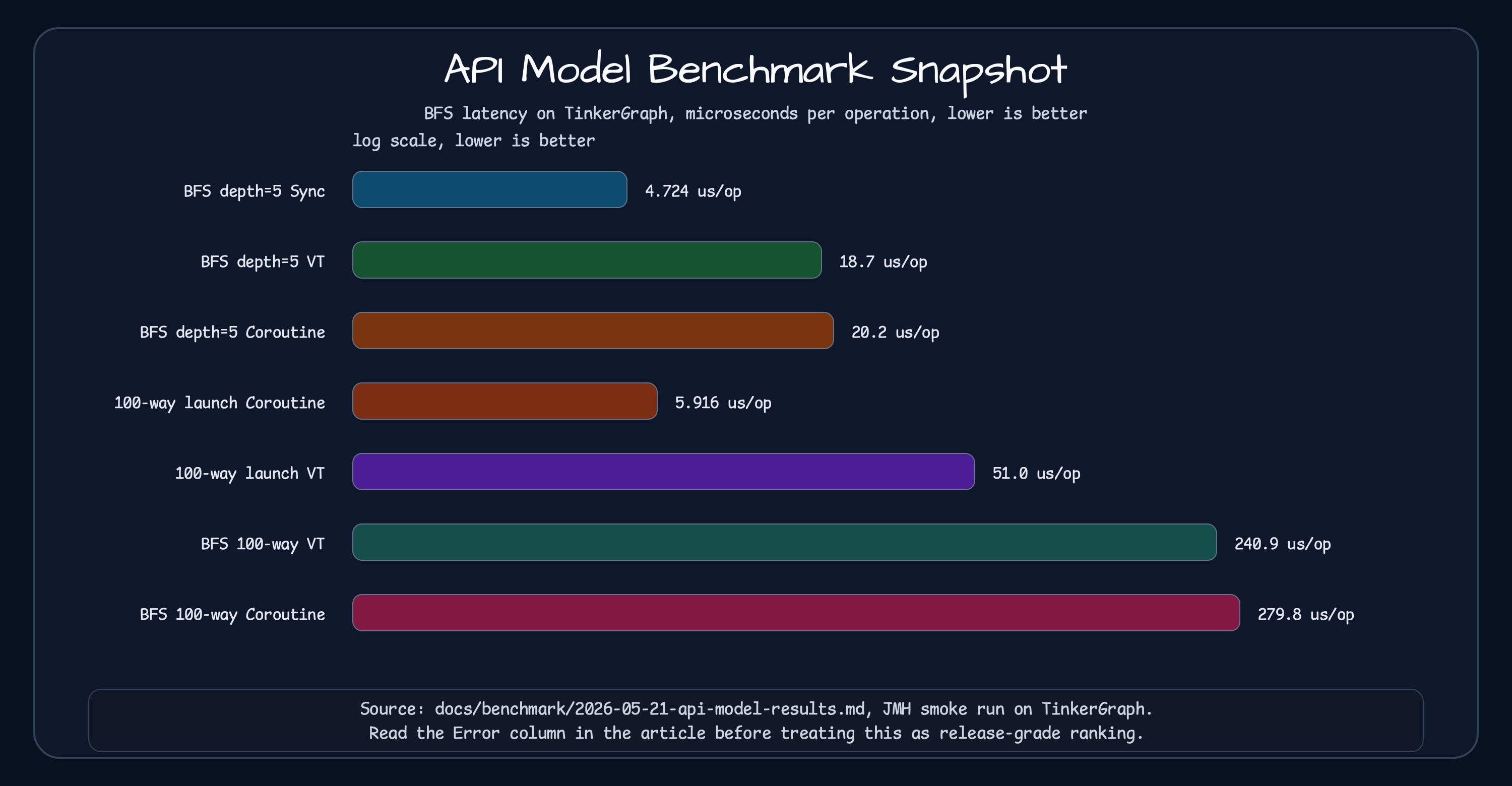

In this smoke run, synchronous single BFS and coroutine task creation had the lowest measured cost. The workload and driver still determine the choice.

The ApiModelBenchmark smoke run used a shared TinkerGraph fixture, so it excludes network and external database I/O. It ran on GraalVM JDK 25.0.3 with one JMH fork, one warmup iteration, three measurement iterations, one second per iteration, and -prof gc.

Scenario	API model	Mean	Error	Allocation
PageRank throughput	Sync	138,943.484 ops/s	±40,362.146	28,451 B/op
PageRank throughput	Virtual Thread	40,283.460 ops/s	±9,678.720	29,456 B/op
PageRank throughput	Coroutine Flow	36,879.554 ops/s	±85,084.781	29,516 B/op
BFS depth=5	Sync	4.724 us/op	±3.022	21,990 B/op
BFS depth=5	Virtual Thread	18.668 us/op	±8.229	23,152 B/op
BFS depth=5	Coroutine Flow	20.244 us/op	±11.268	23,455 B/op
BFS 100-way	Virtual Thread	240.903 us/op	±167.502	2,318,801 B/op
BFS 100-way	Coroutine async	279.828 us/op	±329.942	2,367,754 B/op
100-way launch/create	Virtual Thread	51.042 us/op	±173.745	61,464 B/op
100-way launch/create	Coroutine async	5.916 us/op	±3.127	28,373 B/op

These are short smoke results with wide error intervals. They do not establish a release-grade or general performance ranking.

java -jar benchmark/graph-benchmark/build/benchmarks/main/jars/graph-benchmark-main-jmh-*-JMH.jar \
  '.*ApiModelBenchmark.*' \
  -wi 1 -i 3 -r 1s -w 1s -f 1 \
  -prof gc \
  -rf json \
  -rff docs/benchmark/2026-05-21-api-model-jmh.json

So coroutines are not the “always faster” model. Use them when Kotlin composition, cancellation, and structured concurrency matter. Use virtual threads when a Spring MVC service needs to run blocking graph drivers at higher concurrency. Execution model selection is not a preference poll; it follows the request path and the driver behavior.

Part 3 covers graph-io, which imports and exports graph data as CSV, NDJSON, and GraphML, and explains how to read its benchmark results. OkIO is treated separately as the layer that composes buffering, compression, and asynchronous I/O rather than as a data format.
