Bucket4j Rate Limiting: Choose the Caller Identity Before the Bucket

A rate limiter should decide whose bucket it consumes before it decides where that bucket is stored.

2026-06-30 · bluetape4k-workshop · Bucket4j rate limiting

When a public API needs rate limiting, it is natural to start with token buckets. In production, though, the first mistake is often not the bucket data structure. It is caller identity. Using remoteAddress blindly can make every user behind a proxy look like one caller. Trusting X-Forwarded-For blindly can let an attacker rotate quota by changing a request header.

bluetape4k-workshop/ratelimit has four modules that make the problem easy to study in layers. The post works best when each module has a clear role.

Example	Role in this post	Main point
bucket4j-caffeine-web	Single-JVM starter baseline	Stores buckets in Caffeine JCache and limits WebMVC endpoints
bucket4j-redis	Distributed bucket baseline	Stores token state in Redis/Lettuce and limits WebFlux endpoints
bucker4j-bluetape4k-webflux	bluetape4k limiter API example	Applies user-token buckets through DistributedRateLimiter
bucket4j-advanced	Main article example	Separates IP, user, combined keys, proxy trust, and standard response headers

The center of the article is therefore bucket4j-advanced. Caffeine and Redis explain storage choices. The bluetape4k WebFlux module shows the library API. The operational problem, however, is usually not just “Redis or Caffeine?” It is “did we put the right requests into the same bucket?”

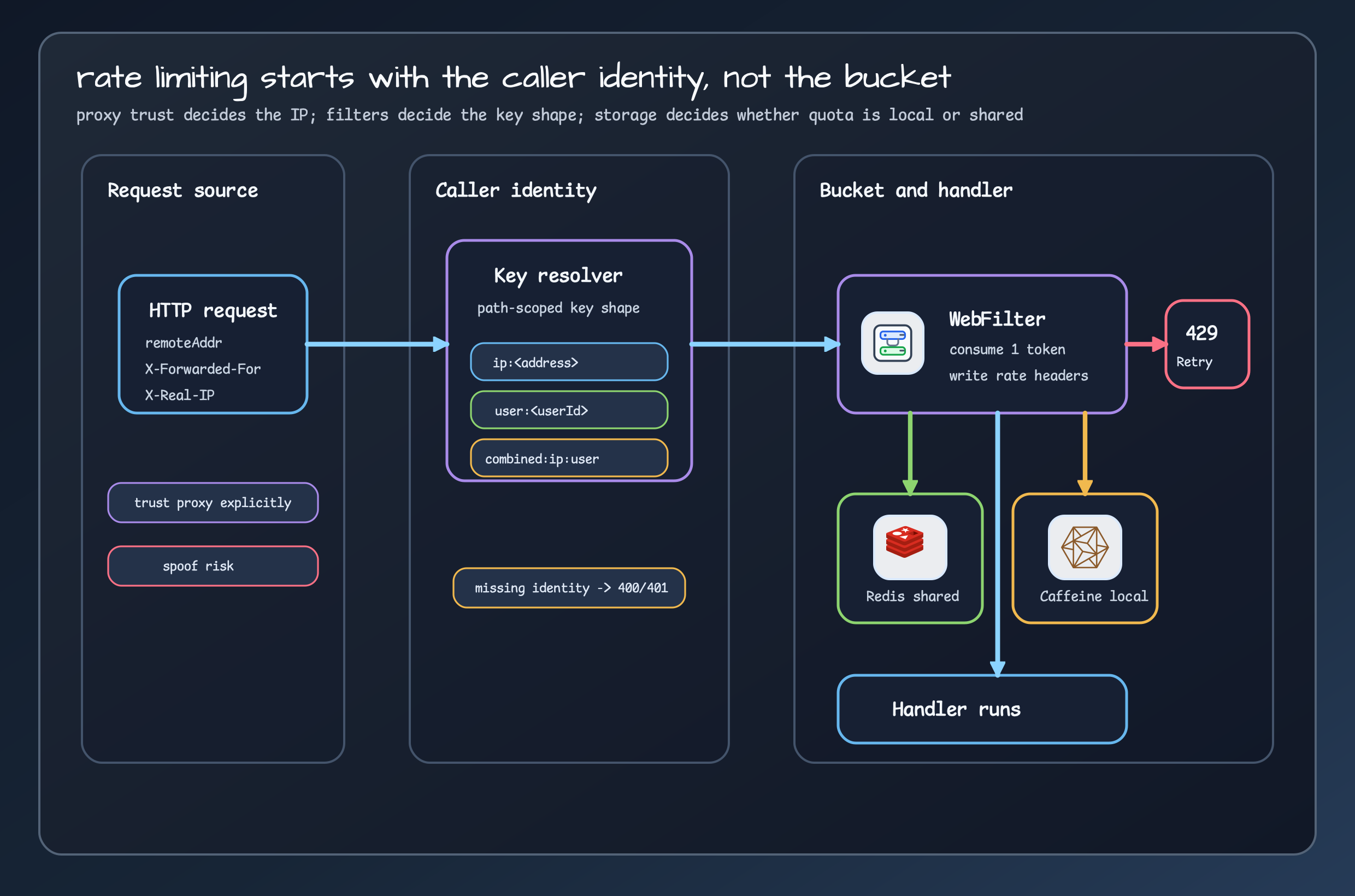

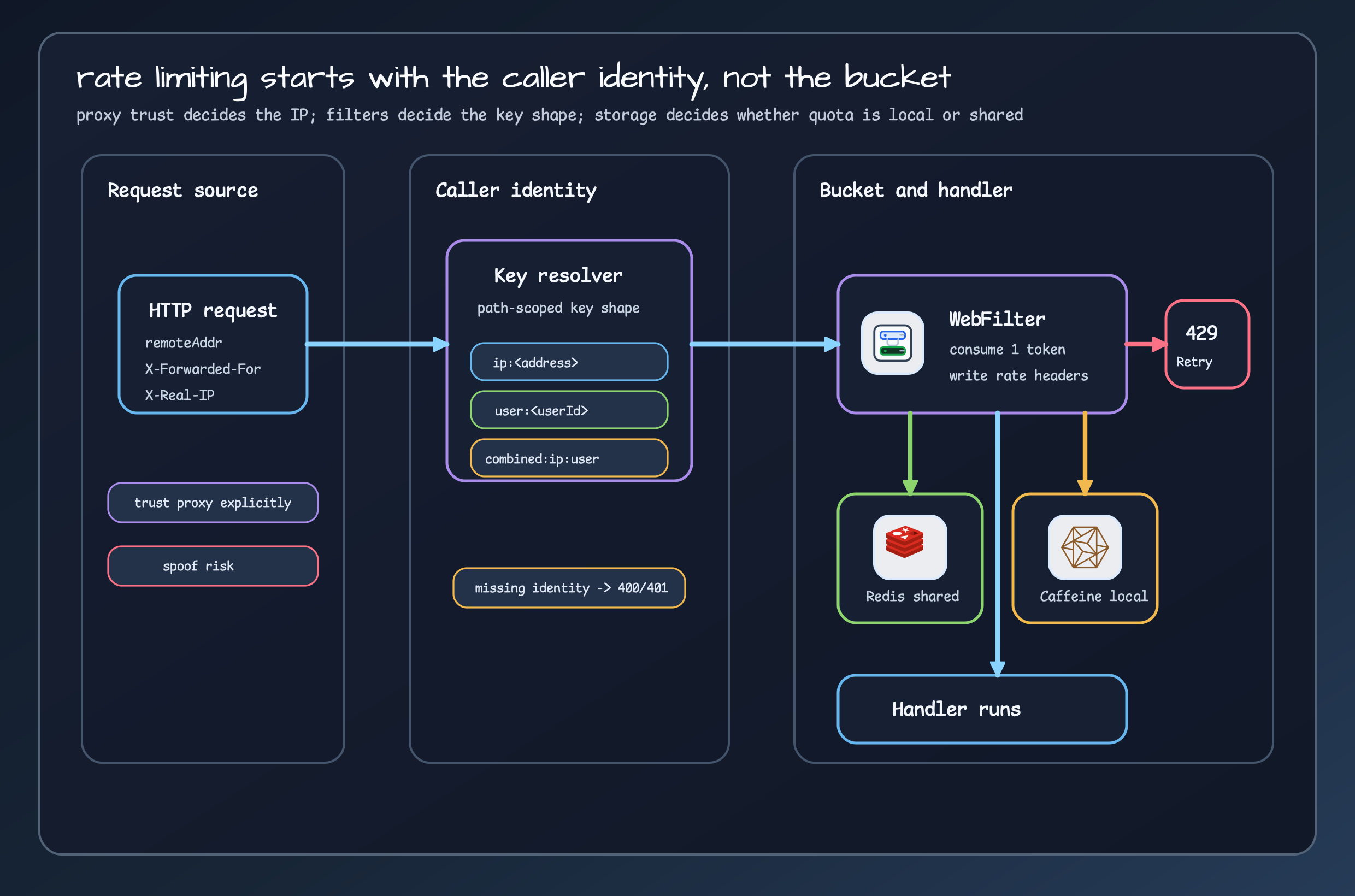

Rate Limiting Architecture

IP, user, and combined keys are caller-identity contracts. Redis and Caffeine are where those contracts store token state.

If rate limiting is treated as “count requests”, the design gets flat quickly. In practice, three questions have to be answered separately.

Question	Failure mode
Which identity partitions the bucket?	A NATed user group can be blocked together, or an attacker can spoof a header to bypass the limit
Where is bucket state stored?	Multiple instances can each grant their own quota
How is the result exposed to clients?	Clients cannot tell when to retry and may amplify traffic

In code, the diagram has two steps. First, the Bucket4j configuration decides which bucket policy is attached to which limiter bean. Then the WebFilter extracts an identity from the request, builds a bucket key, and asks whether one token can be consumed for that key.

Bucket4j Configuration Separates Policy from Limiter Beans

RateLimitConfig creates one Redis proxy manager, then registers separate BucketConfiguration, AsyncBucketProxyProvider, and DistributedSuspendRateLimiter beans for the IP, user, and combined strategies.

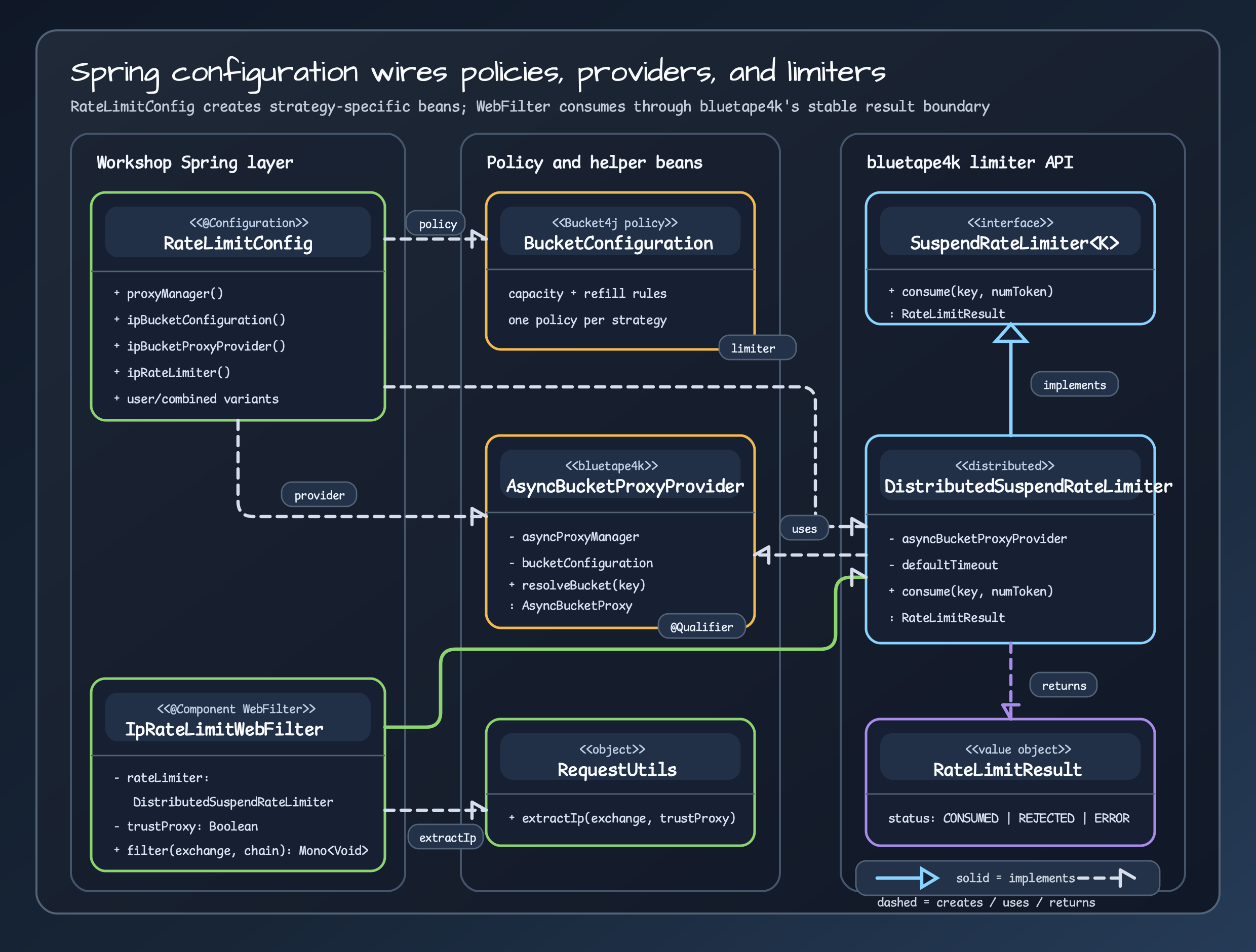

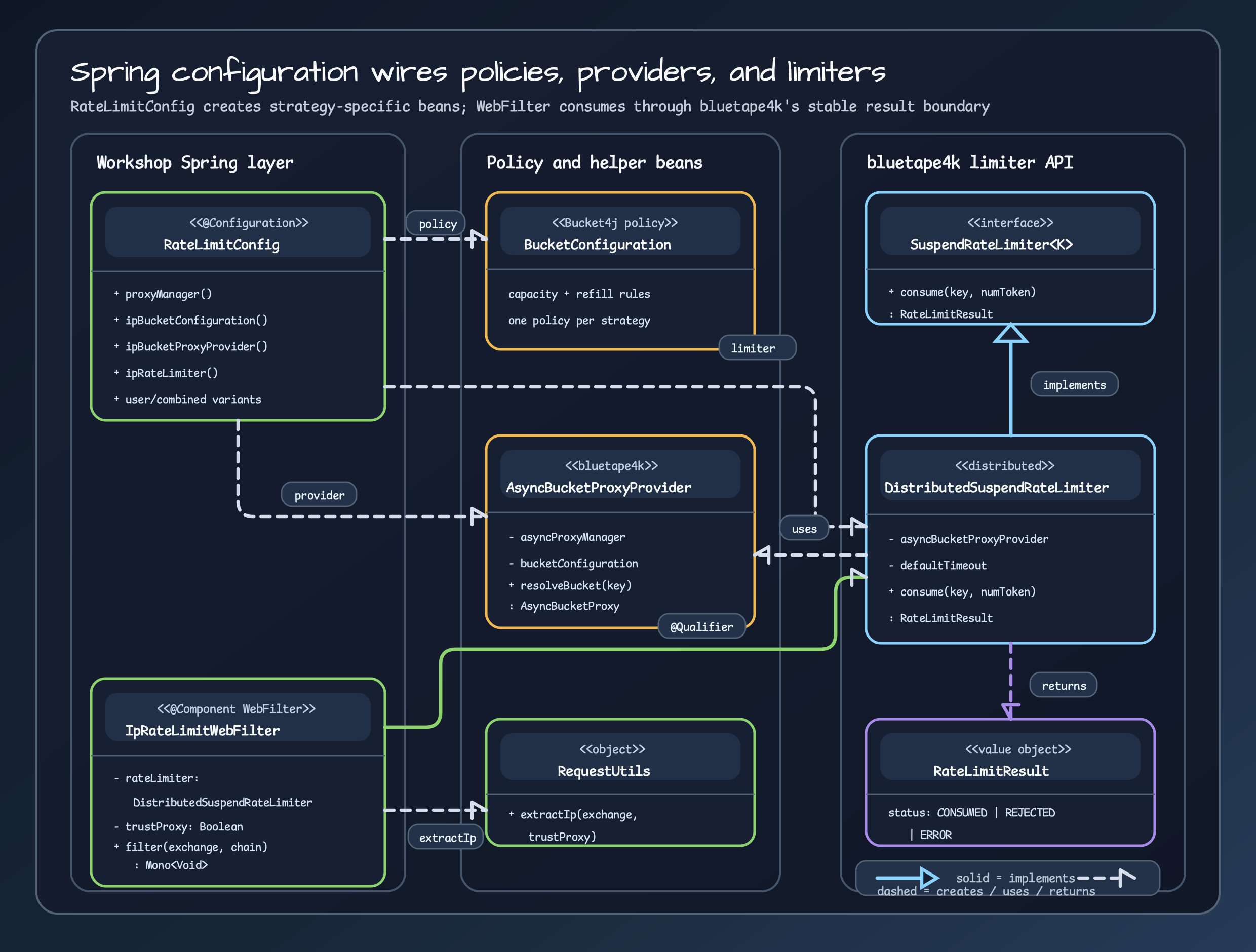

Spring configuration creates separate policy, provider, and limiter beans. The WebFilter makes HTTP decisions from RateLimitResult. Solid lines mean interface implementation; dashed lines mean creates, uses, or returns.

As a class diagram, RateLimitConfig is the wiring class that produces the same bean shape for each strategy. BucketConfiguration owns the quota policy, AsyncBucketProxyProvider resolves the remote bucket for a key, and DistributedSuspendRateLimiter implements SuspendRateLimiter. The HTTP filter only injects that limiter and interprets RateLimitResult, so the boundary between Spring bean wiring and HTTP behavior is a single consume(key, 1) call.

@Bean
fun proxyManager(lettuceClient: RedisClient): LettuceBasedProxyManager<ByteArray> {
    return lettuceBasedProxyManagerOf(lettuceClient) {
        ClientSideConfig.getDefault()
            .withExpirationAfterWriteStrategy(
                ExpirationAfterWriteStrategy
                    .basedOnTimeForRefillingBucketUpToMax(Duration.ofSeconds(90))
            )
            .withExecutionStrategy(ExecutionStrategy.background(VirtualThreadExecutor))
    }
}

@Bean
@Qualifier("ipBucketConfiguration")
fun ipBucketConfiguration(): BucketConfiguration = bucketConfiguration {
    addLimit { it.capacity(20).refillIntervally(20, Duration.ofSeconds(10)) }
    addLimit { it.capacity(100).refillGreedy(10, Duration.ofMinutes(1)) }
}

@Bean
@Qualifier("ipBucketProxyProvider")
fun ipBucketProxyProvider(
    proxyManager: ProxyManager<ByteArray>,
    @Qualifier("ipBucketConfiguration") ipBucketConfiguration: BucketConfiguration,
): AsyncBucketProxyProvider =
    AsyncBucketProxyProvider(proxyManager.asAsync(), ipBucketConfiguration)

@Bean
@Qualifier("ipRateLimiter")
fun ipRateLimiter(
    @Qualifier("ipBucketProxyProvider") ipBucketProxyProvider: AsyncBucketProxyProvider,
): DistributedSuspendRateLimiter =
    DistributedSuspendRateLimiter(ipBucketProxyProvider)

The Redis proxy manager is the shared backend for token state. ipBucketConfiguration is the actual policy: 20 tokens per 10 seconds plus 100 tokens per minute for anonymous IP traffic. ipRateLimiter is the entry point that consumes that policy. The user and combined strategies use the same structure with different capacities.

bluetape4k RateLimiter Wraps Bucket4j Probes as Result Objects

RateLimiter and SuspendRateLimiter are small facades around Bucket4j. They do not expose Bucket4j internals to the HTTP filter. The filter calls consume(key, numToken) and receives one stable result object.

interface SuspendRateLimiter<K> {
    suspend fun consume(key: K, numToken: Long = 1): RateLimitResult
}

consume does not wait for refill. It attempts immediate token consumption and returns a RateLimitResult.

val result = rateLimiter.consume("ip:203.0.113.10", 1)

when {
    result.isConsumed -> chain.filter(exchange).awaitSingleOrNull()
    result.isRejected -> {
        exchange.response.statusCode = HttpStatus.TOO_MANY_REQUESTS
        Mono.empty<Void>().awaitSingleOrNull()
    }
    result.isError -> chain.filter(exchange).awaitSingleOrNull() // example policy: fail open
}

RateLimitResult has three operational states.

Status	Meaning	Use in an HTTP filter
CONSUMED	The token was consumed	Continue to the handler
REJECTED	The bucket had insufficient tokens	Return 429 with Retry-After
ERROR	Provider or Redis processing failed	Choose fail-open or fail-closed

The distributed coroutine implementation, DistributedSuspendRateLimiter, resolves the key-specific async bucket proxy, awaits one tryConsumeAndReturnRemaining(numToken) ConsumptionProbe, and maps that probe to RateLimitResult. It does not read availableTokens again after consuming.

val bucketProxy = asyncBucketProxyProvider.resolveBucket(key)
val probe = bucketProxy.tryConsumeAndReturnRemaining(numToken).await()
return toRateLimitResult(probe, numToken)

That is the useful boundary for the workshop. The HTTP layer does not need to know Bucket4j probe internals. It only needs to map RateLimitResult to “continue”, “429”, or the chosen provider-failure policy.

The Identity from extractIp Becomes the Permit Key

For /api/anonymous, the IpRateLimitWebFilter extracts caller identity with RequestUtils.extractIp(exchange, trustProxy), builds an ip:<address> bucket key, and calls rateLimiter.consume(key, 1L).

val ip = RequestUtils.extractIp(exchange, trustProxy)
val effectiveIp = ip?.takeIf { it.isNotBlank() } ?: "unknown"

val key = "ip:$effectiveIp"
val result = rateLimiter.consume(key, 1L)

exchange.response.headers.set(
    HeaderConstants.X_RATELIMIT_REMAINING,
    result.availableTokens.toString()
)

if (result.isConsumed) {
    chain.filter(exchange).awaitSingleOrNull()
} else {
    val retryAfterSecs = result.retryAfter
        ?.let { TimeUnit.NANOSECONDS.toSeconds(it.toNanos()).coerceAtLeast(1) }
        ?: 1L
    exchange.response.headers.set(HeaderConstants.RETRY_AFTER, retryAfterSecs.toString())
    exchange.response.statusCode = HttpStatus.TOO_MANY_REQUESTS
    Mono.empty<Void>().awaitSingleOrNull()
}

The permit decision is result.isConsumed. If one token was consumed, the request reaches the handler. If result.isRejected, the filter returns 429 Too Many Requests with Retry-After and never calls the handler. Because DistributedSuspendRateLimiter converts provider failures into RateLimitResult.error, the filter can make the fail-open or fail-closed decision explicitly at the HTTP boundary.

The identity extraction in front of that decision changes with proxy trust:

fun extractIp(exchange: ServerWebExchange, trustProxy: Boolean = false): String? {
    val request = exchange.request
    if (trustProxy) {
        val forwardedFor = request.headers.getFirst(HeaderConstants.X_FORWARDED_FOR)
        if (!forwardedFor.isNullOrBlank()) {
            return forwardedFor.split(",").first().trim()
        }
        val realIp = request.headers.getFirst(HeaderConstants.X_REAL_IP)
        if (!realIp.isNullOrBlank()) {
            return realIp.trim()
        }
    }
    return request.remoteAddress?.address?.hostAddress
}

The difference between WebFlux and WebMVC is the request API, not the policy. WebFlux reads from ServerWebExchange, using exchange.request.headers and exchange.request.remoteAddress. The same rule in a Servlet/WebMVC filter or interceptor would use HttpServletRequest#getHeader() and request.remoteAddr.

fun extractIp(request: HttpServletRequest, trustProxy: Boolean = false): String? {
    if (trustProxy) {
        val forwardedFor = request.getHeader(HeaderConstants.X_FORWARDED_FOR)
        if (!forwardedFor.isNullOrBlank()) {
            return forwardedFor.split(",").first().trim()
        }
        val realIp = request.getHeader(HeaderConstants.X_REAL_IP)
        if (!realIp.isNullOrBlank()) {
            return realIp.trim()
        }
    }
    return request.remoteAddr
}

The two versions mean the same thing. With trustProxy=false, use the peer address observed by the framework. With trustProxy=true, allow trusted proxy headers to become identity candidates. WebFlux uses a reactive server request model; WebMVC uses the Servlet request model.

So “adding rate limiting” is not just enabling Bucket4j. In this example, extractIp decides the identity, that identity becomes the bucket key, and consume decides whether the request is permitted or rejected. If proxy trust is wrong, even a well-configured Bucket4j policy consumes tokens from the wrong caller.

Caffeine vs Redis Is a Storage Choice

bucket4j-caffeine-web is the smallest starter-style example. Its test profile limits /hello to 5 requests per 10 seconds and /world to 10 requests per 10 seconds, then verifies 429 after the bucket is exhausted. For a local servlet app or a single-instance service, this is the fastest way to see the starter behavior.

bucket4j-redis moves the same kind of token state into Redis/Lettuce for WebFlux. Multiple application instances share the same bucket state, so quota is not accidentally multiplied by the number of pods.

Choice	Fits	Watch out for
Caffeine local bucket	Single JVM, local development, starter behavior	Quota scales with instance count
Redis distributed bucket	Multi-instance services and gateway/service scale-out	Redis failure needs a fail-open or fail-closed policy

That is the storage part. A Redis-backed limiter can still block the wrong caller if the key is wrong.

The Key Should Match the Endpoint

bucket4j-advanced splits three filters by path prefix.

Endpoint	Key shape	Bucket
GET /api/anonymous/hello	ip:<address>	20 tokens / 10s, 100 tokens / min
GET /api/authenticated/hello	user:<userId>	50 tokens / 10s, 200 tokens / min
GET /api/sensitive/hello	combined:<ip>:<userId>	10 tokens / 10s, 50 tokens / min

Anonymous endpoints naturally start with IP buckets. Authenticated endpoints should normally use an authenticated identity such as X-User-ID. Sensitive operations can combine IP and user ID to distinguish users behind the same NAT from one user moving across network locations.

val key = "combined:$effectiveIp:$userId"
val result = rateLimiter.consume(key, 1L)

That line looks small, but a policy decision sits in front of it. The combined filter returns 400 when the user ID is missing. The user-based filter returns 401 when X-User-ID is absent. Falling back from a missing authenticated identity to remoteAddress is convenient, but it can silently treat the wrong identity as valid.

Proxy Trust Is a Security Setting

Behind a proxy, remoteAddress often means “load balancer” rather than “real client.” Trusting X-Forwarded-For by default is not a safe fix. If a client can send that header directly, it can pretend to be a different IP on every request.

bucket4j-advanced defaults to ratelimit.trust-proxy=false. In that mode, X-Forwarded-For and X-Real-IP are ignored and the TCP remote address is used. Only when trust-proxy=true does the utility take the leftmost X-Forwarded-For value as the client address.

The WebFlux and WebMVC versions above share that same policy. This is closer to a security boundary than a convenience switch. Enable it only when the service sits behind a known, controlled reverse proxy and outside clients cannot inject proxy headers directly.

Response Headers Are a Client Contract

A bare 429 tells the client it was rejected, but not how to behave next. bucket4j-advanced exposes remaining tokens and retry timing through response headers.

Header	Meaning
X-RateLimit-Remaining	Tokens remaining after this request
X-RateLimit-Reset	Seconds until reset; the example writes a calculated value while the README still treats it as reserved
Retry-After	Seconds to wait before retrying; present on 429 Too Many Requests responses

The basic bucker4j-bluetape4k-webflux module uses X-Bluetape4k-Remaining-Token. The advanced module is better for this article because it demonstrates X-RateLimit-Remaining and Retry-After, which are easier to discuss as an HTTP client contract.

Example Requests

After starting bucket4j-advanced, these requests exercise the three policies.

# IP-based anonymous endpoint
curl -i http://localhost:8080/api/anonymous/hello

# userId-based authenticated endpoint
curl -i -H "X-User-ID: alice" \
  http://localhost:8080/api/authenticated/hello

# combined IP + userId endpoint
curl -i -H "X-User-ID: alice" \
  http://localhost:8080/api/sensitive/hello

# ignored unless ratelimit.trust-proxy=true
curl -i -H "X-Forwarded-For: 203.0.113.10, 10.0.0.7" \
  http://localhost:8080/api/anonymous/hello

The tests cover the same operational shape: the IP bucket returns 429 and Retry-After when exhausted, user buckets for different user IDs remain independent, the combined endpoint returns 400 without a user ID, and exhausted combined quota returns 429.

Wrap-Up

WebFlux and coroutines do not change the operational contract of rate limiting. They do make it easier to hide token consumption, response headers, and fail-open/fail-closed behavior inside one async filter if the example is too compact.

The workshop modules are most useful when read as separate pieces:

• bucket4j-caffeine-web: the smallest local-bucket starter
• bucket4j-redis: the distributed-bucket starter
• bucker4j-bluetape4k-webflux: bluetape4k DistributedRateLimiter usage
• bucket4j-advanced: operational identity, proxy trust, and response-header contracts

Before asking “should this bucket live in Redis?”, decide “whose request is this?” The bucket comes after that.
