Bluetape4k Exposed Part 3: R2DBC, Coroutines, and Virtual Threads

Async does not automatically mean faster. The workload usually gets the final vote.

2026-05-31 · bluetape4k-exposed series · Part 3

Part 2 covered JDBC repositories. That leads to the next question: if a service already runs on an async runtime such as WebFlux or Ktor, is JDBC with Virtual Threads enough, or should the data-access layer move to R2DBC?

I did not treat either side as the single answer. bluetape4k keeps both R2DBC with Coroutines and JDBC with Virtual Threads, then makes the workload choose.

exposed-r2dbc is the R2DBC extension for using Exposed’s R2DBC driver with a coroutine-first API. On the other side, exposed-jdbc has Virtual Thread transaction helpers. Both address the same pressure: a request should not hold an expensive resource while it waits. The difference is where each model solves that pressure.

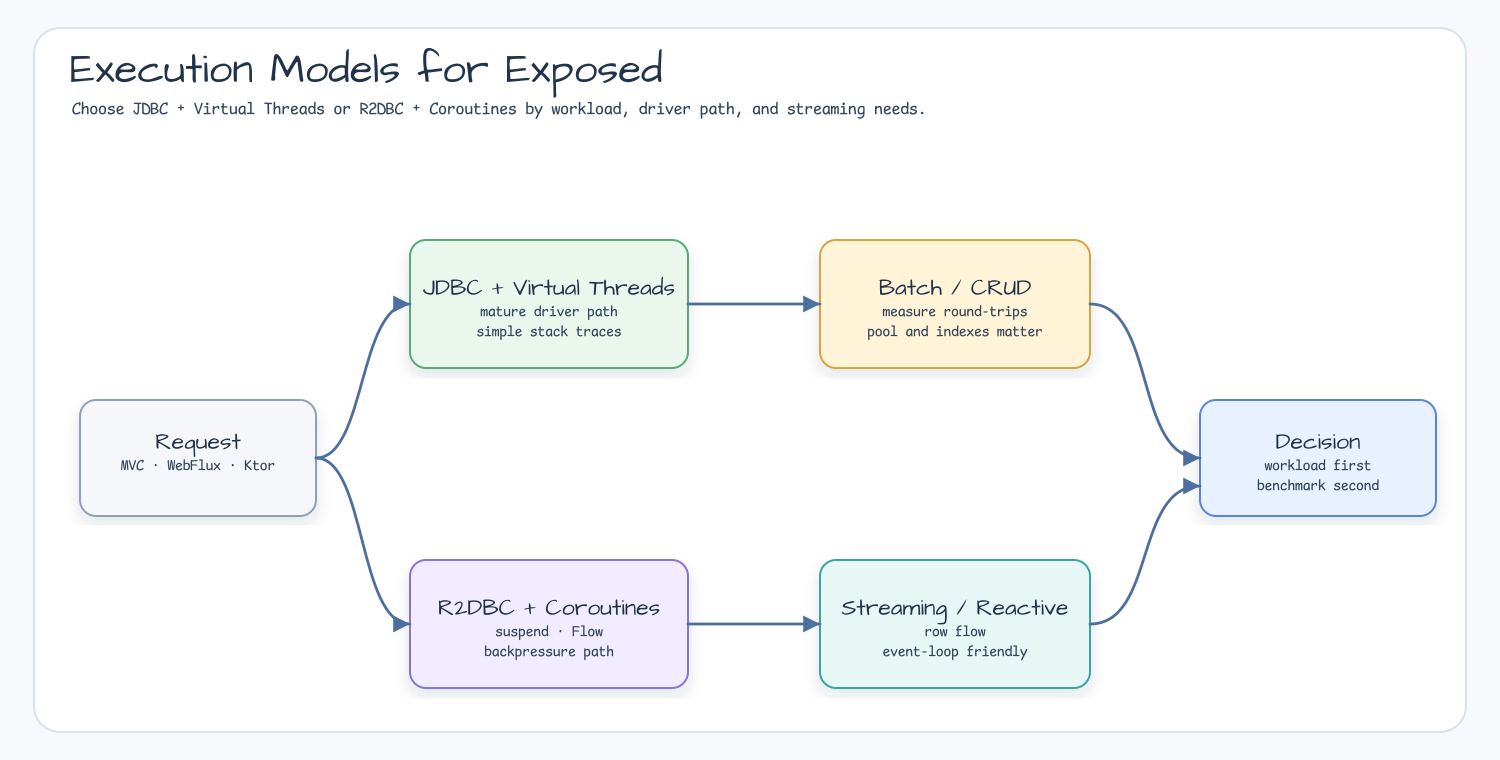

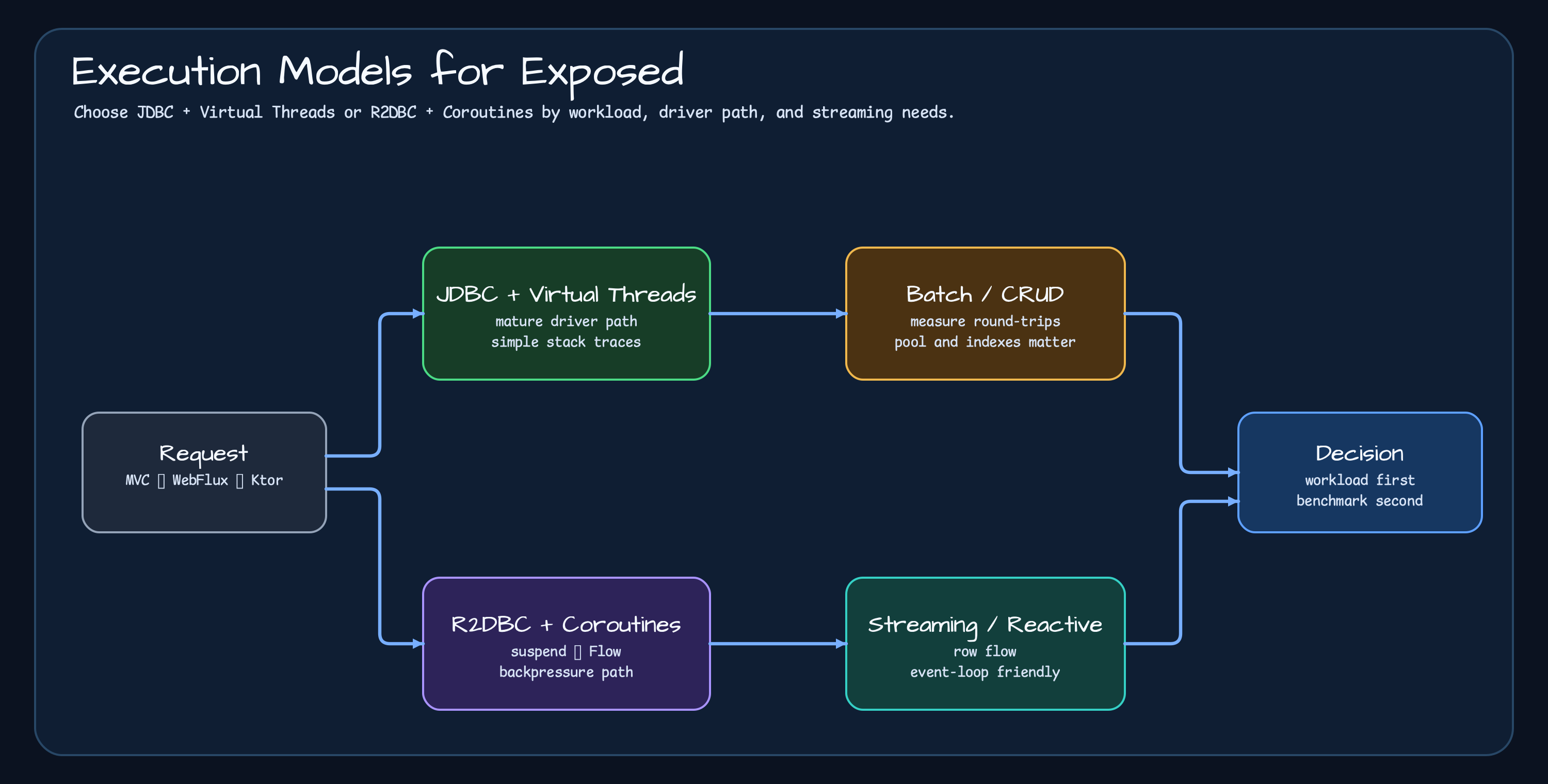

Choose the execution model by streaming needs, driver maturity, and batch or CRUD workload, not by the label on the API.

The R2DBC Path

R2DBC exists here for a clear reason. If an event-loop runtime still performs database I/O through blocking calls, the architecture is only half async. A service can adopt Spring WebFlux and still lose responsiveness if JDBC work holds the event loop for too long. R2DBC is Reactive Streams based non-blocking database access, and exposed-r2dbc wraps that path with Kotlin coroutine APIs.

suspend fun findById(id: Long): ResultRow? = suspendTransaction(database) {
    UserTable
        .selectAll()
        .where { UserTable.id eq id }
        .singleOrNull()
}

Repositories use suspend operations for single results and Flow for streaming reads.

interface UserRepository : ExposedR2dbcRepository<User, Long> {
    suspend fun findByName(name: String): List<User>
    suspend fun countByAge(age: Int): Long
}

suspend fun processAllUsers() {
    userRepository.findAll()
        .collect { user ->
            // streaming work
        }
}

R2DBC is usually the better first choice when:

• The service already runs on an event-loop runtime such as WebFlux, Netty, or Ktor.
• Row streaming and backpressure are real domain requirements.
• Large results should be processed gradually instead of loaded into memory at once.
• The team is comfortable with Reactor or Coroutine context propagation and observability.

The JDBC with Virtual Threads Path

That does not mean every service should be moved to R2DBC. JDBC is a blocking API, but Virtual Threads reduce the cost of waiting on that blocking call.

val count = newVirtualThreadJdbcTransaction {
    UserTable.selectAll().count()
}

I kept JDBC with Virtual Threads for practical reasons.

Advantage	Why it matters
Driver maturity	JDBC drivers have long operational history around batching and pooling
Call stack	Stack traces and profilers keep a familiar shape
Migration cost	Existing JDBC and transaction code can stay mostly intact
SQL DSL	Exposed DSL remains the query surface

There are tradeoffs. This is not non-blocking I/O, so database connections and server capacity are still hard limits. Virtual Threads lower thread waiting cost; they do not remove database round trips. If that distinction is missed, the threads become cheap while the database remains slow.

What the Batch Benchmarks Said

That is why I measured both paths separately. bluetape4k-exposed/utils/batch/benchmark compares JDBC with Virtual Threads and R2DBC with Coroutines across H2, MySQL, and PostgreSQL using the same batch workload.

Axis	Value
Databases	H2, PostgreSQL, MySQL
JDBC path	JDBC + Virtual Threads
R2DBC path	R2DBC + Coroutines
Scenarios	seedBenchmark, endToEndBatchJobBenchmark
Parameters	dataSize=1000/10000/100000, poolSize=10/30/60, parallelism=1/4/8

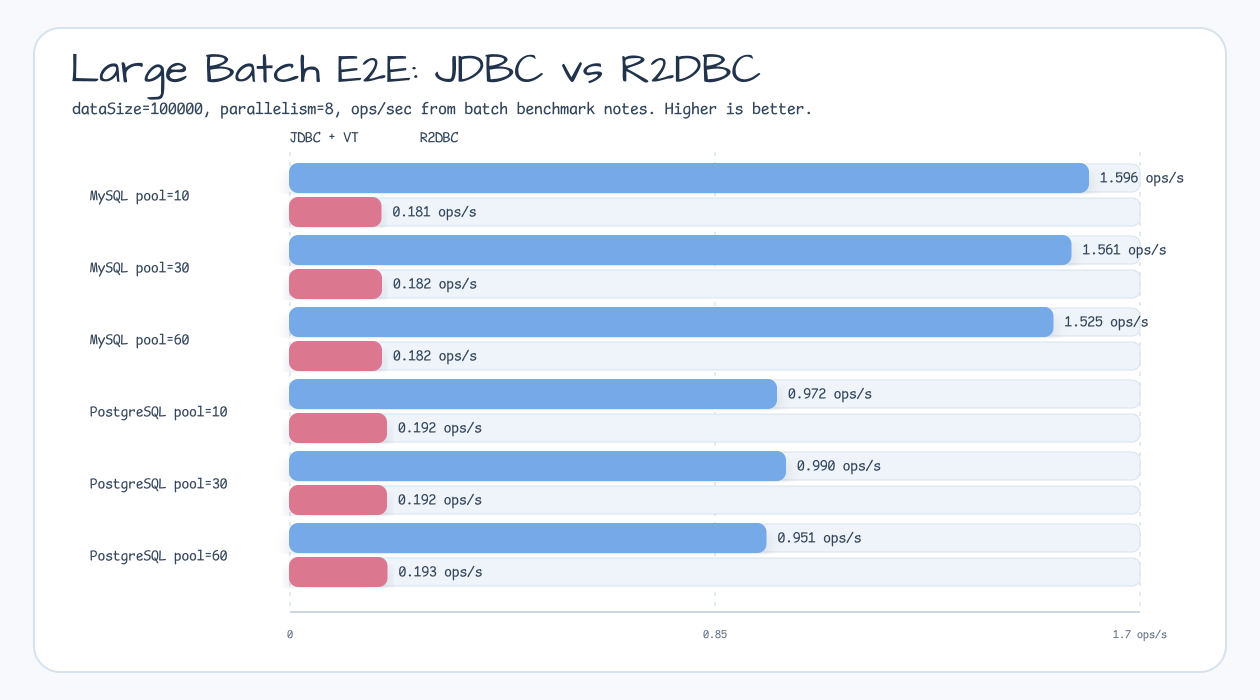

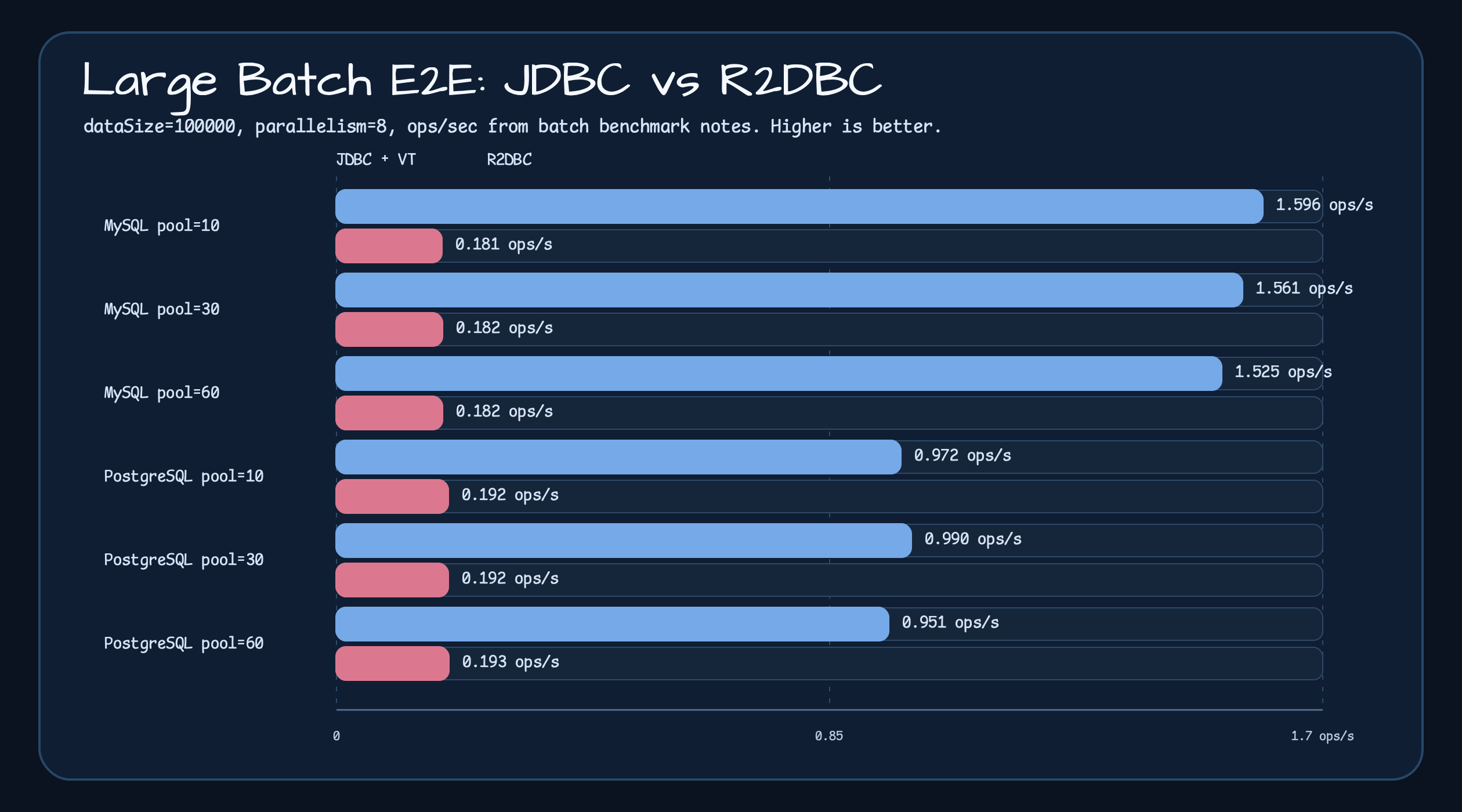

For the large end-to-end batch job with dataSize=100000 and parallelism=8, the result looked like this.

For this large batch E2E workload, comparing throughput side by side makes the tradeoff visible. MySQL and PostgreSQL both favored JDBC with Virtual Threads under this condition.

DB	poolSize	JDBC ops/sec	R2DBC ops/sec	JDBC/R2DBC
MySQL	10	1.596	0.181	8.8x
MySQL	30	1.561	0.182	8.6x
MySQL	60	1.525	0.182	8.4x
PostgreSQL	10	0.972	0.192	5.1x
PostgreSQL	30	0.990	0.192	5.2x
PostgreSQL	60	0.951	0.193	4.9x

The conclusion is not “JDBC always wins.” This benchmark measures batch insert and end-to-end batch jobs. If streaming responses or backpressure are central to the API, R2DBC can be the more useful model.

For this batch workload, though, JDBC driver maturity, a simple transaction boundary, and lower waiting cost from Virtual Threads worked well together. The API is blocking, but the result is practical.

The R2DBC Pool Still Matters

Choosing R2DBC does not remove pool design. Non-blocking I/O does not create unlimited database connections. The examples therefore use bluetape4k-r2dbc’s R2dbcPoolConfig.highThroughput() as a baseline and inspect these points:

• Pure acquire/close throughput differs by driver.
• If each request holds a connection for 1-5 ms, throughput is dominated by that hold time.
• In the 64-thread contention benchmark, where concurrent requests exceed pool size, maxSize has a visible effect.
• If overload protection matters, start with bounded pending acquire, warmup, and finite timeout.

R2DBC is not “non-blocking, therefore no pool worries.” Database connections remain limited resources. Forgetting that turns the reactive pipeline into a neat-looking queue.

Selection Rules

Situation	Start with
Ordinary CRUD, batch jobs, and mature JDBC driver behavior matter	JDBC + Virtual Threads
Streaming responses, backpressure, and event-loop consistency matter	R2DBC + Coroutines
Spring MVC service with many blocking libraries	JDBC + Virtual Threads
WebFlux or Ktor coroutine-first service	R2DBC, or carefully isolated suspend JDBC
Driver-specific batch performance is uncertain	Benchmark both paths

I also include the team’s observability habits in the decision. If incidents are usually debugged with thread dumps, JFR, and JDBC pool metrics, JDBC with Virtual Threads may be easier to operate. If the team already understands Reactor or Coroutine context and backpressure metrics, R2DBC may be the more natural fit.

Closing

R2DBC and Virtual Threads are not complete replacements for each other. They solve related waiting problems at different layers.

• R2DBC makes driver I/O itself non-blocking.
• Coroutines make that async path readable in Kotlin.
• Virtual Threads reduce the waiting cost of blocking JDBC calls.
• Exposed DSL keeps SQL in safe Kotlin code in both paths.

Part 4 moves down to JSON, encryption, measured columns, and dialect modules. Those modules exist less for speed and more for isolating messy database-specific details where they can be seen and controlled.
