bluetape4k-dependencies 1.3.0 in Practice Part 2: Selecting Modules by Service Boundary

The BOM is only the starting point. Real services still need clear choices around DB access, AWS clients, leader election, tokenizers, and image processing.

2026-06-28 · bluetape4k-dependencies 1.3.0 in Practice · Part 2

Importing bluetape4k-dependencies reduces version work, but it leaves a more practical question:

Which modules should this service actually use?

Some services only need Exposed. Some also need AWS. Scheduled work may need Leader. User input can bring in Text, and file upload paths can bring in Image.

Import the BOM First

Gradle imports the BOM with platform, and bluetape4k modules stay versionless.

dependencies {
    implementation(platform("io.github.bluetape4k:bluetape4k-dependencies:1.3.0"))

    implementation("io.github.bluetape4k:bluetape4k-spring-boot-core")
    implementation("io.github.bluetape4k.exposed:bluetape4k-exposed-spring-boot-jdbc")
    implementation("io.github.bluetape4k.aws:bluetape4k-aws-spring-boot")
}

The application chooses feature boundaries. The BOM chooses the compatible versions.

application
  -> bluetape4k-dependencies 1.3.0
      -> projects 1.11.0
      -> exposed 1.11.0
      -> aws 0.4.0
      -> image 0.3.0
      -> text 0.2.1
      -> leader 0.4.0

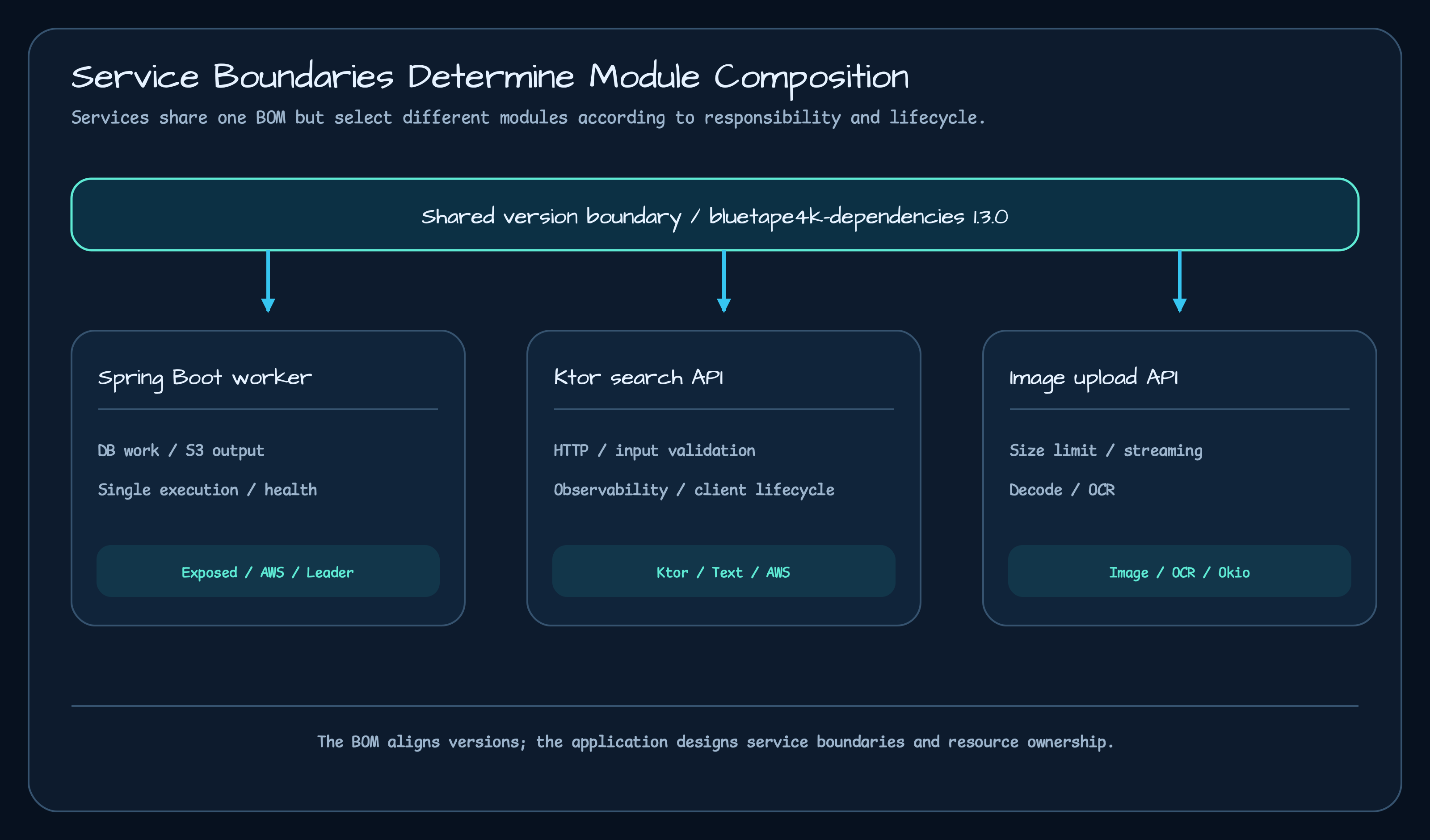

The three services share one BOM but select modules according to different responsibilities and resource lifecycles: database work, HTTP input validation, and image streaming.

Example 1: Spring Boot Worker Service

Suppose a worker service:

• reads pending jobs from a database
• writes result files to S3
• must not run the same job from several instances
• preprocesses job names or input text with a tokenizer
• wants write-behind cache state visible through health

The dependency shape can start here:

dependencies {
    implementation(platform("io.github.bluetape4k:bluetape4k-dependencies:1.3.0"))

    implementation("io.github.bluetape4k:bluetape4k-spring-boot-core")
    implementation("io.github.bluetape4k.exposed:bluetape4k-exposed-spring-boot-jdbc")
    implementation("io.github.bluetape4k.exposed:bluetape4k-exposed-cache")
    implementation("io.github.bluetape4k.aws:bluetape4k-aws-spring-boot")
    implementation("io.github.bluetape4k.leader:bluetape4k-leader-spring-boot")
    implementation("io.github.bluetape4k.leader:bluetape4k-leader-redis-lettuce")
    implementation("io.github.bluetape4k.leader:bluetape4k-leader-micrometer")
    implementation("io.github.bluetape4k.text:tokenizer-korean")
    implementation("io.github.bluetape4k.text:text-search")
}

The code shape is service-specific, but the boundary is the important part.

@Scheduled(fixedDelayString = "PT30S")
fun runPendingJobs() {
    leader.runIfLeader("invoice-worker") {
        transaction {
            val jobs = jobRepository.findPending(limit = 100)

            jobs.forEach { job ->
                val tokens = koreanTokenizer.tokenize(job.title)
                val result = processor.render(job, tokens)

                s3Client.putObject(job.resultKey, result)
                jobRepository.markDone(job.id)
            }
        }
    }
}

Leader is not decoration here. If three workers pick the same row, the deployment turns into an incident. The leader boundary makes the ownership rule visible in code.

If Exposed cache is used, health should expose write-behind state.

{
  "status": "OUT_OF_SERVICE",
  "components": {
    "exposedCache": {
      "status": "OUT_OF_SERVICE",
      "details": {
        "reports": [
          {
            "name": "invoice-cache",
            "mode": "WRITE_BEHIND",
            "queueDepth": 128,
            "flushJobRunning": false,
            "lastFlushError": "Redis connection failed"
          }
        ]
      }
    }
  }
}

Example 2: Ktor API Service

A Ktor API has different lifecycle boundaries:

• HTTP requests enter through Ktor
• R2DBC or JDBC reads and writes data
• CloudWatch receives metrics and logs
• admin APIs or scheduled work may need leader election
• text input goes through tokenizers or blockword checks

dependencies {
    implementation(platform("io.github.bluetape4k:bluetape4k-dependencies:1.3.0"))

    implementation("io.github.bluetape4k:bluetape4k-ktor-core")
    implementation("io.github.bluetape4k:bluetape4k-ktor-observability")
    implementation("io.github.bluetape4k.exposed:bluetape4k-exposed-ktor")
    implementation("io.github.bluetape4k.exposed:bluetape4k-exposed-r2dbc")
    implementation("io.github.bluetape4k.aws:bluetape4k-aws-ktor")
    implementation("io.github.bluetape4k.leader:bluetape4k-leader-ktor")
    implementation("io.github.bluetape4k.leader:bluetape4k-leader-redis-lettuce")
    implementation("io.github.bluetape4k.text:tokenizer-korean")
    implementation("io.github.bluetape4k.text:text-search")
}

The sensitive part in Ktor is lifecycle. AWS clients, metric namespace, log group names, and stream names should not be spread across random call sites.

fun Application.module() {
    install(CloudWatchKtorPlugin) {
        namespace = "billing-api"
    }

    install(CloudWatchLogsKtorPlugin) {
        logGroupName = "/bluetape4k/billing-api"
        logStreamName = environment.config.property("deployment.instanceId").getString()
        flushInterval = Duration.ofSeconds(5)
        shutdownFlushTimeout = Duration.ofSeconds(5)
    }

    routing {
        post("/documents/search") {
            val request = call.receive<SearchRequest>()
            // Application-owned input validation boundary
            request.query.requireLength(max = 2_000)

            val tokens = koreanTokenizer.tokenize(request.query)
            call.respond(documentService.search(tokens))
        }
    }
}

The plugins register the CloudWatch integration and its lifecycle. They do not automatically publish metrics or log events; the application must submit each datum or append each buffered log event explicitly.

Example 3: Image Upload API

Image upload paths add another boundary: the point where a file becomes memory.

dependencies {
    implementation(platform("io.github.bluetape4k:bluetape4k-dependencies:1.3.0"))

    implementation("io.github.bluetape4k.image:bluetape4k-images")
    implementation("io.github.bluetape4k.image:bluetape4k-images-ocr")
    implementation("io.github.bluetape4k.image:bluetape4k-images-vips-api")
    implementation("io.github.bluetape4k.image:bluetape4k-images-spring-boot")
}

This is convenient for small samples and risky for production files:

// Convenient for small samples. Dangerous for large files.
val bytes = multipartFile.bytes
val text = ocr.read(bytes)

The large-file path should care about streaming and limits before OCR options.

fun extractText(path: Path): OcrResult {
    return fileSystem.source(path).buffer().use { source ->
        imageReader
            .read(source)
            .resize(maxWidth = 2_000)
            .normalizeForOcr()
            .runOcr(language = "kor+eng")
    }
}

Module Selection Rules

Service boundary	First module to inspect	Also check
Spring Boot foundation	bluetape4k-spring-boot-core	Spring Boot major line
Ktor API	bluetape4k-ktor-core, bluetape4k-ktor-observability	Ktor major line, plugin lifecycle
Exposed JDBC	bluetape4k-exposed-spring-boot-jdbc, bluetape4k-exposed-jdbc	transaction helper, datasource configuration
Exposed R2DBC	bluetape4k-exposed-spring-boot-r2dbc, bluetape4k-exposed-r2dbc	coroutine boundary, connection lifecycle
AWS integration	bluetape4k-aws-spring-boot, bluetape4k-aws-ktor	client lifecycle, emulator/runtime
Distributed leader election	bluetape4k-leader-spring-boot, bluetape4k-leader-ktor	provider/storage choice, metrics
Korean/Japanese text	tokenizer-korean, tokenizer-japanese, text-search	input length limit, error response
Image/OCR	bluetape4k-images, bluetape4k-images-ocr	file size, memory, native runtime

The table is not a request to install everything. Pick the service boundary first, then add the modules required for that boundary. The BOM keeps the chosen modules on the intended version set.

Verify After Upgrade

After moving to dependencies 1.3.0, check the runtime lines near the service boundary.

./gradlew compileTestKotlin
./gradlew test
./gradlew dependencyInsight --dependency exposed --configuration runtimeClasspath
./gradlew dependencyInsight --dependency ktor --configuration runtimeClasspath
./gradlew dependencyInsight --dependency aws --configuration runtimeClasspath

Closing

Importing the BOM reduces version-number work. It does not finish service design. The useful questions are still:

• What database boundary does this service own?
• Who owns AWS client and log/metric lifecycle?
• May a scheduled job run on several instances at once?
• Where is user input limited before tokenizers or blockword checks?
• When does an image file enter memory?

Let the BOM own versions. Let the service boundary decide modules.
