[Design 1] When a Product Changes, Preserve the Patient's Promise: Product Versions and Purchase Snapshots

Small robotic builders connect product v1 and v2 cards, a purchase snapshot, a plan revision, and a confirmed visit promise on one time axis — Publishing a new product and changing a patient’s purchased visit promise are different operations. Protect the purchase-time contract and the facts already confirmed first.

2026-08-12 · clinic appointment series · Product Versions and Purchase Snapshots

When the product team changes a product, the reservation service has a question to answer before it looks at a calendar:

May the new product definition be applied directly to a patient who already purchased the old one?

Suppose Patient A buys an event product, an N-visit product, and a package product at one clinic. The product team publishes the same product family as v2. New purchases may use the new definition. But if the service expands A’s v1 treatment items and remaining visits from the current catalog, the reservation service has silently changed the patient’s purchase contract.

Idempotency is not this article’s main conflict. The main question is what stays protected, and what may still be negotiated, when a product version changes. A repeated purchase event appears only as a short technical guardrail near the end.

Patient A’s timeline: a purchase is not yet a visit promise

We generalize the product name, price, clinic, and personal information. Only the scheduling meaning remains.

Time	Patient A action or event	Product and purchase meaning	What the reservation service preserves
T1	Buys an event product	One right to use within a validity window	Source purchase ID and the purchase-time catalog v1
T2	Adds an N-visit product	An obligation fulfilled across several visits	Per-visit PlannedTreatment and repeat intervals
T3	Buys a package product	A product BOM with several items, dependencies, and resources	Per-item version provenance and dependencies
T4	Completes some items while others remain future work	Past facts split from pending obligations	Completion facts, remaining items, and the current Plan revision
T5	The product team publishes catalog v2	The contract for later purchases changes	The v1 snapshot and the v2 projection together
T6	A migration mapping and consent arrive for the existing purchase	An exceptional change to future obligations	A new revision plus mapping and consent evidence
T7	The migration would change the schedule, or A declines it	A product change and a visit change are separate work	The confirmed visit and an objective CRM/counseling handoff

These purchases must not collapse into one appointment row. One use of an event product, the third visit in an N-visit product, and one package item have different remaining obligations and dependency rules. Items from several purchases may be grouped into one visit, but the agreed AppointmentItems and each purchase’s Plan remain separately traceable.

A purchase is the commercial fact of what the patient bought the right to use. A Plan is the reservation service’s interpretation of that purchase as executable obligations. A confirmed visit is a promise to perform specific items with specific time and resources. Treating all three as one record lets a catalog change overwrite a past promise.

A product version is a purchase-time contract, not sales copy

The product projection stored by the reservation service is not an arbitrary copy that it is free to rewrite. The current ProductCatalogDefinition treats the source product service’s catalogVersion, BOM items, repeat counts, treatment duration, resource capabilities, and dependencies as one immutable definition. An ACTIVE projection can create a new Plan; a RETIRED projection remains available only for reading historical Plans.

A purchase-completed event does not need to repeat the whole price sheet. The minimum input the reservation service must reproduce includes sourcePurchaseAuthority, sourcePurchaseId, productId, catalogVersion, and bookingPreference from PurchaseCompletedEvent. When it creates the Plan, it joins that purchase source of record and protected patient reference to the purchase-time catalog payload hash.

AppointmentPlanFactory expands each catalog BOM item into PlannedTreatments according to repeatCount and preserves dependencies. It does not confirm a visit time. The absence of a customer preference is not a command to confirm automatically.

A Plan and the visit-promise flow built from it therefore need to retain at least this timeline:

Which source purchase ID and source service created it
Which product family and catalog version it used
Which payload hash, BOM items, repeats, and dependencies were interpreted
Which booking preference arrived with the purchase, and which policy snapshot informed a proposal
Which Plan owns later revisions and confirmed visits

This snapshot is not a customer-facing copy of a price card. The product team and commerce service own the source product. The reservation service preserves the minimum execution contract needed to reproduce this purchase’s scheduling obligations.

Event, N-visit, and package products become different Plans

A product type expressed only as a number of calendar appointments loses the business rule.

Product type	What remains in the Plan	The reservation question
Event product	One PlannedTreatment from repeatCount 1, a validity window, and booking rules	Which date and resources can fulfill this benefit?
N-visit product	Per-visit PlannedTreatments with minimum, preferred, and maximum intervals	Does this visit respect the previous one, and how many remain?
Package product	Item-level product BOM, selections, dependencies, and visit grouping	Which items fit this visit, and which must remain future work?

A package is especially difficult to reduce to “one product equals one appointment.” The current PackageExecutionPlanner validates exact component versions, expanded execution items, dependency relations, and visit-grouping constraints provided by the execution source. Missing provenance or a cycle in the dependency graph rejects the whole input rather than silently dropping part of it.

Purchase completed event
  └─> One AppointmentPlan per purchase
        ├─ Event product: one PlannedTreatment
        ├─ N-visit product: PlannedTreatment 1..N
        └─ Package: items + dependency/DAG + visit grouping

This structure also prevents a common overreach: “the patient bought three products, so reserve every possible future slot.” A Plan preserves obligations. It does not mean that the reservation service occupies every future resource. Only the items with an agreed time, resource, and consent become confirmed visits.

When catalog v2 is published, do not re-expand the existing Plan

Publishing v2 creates two paths.

Target	Default treatment	Why
A customer who has not purchased yet	The new purchase event points to catalog v2	v2 is a new commercial contract, so the new Plan snapshots v2
Patient A who already purchased v1	The existing Plan and revisions remain v1	The purchase-time right and obligation are not reinterpreted from the current catalog
An exceptional change to an existing purchase	A new revision after explicit mapping and consent	An existing-contract change is not the same flow as a new contract

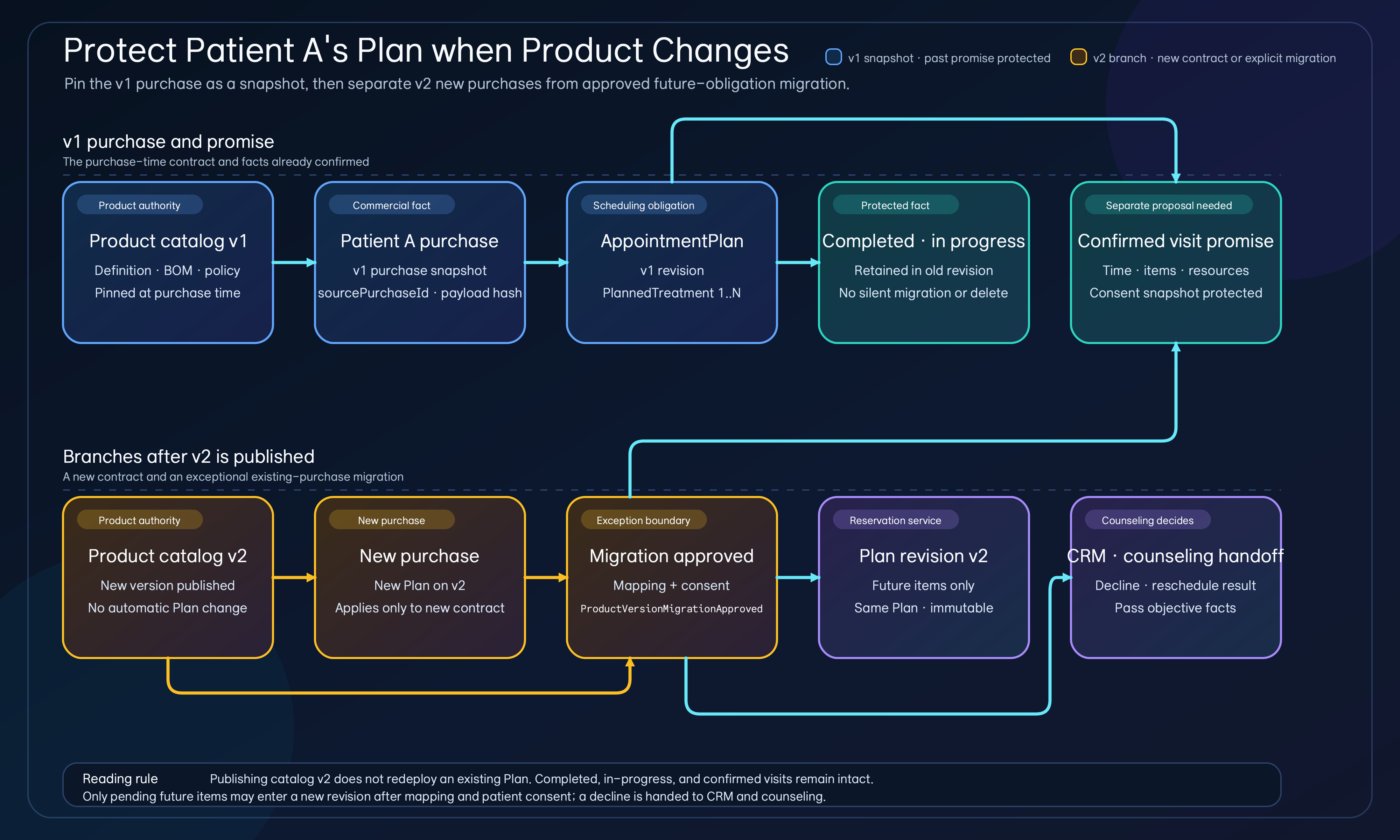

The timeline below makes the split visible. The v1 purchase retains completed and confirmed facts. Publishing v2 separates a new purchase from a proposed migration of the existing purchase. Future items in the existing purchase do not move automatically; they enter a new revision only after approval and consent.

Catalog v1 fixes Patient A's purchase snapshot and v1 Plan while completed and confirmed facts stay protected; catalog v2 branches into a new purchase and explicit migration approval, consent, a new Plan revision, and a CRM handoff — Publishing product v2 does not redeploy the existing Plan. New purchases start on v2, while future items in an existing purchase may move only through explicit mapping and patient consent.

Separate completed facts from work that is still negotiable

The most dangerous phrase in a product migration is “convert the remaining product.” Remaining work can include something already performed, something confirmed but not yet visited, and something that has not even been proposed.

The current AppointmentPlanModel distinguishes PLANNED, SCHEDULED, IN_PROGRESS, COMPLETED, CANCELLED, and BLOCKED_REVIEW treatment states. The smaller product-version migration model separately validates PENDING, COMPLETED, and CANCELLED. The names differ because the models serve different decisions; the rule is the same: separate past facts and confirmed promises from future obligations that can still be negotiated.

Plan or visit state	Default after v2 is published	What it means for Patient A
COMPLETED	Retain the old revision and old version provenance	Do not rewrite an already delivered service under a later definition
IN_PROGRESS	Protect the current execution and clinical fact	Do not undo an action already underway because the product was revised
An item linked to a CONFIRMED visit	Protect the promise, policy snapshot, and resource agreement	Do not cancel the agreed time and item automatically
PLANNED or PENDING future work	Candidate for a new revision only with approved mapping and consent	Only work not yet promised is open to negotiation
CANCELLED	Retain the cancellation or refund fact	Do not resurrect a cancelled obligation because v2 exists

ProductVersionMigrationPlanner rejects a mapping that includes a completed source, requires every PENDING source to be explained exactly once, and requires unique target treatment keys. Similar names are not evidence that two obligations are the same.

The exceptional path for applying v2 to an existing purchase

If the product team must apply v2 to Patient A’s existing purchase, the reservation service does not guess the correspondence. The product team creates the target-version mapping and consent evidence, then sends the approved migration fact to the reservation service.

The current ProductVersionMigration model distinguishes six mapping types:

Mapping	Source → target	Meaning for Patient A
KEEP	1 → 1	Retain the same future obligation under a v2 item key
REPLACE	1 → 1	Replace an unfinished item with another v2 item
SPLIT	1 → 2 or more	Divide one future obligation into several execution items
MERGE	2 or more → 1	Combine several future obligations into one new execution item
REMOVE	1 or more → 0	Remove an unfinished obligation from the new revision
ADD	0 → 1 or more	Add a new obligation without an existing source

For example, imagine that A’s package contains two items not yet started and one completed item. The product team may SPLIT one future item into two v2 items and KEEP the other. The completed item is left out of the mapping. Putting the completed item under REMOVE would confuse “not shown in the new revision” with “erase the completed fact.”

After approval, ProductVersionMigrationHandler follows this sequence:

Lock the source purchase and its active revision.
Verify that the active revision uses the from product version.
Verify the consent subject and evidence age.
Validate the mapping and the future product BOM.
Keep completed items in the old revision and append a new immutable revision under the same Plan.
Activate the new revision and write the ProductVersionMigrationApplied objective fact to the outbox.

If the mapping, consent, or from version is invalid, the active revision stays unchanged and the handler records a quarantine or rejection result. The reservation service does not decide whether the new product is commercially fair. It verifies that the approved fact fits the current Plan and records the change as a traceable revision.

When a product change reaches the visit schedule

A different BOM does not authorize an immediate recalculation of a confirmed visit’s date, doctor, equipment, or room. A visit promise also contains clinic policy, capacity, patient consent, and resource agreement.

The implementation comments in ProductVersionMigrationHandler state that migration does not update the appointment, commitment, or allocation. If the schedule really must change, start a separate flow:

Calculate candidate times for the new items.
Show the existing CONFIRMED promise together with the new proposal.
Store a new proposal and its change evidence; replace the confirmed proposal only after the patient consents.
If the patient declines or no candidate exists, do not delete the existing promise first.
Send the decline or reschedule result as an objective fact that CRM, counseling, and commerce can judge.

This is where policies such as VIP priority or an additional check after repeated no-shows might exist. Scheduling policies are owned and versioned by the reservation service, while CRM and commerce own customer-contact, compensation, and other follow-up facts. The reservation service stores the policy snapshot and calculation result used for this proposal. That is also why internal thresholds and customer tiers do not belong in a public article.

Source-of-record and responsibility

Service	Source-of-record data	Facts it publishes or consumes for a product change	Reservation responsibility
Product management and development	Product version, BOM, mapping	ProductCatalogChanged, ProductVersionMigrationApproved	Verify that version, BOM, and mapping are reproducible
Commerce and purchasing	Purchase contract, additional purchase, refund	PurchaseCompleted, PurchaseRefunded	Create one Plan per purchase and keep the source link
Reservation service	Scheduling policy, Plan, Plan revision, visit promise, resources, history	ProductVersionMigrationApplied and objective schedule facts	Preserve snapshot, revision, and confirmed-promise ownership
Clinical delivery	Start, completion, partial completion	Fulfillment facts	Separate completed work from future work
CRM and counseling	Counseling, compensation, consent source	Decline and operational handoff facts	Make the customer decision from objective facts
Notification	Contact consent and delivery history	Consumes appointment and migration events	Keep channels outside the reservation transaction
Statistics and external consumers	Projections and metrics	Consume Plan, revision, and event data	Never replace the reservation source of truth

Source of record is not only about who can read a field. It is about which service can change its meaning. Product management may publish v2, but it does not directly cancel A’s confirmed visit. CRM may decide counseling and compensation after a decline, but it does not overwrite Plan provenance. The reservation service preserves executable promises and objective history between those boundaries.

Repeated delivery is not an additional purchase

This article does not use “duplicate” as shorthand for “duplicate purchase.”

A repeated delivery is the same PurchaseCompleted event arriving again after a timeout, retry, or replay. PurchaseCompletedHandler checks for an existing Plan in the sourcePurchaseAuthority, sourcePurchaseId, tenant, and clinic scope. If the immutable ownership matches, it converges to PURCHASE_ALREADY_PLANNED instead of creating a second Plan. If the payload conflicts, it quarantines an ownership conflict rather than guessing that a second purchase occurred.

An additional purchase means that the patient actually paid again and received a new sourcePurchaseId. That new purchase creates a new Plan. Combining items from the two Plans into one visit still needs its own eligibility, proposal, resource, and consent review.

Same sourcePurchaseId + same immutable ownership
  └─> converge on the existing Plan

New sourcePurchaseId
  └─> create a new purchase Plan

Repeated delivery ≠ additional purchase

The first is delivery safety. The second is a product and commerce fact. Calling both “duplicate” makes the counseling screen and the reservation screen explain different things to the patient.

Read current implementation and future design separately

Evidence label	Scope in this article	Evidence
Current implementation	Versioned catalog projection, one Plan per purchase, repeat/BOM/dependency snapshot, explicit migration mapping validation, same-Plan revision append/activate, and retained completion provenance	Current clinic-appointment develop source and related tests
Approved design	Proposal, consent, and operating policy when a product change would alter an existing confirmed visit; multi-item commitment expansion	Visit commitment design, Plan and capacity design
Awaiting operations	Actual broker delivery, outbox canary, backfill, production readiness, and recovery drills	Requires rollout evidence rather than source inspection
Roadmap	A public patient channel for reviewing and consenting to a change proposal	A later product and channel scope

“Current implementation” here means that the contract is confirmed in source and tests. It does not mean that every clinic can automatically apply every product change, or that the reservation service owns refunds and compensation.

What comes next

This article fixed the boundary that protects an existing Plan and confirmed visit when a product version changes. The next article follows the first booking rule for an event product: how a purchase becomes candidate times and then a visit promise without confirming a date immediately, while respecting customer preference, validity, and clinic resources.

Revisit the visual companions

The existing companions supplement the source Markdown design. Start with product scheduling traits, package composition, and product BOM expansion before returning to this article’s migration timeline.

Evidence links
