Spring WebFlux Multi-tenancy: From Reactor Context Propagation to Tenant Onboarding

Tenant context is not a header string. It is a contract connecting request authorization, data resources, and operational state.

2026-07-26 · exposed-r2dbc-workshop · Spring WebFlux multi-tenancy

Do not select a database simply because X-TENANT-ID has a valid shape. The caller may not be authorized for that tenant, and a just-created tenant may still be preparing its database and connection pool. Multi-tenancy is less about reading a header than deciding when a validated tenant may enter the request path and the operational routing set.

This post follows the Spring WebFlux examples in exposed-r2dbc-workshop and joins two flows into one design.

1. Identify and authorize a tenant for every request, carry it through Reactor Context and Kotlin coroutines, and select the right database connection.
2. Persist preparation ownership and lifecycle state for a new tenant, verify its resources, and publish it safely to the set that live requests may route to.

The previous Ktor multi-tenant routing post covered ApplicationCall.attributes and explicit value passing. This post applies the same invariants to WebFlux’s asynchronous request boundary and to the lifecycle before a tenant enters that boundary.

Multi-tenancy does not start with a header

An HTTP header is client input. A tenant is a domain value that binds data isolation, access permission, database connection, and operational state. Treating them as the same thing lets a string such as X-TENANT-ID: acme flow through controllers, services, and repositories. Each layer then validates it differently—or forgets to validate it at all.

The request path must answer four questions early.

Question	What goes wrong when it remains unresolved
Does the header identify exactly one valid tenant?	Blank, duplicate, or unknown values reach the database too late.
May the authenticated user access that tenant?	A caller can name another customer’s tenant and read its data.
Can the current execution flow retrieve the tenant?	The tenant disappears after an asynchronous boundary.
Are the tenant’s DB resources ready?	Routing selects a connection that is still being prepared.

The header is only the starting point. After parsing it, use a validated TenantId, and publish it to request-scoped context only after authorization succeeds.

In WebFlux, a request is not a thread

Traditional server code can make it tempting to assume that a request remains on one thread until it finishes. That assumption does not hold in WebFlux. A request can move through several asynchronous execution points, so hiding tenant state in a ThreadLocal is not a safe propagation mechanism.

Project Reactor’s Context is an immutable, subscriber-attached key/value carrier. Once a tenant is in that carrier, it stays available inside the request’s reactive chain even when execution threads change. Entering a Kotlin suspend function is a separate boundary, however: the code must explicitly receive that context there.

Carry the tenant from Reactor Context into a coroutine

The basic WebFlux workshop resolves the header to a TenantId in a filter and attaches it to the next chain’s Reactor Context. This is the essential shape.

override fun filter(exchange: ServerWebExchange, chain: WebFilterChain): Mono<Void> = mono {
    val tenant = resolveTenant(exchange.request.headers)

    chain.filter(exchange)
        .contextWrite { context ->
            context.put(TenantId.TENANT_ID_KEY, TenantId(tenant))
        }
        .awaitSingleOrNull()
}

suspend fun currentReactorTenant(): Tenants.Tenant =
    coroutineContext[ReactorContext]
        ?.context
        ?.get<TenantId>(TenantId.TENANT_ID_KEY)
        ?.value
        ?: error("Tenant context is required")

ReactorContext exposes Reactor context as a CoroutineContext element. A suspend controller or service can therefore read the same tenant from coroutineContext[ReactorContext]. Applying a quiet default tenant to an HTTP request with no tenant is not a safe fallback; fail the request at the boundary.

The per-tenant connection-factory example has one more bridge. TenantTransactionExecutor obtains the current Reactor Context with Mono.deferContextual, attaches it again through mono(bridgedContext), and then runs suspendTransaction. The transaction begins in coroutine code, so that point must reconnect the tenant rather than lose it.

The tenant header is only input. Publish a validated tenant to Reactor Context and select a DB connection only after its authorization matches the authenticated principal.

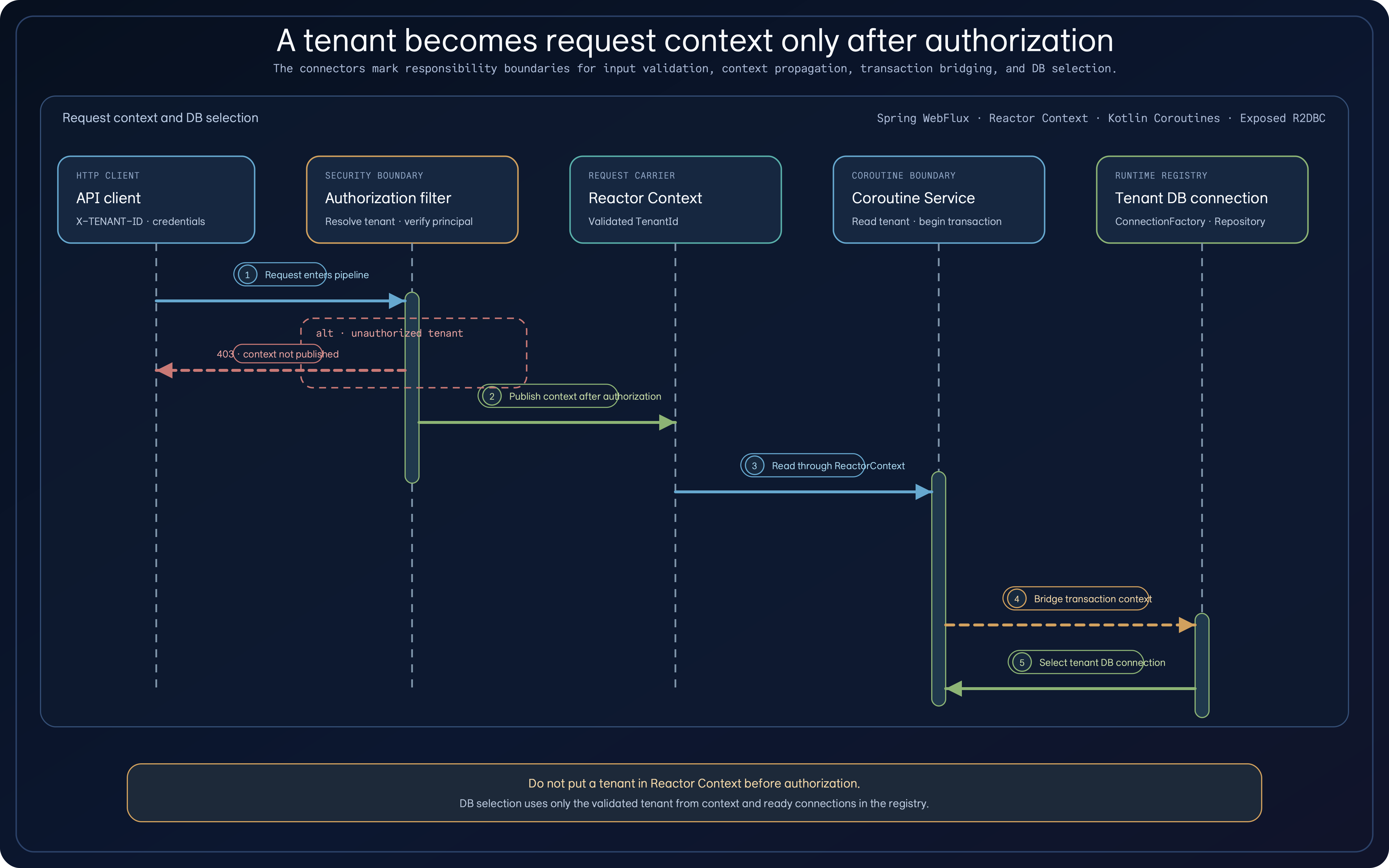

Tenant identification and tenant authorization are different problems

Being able to resolve tenant=acme is not the same as proving that the current user may read acme data. Keeping those concerns separate in one filter makes the order explicit.

authenticate(request)
requestedTenant = resolveTenant(request)
authorize(principal, requestedTenant)
publishTenantToReactorContext(requestedTenant)
continueFilterChain()

AuthorizedTenantContextWebFilter obtains authentication, compares the requested tenant with the tenants allowed for that principal, and does not pass a mismatch to the next filter or controller. The required order is authorize before publishing to Reactor Context. Publishing an unauthenticated or unauthorized value gives downstream code something it might trust.

The authorization model varies by service: a user may belong to one tenant, while an administrator may manage several. The request-boundary order does not vary. Identification → authentication → authorization → context publication lets the data layer assume it receives only a validated tenant.

A validated tenant selects the DB connection

Tenant isolation has more than one implementation. The workshop shows both changing schemas and selecting a ConnectionFactory per tenant. The choice balances isolation strength against operational cost.

Strategy	Isolation unit	Benefit	Operational cost
Shared DB, schema per tenant	Schema	Shares one database resource	Connection reuse requires schema-setting and leak tests.
ConnectionFactory per tenant	Pool, database	Isolates connection and failure scope more strongly	Manages a pool and lifecycle for each tenant.

In the second approach, TenantRoutingConnectionFactory works with a registry. The transaction executor reads a tenant from context, looks it up in the registry, and selects only that tenant’s registered connection factory. Selecting another tenant as a default is not a recovery strategy. It can violate data isolation, so an unregistered or provisioning tenant must be rejected or reported as not ready.

How does a new tenant enter the routing set?

Request routing is enough for tenants that already exist. A SaaS system must apply the same boundary when a customer signs up. Creating a row in a metadata table and preparing the connection factory a live request will use are different events.

Ignoring that difference creates two partial tenants:

• a tenant present in metadata but unable to serve requests because its pool or schema is not ready;
• a tenant with a created pool but no registry entry, so requests cannot find it.

Onboarding bridges those states. Operators must be able to tell whether a tenant is still preparing, can accept requests, or needs recovery.

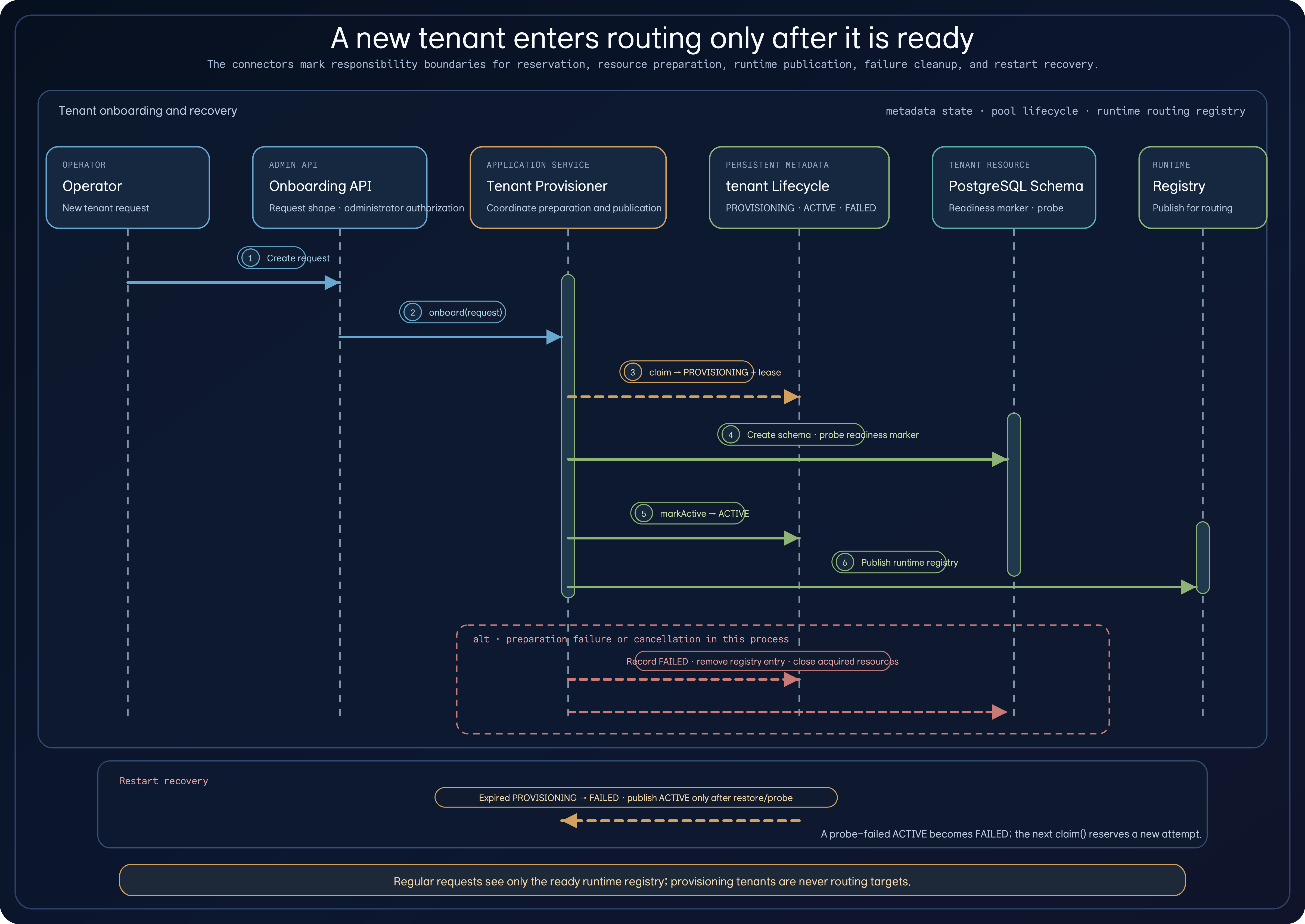

Separate preparation from publication

The recovery-oriented example’s ResilientTenantProvisioner first reserves preparation ownership in metadata as PROVISIONING. While renewing a lease, it prepares the actual resources. Only after probing a readiness marker and recording ACTIVE does it publish to the runtime registry. This pseudocode focuses on names and order.

suspend fun onboard(command: TenantOnboardingCommand): TenantOnboardingResult {
    val owner = lifecycleRepository.claim(...)                  // PROVISIONING + lease
    val renewed = lifecycleRepository.renewLease(owner, ...)
    val resources = resourceFactory.create(renewed.metadata)    // schema + readiness marker
    resourceFactory.probe(resources)
    val active = lifecycleRepository.markActive(renewed, ...)   // ACTIVE
    runtimeRegistry.publish(resources)                           // publish for routing
    return Created(active)
}

runtimeRegistry.publish() is the in-process publication boundary. Before it runs, a tenant may exist in metadata but no ordinary request can select it. ACTIVE records that durable resources are ready; the runtime registry records that this process can route to resources that passed a probe. Separating preparation and publication makes it possible to reconcile the two again after a restart.

Regular requests look only at the runtime registry published by the current process. Onboarding verifies readiness, records ACTIVE, and only then adds a tenant to the routing set.

Leave onboarding failure in an operable state

Failure handling has two distinct paths. Collapsing them into “store a failed state” hides the operational decision. The example stores stable failure categories in metadata, not raw exception messages or connection details.

Moment	Workshop behavior	Operational meaning
Onboarding fails or is cancelled in the same process	Record FAILED and a failure category, remove the registry entry, and close acquired resources	Keep a partial tenant out of the request path while retaining evidence for a retry.
After a process restart	Turn expired PROVISIONING into FAILED(RECOVERY); restore and probe ACTIVE before republishing	Reconcile a vanished in-memory registry with durable metadata.
A recovery probe fails	Turn the ACTIVE row into FAILED(RECOVERY) and do not publish it	Do not route requests from an old ACTIVE record alone.
Onboarding later retries	Update the FAILED row with a new PROVISIONING attempt	Bind retry count and ownership to the new attempt.

With the PostgreSQL profile, lifecycle metadata lives in public.tenant_lifecycle, while tenant business resources and readiness markers live in a tenant_<tenant-id> schema. A failed probe after schema creation does not automatically drop that schema. It remains for diagnosis and idempotent retry, while the lifecycle row becomes FAILED so ordinary requests cannot select it. An operational service can attach audit logs, alerts, and retry policy to that distinction.

Tests must prove boundaries, not only successful responses

A multi-tenant test that merely finds an actor is incomplete. It must prove that values do not leak across tenants and that an unauthorized or unready tenant never reaches the data layer.

Boundary to prove	Expected result
Header and tenant resolution	Missing, blank, and unknown tenants are rejected early.
Authenticated tenant and requested tenant	A mismatch is rejected before context publication.
Reactor → coroutine propagation	The same tenant is read in a suspend service and transaction.
Connection-factory selection	A tenant A request never uses tenant B’s pool or database.
Onboarding publication point	Only an ACTIVE tenant published in the current runtime registry is routable.
Failure and cancellation	FAILED recording, registry removal, and resource cleanup finish in NonCancellable cleanup.
Restart recovery	Expired PROVISIONING and probe-failed ACTIVE become FAILED(RECOVERY); only healthy ACTIVE tenants are republished.

Boundary 1: an unauthorized tenant is never published to context

Checking only for 403 cannot show where the request stopped. This boundary says that components after authorization must not be able to see the tenant. The workshop’s architecture test permits only AuthorizedTenantContextWebFilter to write the tenant into Reactor Context.

given a principal without access to tenant-a

when GET /actors with X-TENANT-ID = tenant-a

then the response is FORBIDDEN
and Reactor Context has no TENANT_ID
and TenantTransactionExecutor is not called
and tenant-a's ConnectionFactory is not selected

The pseudocode checks the HTTP status and the internal boundary together. An implementation that publishes the raw header first and authorizes later may pass the first FORBIDDEN assertion, but it fails this contract.

Boundary 2: concurrent requests do not mix at DB selection

Tenant isolation cannot be proved with one request. Alternate tenant A and B under a deliberately small pool, where connection reuse is most frequent, to expose schema or connection-factory leaks.

given connection pool size = 1
and tenant-a and tenant-b have distinct actor markers

when requests for A and B run repeatedly and concurrently

then every A response contains only the A marker
and every B response contains only the B marker
and each request selects its own tenant resource
and no request falls back to another tenant's default resource

The question is not whether both requests return 200. Their response markers and selected resources must match the validated tenant all the way through. The unknown-tenant failure and disabled lenient fallback in TenantRoutingConnectionFactory serve the same purpose.

Boundary 3: provisioning and recovery-failed tenants are not routing targets

An onboarding test that checks only the ACTIVE string is insufficient. Publication to the runtime registry is the real moment the request path can see a tenant, so test the probe and registry together.

given tenant-x is PROVISIONING
or tenant-x is ACTIVE but its readiness probe fails after restart

when the application reconciles durable lifecycle records

then tenant-x is absent from the runtime registry
and no ConnectionFactory is selected for tenant-x
and lifecycle is retained or changed to FAILED(RECOVERY)

when tenant-y is ACTIVE and its readiness probe succeeds
then tenant-y alone is published to the runtime registry

This proves more than the happy path where a tenant is visible after restart. It proves that incomplete resources cannot leak into ordinary requests. TenantLifecycleReconciler publishes only after probing, and the PostgreSQL restart integration tests lock that contract in place.

Using a small pool and alternating tenant requests is useful for the same reason: connection reuse is frequent enough to reveal a mixed schema or connection-factory choice.

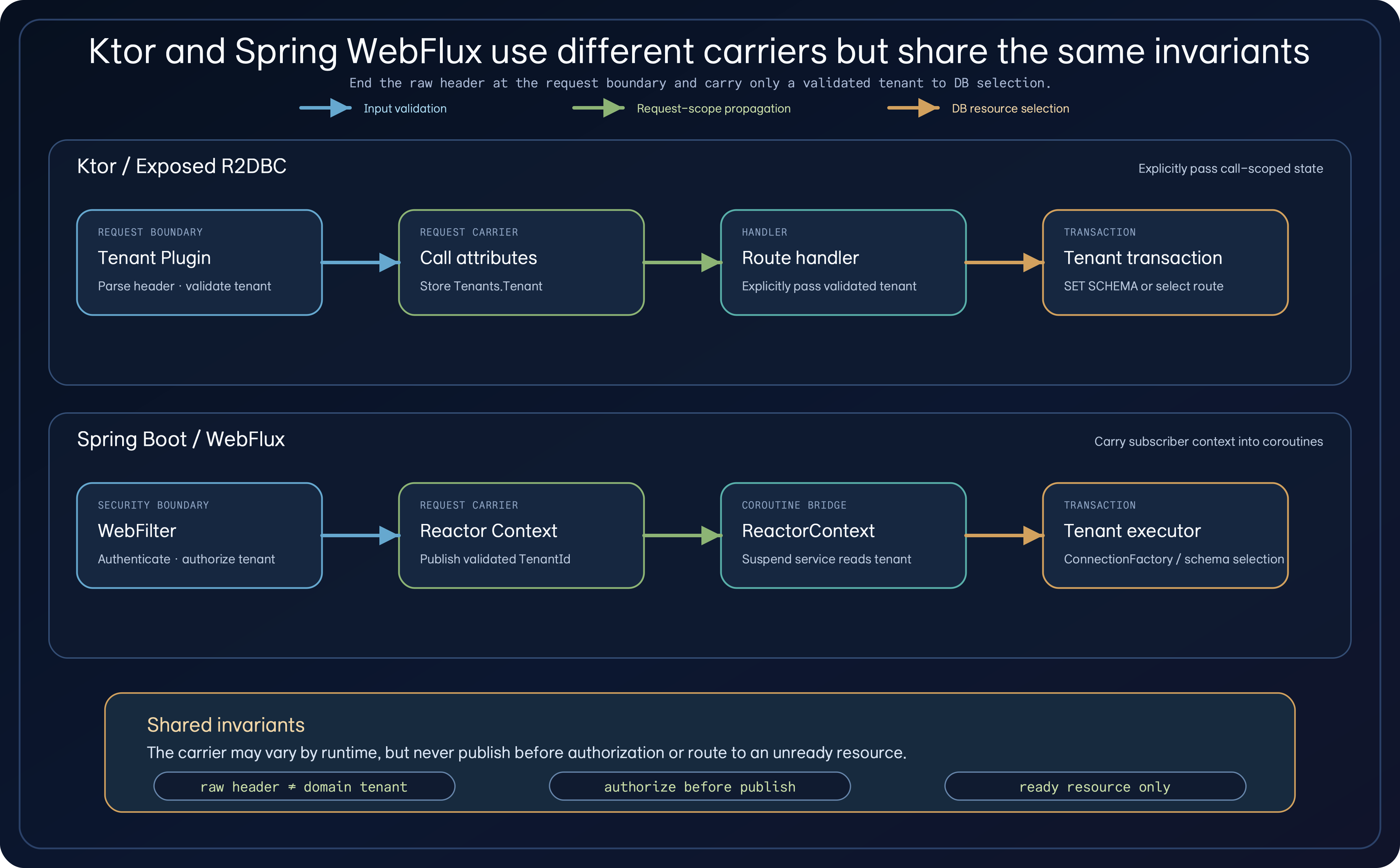

Ktor differs only in the carrier

The Ktor post stores request-scoped state in ApplicationCall.attributes and passes validated values explicitly. In WebFlux, Reactor Context and CoroutineContext are the carriers. The invariants are the same.

Principle	Ktor	Spring WebFlux
Input validation	Parse the header in a plugin	Parse the tenant in a filter
Request-scope propagation	ApplicationCall.attributes	Reactor Context → ReactorContext
Authorization boundary	Before the route or in a plugin	Before context publication
DB selection	Explicit route or tenant value	Validated tenant read from context
New-tenant publication	The registry must be ready before selection	The registry must be ready before selection

The point is not to copy a carrier. It is to carry only validated values, publish them after authorization, and never select an unready resource—then express those invariants in the runtime’s own tools.

Choose the carrier for the runtime, but create the raw-header-to-domain-tenant boundary and the DB-selection boundary only once.

Resources

• Project Reactor Context documentation: explains why subscriber-scoped context differs from thread storage.
• The ReactorContext API in kotlinx-coroutines-reactor: documents the bridge that lets coroutine code read Reactor context.
• Spring WebFlux tenant-context workshop: shows the basic path from a header to ReactorContext.
• Per-tenant ConnectionFactory workshop: shows the transaction context bridge and connection-factory selection.
• Spring Security tenant-authorization workshop: shows the filter that publishes tenant context after authorization.
• Recovery-oriented tenant-onboarding workshop: covers durable ownership, leases, FAILED retry, PostgreSQL schema isolation, and restart recovery.
• ResilientTenantProvisioner: the concrete order of preparation, validation, activation, runtime publication, and cancellation cleanup.
• TenantLifecycleReconciler: the restart boundary that rereads metadata and publishes only healthy tenants to the registry.

Closing

The hard part of WebFlux multi-tenancy is not adding another asynchronous API. It is turning a tenant from input into trustworthy request context, preserving that context through coroutines and transactions to DB selection, and keeping a new tenant out of the request path until it is ready.

The request path and onboarding path become easier to reason about when they share the same contract. Put only authorized tenants into context. Put only resources that were validated and published by this process into the registry. With those two publication points made explicit, data isolation and restart recovery can grow with the tenant count.
