Clinic Appointment SaaS Part 2: Appointment State Is More Than an Enum

Changing a state and recording why it changed are one business operation. Invalid transitions must be rejected, and valid transitions must leave an audit trail.

2026-07-19 · clinic-appointment series · Part 2

Part 1 showed that one appointment must satisfy clinic-specific hours, doctors, treatments, equipment, and operating policies. Now we can move to what happens after an appointment exists.

Staff confirm appointment requests and check patients in when they arrive. A treatment room records when care starts and finishes. A patient who never arrives becomes a no-show. A clinic closure moves affected appointments into a rescheduling queue. The Cancel button is not valid at every stage: cancelling completed care or checking in an unconfirmed request may update a database row, but it produces a business record that no longer makes sense.

Appointment state therefore cannot end as a list of strings for a status column. The current state, the business action that changes it, the allowed next state, the reason, and the history form one contract. This article follows that contract from requirements to a state machine and API, then shows how implementation review added missing history queries and cancellation reasons back to the requirements.

Write the Workflow Before Naming the States

The repository’s domain model defines the following lifecycle.

State	Meaning in clinic operations	Typical next action
PENDING	Draft or unsubmitted appointment	Request, cancel
REQUESTED	Patient request waiting for clinic review	Confirm, request rescheduling, cancel
CONFIRMED	Clinic has accepted the appointment	Check in, no-show, reschedule, cancel
CHECKED_IN	Patient has arrived	Start treatment, cancel
IN_PROGRESS	Treatment is underway	Complete treatment
COMPLETED	Treatment has finished	Terminal state
NO_SHOW	Confirmed patient did not arrive	Terminal state
PENDING_RESCHEDULE	A new time is required after an operational change	Confirm rescheduling, cancel
RESCHEDULED	Appointment was moved to another schedule	Terminal state
CANCELLED	Appointment was cancelled	Terminal state

The first column looks like an enum. The other columns reveal the real problem. CONFIRMED → CHECKED_IN is valid, but PENDING → CHECKED_IN is not. IN_PROGRESS may move only to COMPLETED, and COMPLETED must not change again.

If the code defines only state values, these rules spread across controller and service if statements. Adding one path may update some call sites and miss others, and the complete workflow becomes difficult to review. State names and transition rules need separate representations.

Separate State from Event

AppointmentState.kt models states as a Kotlin sealed class. Their names still appear in the database and API, while application code gets a closed type hierarchy such as AppointmentState.CONFIRMED.

The cause of a change lives separately in AppointmentEvent.kt. Request, Confirm, CheckIn, StartTreatment, and Complete need no additional data. Cancel(reason) and RequestReschedule(reason) carry the reason for the change.

sealed class AppointmentEvent : Serializable {
    data object Confirm : AppointmentEvent()
    data object CheckIn : AppointmentEvent()
    data class Cancel(val reason: String) : AppointmentEvent()
    data class RequestReschedule(val reason: String) : AppointmentEvent()
}

This keeps “the current value is CANCELLED” separate from “the user cancelled for this reason.” State is the current result; an event is the business action that produced it.

AppointmentStateMachine.kt collects the (current state, event type) → next state rules in one place.

private val transitions = buildMap {
    put(PENDING to Request::class.java, REQUESTED)
    put(REQUESTED to Confirm::class.java, CONFIRMED)
    put(CONFIRMED to CheckIn::class.java, CHECKED_IN)
    put(CHECKED_IN to StartTreatment::class.java, IN_PROGRESS)
    put(IN_PROGRESS to Complete::class.java, COMPLETED)
}

The complete map also covers no-show, rescheduling, and cancellation. transition() throws an IllegalStateException for an undefined pair, which the API’s GlobalExceptionHandler maps to HTTP 409 Conflict.

That distinction from 400 Bad Request matters. COMPLETED is a valid state name. It is simply incompatible with an appointment that is currently PENDING. The request format is valid; the requested change conflicts with current resource state.

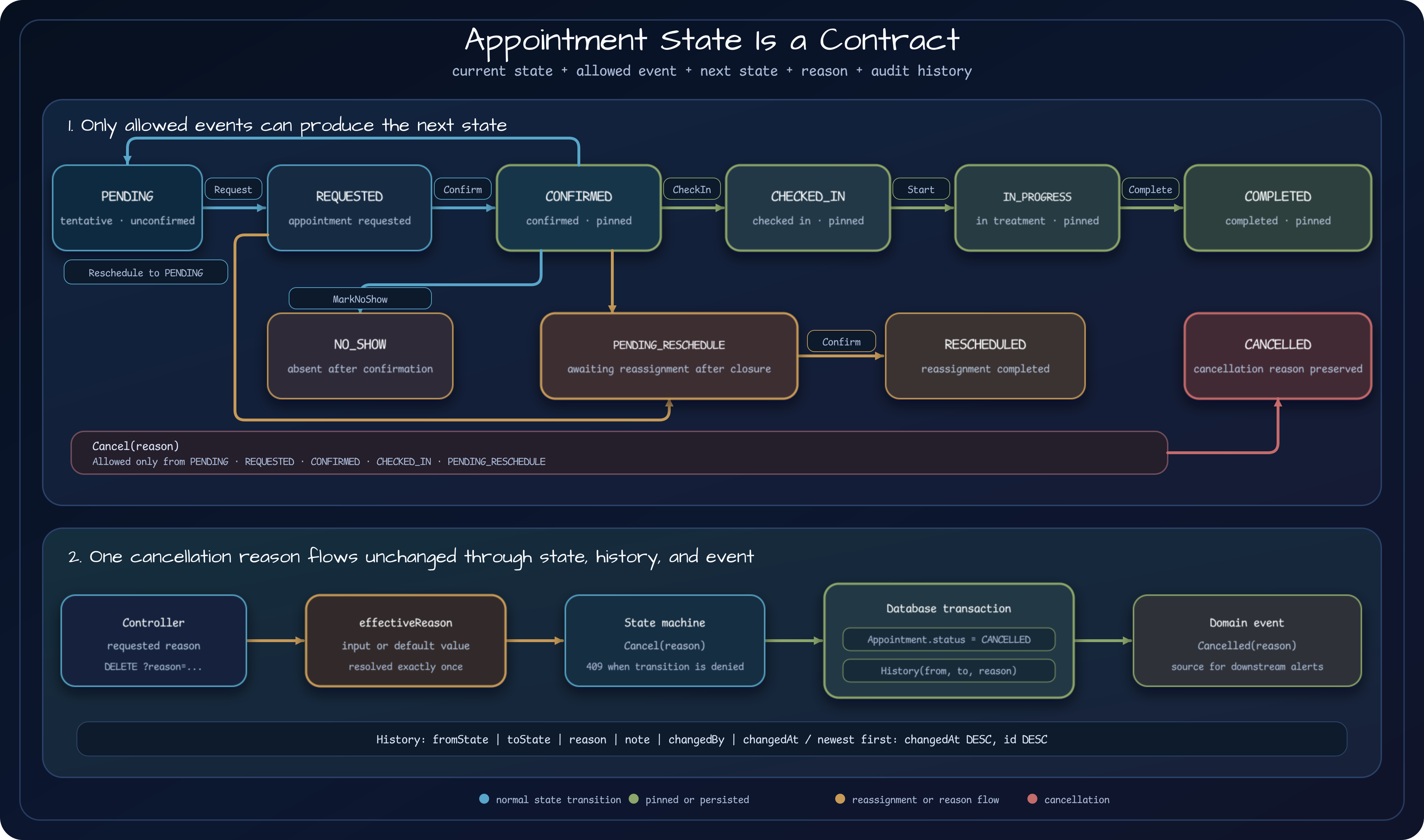

The upper lane follows the current transition rules. The lower lane carries one cancellation reason through validation, history, and the domain event. Green-outlined states are pinned against Timefold rescheduling.

Store Current State and History in One Transaction

Calculating the next state is not enough. AppointmentService loads the appointment, converts the requested target into an event, and asks the state machine to validate the transition. For an allowed transition, it updates current state and appends history inside one database transaction.

val currentState = record.status
val event = parseEvent(targetStatus, reason)
val nextState = stateMachine.transition(currentState, event)

transaction {
    appointmentRepository.updateStatus(id, nextState)
    stateHistoryRepository.save(
        AppointmentStateHistoryRecord(
            appointmentId = id,
            fromState = currentState,
            toState = nextState,
            reason = reason,
        )
    )
}

Without the transaction, current state can change while history is lost, or history can claim a change that never became current. History is not auxiliary logging. It is business data that explains how the current value came to be.

AppointmentStateHistory stores fromState, toState, reason, an optional note, changedBy, and changedAt. The current model makes reason, note, and changedBy optional. Providing columns for these values and populating them on every transition are separate completion criteria.

After persistence, the service publishes AppointmentDomainEvent.StatusChanged or Cancelled. The current-state row supports fast reads, history explains the past, and domain events let other modules react. They carry related facts but serve different purposes.

A Stored History Still Needs a Read Path

The first implementation appended every transition to history. That seemed to satisfy the requirement until a staff workflow exposed the missing half: when a patient asks, “When and why was this cancelled?”, staff had no way to view the stored records.

The requirement became more concrete:

An authorized user must be able to see when an appointment changed state and in what order.

The project added an appointment-scoped history query that returns transitions, reasons, and timestamps in reverse chronological order. Existing tenant boundaries apply, so one clinic cannot inspect another tenant’s history. This was not an unrelated feature. It completed the operational meaning of “retain state-change history.” Data existing in a table and staff being able to use it are different definitions of done.

One Cancellation Reason Must Reach Every Consumer

Cancellation exposed a similar gap. The early path changed the appointment to CANCELLED and recorded a fixed default reason. Cancellation technically worked, but the API did not capture whether the patient requested it or clinic operations forced it.

That omission affects more than display text. If history and notification code evolve separately, history may say “patient request” while a notification says “clinic circumstances.” A cancellation reason is shared business data for one action, not optional decoration.

The revised path accepts an actual reason, falls back to the legacy default only when it is absent, and carries the same value through transition validation, history, and the domain event used by notification work. The lower lane of the diagram makes that propagation explicit.

State Also Limits What Timefold May Move

State policy reaches beyond the API. AppointmentState.PINNED_STATUSES defines CONFIRMED, CHECKED_IN, IN_PROGRESS, and COMPLETED as pinned.

Timefold Solver must not move these appointments just to improve a schedule score. A clinic has already promised a confirmed time, a checked-in patient is physically present, treatment in progress cannot move, and completed care is immutable history. State becomes a boundary on the optimization search space, not merely a rule for which button the UI should show.

Choosing pinned states is therefore an operating policy, not a performance tuning knob. It separates work that the solver may propose from work that people have already committed to.

The Next Requirement Is Transition Identity

History queries and cancellation reasons are now present, but changedBy remains optional and not every transition path records an actor. If an audit must distinguish automated rescheduling, clinic staff, and a patient request, the authenticated or system identity must travel all the way into history.

manage appointment state
  → define allowed transitions in one state machine
  → persist current state and history together
  → discover missing read paths and reasons in real workflows
  → extend the contract with actor identity and tenant boundaries

Finishing implementation does not close the requirement. Review must still ask whether users can consume the data, whether every record tells the same story, and how other modules interpret the state.

Correct transitions also do not prove that an appointment time is available. Part 3 combines clinic hours, breaks, doctor schedules, treatment duration, and equipment availability to calculate slots that can actually be booked.

Explore the Implementation

• Core appointment module: Appointment states, the state machine, and history models.
• Appointment API module: API workflows that request and persist state changes.
• Appointment state machine: Selects an allowed next state from current state and event.
• Appointment service: Connects transition validation, appointment mutation, and history persistence.
