[Operations 9] Retries and Replay Must Change an Appointment Only Once

A 3D workbench separating duplicate appointment changes through an inbox and quarantine — Record the appointment change once; treat retries and replay as work that checks an existing result.

2026-08-18 · Building a Clinic Appointment Service · Preventing duplicate changes during retries and replay

Suppose a client sends POST /appointments and never receives a response. It sends the same request again. The first request may already have committed an appointment, and its outbox row may already have been relayed. If the relay delivers the event again, the consumer sees a duplicate. If an exception moved the event to quarantine and STAFF replays it, the same appointment and notification could be changed twice unless each boundary keeps its own identity.

“The network was unreliable, so run it one more time” is not a sufficient rule. Retrying execution and changing an appointment again are different operations. The service must bind the request, event, and replay to logical identities and reuse results that already exist.

The conclusion is simple:

At the HTTP boundary, Idempotency-Key and a request fingerprint connect one request to one appointment create or change. The appointment transaction commits the appointment row and outbox intent together. A consumer uses logicalConsumerId and event identity to prevent inbox duplicates. A failure becomes RETRYABLE, then QUARANTINED after the attempt limit; STAFF replay is allowed only after checking requestId, tenant and clinic scope, and provenance. The flow ends with an explicit Final State Decision: PROCESSED, DUPLICATE, RETRYABLE, or QUARANTINED.

The diagram and operations screen below are synthetic design visuals. They contain no real patient or clinic data. The article also separates what the HTTP idempotency conformance tests prove from operational boundaries that still need process-restart and external provider validation.

A missing response does not tell you that the appointment was unchanged

When a client receives a timeout after POST /appointments, it should preserve the Idempotency-Key before retrying the same body. Changing the key gives the server a new command. Reusing it lets the server distinguish these cases:

Situation	Values checked	Appointment operation	Result returned to the caller
First request	Tenant and clinic scope, `Idempotency-Key`, request fingerprint	Store the appointment and idempotency record in one transaction	New appointment result
Same key and same fingerprint	Existing idempotency record and its appointment	Read the existing result without a new change	Replay the stored appointment result
Same key and different fingerprint	Existing record versus the new request	Apply no additional appointment change	Key-reuse conflict (409)

The current AppointmentService.create looks up tenantGroupId, clinicId, and Idempotency-Key together. A new request stores the appointment and idempotency row, then leaves the notification intent and appointment outbox in the same transaction. An existing key is accepted only when its fingerprint matches. If two requests race and one hits a unique constraint, the service reads the stored result and converges on it.

This boundary does not mean that every retry returns 201. It means that the service checks how the first request ended, whether the key is still within its retention window, and whether the fingerprint is the same before deciding what to return. Once a key expires, the same string may represent a new request, so a caller must retain a key for the life of one business command and understand its expiry policy.

The one-change boundary has three parts

Retries and replay cannot be handled by one deduplication table. Three boundaries own different identities:

HTTP command boundary: Idempotency-Key and the fingerprint decide whether two requests are the same command.
Appointment and outbox transaction boundary: the appointment change and the intent to publish its event commit together. The system must not leave an appointment without its outbox row, or an outbox row without the appointment change.
Consumer and replay boundary: logicalConsumerId, event identity, replay requestId, and provenance determine whether a handler and its follow-up side effect may run.

The HTTP key and the consumer inbox key must not be collapsed into one identifier. The HTTP key says that a caller sent the same command again. The inbox identity says whether one logical consumer already processed one event. A replay requestId records which scope STAFF approved for another bounded read. Each answer is different, so each identity stays visible in its own contract.

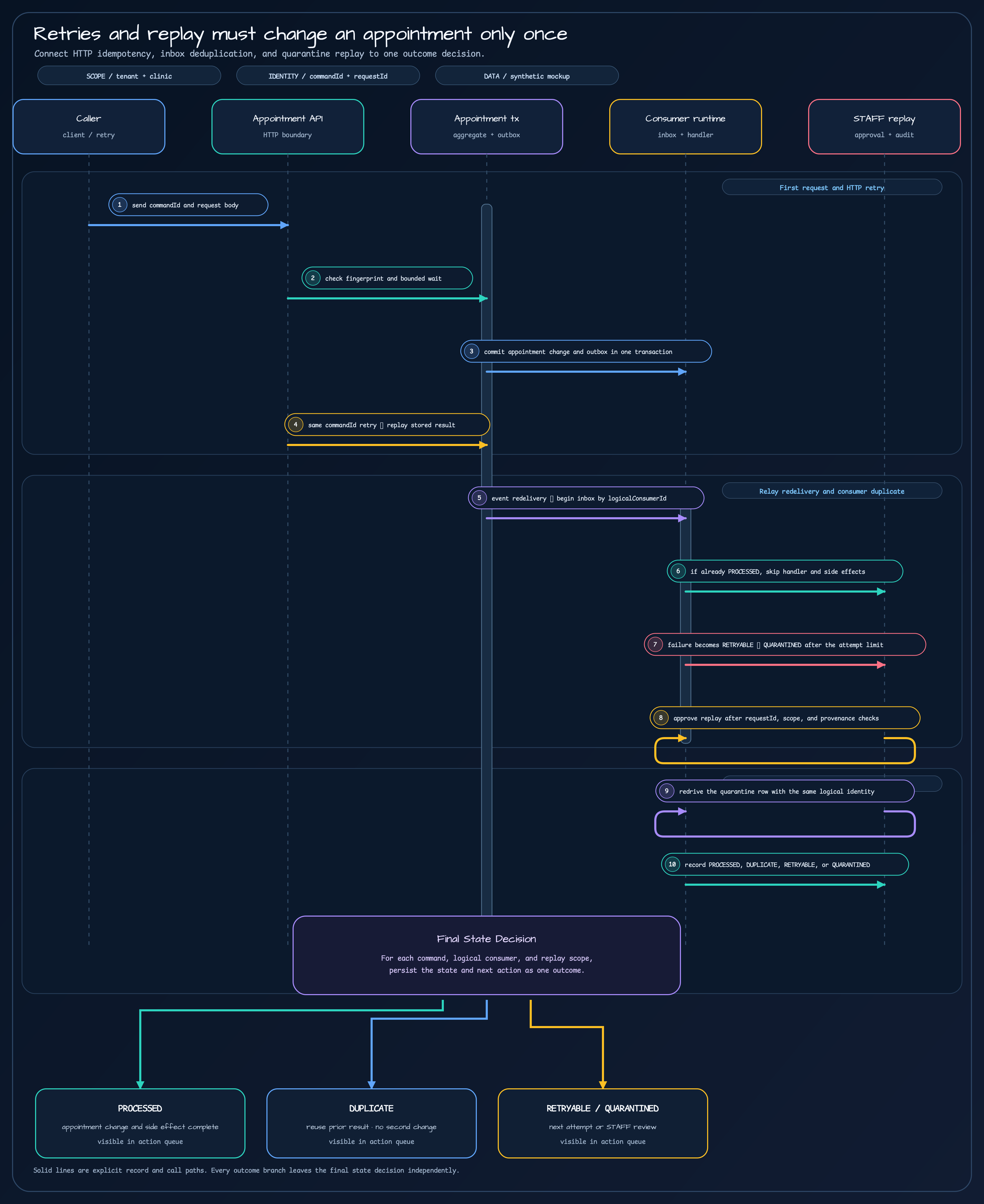

A sequence diagram showing the caller, appointment API, appointment transaction, consumer runtime, and STAFF replay checking the Idempotency-Key fingerprint, committing the appointment and outbox, handling redelivery and inbox duplicates, approving quarantine replay, and making a final state decision — HTTP retries and message redelivery check different identities at different boundaries. The three terminal routes begin independently at the Final State Decision rather than sharing a fan-out bus; `RETRYABLE` and `QUARANTINED` share the STAFF review route but remain distinct states.

The appointment transaction records the change and its publication intent together

Saving an appointment and then publishing an event through a separate asynchronous call creates a gap between the two operations. A timeout in that gap can leave an appointment changed without an event, while a later retry can publish the event twice and invoke a downstream action twice.

The current implementation keeps these facts in one appointment transaction:

transaction {
    val appointment = appointmentRepository.save(newAppointmentRecord(request))
    idempotencyRepository.save(idempotencyRecord(appointment, requestFingerprint))
    notificationWriter.appointmentCreated(tenantGroupId, appointment, appointment.version, resolution)
    appointmentOutboxWriter.created(
        scope = TenantClinicScope(tenantGroupId, request.clinicId),
        appointment = appointment,
        context = AppointmentMessagingContext.from(commandContext),
    )
}

This code does not claim that a provider has already delivered a notification. It records the durable fact that the appointment transaction created the notification intent and the event to be relayed. A relay or consumer can run again later and still decide from the appointment state and outbox identity that already exist.

The consumer inbox turns a duplicate message into a normal outcome

Kafka and a relay may deliver at least once. Receiving the same event twice is therefore an expected input, not an exceptional condition. AppointmentConsumerRuntime checks the inbox before calling the handler:

Inbox state	Meaning	Next handling
`PROCESSING`	Another worker holds a lease	Wait while the lease is valid or finish as a duplicate
`PROCESSED`	This logical consumer already completed the event	Skip the handler and side effect; return `DUPLICATE`
`RETRYABLE`	A temporary error can be attempted again	Check the bounded attempt and lease, then retry
`QUARANTINED`	A schema, scope, or handler failure needs review	Stop normal delivery and create a STAFF task

The identity is not just the event ID. logicalConsumerId and the event identity together express “consumer A processed it while consumer B has not.” The inbox stores metadata, state, attempt count, lease, and reason without retaining the raw Kafka payload. That keeps the replay scope narrow and prevents raw patient data from leaking into the operations screen.

After a successful handler call, only the worker that still owns the lease may mark the inbox PROCESSED. A late worker whose lease expired cannot overwrite the result of the worker that finished first. A temporary database failure instead becomes RETRYABLE, with its next attempt time and reason available to STAFF.

Quarantine replay is an approved execution of the same logical work

The most dangerous replay implementation puts a quarantined payload back into the normal consumer path as if it were a new message. That loses the original deduplication identity and scope, so an already completed appointment change or notification can run again.

The current replay boundary checks these values first:

The STAFF actor is the approver and has the required APPOINTMENT_REPLAY_OPERATOR role.
requestId has the canonical form, and a reused request ID matches its existing audit row.
Tenant, clinic, consumer, partition, and offset range match the original provenance.
The range, maximum records, and maximum execution time are bounded.
A separate replay consumer group is used without moving the operating consumer group’s offsets.
The original logical inbox identity is preserved so replay cannot bypass normal deduplication.

Replay is therefore not a new appointment-change command. It is an approved, bounded execution of the same logical work. If any replay item remains RETRYABLE or QUARANTINED, the result is not wrapped as a success; STAFF receives the next task. DUPLICATE is a normal outcome because it says that an earlier execution already completed and no second change was applied.

An operations screen should lead with state, evidence, and next action

Showing only “two failures” does not tell STAFF what to do. Every queue row should answer these questions:

Which tenant and clinic own the appointment?
Which logical consumer handled the event?
Did the appointment actually change, was an existing result reused, or can the item be attempted again?
For quarantine, do requestId and provenance fit the approved replay scope?
Is the next action to read, schedule a retry, approve replay, or keep the item quarantined?

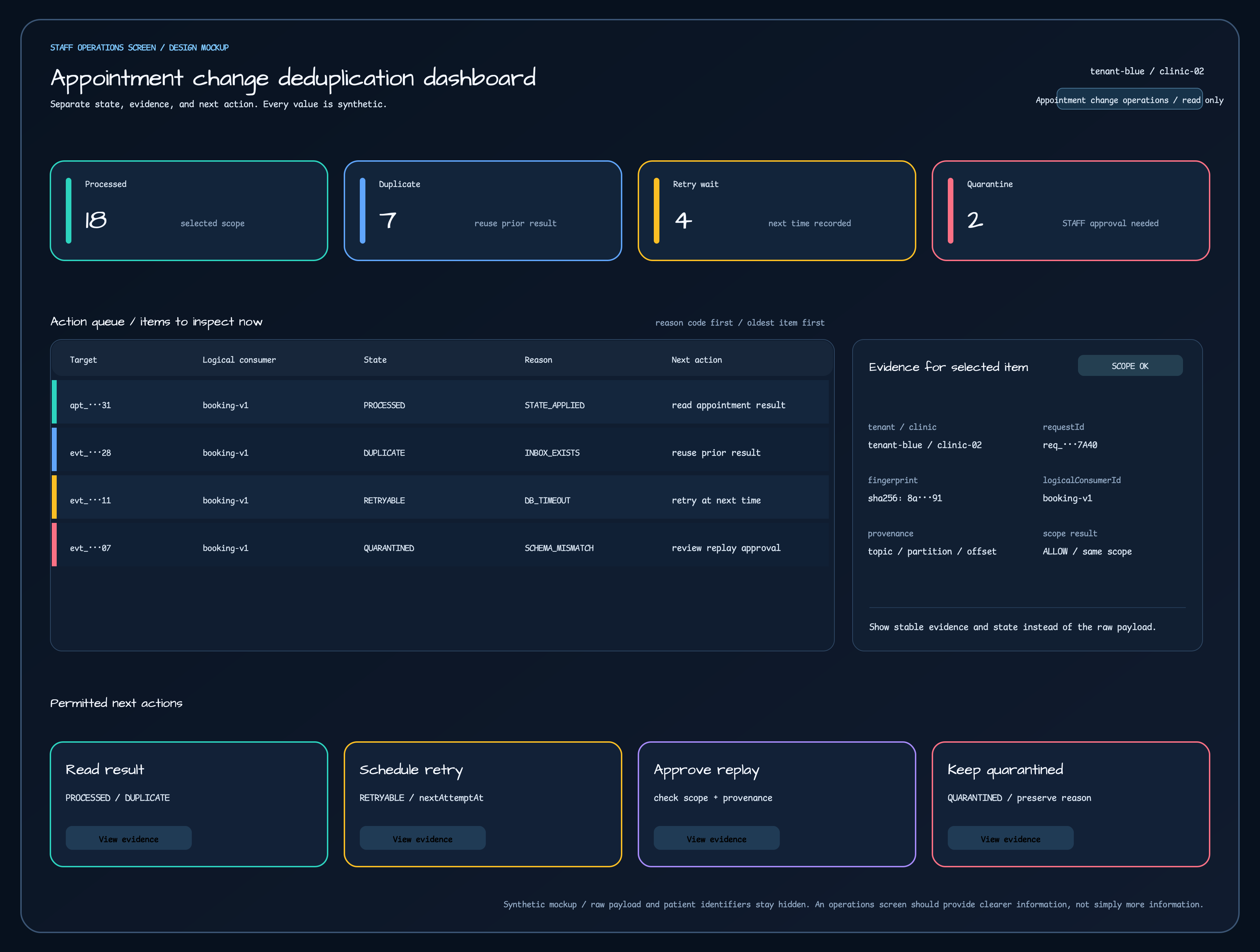

A STAFF operations screen showing tenant and clinic scope, processed, duplicate, retry-wait, and quarantine metrics, an action queue with target, logical consumer, state, reason, and next action, an evidence panel with requestId, fingerprint, and provenance, and permitted next actions

This is a synthetic operations screen. The queue separates rows that may be retried from rows that only need a result read, and shows scope, fingerprint, and provenance instead of the raw payload.

The four metrics also carry different meanings:

Metric	What STAFF should read	Immediate action
Processed	The appointment change and required follow-up finished	Read the result and audit evidence
Duplicate	An existing inbox or HTTP result was reused	Do not attempt a second change
Retry wait	A temporary error and next time are recorded	Recheck at the next attempt time
Quarantine	Normal delivery stopped while reason and provenance were retained	Check scope, then approve replay or keep it quarantined

DUPLICATE does not mean “the operation failed.” It means the system reused a completed result and did not apply a second appointment change. QUARANTINED does not mean “STAFF must press replay.” If the schema, scope, or provenance cannot be verified, keeping the item quarantined is the correct next action.

Read implementation, design boundaries, and operational evidence separately

Mixing implemented code and unverified production contracts in one claim makes both the article and the operations screen harder to trust. The current evidence divides as follows:

Category	What this article can verify
Implemented now	Tenant and clinic scoped idempotency in `AppointmentService`, fingerprint conflict, expiry handling, concurrent convergence, and the appointment, notification-intent, and outbox transaction boundary
Implemented now	Consumer inbox states `PROCESSING`, `PROCESSED`, `RETRYABLE`, and `QUARANTINED`, with leases, bounded attempts, and scope checks
Implemented now	Replay request audit, a separate replay group, bounded partition/range execution, and preservation of the original logical inbox identity
Proven by current tests	Spring MVC HTTP conformance for no-key, terminal replay, fingerprint conflict, expiry, and one appointment under concurrent requests, plus existing durable database replay tests
Requires separate operational proof	Recovery after process restart, real broker and database failure recovery, external-provider exactly-once behavior, authorization and rate limits under production traffic
Next hardening work	Connect every command and side effect to the same logical identity, then add metrics, alerts, and STAFF drills for replay and quarantine queues

Passing the HTTP conformance fixture does not prove exactly-once behavior after a process restart or at an external provider. The conformance boundary repeatedly verifies bounded wait, owner/waiter behavior, cancellation, fingerprint handling, and replay-header safety. Durable database and messaging-runtime proofs remain separate tests. This distinction prevents “the test passed” from being read as “every production failure is solved.”

Five checks before STAFF approves a replay

Does the selected tenant and clinic match the event’s replay scope?
Does requestId match the audit request already bound to this range and provenance?
Is the logical consumer the original consumer rather than an unrelated group used as a shortcut?
Is the inbox QUARANTINED or an allowed RETRYABLE state, rather than an already PROCESSED item?
Will the result be recorded as PROCESSED, DUPLICATE, RETRYABLE, or QUARANTINED, with a next action left on the screen?

If any check fails, disable replay and record the reason. Reliability does not come from permitting more retries; it comes from being able to explain how many times one business command was executed and why.
