Storage and messaging

Spring-facing operations wrap AWS async clients with suspend APIs and framework lifecycle. They do not remove the service’s delivery and consistency rules.

S3 paths

Use S3Operations for common object work and presigned URLs. Use S3TransferOperations for large or multipart transfers; it activates only when Transfer Manager is present. Treat copy-then-delete moves and presigned URL expiry as explicit application decisions.

DynamoDB repositories

AbstractCoroutinesDynamoDbRepository provides typed enhanced-client access. Resolve table names through DynamoDbTableNameResolver so environment naming stays outside entity code. Batch and query operations still need pagination, unprocessed-item, index, and capacity handling.

SQS listeners

@SqsListener(
    queue = "${orders.queue-url}",
    maxMessages = 10,
    waitTimeSeconds = 20,
    visibilityTimeoutSeconds = 60,
)
suspend fun receive(order: OrderMessage) {
    orderService.process(order)
}

Successful completion acknowledges according to the configured policy. On failure, visibility and redelivery rules decide the next attempt. Set processing timeout below visibility or enable an extension/heartbeat strategy.

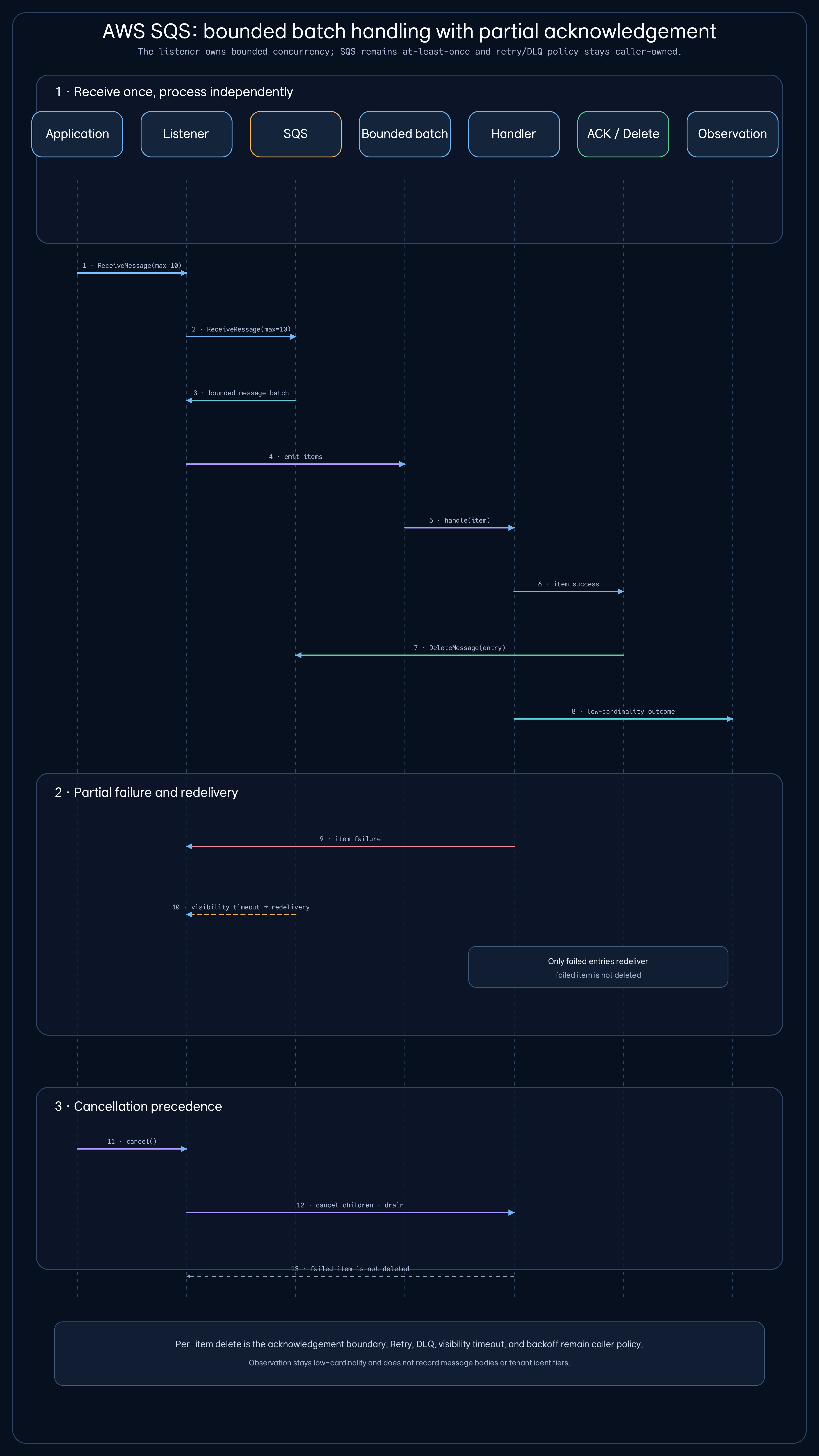

Batch listeners and partial acknowledgement

Batch delivery is explicit:

@SqsListener(queue = "orders", batch = true, acknowledgementMode = SqsAcknowledgementMode.MANUAL)
suspend fun receive(
    messages: List<SqsReceivedMessage>,
    acknowledgement: SqsBatchAcknowledgement,
) {
    val accepted = messages.filter(::isAccepted)
    if (accepted.isNotEmpty()) {
        acknowledgement.acknowledge(accepted)
    }
    val rejected = messages - accepted.toSet()
    if (rejected.isNotEmpty()) {
        acknowledgement.nack(rejected, timeoutSeconds = 0)
    }
}

The payload list may be List<SqsReceivedMessage>, List<software.amazon.awssdk.services.sqs.model.Message>, or one concrete non-null List<T>. Raw, nullable, wildcard, nested, and broad element types are rejected during context initialization. SQS accepts at most ten messages per receive or batch delete; SqsBatchAcknowledgementResult reports operation, status, successful message IDs, and item failures. nack defaults to visibility timeout 0; changeVisibility accepts 0..43_200. ON_SUCCESS deletes pending items after a normal return, while MANUAL deletes or changes visibility only when the handler calls the acknowledgement API. FIFO groups keep a contiguous successful prefix, and only unconfirmed items remain eligible for retry/redelivery. Delivery is at-least-once, so side effects need idempotency or message-id deduplication. Receipt handles, bodies, and raw message IDs are not included in toString(), logs, metric tags, or SqsListenerBatchCorrelation.

SqsBatchDeleteProtocolException, SqsBatchVisibilityProtocolException, and SqsMessageConversionException indicate an untrusted or incomplete response; callers should keep the affected items pending and apply the retry/DLQ policy. The optimized AWS SDK path uses one batch request; old SqsOperations implementations use a sequential fallback.

For canary rollback, stop receiving, drain in-flight work, and wait for STOPPING_RECEIVE -> DRAINING -> STOPPED before deploying the last known-good single-message handler. Re-drive the DLQ at a bounded rate only after the control-plane response reports drained=true and inFlight=0, then verify idempotency. Stop the canary when partial failures exceed 1%/5m, retry exhaustion exceeds 0.1%/5m, redelivery age p95 exceeds 80% of visibility, or DLQ visible count is non-zero. The on-call owner is bluetape4k-sqs-oncall and release approval belongs to bluetape4k-release-approvers.

SQS Observation

Activation and prerequisites

SQS Observation is an opt-in lifecycle path and is disabled by default. Enable it only when bluetape4k.aws.enabled, bluetape4k.aws.sqs.enabled, and bluetape4k.aws.sqs.observation.enabled are all true; the equivalent YAML is:

bluetape4k:
  aws:
    enabled: true
    sqs:
      enabled: true
      observation:
        enabled: true

Activation requires a real ObservationRegistry bean (not ObservationRegistry.NOOP) and at least one Spring-managed ObservationHandler that supports SqsObservationContext. The io.micrometer.context.ContextSnapshot class must also be available. A user SqsObservationFactory does not bypass these registry and supporting-handler prerequisites; if a prerequisite is absent, the listener keeps the ordinary non-observation path. The activation property is read during context creation, so enablement and disablement require a restart or redeploy. Runtime property rebind and observation-runtime reattachment are not supported. The prerequisite probe is a sanitized PROCESS SqsObservationContext; a handler that accepts only generic Micrometer contexts but rejects this concrete context does not activate the feature.

Observation names and privacy

The default observations have three bounded names:

Stage	Observation name	Boundary
Receive	bluetape4k.aws.sqs.receive	One SQS receive attempt, including an empty poll.
Process	bluetape4k.aws.sqs.process	Message conversion and handler processing, including retry and cancellation outcome.
Acknowledgement	bluetape4k.aws.sqs.acknowledgement	Delete, nack, or visibility-change I/O, including manual acknowledgement and heartbeat calls.

Low-cardinality tags are limited to messaging.system, messaging.operation, messaging.destination.name, bluetape4k.aws.sqs.listener.id, bluetape4k.aws.sqs.outcome, bluetape4k.aws.sqs.ack.action, bluetape4k.aws.sqs.batch.size, bluetape4k.aws.sqs.delivery, and bluetape4k.aws.sqs.failure.stage. The queue dimension is only the final allowlisted path segment: one to 80 ASCII letters, digits, _, -, and an optional .fifo; invalid, blank, or account-like values become unknown. A blank listener ID also becomes unknown, and listener IDs must remain bounded operator configuration rather than values derived from each message.

For a non-batch process or acknowledgement observation, high-cardinality values may contain the message ID, FIFO group ID, deduplication ID, and attempt. Receive observations and every batch observation suppress these identifiers, even when a batch contains one message. The context exposes no raw message body, receipt handle, message attribute, system-attribute, or complete queue-URL accessor. Do not add those values through a customizer or factory. If custom code adds external data to the generic observation context, privacy and cardinality remain the application’s responsibility. Inbound SQS carrier propagation is not supported; coroutine context propagation is limited to the observation scope and child observations.

Customization contract

Customizers run once in Spring Ordered/@Order order before the factory. A factory must return a not-started observation bound to the supplied context and registry; the runtime owns start, error, and stop. Returning a different context or registry fails before lifecycle execution. Returning an already started observation is unsupported because Micrometer exposes no public started state check. Observation.NOOP is the explicit direct-path result and has no observation lifecycle. A stage-specific SqsObservationConvention or factory can replace the PROCESS observation name while preserving the same context and registry. The following example adds only bounded custom context values:

@Order(1)
private class DeploymentEnvironmentCustomizer : SqsObservationContextCustomizer {
    override fun customize(context: SqsObservationContext) {
        context.put("deployment.environment", "production")
    }
}

@Order(2)
private class ObservationOwnerCustomizer : SqsObservationContextCustomizer {
    override fun customize(context: SqsObservationContext) {
        val environment = context.get<String>("deployment.environment")
        context.put("observation.owner", "$environment:sqs-platform")
    }
}

fun sqsObservationFactory(): SqsObservationFactory = SqsObservationFactory { context, registry ->
    val observationName = when (context.metadata.stage) {
        SqsObservationStage.RECEIVE -> "custom.sqs.receive"
        SqsObservationStage.PROCESS -> "custom.sqs.process"
        SqsObservationStage.ACKNOWLEDGEMENT -> "custom.sqs.acknowledgement"
    }
    Observation.createNotStarted(observationName, { context }, registry)
}

Legacy metrics migration

Keep the existing instrumentation paths separate during migration:

Path	Measures	Migration use
MicrometerSqsListenerInterceptor	Listener receive, handler, acknowledgement, and batch callback timers/counters.	Keep it automatic in the control cohort. Observation activation suppresses the automatic bean in the candidate cohort.
MicrometerSqsOperations	Low-cardinality timers around SqsOperations calls such as receive, send, delete, and visibility changes.	Keep as the request-operation meter; it does not replace listener lifecycle observations.
SQS Observation	receive, process, and acknowledgement observations with coroutine scope and bounded context.	Enable after the canary and switch dashboards only after the runtime evidence passes.

Compare separate control and candidate cohorts. The control keeps the automatic legacy listener meter with Observation disabled; the candidate enables Observation and therefore suppresses that automatic listener interceptor. A manually registered MicrometerSqsListenerInterceptor in the candidate creates duplicate listener instrumentation and is an explicit diagnostic choice, not the default migration procedure.

Coroutine context and manual ACK

A manual acknowledgement invoked after the process observation has ended is detached from that completed process span. Its acknowledgement observation uses only the observation that is current at invocation time as its parent; it never reuses a stale process parent.

Failure precedence and redelivery

Boundary	Primary result
Observation setup fails before business or ACK I/O	The setup failure is primary and the operation fails closed.
Business or ACK I/O fails and observation cleanup also fails	The business/I/O failure stays primary; cleanup is suppressed.
Business or ACK I/O succeeds and foreground observation stop fails	The stop failure is primary and the existing retry/redelivery policy applies. ACK I/O may already have succeeded, so handlers must tolerate idempotent replay and ambiguous redelivery.
Visibility-heartbeat observation setup fails	BT4K-SQS-OBS-202 reason=heartbeat_telemetry_setup is logged without the original throwable or queue URL. The current visibility extension is skipped, but the background handler continues, so duplicate delivery is possible.
Visibility-heartbeat observation cleanup fails	BT4K-SQS-OBS-202 is logged without payload, queue URL, or throwable text; the heartbeat result remains primary and cleanup fails open.

BT4K-SQS-OBS-101 context-propagation-missing identifies a missing ContextSnapshot prerequisite. BT4K-SQS-OBS-202 also reports bounded foreground telemetry setup failures with reason=telemetry_setup; it never includes the original throwable or full queue URL. Heartbeat setup uses the distinct reason=heartbeat_telemetry_setup fail-open diagnostic described above.

Evidence boundary

The runtime uses context-propagation:1.2.1 as a transitive runtime dependency. That dependency does not appear in public observation signatures, and enabling the feature requires no schema or persisted-state migration. Local acceptance uses the FlociServer.Launcher.floci test server and the Floci SQS matrix; verification against an actual AWS account and an OpenTelemetry exporter is N/A for this path.

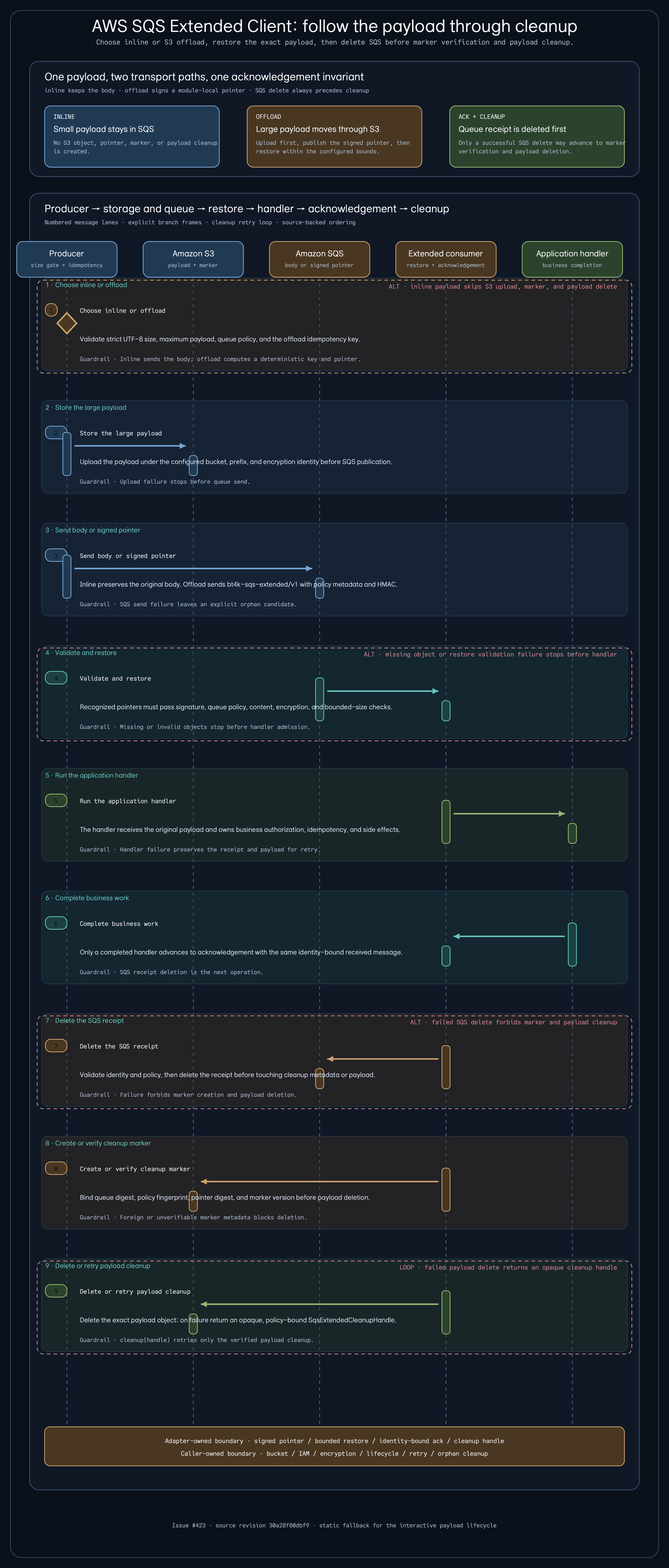

SQS Extended Client

The Extended Client is opt-in. It keeps small messages inline and stores larger payloads in S3 behind an authenticated pointer. The producer and consumer gates are independent, but enable the consumer and drain it before enabling producer offload during a rollout.

bluetape4k:
  aws:
    sqs:
      extended:
        enabled: true
        producer-enabled: true
        consumer-enabled: true
        default-queue-urls:
          - https://sqs.ap-northeast-2.amazonaws.com/123456789012/orders
        default-policy:
          bucket: orders-extended-payloads
          key-prefix: bluetape4k/sqs/orders
          offload-threshold-bytes: 262144
          max-inline-bytes: 1048576
          max-offload-payload-bytes: 67108864
          orphan-retention-hours: 168
          delete-on-ack: false
          pointer-signing-key-ref: default

Use SqsExtendedClientOperations with an idempotency key for payloads above the threshold. A received extended message must be acknowledged through the same identity-bound SqsExtendedReceivedMessage instance. delete-on-ack creates and verifies a marker before deleting the S3 payload; a failed delete returns an opaque retry handle. The default keeps payloads for lifecycle cleanup, so the S3 marker and payload must share a prefix and retention age.

The supported Jackson 3 module serializes only safe DTO fields. It does not serialize raw AWS requests/responses, pointer bucket/key/signature, receipt handles, encryption context, or cleanup handles. An ordinary @SqsListener legacy consumer and the AWS Java Extended Client do not restore this pointer format; do not attach either to an extended pointer queue.

Optional client-side encryption reuses the existing bounded S3 encryption capability and requires an exact key identity/context match. Its wire format is local to this module and is not interoperable with the AWS Java Extended Client.

For rollback, disable the producer, stop the legacy consumer, drain the extended adapter, and wait for two empty visibility-window probes. Verify ApproximateReceiveCount, RedrivePolicy, DLQ/quarantine counts, and the global rollback deadline before rehydrating pointers into an inline legacy-safe queue. A deadline or redrive-budget failure remains ROLLBACK_BLOCKED and does not start the legacy consumer.

The Floci-first local check is:

./gradlew :bluetape4k-aws-spring-boot:test \
  --tests '*SqsExtendedClientAwsEmulatorTest' \
  -Dbluetape4k.aws.emulator=floci --no-daemon

Use LocalStack only as an explicit fallback. The low-cardinality counters are bluetape4k.aws.sqs.extended.offload.total, ...orphan.total, ...payload-read.failure, and ...cleanup.failure; queue URLs, bucket/key, payload, and diagnostic codes are never tags. External publisher latency and cleanup telemetry, plus heap/throughput measurements, are tracked separately in follow-up issue #515 and are not completion evidence for this feature.

SNS and SES

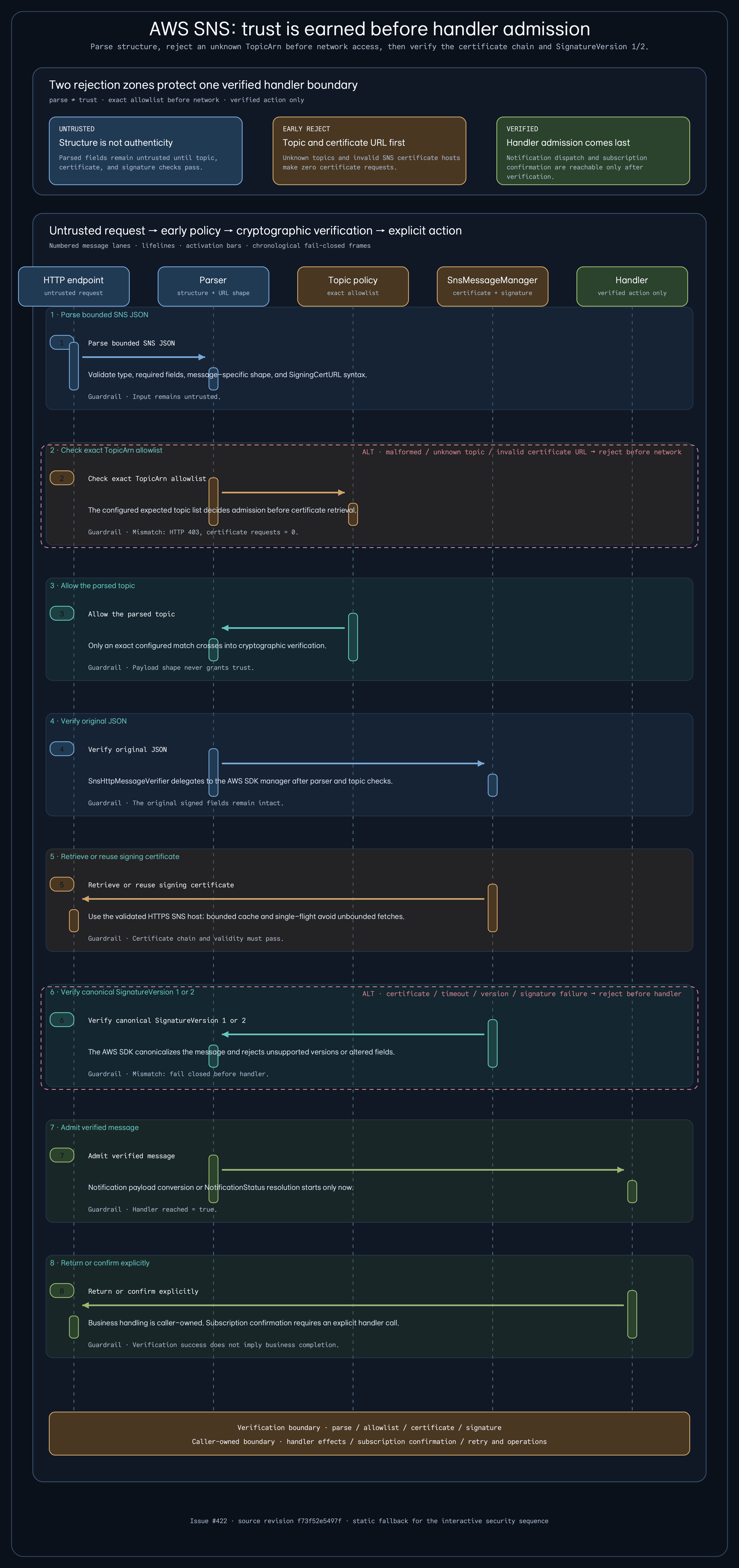

SNS publish helpers and HTTP parsing are separate concerns. Verify SNS signatures before processing callbacks. SES senders expose coroutine and JavaMail-style adapters; do not retry non-idempotent sends blindly.

SNS topic ARN resolver and cache

SnsOperations.findTopicArn accepts a topic name or an explicit SNS ARN. Name lookups use SnsTopicArnResolver with paginated ListTopics, a bounded scope-aware TTL/LRU cache, and a per-topic single-flight. The default cache is enabled with 256 entries and a five-minute TTL; topic-arn-cache.enabled=false disables persistent entries but not duplicate lookup suppression. A successful topic create invalidates the name entry so eventual consistency remains visible as a documented null or SDK failure instead of a stale negative value.

Configure account-id to enforce same-account checks. Explicit ARN input fails closed when the account is unknown unless allow-cross-account-topic-arn=true is an intentional opt-in. ListTopics results are still checked for SNS ARN shape and configured region/account; an effective region is required for explicit ARN validation. A custom SnsTopicArnCache or SnsTopicArnResolver bean takes precedence as a scoped configuration override, but it is not a behavior-preserving rollback by itself. For rollback, provide a custom SnsOperations implementation or redeploy the last-known-good artifact; bluetape4k.aws.sns.enabled=false disables the complete SNS auto-configuration. Terminal lookup failures emit only hashed scope/topic dimensions and exception type; raw ARN, topic name, endpoint credentials, and AWS error messages are not logged.

bluetape4k:
  aws:
    sns:
      enabled: true
      region: ap-northeast-2
      account-id: 123456789012
      allow-cross-account-topic-arn: false
      topic-arn-cache:
        enabled: true
        max-size: 256
        ttl: 5m

SNS batch conversion

SnsBatchMessageConverter is an opt-in, no-network conversion boundary from Spring Message<*> values to a typed SnsPublishBatchRequest. Its no-argument constructor accepts only String payloads; the second constructor accepts an explicit suspend SnsPayloadSerializer for structured payloads. The converter uses only the allowlisted SnsBatchMessageHeaders constants MESSAGE_ID, SUBJECT, MESSAGE_ATTRIBUTES, MESSAGE_GROUP_ID, and MESSAGE_DEDUPLICATION_ID. Explicit IDs must be UUID; otherwise the MessageHeaders.ID UUID is used. All entries are converted before the request is built, input order is preserved, and a conversion error never invokes an SNS client. Errors are cause-free and redact payloads, headers, ARNs, and serializer exceptions; cancellation rethrows the original CancellationException instance.

val converter = SnsBatchMessageConverter(SnsPayloadSerializer { payload ->
    "{\"orderId\":\"${(payload as Order).id}\"}"
})
val request = converter.convertAll(
    topicArn = topicArn,
    messages = orders.map { order ->
        MessageBuilder.withPayload(order)
            .setHeader(SnsBatchMessageHeaders.SUBJECT, "order-created")
            .build()
    },
)

The converter requires applications to add org.springframework:spring-messaging at runtime because this module keeps it compileOnly. The guarded strategy port does not expose the AWS client or its lifecycle and does not automatically retry an uncertain partial publish. 262,144-byte SNS byte-size preflight, a Jackson 3 adapter, and ByteArray payload support are follow-up scope rather than current behavior.

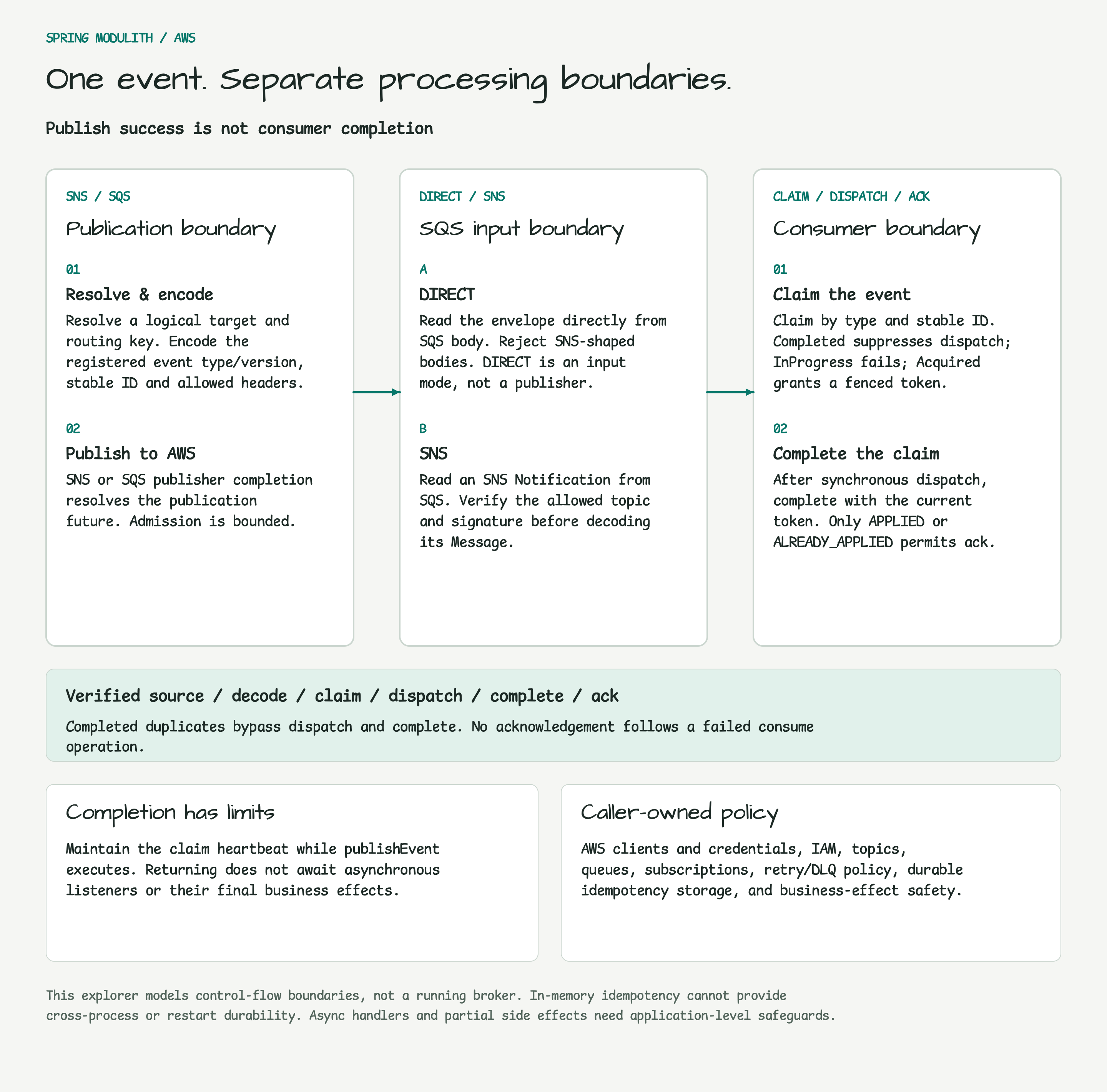

Spring Modulith SNS/SQS externalization

The optional adapter externalizes registered Spring Modulith events to SNS or SQS and restores SQS messages as local application events. Import the root BOM once and keep all coordinates versionless:

dependencies {
    implementation(platform("io.github.bluetape4k:bluetape4k-dependencies:<version>"))
    implementation("io.github.bluetape4k.aws:bluetape4k-aws-spring-boot")
    implementation("org.springframework.modulith:spring-modulith-starter-jpa")
    implementation("org.springframework.modulith:spring-modulith-events-jackson")

    runtimeOnly("software.amazon.awssdk:sns")                 // SNS producer
    runtimeOnly("software.amazon.awssdk:sqs")                 // SQS producer/consumer
    runtimeOnly("software.amazon.awssdk:sns-message-manager") // verified SNS consumer
}

The application owns the Spring Modulith publication repository choice. This module keeps the Modulith and service SDK dependencies optional. Register every external event with a stable type, version, final concrete JVM class, and event ID:

data class OrderCreated(val orderId: String, val tenant: String)

@Bean
fun awsModulithEventTypes(): AwsModulithEventTypeRegistry =
    AwsModulithEventTypeRegistry.of(
        AwsModulithEventTypeRegistration(
            type = "order.created",
            version = 1,
            eventClass = OrderCreated::class.java,
            eventId = OrderCreated::orderId,
            allowedHeaderNames = setOf("tenant"),
            headers = { mapOf("tenant" to it.tenant) },
        )
    )

Spring Modulith routing must return a logical alias such as order-events, not an ARN or URL. The alias maps to one service destination:

bluetape4k:
  aws:
    modulith:
      events:
        enabled: true
        producer:
          enabled: true
        targets:
          order-events:
            service: sns
            destination: order-events

Producer-only applications leave consumer.enabled=false. A direct SQS consumer receives the adapter envelope and requires a queue redrive policy by default:

bluetape4k.aws.modulith.events:
  enabled: true
  consumer:
    enabled: true
    queue: direct-order-events
    source-mode: direct
    redrive-required: true

An SNS fanout consumer receives an SNS notification through SQS. It additionally requires sns-message-manager, a verifier bean, and an exact TopicArn allowlist:

bluetape4k.aws.sns:
  region: ap-northeast-2
bluetape4k.aws.modulith.events:
  enabled: true
  consumer:
    enabled: true
    queue: sns-order-events
    source-mode: sns
    expected-topic-arns:
      - arn:aws:sns:ap-northeast-2:123456789012:order-events
    redrive-required: true

One built-in listener handles one queue and one source mode per application context. Deploy separate contexts when DIRECT and SNS sources must be consumed together. For FIFO publication, configure an SQS destination ending in .fifo and make Spring Modulith provide RoutingTarget.key; the adapter uses that key as messageGroupId and the stable registered event ID as deduplication ID. Standard destinations reject a routing key, while FIFO destinations require it.

The built-in in-memory idempotency store is application-scoped and loses its claims on restart. For durable multi-instance processing, implement AwsModulithEventIdempotencyStore and expose exactly one bean; auto-configuration backs off when that bean exists. A successful handler or an already-completed duplicate is acknowledged. An active claim, handler failure, claim renewal or completion failure, and source verification failure are not acknowledged, so SQS visibility, redelivery, and the queue redrive policy govern retry and DLQ delivery. An uncertain claim mutation is left for lease-expiry takeover instead of being released eagerly, which preserves fencing against duplicate dispatch.

Run the local transport contract with Floci:

./gradlew :bluetape4k-aws-spring-boot:test \
  --tests 'io.bluetape4k.aws.spring.modulith.*' \
  -Dbluetape4k.aws.emulator=floci --no-daemon

This proves the local SQS path, SNS-to-SQS fanout transport, redrive preflight, acknowledgement, and claim/fencing behavior supported by FlociServer. It does not prove production SNS certificate/signature telemetry, IAM, cross-account policies, or real AWS timing. Keep LocalStack as an explicit fallback for a Floci API gap; no real AWS account is required for this local contract.

Documented contract	Source-backed symbol
Stable event type, version, final concrete class, ID, allowed headers	AwsModulithEventTypeRegistration, AwsModulithEventTypeRegistry
Logical SNS/SQS target	AwsModulithEventsProperties.Target, AwsModulithTargetService
DIRECT or verified SNS source	AwsModulithSourceMode, AwsModulithSqsEventConsumer
Lease/fencing duplicate suppression	AwsModulithEventIdempotencyStore
Normal processing or completed duplicate	AwsModulithConsumeOutcome

Test what can fail

Test serialization, queue lookup, redelivery, duplicate delivery, DLQ behavior, S3 pagination, multipart cancellation, and DynamoDB partial batch success. A successful send-only test is insufficient.

Sources

• S3 operations
• SQS listener annotation
• DynamoDB repository
• Modulith event registry
• Modulith properties
