Exposed R2DBC Caffeine Cache

This adapter combines coroutine-first R2DBC with in-process Caffeine AsyncCache. It implements the common cache repository contract without hiding lifecycle or durability choices.

Problem

Cache and database state can diverge when a miss, write, invalidation, timeout, cancellation, or shutdown completes only partly. The adapter supplies the integration; the application still defines acceptable staleness and failure behavior.

When to use it

Use this module when in-process Caffeine AsyncCache is the chosen backend and the persistence path is coroutine-first R2DBC. Compare all six adapters in the cache selection guide before adding infrastructure.

Coordinates

dependencies {
    implementation(platform("io.github.bluetape4k:bluetape4k-dependencies:<version>"))
    implementation("io.github.bluetape4k.exposed:bluetape4k-exposed-r2dbc-caffeine")
}

Users select the central BOM version; this page records the stable 2.0.0 source line.

Core concepts

get and getAll are read-through operations. Cache-aside is an application-owned DB update followed by invalidation. True write-through requires the configured writer to finish DB persistence before returning. Write-behind accepts a delayed durability window. Ordinary put must not be called write-through without that writer policy. This adapter is local-only; it has no distributed invalidation.

The stable 2.0.0 adapter owns its R2DBC transactions, coroutine scope, and AsyncCache; write-behind remains an explicitly delayed durability mode. The lifecycle coordinator, bounded admission accounting, publication lease, and terminal retry behavior described below are part of the stable 2.0.0 contract.

2.0.0 write-behind contract: writeBehindBatchSize and writeBehindQueueCapacity must each be in 1..100_000, and queue capacity must be greater than or equal to batch size. Zero, negative, values above 100_000, or a queue smaller than the batch fail fast with IllegalArgumentException. A failed flush is retried at most 8 times with capped exponential backoff from 10 ms to 1 s; the retained batch is not dropped before the retry limit. A terminal failure leaves the worker in FAILED; the library does not silently move the retained batch to a durable outbox or dead-letter store.

Quick start

Extend AbstractR2dbcCaffeineRepository and provide table, extractId, ResultRow.toEntity, and the update/insert DSL hooks. Construct it with a reviewed LocalCacheConfig.

repository.use { repo ->
    val current = repo.get(id)          // miss -> DB loader -> cache
    current?.let { repo.put(id, it) }   // durability follows write mode
    repo.invalidate(id)                 // cache-only by default
}

API by task

Task	API
Cache-backed read	containsKey, get, getAll
DB bypass	findByIdFromDb, findAllFromDb, countFromDb
Policy-controlled write	put, putAll
Eviction	invalidate, invalidateAll, clear
Entity mapping	ResultRow.toEntity, extractId, update/insert hooks
Lifecycle	close

Recommended patterns

Keep one repository per cache namespace and close it with the application. For cache-aside, commit the DB transaction before invalidating. Treat write-through failure as an incomplete write. Before write-behind, expose queue state and define the shutdown drain budget. putAll processes entries in input order; if an entry fails, earlier effects remain visible and the exception identifies the failing operation—there is no implicit rollback. After an accepted queue handoff, a cache publication failure invalidates that key. Keep key prefixes and serialized value formats stable.

Integrations

The module joins Exposed R2DBC, the shared cache foundation, and in-process Caffeine AsyncCache. Loader/writer adapters own the cache-to-table bridge; the application owns the surrounding service transaction and client lifecycle.

Configuration

LocalCacheConfig controls namespace, TTL/expiry, cache/write mode, and backend limits. Values remain local; entity mapping and repository operations are suspend functions. Validate positive durations and bounded batch/queue sizes at startup.

Failure modes

Caller cancellation can happen while cache or R2DBC work is in flight. Write-behind acknowledgement does not mean the DB has committed. A cache hit can be stale, a backend success can be followed by DB failure, and DB commit can be followed by failed invalidation. Record these as distinct states.

Operations

The repository owns the async cache and bounded write-behind scope; close it during application shutdown. In the develop implementation, close() first stops new admissions, attempts publication and worker drain within a finite shutdown boundary, and then invalidates the cache; timeout or interruption can leave a residual batch or failure for operators to observe. Monitor hit/miss, backend latency, retries/timeouts, queue depth, rejected writes, invalidation lag, and shutdown drain. For durable retry or dead-letter recovery, the application must own the outbox schema, replay/idempotency policy, alerting, and operator runbook; coordinator FAILED is an observation boundary, not a durable recovery mechanism. Set separate SLOs for cache and database paths.

Testing

Use isolated cache and database fixtures with unique namespaces. Prove miss loading, partial getAll misses, each enabled write mode, cache-only invalidation, TTL, partial failure, and lifecycle cleanup.

./gradlew :bluetape4k-exposed-r2dbc-caffeine:test

Workshops and learning path

1. Read Exposed cache foundation.
2. Choose a backend in cache selection.
3. Implement read-through plus cache-only invalidation first.
4. Add partial-failure and shutdown tests before near cache or write-behind.
5. Continue with exposed-workshop.

Limitations

The adapter does not create a distributed transaction, provision the backend, migrate stored cache values, or decide whether stale data is safe. It is local-only; it has no distributed invalidation.

Release diagrams

These diagrams are loaded directly from README assets published with the 2.0.0 release and pinned to its immutable commit. They describe this manual’s released structure and runtime flows, not later Snapshot changes. Select a preview to open the SVG at the same release commit.

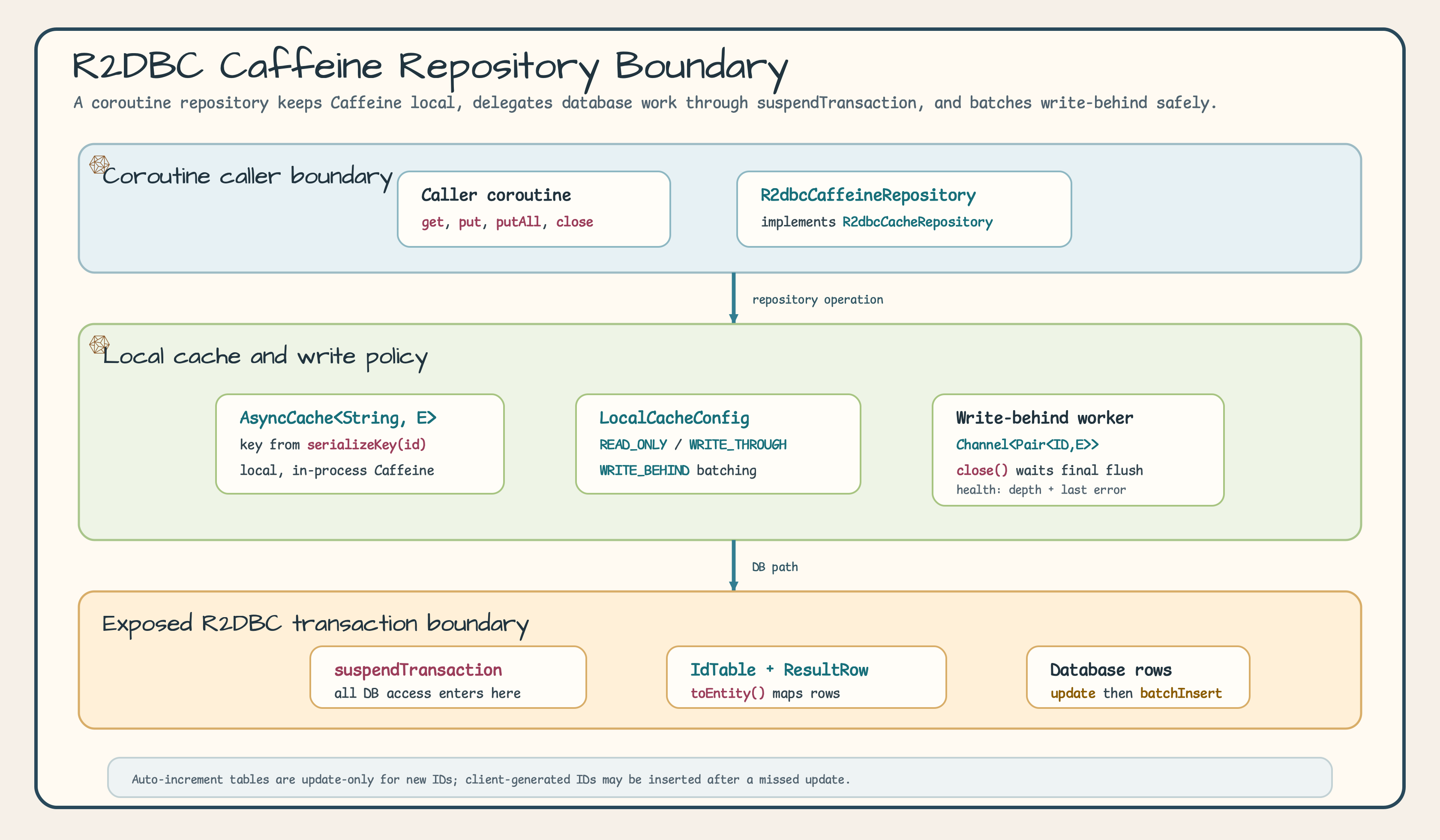

R2DBC Caffeine local cache architecture diagram

Release README: exposed/r2dbc-caffeine/README.md

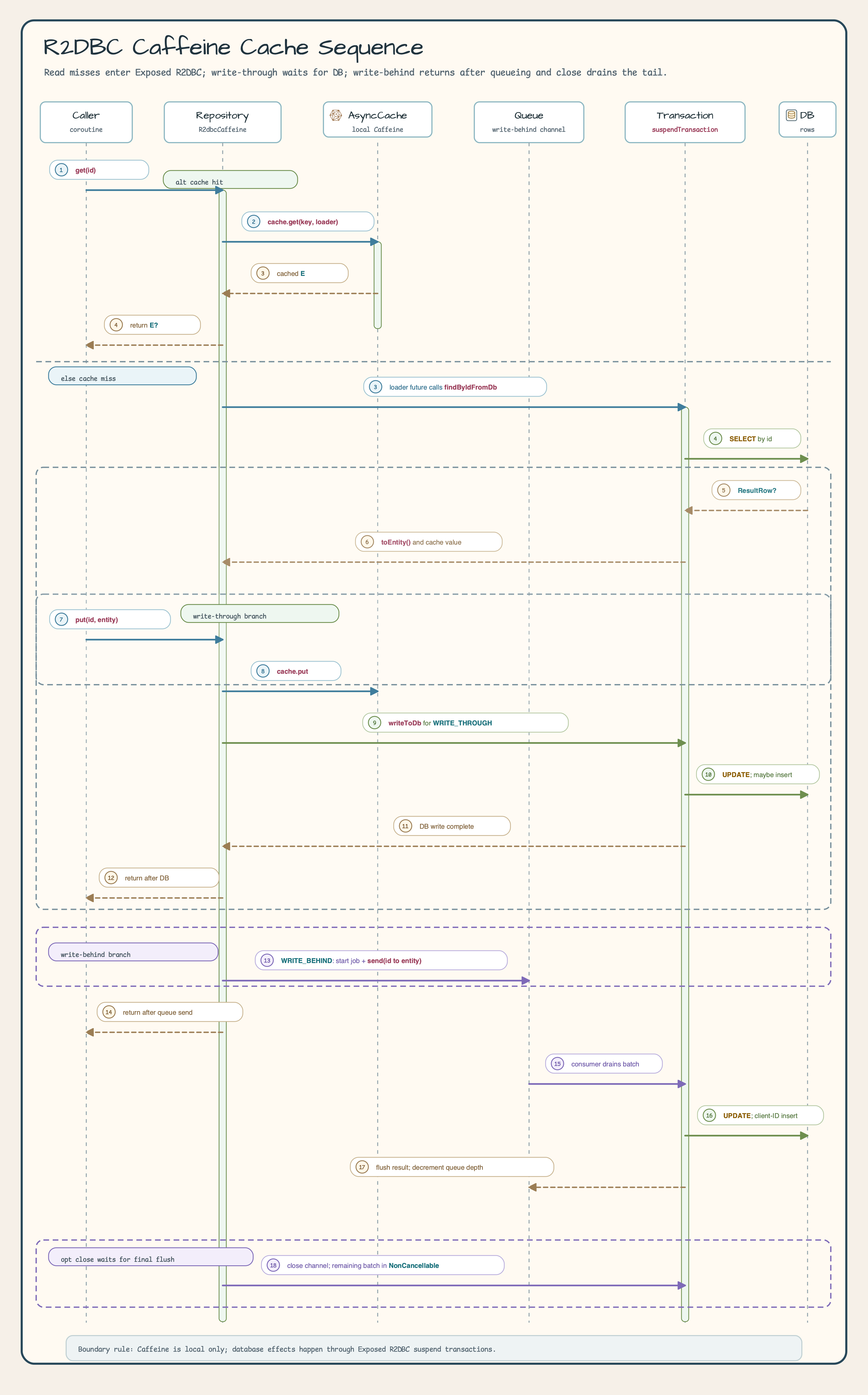

R2DBC Caffeine cache sequence diagram

Release README: exposed/r2dbc-caffeine/README.md

Sources

• Module README
• Abstract repository
• Module build
