AWS SDK for Kotlin Extensions

Latest stable Based on AWS release 1.0.0

Library manual grounded in the 1.0.0 release source.

Problem

Builders, model conversions, Flow helpers, and client lifecycle utilities for the native suspend-based AWS SDK for Kotlin.

When to use it

Choose it when the application is coroutine-first and does not need Java SDK v2 client interoperability.

Coordinates

Applications select one central BOM version.

dependencies {
    implementation(platform("io.github.bluetape4k:bluetape4k-dependencies:<version>"))
    implementation("io.github.bluetape4k.aws:bluetape4k-aws-kotlin")
}

AWS service SDKs follow a compileOnly policy; add the services actually used as runtime dependencies.

Core concepts

Service calls are suspend functions from the SDK itself. This module adds concise request builders, pagination/Flow patterns, and with...Client ownership helpers.

Quick start

withS3Client(region = region) { s3 ->
    s3.putFromByteArray(bucket, key, bytes)
    s3.getAsByteArray(bucket, key)
}

API by task

DynamoDB model DSL and batch execution, DynamoDB Streams Flow/checkpoint consumption, S3 object operations, SQS/SNS, SES, KMS, CloudWatch, Kinesis record Flow, Lambda, STS, and HTTP engine providers.

DynamoDB coordination

DynamoDbDistributedLock and DynamoDbMetadataStore are coroutine-first coordination adapters for a caller-owned DynamoDB table. They use a String partition key only; the schema does not create tables, infer a sort key, or manage the client lifecycle. Add the AWS Kotlin DynamoDB service SDK at runtime because service SDKs in this module remain compileOnly.

Prepare a PK-only table whose hash key matches partitionKeyAttributeName (id by default). Enable DynamoDB TTL only for the metadata ttlEpochSeconds attribute; lock rows must not be deleted by TTL. A metadata TTL and its logical expiresAt are written to the same epoch second.

val schema = DynamoDbCoordinationSchema(
    tableName = "coordination",
    namespace = "orders",
)
val lock = DynamoDbDistributedLock(client, schema)
val metadata = DynamoDbMetadataStore(client, schema)

val lease = lock.tryAcquire("orders", "worker-1")
if (lease != null) {
    // Protect the downstream write with lease.fencingToken as well.
    val renewed = lock.heartbeat(lease)
    lock.release(renewed ?: lease)
}
metadata.put("config", "v1", ttl = 60.seconds)

Acquire, renew, heartbeat, and release use conditional writes without an adapter retry loop or pre-read. tryAcquire can return null when another owner wins or when the result is indeterminate; callers must not treat a transport failure as a successful lease. A takeover increments the monotonic LockLease.fencingToken. release returns false for a stale lease and removes only the owner while preserving the fencing counter. Downstream state changes must check the current token, because a lease alone cannot fence an already-started side effect.

MetadataStore.get returns null for a missing or logically expired value. putIfAbsent, remove, and removeIfValue use bounded compare-and-set operations. An expired item may be replaced or cleaned up, but an expired cleanup still reports false to the caller. A caller that needs ABA protection should store a unique version or fencing token in the value. Malformed AllOld/AllNew responses and missing required AllOld capability fail closed; they are not converted into a normal miss.

Use withDynamoDbClient for short-lived clients or close an application-scoped client explicitly. If a coroutine is cancelled while a test or application owns a table cleanup, run the cleanup in NonCancellable with a bounded withTimeout; do not launch an unscoped background cleanup task. Credentials, IAM policy, and downstream fencing conditions remain application concerns.

The local contract test uses FlociServer and does not contact real AWS:

./gradlew -Dbluetape4k.aws.emulator=floci --no-parallel --max-workers=1 \
  :bluetape4k-aws-kotlin:test --tests '*DynamoDbCoordinationFlociTest'

The Floci lane proves PK-only schema, conditional AllOld, fencing and logical expiry behavior. It does not prove AWS throttling, asynchronous TTL deletion, clock skew, production quotas, or credentials.

DynamoDB Streams Flow and checkpoints

The native AWS SDK for Kotlin extension exposes DynamoDbStreamsClient.recordFlow for one shard and shardRecordFlow for a bounded shard graph. It supports TrimHorizon, Latest, AtSequenceNumber, and AfterSequenceNumber, while keeping the SDK Record type visible and adding a stream/shard envelope for multi-shard collection.

withDynamoDbStreamsClient(region = "ap-northeast-2") { client ->
    client.shardRecordFlow(
        streamArn = streamArn,
        checkpointStore = InMemoryDynamoDbStreamsCheckpointStore(),
    ).collect { envelope ->
        handle(envelope.record)
    }
}

The checkpoint is saved after downstream emission and replayed inclusively, so the contract is at-least-once and a restart may deliver a duplicate. Root shard trees are bounded by maxShardConcurrency; children start after their parent completes. Use withDynamoDbStreamsClient for short-lived clients and keep injected HTTP engines caller-owned. Floci is the first emulator lane; production retention, throttling, and resharding timing remain AWS-only gaps.

Kinesis multi-shard consumer

The native KinesisClient.consumerFlow discovers shards continuously, polls each shard sequentially, and limits active shard jobs with maxShardConcurrency. Parent and adjacent-parent dependencies are retained in the graph; a child starts only after every parent has a durable KinesisCheckpoint.ShardEnd. The single outer emitter provides rendezvous backpressure and saves a checkpoint only after downstream emission returns.

withKinesisClient(endpointUrl = flociEndpoint, region = "us-east-1") { client ->
    client.consumerFlow(
        streamName = "orders",
        consumerGroup = "orders-api",
        streamIdentity = "orders-generation-1",
        position = KinesisStartingPosition.TrimHorizon,
        options = KinesisConsumerOptions(ownerId = "orders-worker-1"),
        checkpointStore = durableCheckpointStore,
        leaseStore = durableLeaseStore,
    ).collect { envelope -> handle(envelope.record) }
}

Sequence resumes inclusively, so the contract is at-least-once and a restart may duplicate the last delivered record. KinesisCheckpointStore and KinesisLeaseStore are caller-owned SPIs; InMemory* implementations are intended for tests and emulator runs, and Noop* implementations are explicit process-local choices without restart recovery or worker coordination. Lease counters fence stale saves. Metrics expose finite labels and redacted tokens; payloads, credentials, and request tokens are not emitted. The client and health probes remain caller-owned; cancellation performs the stop/drain path.

Use Floci for local verification, with LocalStack reserved for an explicit coverage gap:

./gradlew -Dbluetape4k.aws.emulator=floci --no-parallel --max-workers=1 \
  :bluetape4k-aws-kotlin:test --tests '*KinesisConsumerFlociTest'

Floci proves the emulator contract, not production retention or throttling. Rollout should stop, drain, canary, and scale; rollback reuses the last durable checkpoint and never deletes or rewinds it.

Lambda invocation helpers

The native AWS SDK for Kotlin module adds suspend Invoke helpers under io.bluetape4k.aws.kotlin.lambda. LambdaInvocationResult<T> keeps the raw SDK response, a copied payload, status, optional FunctionError, and decoded tail log together. Function errors are returned data; transport and SDK failures remain exceptions.

Dependency and client boundary

The Lambda SDK remains compileOnly. Add it to the consumer classpath and use the scoped client helper for short-lived calls:

dependencies {
    implementation("io.github.bluetape4k.aws:bluetape4k-aws-kotlin")
    implementation("aws.sdk.kotlin:lambda")
}

import io.bluetape4k.aws.kotlin.lambda.invokeString
import io.bluetape4k.aws.kotlin.lambda.withLambdaClient

suspend fun invokeOrder(): String =
    withLambdaClient(region = "ap-northeast-2") { client ->
        val result = client.invokeString("orders-handler", "{\"id\":1}")
        check(!result.hasFunctionError)
        result.value.orEmpty()
    }

For typed payloads, choose the mapper and codec at the application boundary:

data class OrderRequest(val id: Int)
data class OrderResponse(val accepted: Boolean)
val mapper = tools.jackson.databind.ObjectMapper()

withLambdaClient(region = "ap-northeast-2") { client ->
    val result = client.invokeTyped(
        "orders-handler",
        OrderRequest(1),
        LambdaPayloadCodecs.jackson(mapper, OrderResponse::class.java),
    )
    check(result.value != null)
}

Use invokeBytes, invokeString, or invokeTyped with an application-owned LambdaPayloadCodec. Null and empty payloads remain distinct. The request DSL validates blank function/qualifier values and only permits tail logs for RequestResponse; ARN, size, IAM, and function existence remain AWS contracts.

Native suspend cancellation is preserved and withLambdaClient closes only the service client; an injected HTTP engine remains caller-owned. No retry, deployment, polling, logging, or IAM policy management is added. The opt-in smoke lane requires a pre-deployed function and explicit function/region inputs; Floci Lambda is recorded as unsupported and missing inputs skip before client creation. Do not log or persist raw payloads, decoded tail logs, or SDK response bodies by default.

S3 Tables management

The native AWS SDK for Kotlin extension keeps S3 Tables request, response, and exception types visible for table bucket, namespace, and table create/list/get/delete operations. Lists return one raw service page, so the caller supplies continuationToken for the next page. ListTables keeps namespace optional for bucket-level listing. CreateTable defaults to OpenTableFormat.Iceberg, and GetTable accepts either a table ARN or the bucket/namespace/name selector.

Add the service SDK to the consumer because it remains compileOnly:

dependencies {
    implementation("io.github.bluetape4k.aws:bluetape4k-aws-kotlin")
    implementation("aws.sdk.kotlin:s3tables")
}

withS3TablesClient(region = "ap-northeast-2") { client ->
    val bucketArn = client.createTableBucket("orders-tables").arn
    client.createNamespace(bucketArn, listOf("analytics"))
    client.createTable(bucketArn, "analytics", "orders")
}

s3TablesClientOf returns an application-scoped client that the caller must close. withS3TablesClient closes only its service client when the block ends; an injected HTTP engine remains caller-owned. This module covers management operations only. It does not implement an Iceberg data plane, SQL, or an Athena, Glue, Redshift, or Apache Iceberg integration facade. Local emulator fidelity for S3 Tables is not asserted.

Step Functions execution helpers

The native AWS SDK for Kotlin path adds suspend helpers for StartExecution, StopExecution, DescribeExecution, and ListExecutions under io.bluetape4k.aws.kotlin.sfn. The helpers return raw AWS Kotlin SDK responses and keep the SDK’s exception and status types visible.

Dependency boundary

The module keeps the Step Functions SDK compileOnly. Add the service SDK to the consumer’s compile and runtime classpaths alongside the module:

dependencies {
    implementation("io.github.bluetape4k.aws:bluetape4k-aws-kotlin")
    implementation("aws.sdk.kotlin:sfn")
}

Use the central Bluetape4k BOM to align versions. The application also owns the region, credentials provider, endpoint, HTTP engine, and close boundary.

Standard, Express, and Map Run

The helpers preserve AWS service semantics rather than mapping executions to a new domain type.

Helper/API	Standard	Express	Map Run child
`StartExecution`	Supported	Supported	Not a direct child-start API
`DescribeExecution`	Supported	Not supported for a normal Express execution	Conditional; use the AWS-supported child execution ARN
`ListExecutions`	State-machine ARN	Not supported for a normal Express execution	Conditional with `mapRunArn`
`StopExecution`	Supported	Not supported	Conditional for a Standard child; Express children remain unsupported
`describeExecutionFlow`	Same boundary as `DescribeExecution`	Not supported	Same conditional boundary as `DescribeExecution`

For StartExecution, Standard executions are idempotent for the same name and input, while Express executions are not. The caller must prevent duplicate Express starts when it retries.

listExecutionsByStateMachine and listExecutionsByMapRun keep the source invariant explicit. The AWS Kotlin SDK’s listExecutionsPaginated paginator remains available to callers that need all pages. PENDING_REDRIVE is a raw terminal response, not a business-success result. Express execution observation through CloudWatch Logs is outside this helper.

Polling and cancellation

SfnClient.describeExecutionFlow(...) returns a cold Flow<DescribeExecutionResponse>. Each collection starts with an immediate DescribeExecution call, emits Running responses, and ends after emitting a known terminal response (Succeeded, Failed, TimedOut, Aborted, or PendingRedrive). SfnExecutionPollingOptions.pollInterval defaults to and must be at least one second. The one-second value is a per-collector lower bound, not an account or Region quota guarantee.

import aws.sdk.kotlin.services.sfn.model.DescribeExecutionResponse
import io.bluetape4k.aws.kotlin.sfn.describeExecutionFlow
import io.bluetape4k.aws.kotlin.sfn.withSfnClient
import kotlinx.coroutines.flow.last
import kotlinx.coroutines.withTimeout
import kotlin.time.Duration.Companion.seconds

suspend fun awaitExecution(executionArn: String): DescribeExecutionResponse =
    withSfnClient(region = "ap-northeast-2") { client ->
        withTimeout(30.seconds) {
            client.describeExecutionFlow(executionArn).last()
        }
    }

The caller supplies the timeout or deadline. Cancellation is rethrown and the Flow never calls StopExecution implicitly. withSfnClient closes the service client after the block, while an injected HTTP engine remains caller-owned. The Flow must be collected inside the client scope; do not return a cold Flow from a closed withSfnClient block. Unknown SDK statuses fail closed without emitting a response.

IAM and KMS

Create separate least-privilege statements for the operation and resource kind. State-machine aliases and versions, Standard executions, Express executions, labelled Map Run children, and Map Run resources have different ARN shapes; do not combine them under one broad wildcard.

Statement	IAM action	Resource boundary
Start execution	`states:StartExecution`	Target state machine: unqualified `statemachine`, qualified `statemachinealias`, or `statemachineversion` ARN
Start execution’s dependent describe	`states:DescribeExecution`	A separate statement for the resulting Standard `execution` or Express `express` execution ARN pattern
Describe execution	`states:DescribeExecution`	Standard `execution`, supported Express `express`, or a supported labelled Map Run child (`labelled execution`/`labelled express`) ARN
Stop execution	`states:StopExecution`	Standard `execution` or labelled Standard child ARN only; do not grant Express execution stop
List executions by state machine	`states:ListExecutions`	State-machine ARN only
List executions by Map Run	`states:ListExecutions`	Map Run `maprun` ARN only

Keep the qualified state-machine, Standard execution, Express execution, labelled Map Run child, and Map Run resource patterns in separate statements. Do not collapse them into one wildcard, and keep the dependent states:DescribeExecution grant separate from states:StartExecution.

For StopExecution(error = null, cause = null), no error detail is sent for encryption, which can avoid an additional execution-role KMS data-key grant. When encrypted execution data is requested with includedData = ALL_DATA, the caller’s KMS key policy and kms:Decrypt permission remain part of the trust boundary; the helper does not bypass them. Preserve KMS service errors instead of translating them.

Do not log or persist raw ARNs, execution names, input, output, error, cause, trace headers, or raw SDK response payloads by default. If a stable correlation key is required, use a caller-managed HMAC rather than a plain hash when the identifier is sensitive. Custom endpointUrl overrides, credentials providers, and HTTP engines are caller-owned trust boundaries; use them only for trusted emulator or private endpoints and never send production credentials or payloads to an untrusted or non-TLS endpoint.

Quotas and observability

Step Functions API quotas apply at the account and Region level and can vary by Region or AWS service policy. Recheck the current service quotas before setting a production polling budget. The helper does not add a rate limiter, retry policy, jitter, or internal timeout.

Bound every collector with withTimeout or an external deadline.
Limit collector count and aggregate polling rate per account and Region; distribute start times or add caller-owned jitter/rate limiting to avoid a synchronized burst.
Share one polling source with shareIn or stateIn when several consumers observe the same execution.
Record service, operation, outcome/status, latency, retry count, throttle count, and the AWS request ID from SDK response metadata. Do not record the request or response payload.
Use CloudWatch execution and throttling metrics with a bounded logical identity, not a raw execution ARN.

Emulator evidence

Run the module’s Step Functions smoke checks with the repository’s Floci-first selector, then select LocalStack explicitly for a fallback. If Floci lacks the service, retain the exact assumption message live integration unverified: Floci does not support Step Functions and the skipped test result. If LocalStack is unsupported or fails, report live integration unverified: LocalStack Step Functions smoke failed: <error> with the test result XML; do not turn either result into a live-integration PASS. Unit, consumer compile, and dependency-publication checks still provide useful local evidence.

An emulator smoke proves endpoint compatibility and basic request/response serialization only. It does not prove production IAM resource policies, KMS key policies, quotas, latency, or managed-service behavior. Until a separate credential-gated AWS check exists, IAM/KMS integration remains UNVERIFIED.

Recommended patterns

Put client and background-job ownership at one application boundary. Configure region, credentials, and endpoints once instead of rebuilding them per call.

Integrations

Add the selected aws.sdk.kotlin:<service> modules explicitly. Ktor integrations can use this library where native Kotlin SDK clients are appropriate.

Configuration

Choose the region, credential provider, endpoint, retry strategy, and CRT or OkHttp engine when creating the client.

Failure modes

Do not mix Java SDK v2 and Kotlin SDK models accidentally. Watch for unbounded Flow collection, missing service modules, and clients created outside a closeable scope.

Operations

Share long-lived clients when call volume is high; use with...Client for bounded jobs. Record the chosen HTTP engine and timeout policy.

Testing

Run service tests against Floci first and switch the emulator explicitly when a native Kotlin SDK feature is unsupported.

Workshops and learning path

Begin with S3 request builders, then DynamoDB model conversion, and finally Kinesis or pagination Flow handling.

Limitations

The module is not a compatibility wrapper around Java SDK v2; types and some service coverage differ.

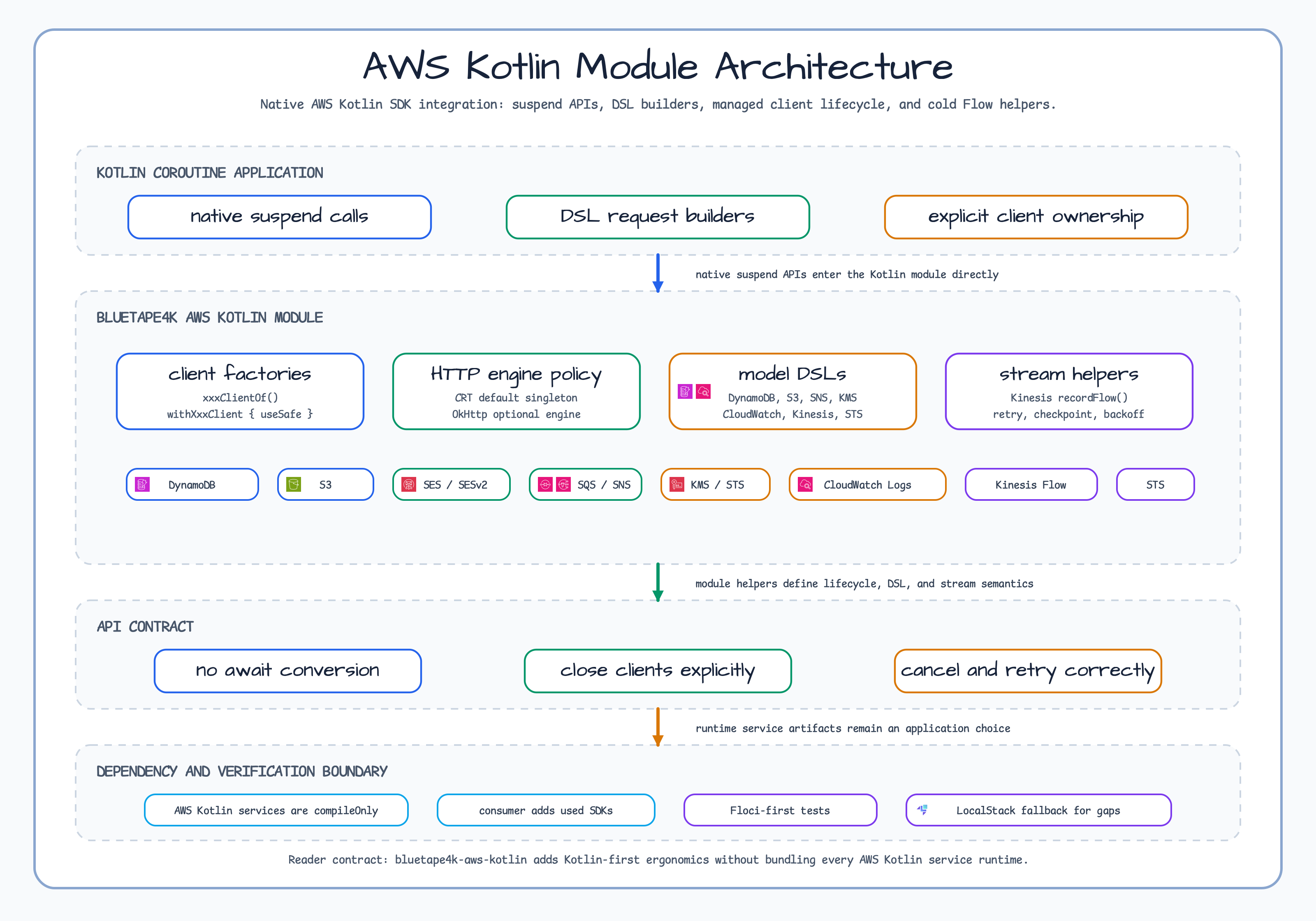

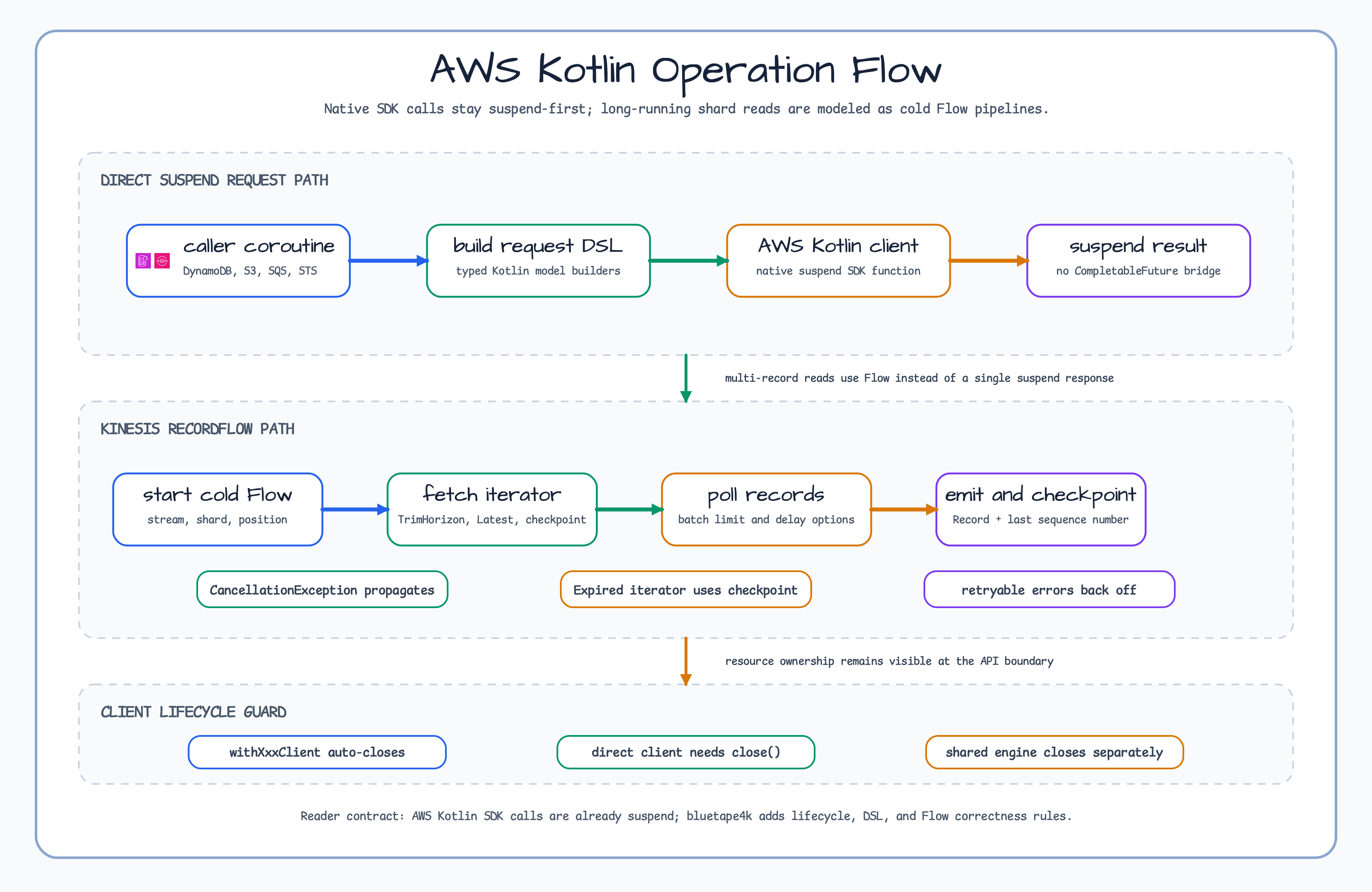

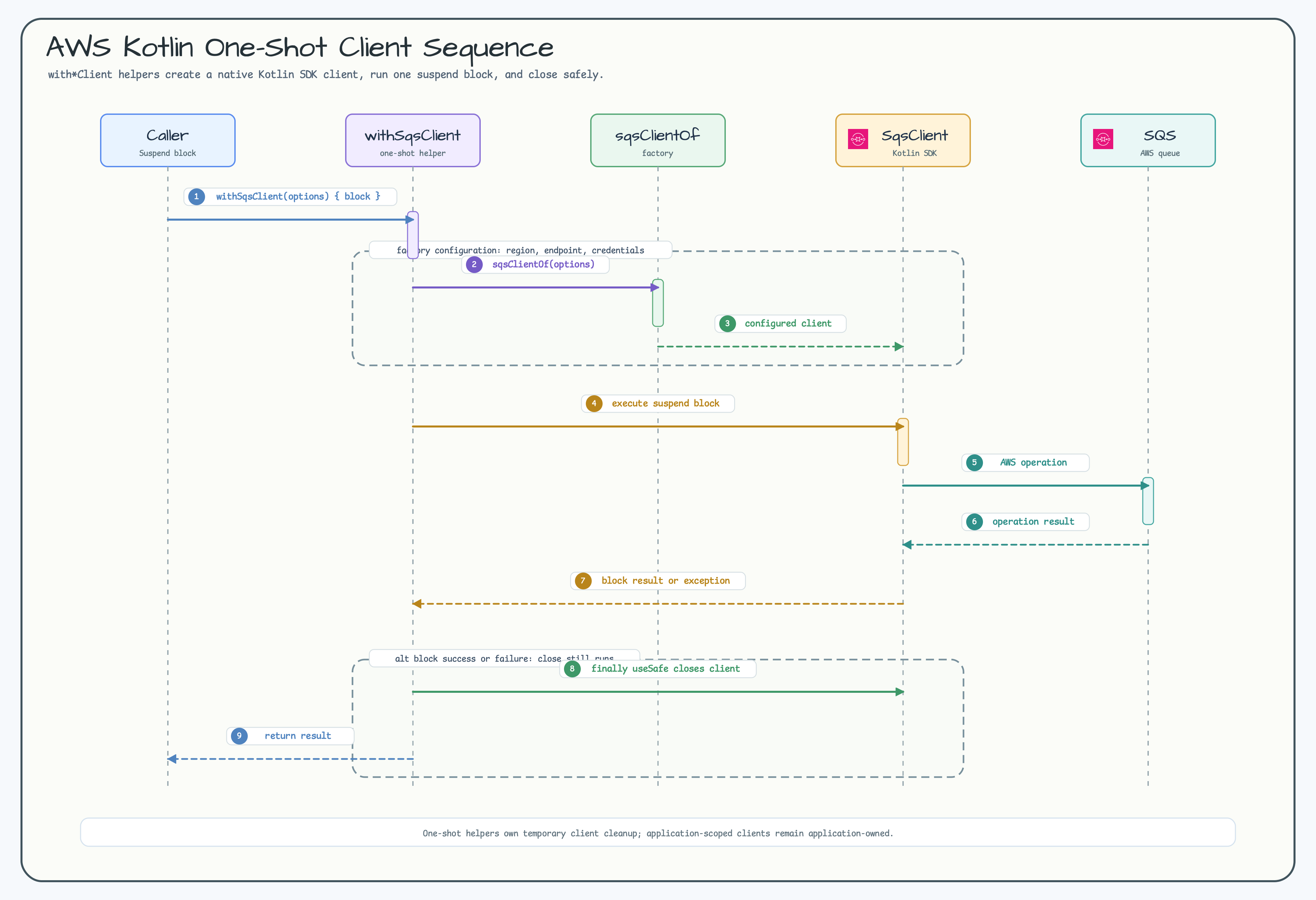

Release diagrams

These diagrams are loaded directly from README assets published with the 1.0.0 release and pinned to its immutable commit. They describe this manual’s released structure and runtime flows, not later Snapshot changes. Select a preview to open the SVG at the same release commit.
