AWS SDK for Java v2 Extensions

Library manual grounded in the 1.0.0 release source.

Problem

Kotlin builders and sync, CompletableFuture, and coroutine APIs over AWS SDK for Java v2 clients.

When to use it

Choose it when the application uses Java SDK v2 clients, needs both blocking and asynchronous paths, or integrates with Spring Boot.

Coordinates

Applications select one central BOM version.

dependencies {
    implementation(platform("io.github.bluetape4k:bluetape4k-dependencies:<version>"))
    implementation("io.github.bluetape4k.aws:bluetape4k-aws-java")
}

AWS service SDKs follow a compileOnly policy; add the services actually used as runtime dependencies.

Core concepts

Factories build clients; extensions keep the AWS client type visible; async extensions expose futures; coroutine extensions await those futures. The application owns every created client and must close it.

Quick start

val s3 = S3AsyncClient.create()
try {
    s3.putAsByteArray(bucket, key, payload)
    val objects = s3.listAllObjects(bucket).toList()
} finally {
    s3.close()
}

API by task

S3 object and transfer helpers, DynamoDB enhanced repositories and batch execution, DynamoDB Streams Flow/checkpoint consumption, SQS/SNS messaging, KMS, CloudWatch, Kinesis, Lambda, SES, STS, and request-model builders.

DynamoDB Streams Flow and checkpoints

The Java SDK v2 extension exposes DynamoDbStreamsAsyncClient.recordFlow for one shard and shardRecordFlow for a bounded shard graph. The consumer supports TrimHorizon, Latest, AtSequenceNumber, and AfterSequenceNumber, and returns the SDK Record type (or a DynamoDbStreamsShardRecord envelope for multi-shard consumption).

val records = client.recordFlow(
    streamArn = streamArn,
    shardId = shardId,
    position = DynamoDbStreamsStartingPosition.Latest,
    checkpointStore = InMemoryDynamoDbStreamsCheckpointStore(),
).toList()

Checkpoints are saved only after downstream emission and are replayed inclusively, which preserves at-least-once delivery and permits duplicates after restart. Root shard trees are bounded by maxShardConcurrency; each child is consumed after its parent completes. Use withDynamoDbStreamsAsyncClient for a short-lived client and keep injected clients under caller ownership. Emulator verification is Floci-first; production retention, throttling, and resharding timing remain AWS-only gaps.

Kinesis multi-shard consumer

KinesisAsyncClient.consumerFlow discovers ListShards pages continuously and polls each shard in order. maxShardConcurrency bounds active shard jobs; a child shard waits for durable KinesisCheckpoint.ShardEnd checkpoints from both parents. The public Flow uses a rendezvous boundary, so its checkpoint is saved only after the collector’s emit returns.

client.consumerFlow(
    streamName = "orders",
    consumerGroup = "orders-api",
    streamIdentity = "orders-generation-1",
    position = KinesisStartingPosition.TrimHorizon,
    options = KinesisConsumerOptions(ownerId = "orders-worker-1"),
    checkpointStore = durableCheckpointStore,
    leaseStore = durableLeaseStore,
).collect { envelope -> handle(envelope.record) }

Sequence resumes inclusively and therefore provides an at-least-once boundary; exactly-once side effects remain the caller’s responsibility. The split KinesisCheckpointStore/KinesisLeaseStore SPI is caller-owned. The supplied InMemory* stores are process-local test doubles, while Noop* stores make the same limitation explicit and do not survive restart or coordinate workers. Lease counters fence stale saves, and metrics callbacks receive finite labels plus redacted tokens rather than payloads or credentials. The client and probes remain caller-owned; cancellation is the normal stop/drain signal.

Run the integration contract without AWS credentials by selecting Floci:

./gradlew -Dbluetape4k.aws.emulator=floci --no-parallel --max-workers=1 \
  :bluetape4k-aws-java:test --tests '*KinesisConsumerFlociTest'

The Floci run proves SDK/emulator compatibility only. Production rollout should stop, drain, canary, and then scale; rollback reuses the last durable checkpoint and never deletes or rewinds it.

Lambda invocation helpers

The Java SDK v2 module adds io.bluetape4k.aws.lambda helpers for sync, CompletableFuture, and coroutine invocation. LambdaInvocationResult<T> keeps the raw InvokeResponse, a copied payload, status code, optional FunctionError, and a decoded LogType.Tail value. A function error is result data; transport and SDK failures remain exceptions.

Dependency and client boundary

The Lambda SDK remains compileOnly. Add it to the consumer’s compile and runtime classpaths, and close clients at the application boundary:

dependencies {
    implementation("io.github.bluetape4k.aws:bluetape4k-aws-java")
    implementation("software.amazon.awssdk:lambda")
}

import io.bluetape4k.aws.lambda.invokeString
import io.bluetape4k.aws.lambda.withLambdaClient
import software.amazon.awssdk.regions.Region

fun invokeOrder(): String = withLambdaClient(region = Region.AP_NORTHEAST_2) { client ->
    val result = client.invokeString("orders-handler", "{\"id\":1}")
    check(!result.hasFunctionError)
    result.value.orEmpty()
}

For typed payloads, choose the mapper and codec at the application boundary:

data class OrderRequest(val id: Int)
data class OrderResponse(val accepted: Boolean)
val mapper = tools.jackson.databind.ObjectMapper()

withLambdaClient(region = Region.AP_NORTHEAST_2) { client ->
    val result = client.invokeTyped(
        "orders-handler",
        OrderRequest(1),
        LambdaPayloadCodecs.jackson(mapper, OrderResponse::class.java),
    )
    check(result.value != null)
}

Use invokeBytes, invokeString, or invokeTyped with an application-owned LambdaPayloadCodec. Null payload and empty payload remain distinct. The request builder validates blank function/qualifier values and rejects tail logs unless the invocation type is RequestResponse; ARN, size, IAM, and function existence remain AWS contracts.

Async cancellation is propagated to the AWS SDK future and coroutine CancellationException is not translated. The helper does not add retries, deployment, polling, logging, or IAM policy management. An opt-in smoke test requires a pre-deployed function and explicit function/region inputs; the repository records Floci Lambda as unsupported and skips before client creation when those inputs are absent. Do not log or persist raw payloads, decoded tail logs, or SDK response bodies by default.

S3 Tables management

The Java SDK v2 extension keeps the raw S3 Tables request, response, and exception types visible for table bucket, namespace, and table create/list/get/delete operations. A list helper returns one service page; callers pass continuationToken when they need another page. ListTables keeps namespace optional for bucket-level listing. CreateTable defaults to ICEBERG, and GetTable accepts either a table ARN or the bucket/namespace/name selector.

Add the service SDK to the consumer because it remains compileOnly:

dependencies {
    implementation("io.github.bluetape4k.aws:bluetape4k-aws-java")
    implementation("software.amazon.awssdk:s3tables")
}

withS3TablesClient(region = Region.AP_NORTHEAST_2) { client ->
    val bucketArn = client.createTableBucket("orders-tables").arn()
    client.createNamespace(bucketArn, listOf("analytics"))
    client.createTable(bucketArn, "analytics", "orders")
}

s3TablesClient and s3TablesClientOf create application-scoped clients and register them with ShutdownQueue; callers still own early close and any injected HTTP client. withS3TablesClient creates an unregistered short-lived client and closes only the service client when the block ends. This module covers the S3 Tables management surface only; it does not implement an Iceberg data plane, SQL, or Athena, Glue, Redshift, or Apache Iceberg integration facade. Local emulator fidelity for S3 Tables is not asserted.

Step Functions execution helpers

The Java SDK v2 path adds thin helpers for StartExecution, StopExecution, DescribeExecution, and ListExecutions under io.bluetape4k.aws.sfn. Sync and one-shot async/coroutine operations return the raw AWS SDK response. Polling is available only on SfnAsyncClient so a blocking SfnClient is not used from an event loop or a Flow collector.

Dependency boundary

The module keeps the Step Functions SDK compileOnly. Add the service SDK to the consumer’s compile and runtime classpaths alongside the module:

dependencies {
    implementation("io.github.bluetape4k.aws:bluetape4k-aws-java")
    implementation("software.amazon.awssdk:sfn")
}

Use the central Bluetape4k BOM to align versions. The application also owns the region, credentials provider, endpoint, HTTP client, and close boundary.

Standard, Express, and Map Run

The helpers preserve AWS service semantics rather than mapping executions to a new domain type.

Helper/API	Standard	Express	Map Run child
StartExecution	Supported	Supported	Not a direct child-start API
DescribeExecution	Supported	Not supported for a normal Express execution	Conditional; use the AWS-supported child execution ARN
ListExecutions	State-machine ARN	Not supported for a normal Express execution	Conditional with mapRunArn
StopExecution	Supported	Not supported	Conditional for a Standard child; Express children remain unsupported
describeExecutionFlow	Same boundary as DescribeExecution	Not supported	Same conditional boundary as DescribeExecution

For StartExecution, Standard executions are idempotent for the same name and input, while Express executions are not. The caller must prevent duplicate Express starts when it retries.

The Java request builder separates listExecutionsByStateMachine and listExecutionsByMapRun, while the raw SDK paginator remains available for callers that need all pages. PENDING_REDRIVE is a raw terminal response, not a business-success result. Express execution observation through CloudWatch Logs is outside this helper.

Polling and cancellation

SfnAsyncClient.describeExecutionFlow(...) returns a cold Flow<DescribeExecutionResponse>. Each collection starts with an immediate DescribeExecution call, emits RUNNING responses, and ends after emitting a known terminal response (SUCCEEDED, FAILED, TIMED_OUT, ABORTED, or PENDING_REDRIVE). SfnExecutionPollingOptions.pollInterval defaults to and must be at least one second. The one-second value is a per-collector lower bound, not an account or Region quota guarantee.

import io.bluetape4k.aws.sfn.describeExecutionFlow
import io.bluetape4k.aws.sfn.withSfnAsyncClient
import kotlinx.coroutines.flow.last
import kotlinx.coroutines.withTimeout
import software.amazon.awssdk.regions.Region
import software.amazon.awssdk.services.sfn.model.DescribeExecutionResponse
import kotlin.time.Duration.Companion.seconds

suspend fun awaitExecution(executionArn: String): DescribeExecutionResponse =
    withSfnAsyncClient(region = Region.AP_NORTHEAST_2) { client ->
        withTimeout(30.seconds) {
            client.describeExecutionFlow(executionArn).last()
        }
    }

The caller supplies the timeout or deadline. Cancellation is rethrown as CancellationException; the Flow never calls StopExecution implicitly and never closes a caller-owned client. Unknown SDK statuses fail closed without emitting a response. Keep collection inside the withSfnAsyncClient block or inside an application-owned client scope.

IAM and KMS

Create separate least-privilege statements for the operation and resource kind. State-machine aliases and versions, Standard executions, Express executions, labelled Map Run children, and Map Run resources have different ARN shapes; do not combine them under one broad wildcard.

Statement	IAM action	Resource boundary
Start execution	states:StartExecution	Target state machine: unqualified statemachine, qualified statemachinealias, or statemachineversion ARN
Start execution’s dependent describe	states:DescribeExecution	A separate statement for the resulting Standard execution or Express express execution ARN pattern
Describe execution	states:DescribeExecution	Standard execution, supported Express express, or a supported labelled Map Run child (labelled execution/labelled express) ARN
Stop execution	states:StopExecution	Standard execution or labelled Standard child ARN only; do not grant Express execution stop
List executions by state machine	states:ListExecutions	State-machine ARN only
List executions by Map Run	states:ListExecutions	Map Run maprun ARN only

Keep the qualified state-machine, Standard execution, Express execution, labelled Map Run child, and Map Run resource patterns in separate statements. Do not collapse them into one wildcard, and keep the dependent states:DescribeExecution grant separate from states:StartExecution.

For StopExecution(error = null, cause = null), no error detail is sent for encryption, which can avoid an additional execution-role KMS data-key grant. When encrypted execution data is requested with includedData = ALL_DATA, the caller’s KMS key policy and kms:Decrypt permission remain part of the trust boundary; the helper does not bypass them. Preserve KMS service errors instead of translating them.

Do not log or persist raw ARNs, execution names, input, output, error, cause, trace headers, or raw SDK response payloads by default. If a stable correlation key is required, use a caller-managed HMAC rather than a plain hash when the identifier is sensitive. Custom endpoint overrides, credentials providers, and HTTP clients are caller-owned trust boundaries; use them only for trusted emulator or private endpoints and never send production credentials or payloads to an untrusted or non-TLS endpoint.

Quotas and observability

Step Functions API quotas apply at the account and Region level and can vary by Region or AWS service policy. Recheck the current service quotas before setting a production polling budget. The helper does not add a rate limiter, retry policy, jitter, or internal timeout.

• Bound every collector with withTimeout or an external deadline.
• Limit collector count and aggregate polling rate per account and Region; distribute start times or add caller-owned jitter/rate limiting to avoid a synchronized burst.
• Share one polling source with shareIn or stateIn when several consumers observe the same execution.
• Record service, operation, outcome/status, latency, retry count, throttle count, and the AWS request ID from SDK response metadata. Do not record the request or response payload.
• Use CloudWatch execution and throttling metrics with a bounded logical identity, not a raw execution ARN.

Emulator evidence

Run the module’s Step Functions smoke checks with the repository’s Floci-first selector, then select LocalStack explicitly for a fallback. If Floci lacks the service, retain the exact assumption message live integration unverified: Floci does not support Step Functions and the skipped test result. If LocalStack is unsupported or fails, report live integration unverified: LocalStack Step Functions smoke failed: <error> with the test result XML; do not turn either result into a live-integration PASS. Unit, consumer compile, and dependency-publication checks still provide useful local evidence.

An emulator smoke proves endpoint compatibility and basic request/response serialization only. It does not prove production IAM resource policies, KMS key policies, quotas, latency, or managed-service behavior. Until a separate credential-gated AWS check exists, IAM/KMS integration remains UNVERIFIED.

Recommended patterns

Put client and background-job ownership at one application boundary. Configure region, credentials, and endpoints once instead of rebuilding them per call.

Integrations

Spring Boot and Ktor modules build on this library. Add only the Java SDK v2 services used at runtime, for example software.amazon.awssdk:s3.

Configuration

Set region, credentials, endpoint override, HTTP implementation, retry policy, and timeouts on the AWS client builder before sharing the client.

Failure modes

Blank queue URLs, incomplete S3 pagination, missing service jars, blocking calls on coroutine threads, and leaked async clients are the common failure modes.

Operations

Reuse thread-safe clients, bound concurrency, monitor retries and throttling, and make copy-then-delete S3 move semantics explicit.

Testing

Use Floci first with endpoint override and static test credentials; use LocalStack only for service behavior that Floci does not cover.

Workshops and learning path

Read client-lifecycle, then sync-async-coroutines, then service-patterns; continue with the released S3, DynamoDB, and SQS examples.

Limitations

The artifact does not bring every AWS service SDK at runtime. Coroutine helpers do not turn synchronous clients into non-blocking clients.

Release diagrams

These diagrams are loaded directly from README assets published with the 1.0.0 release and pinned to its immutable commit. They describe this manual’s released structure and runtime flows, not later Snapshot changes. Select a preview to open the SVG at the same release commit.

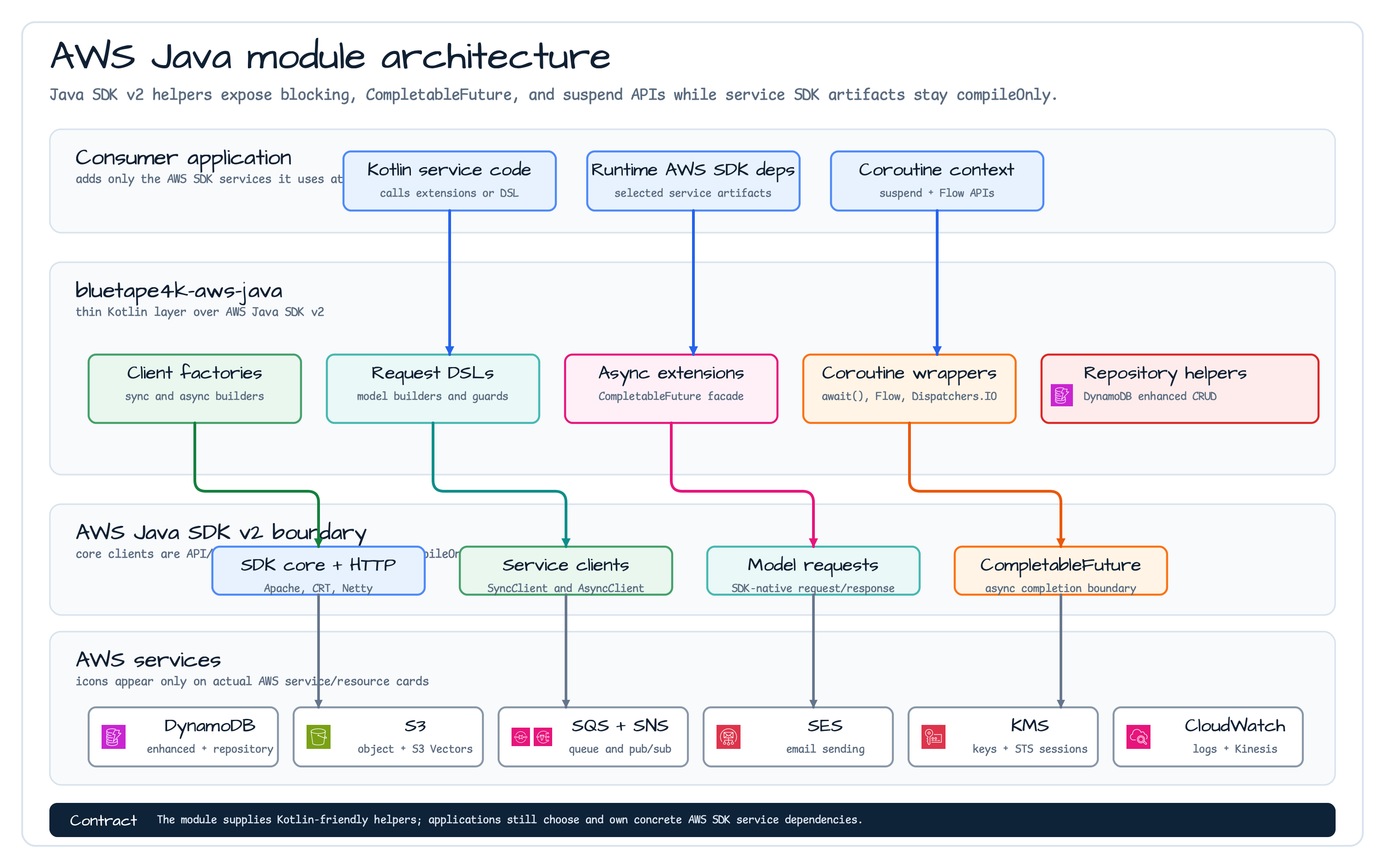

AWS Java architecture diagram

Release README: aws-java/README.md

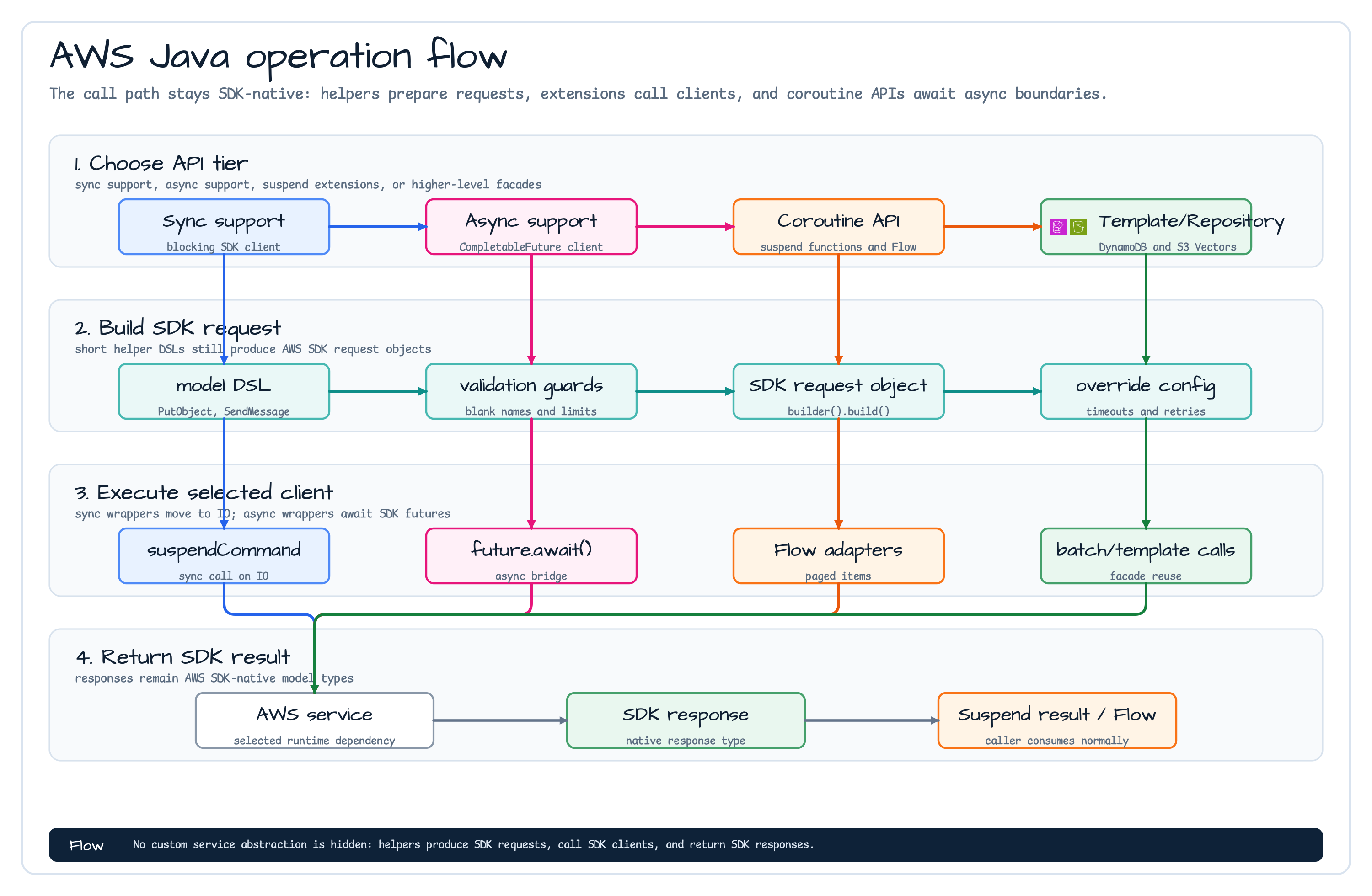

AWS Java operation flow diagram

Release README: aws-java/README.md

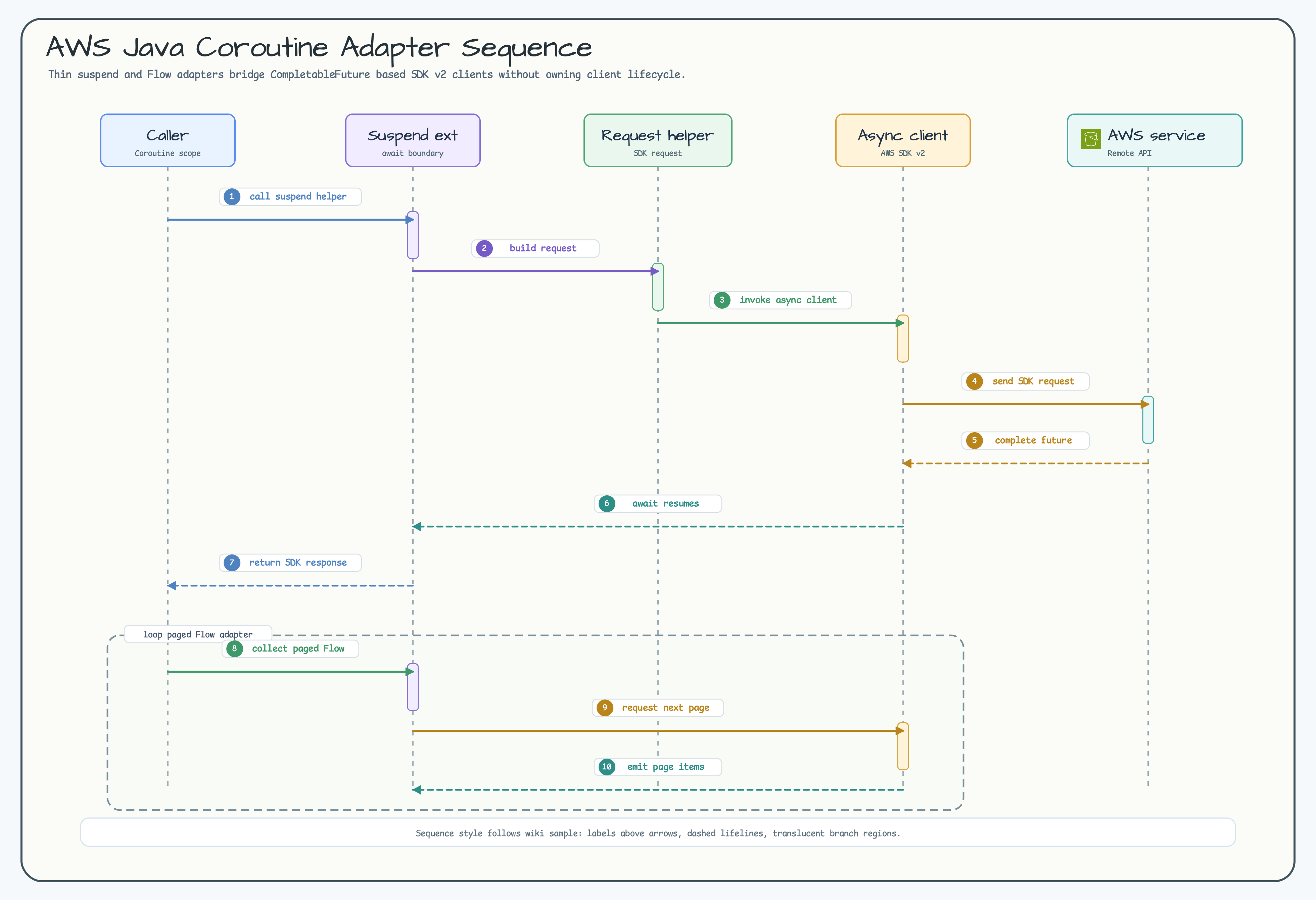

AWS Java coroutine sequence diagram

Release README: aws-java/README.md

Sources

• Release source: aws-java/src/main/kotlin/io/bluetape4k/aws/s3/S3AsyncClientCoroutinesExtensions.kt
• Release source: aws-java/src/main/kotlin/io/bluetape4k/aws/dynamodb/repository/DynamoDbCoroutineRepository.kt
• Release test: emulator selection
