AWS Spring Boot Integration

Latest stable Based on AWS release 1.0.0

Library manual grounded in the 1.0.0 release source.

Problem

Spring Boot 4 auto-configuration, coroutine templates, repositories, listeners, configuration sources, and Micrometer instrumentation for selected AWS services.

When to use it

Use it when Spring should own AWS clients and application-facing templates while the application keeps explicit control of service SDK dependencies.

Coordinates

Applications select one central BOM version.

dependencies {
    implementation(platform("io.github.bluetape4k:bluetape4k-dependencies:<version>"))
    implementation("io.github.bluetape4k.aws:bluetape4k-aws-spring-boot")
}

AWS service SDKs follow a compileOnly policy; add the services actually used as runtime dependencies.

Core concepts

Conditional auto-configurations back off when a service SDK is absent. Properties customize region, endpoint, credentials, and service behavior; templates expose suspend operations; listener containers own background jobs.

Quick start

@Service
class ObjectStore(private val s3: S3Operations) {
    suspend fun put(bucket: String, key: String, bytes: ByteArray) =
        s3.upload(bucket, key, bytes)
}

API by task

S3 object and Transfer Manager operations, provider-based client-side encryption, DynamoDB repositories and DAX, SQS listener/runtime, SNS, SES, KMS, CloudWatch, IMDS, Secrets Manager, Parameter Store, S3 Access Grants/Vectors, and Exposed.

S3 client-side encryption providers

S3ClientSideEncryptionOperations is opt-in. provider=KMS remains the default and keeps the existing KmsOperations-backed byte-array contract. KMS does not expose the provider streaming adapter. Set provider=AES or provider=RSA to use application-supplied key material:

bluetape4k:
  aws:
    s3:
      client-side-encryption:
        enabled: true
        provider: AES
        key-id: orders-key
        key-version: 2026-08
        encryption-context:
          service: order-api
      transfer:
        enabled: true

Provider selection

`provider`	Required bean	Contract
`KMS` (default)	`KmsOperations`	Existing `S3ClientSideEncryptionTemplate`; byte-array operations
`AES`	Exactly one `S3AesProvider`	`S3ClientSideEncryptionProviderTemplate` with an AES secret key
`RSA`	Exactly one `S3RsaProvider`	`S3ClientSideEncryptionProviderTemplate` with an RSA key pair

The selected AES/RSA provider must be unique. A missing or ambiguous provider fails application startup with a message that names the required provider and the configured provider value. The configuration never silently switches to KMS or to another provider.

The application loads key material from its own secret-management boundary and registers the matching provider:

import io.bluetape4k.aws.spring.s3.S3AesProvider
import org.springframework.context.annotation.Bean
import org.springframework.context.annotation.Configuration
import javax.crypto.SecretKey

@Configuration
class S3EncryptionConfiguration {
    @Bean
    fun s3AesProvider(secret: SecretKey): S3AesProvider =
        S3AesProvider.of(secret)
}

Use S3RsaProvider.of(keyPair) for RSA. AES material must expose 16, 24, or 32 encoded bytes. RSA public and private keys must use the RSA algorithm, have the same modulus, and be at least 2048 bits. The provider template fixes the material at construction time so encryption and decryption use the same key.

Data and metadata contract

Each provider object gets a random 32-byte AES data key and a 12-byte payload nonce. The payload uses AES/GCM/NoPadding with a 128-bit authentication tag. The AES provider wraps the data key with AES-GCM; the RSA provider uses RSA/ECB/OAEPWithSHA-1AndMGF1Padding.

The object stores the following Bluetape4k-reserved metadata. User metadata may not reuse these keys, case-insensitively:

Metadata	Meaning
`bt4k-cek-version`	Provider envelope version `2`
`bt4k-cek-provider`	`aes` or `rsa`
`bt4k-cek-alg`	`AES/GCM/NoPadding`
`bt4k-cek-wrap-alg`	Provider key-wrapping algorithm
`bt4k-cek-encoding`	`base64`
`bt4k-cek`, `bt4k-cek-nonce`	Wrapped data key and payload nonce
`bt4k-cek-wrap-nonce`	AES wrapping nonce; absent for RSA
`bt4k-cek-key-id`, `bt4k-cek-key-version`	Provider identity and optional version

key-id and key-version identify the provider material. When key-id is omitted, the template uses a fingerprint derived from the provider material. For provider envelopes, a configured key-version must match on decryption. The merged encryption context is canonicalized as AES-GCM additional authenticated data; it is not written to metadata, logs, or temporary files.

Malformed metadata, unsupported algorithms or encoding, invalid key material, and provider/key identity mismatches fail before plaintext is returned. Wrapping, unwrapping, and payload authentication failures use S3ClientSideEncryptionException. Provider envelopes are a Bluetape4k wire format and are not compatible with the AWS Encryption SDK or unrelated S3 clients. Existing KMS metadata remains on the KMS implementation path.

Typed and transfer APIs

The common S3ClientSideEncryptionOperations extensions uploadEncryptedObject and downloadEncryptedObject reuse S3ObjectConverter with both the KMS and provider templates. The converter creates the serialized bytes; the selected encryption operation owns the encrypted upload and zeroizes its temporary byte arrays after the call.

When software.amazon.awssdk:s3-transfer-manager is available, bluetape4k.aws.s3.transfer.enabled=true, and the provider transfer conditions are satisfied, auto-configuration adds S3ClientSideEncryptionTransferOperations:

class SecureFiles(
    private val encryptedTransfer: S3ClientSideEncryptionTransferOperations,
) {
    suspend fun write(bucket: String, key: String, bytes: ByteArray) {
        encryptedTransfer.encryptedOutputStream(bucket, key).use { output ->
            output.write(bytes)
        }
    }
}

encryptedOutputStream encrypts before the underlying S3OutputStream. complete() is the recommended suspend completion path and writes the GCM authentication tag; close() is a blocking compatibility path. If the stream spills after its threshold, the temporary file contains ciphertext only.

downloadEncryptedFile obtains a size and ETag snapshot, downloads with If-Match, checks the ciphertext size, authenticates the complete ciphertext, and writes the plaintext destination only after decryption succeeds. The temporary ciphertext file and decryption buffers are cleaned up on success, failure, and cancellation. An authentication failure therefore leaves the existing destination untouched. The final destination write runs in a non-cancellable I/O boundary; to preserve an existing destination without creating a plaintext temporary file, an existing destination is bounded by the same MAX_CIPHERTEXT_BYTES limit and is restored in memory if the write fails.

Recommended patterns

Put client and background-job ownership at one application boundary. Configure region, credentials, and endpoints once instead of rebuilding them per call.

Integrations

Import the central BOM, add this library without a version, then add only software.amazon.awssdk:<service> modules used by enabled auto-configurations.

Configuration

Use the bluetape4k.aws property namespace, endpoint overrides for emulators, and customizer beans when client-builder control must stay in application code. For S3 client-side encryption, set bluetape4k.aws.s3.client-side-encryption.enabled=true and select the provider explicitly when using AES or RSA. Register exactly one matching provider bean; the KMS default only creates its encryption bean when KmsOperations is present. Transfer-based provider encryption also requires the transfer manager and bluetape4k.aws.s3.transfer.enabled=true.

Failure modes

Most missing-bean failures mean the service SDK is absent or a condition did not match. For S3 client-side encryption, a KMS default without KmsOperations backs off without replacing it with AES/RSA. An AES/RSA configuration with no matching provider, or with more than one candidate, fails startup. Invalid key lengths, RSA key pairs, reserved metadata collisions, malformed envelope metadata, and provider/key identity mismatches fail closed. Authentication or wrapping failures surface as S3ClientSideEncryptionException and never return plaintext. SQS visibility, listener concurrency, payload conversion, and shutdown timeouts require explicit tuning.

Operations

Expose Micrometer metrics, make listener acknowledgement policy explicit, close custom clients, and keep environment property-source calls out of request paths. Keep the source SecretKey/KeyPair, its storage, and its rotation policy in the application boundary. Spring closes the provider template’s internal material on context shutdown; it does not provide a key store, rotation service, or HSM integration. Do not log key material, provider context, or plaintext payloads.

Testing

Use ApplicationContextRunner for conditional beans and Floci-backed integration tests for enabled services. The provider acceptance lane covers AES byte/typed/stream/file operations, RSA byte operations, ciphertext metadata, and KMS regression:

./gradlew -Dbluetape4k.aws.emulator=floci --no-parallel --max-workers=1 \
  :bluetape4k-aws-spring-boot:test \
  --tests '*S3ClientSideEncryptionProviderAwsEmulatorTest'

Test listener shutdown and redelivery, not only successful sends. The Floci test does not prove AWS quotas, production credentials, or HSM behavior.

Workshops and learning path

Read auto-configuration, then storage-and-messaging, then runtime-operations; run the four released Spring Boot examples.

Limitations

This is not awspring and does not enable every AWS service automatically. Optional integrations remain absent until their classes and properties are present. KMS client-side encryption remains byte-array-based at its primitive operation boundary and has no provider transfer adapter. The shared typed extensions work with either KMS or provider implementations; provider streaming and file APIs use the Bluetape4k envelope described above. The envelope is not an AWS Encryption SDK format and does not promise interoperability with other S3 clients. This module does not store, rotate, or recover keys and does not provide HSM or legal compliance guarantees.

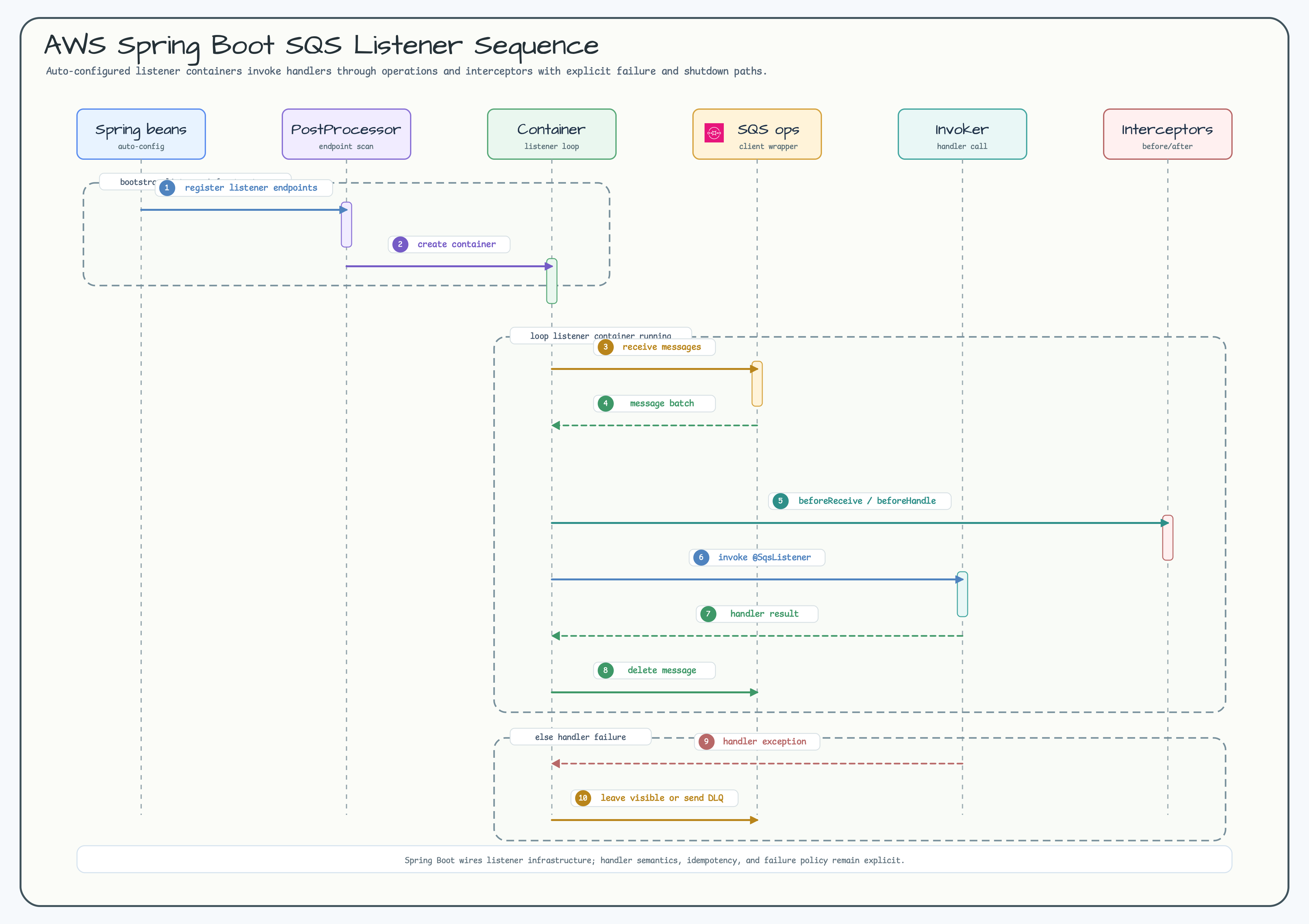

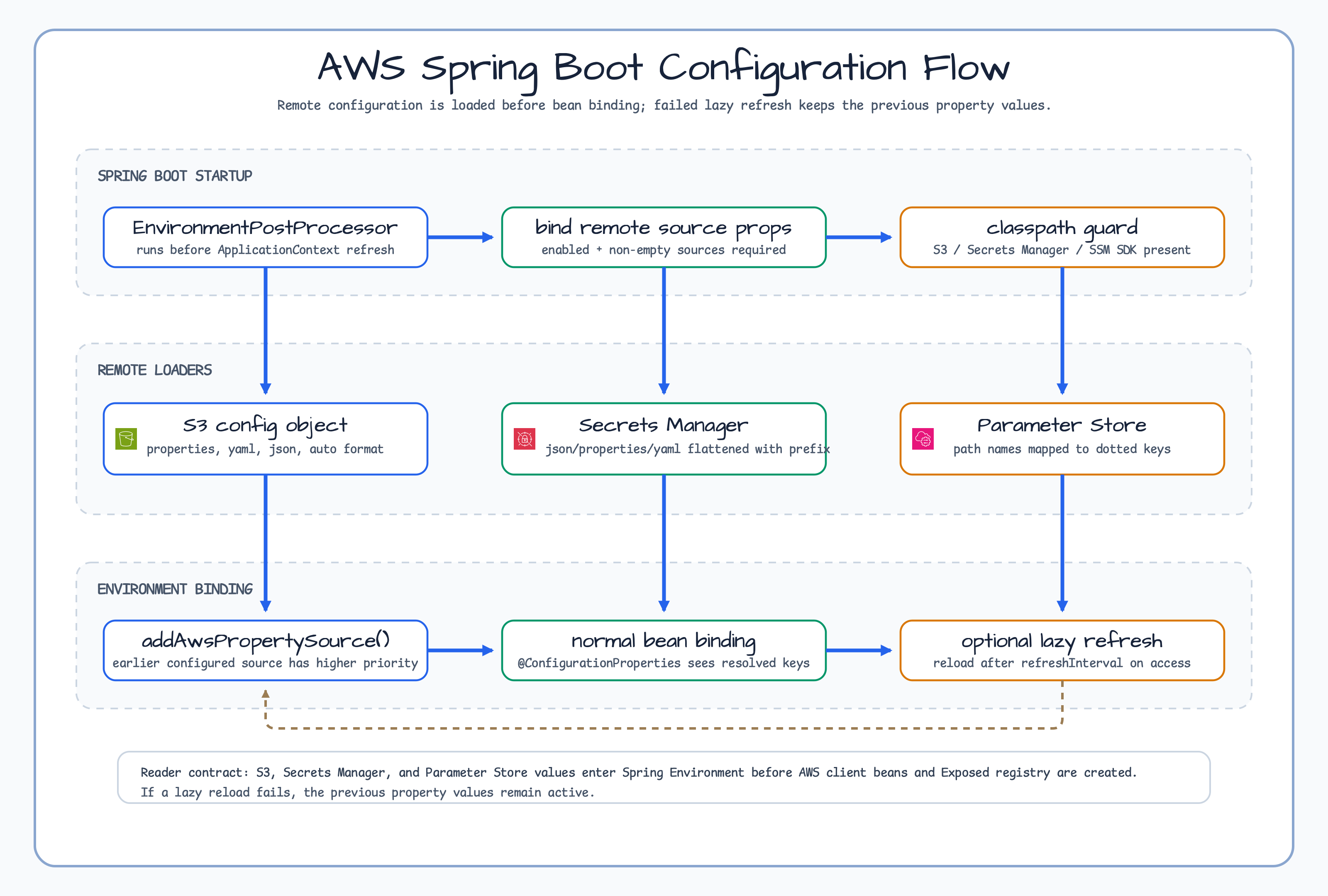

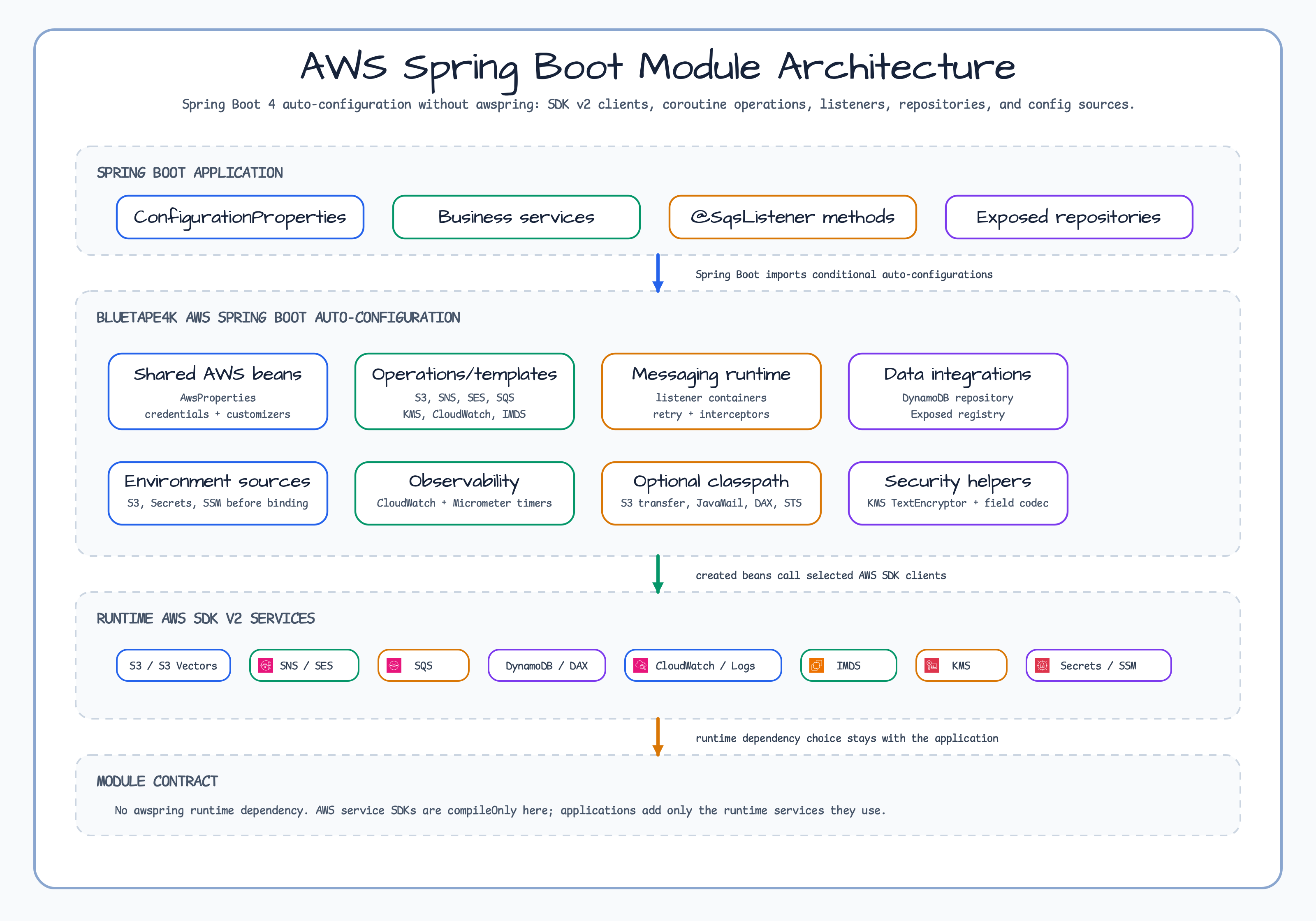

Release diagrams

These diagrams are loaded directly from README assets published with the 1.0.0 release and pinned to its immutable commit. They describe this manual’s released structure and runtime flows, not later Snapshot changes. Select a preview to open the SVG at the same release commit.
